Home >> Mazda >> 2012 >> 2 L4-1.5L >> Repair and Diagnosis >> Brakes and Traction Control >> Specifications

Brakes and Traction Control: Specifications

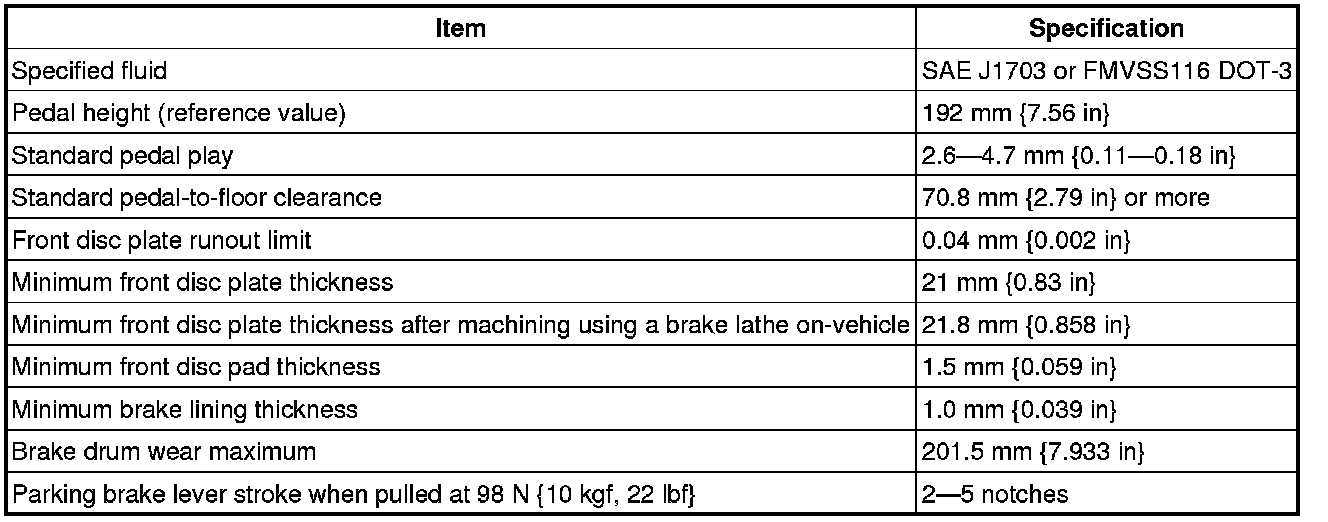

BRAKES TECHNICAL DATA

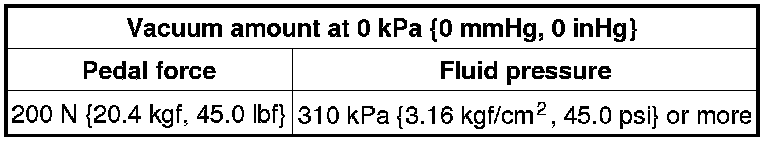

Standard power brake unit non-servo operation

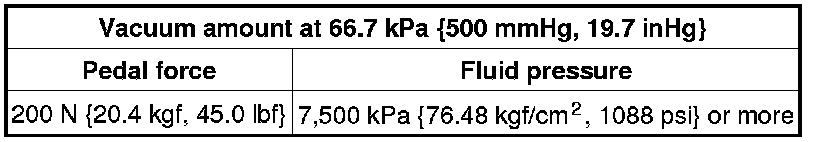

Standard power brake unit servo operation
