Power Door Lock Switch: Service and Repair

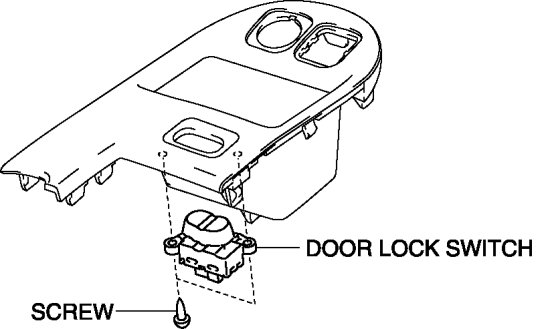

DOOR LOCK SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the console panel. Rear Console Removal/Installation

3. Remove the screws.






4. Disconnect the door lock switch connector.

5. Install in the reverse order of removal.
