Home >> Mazda >> 2011 >> Tribute 2WD V6-3.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

Timing Cover

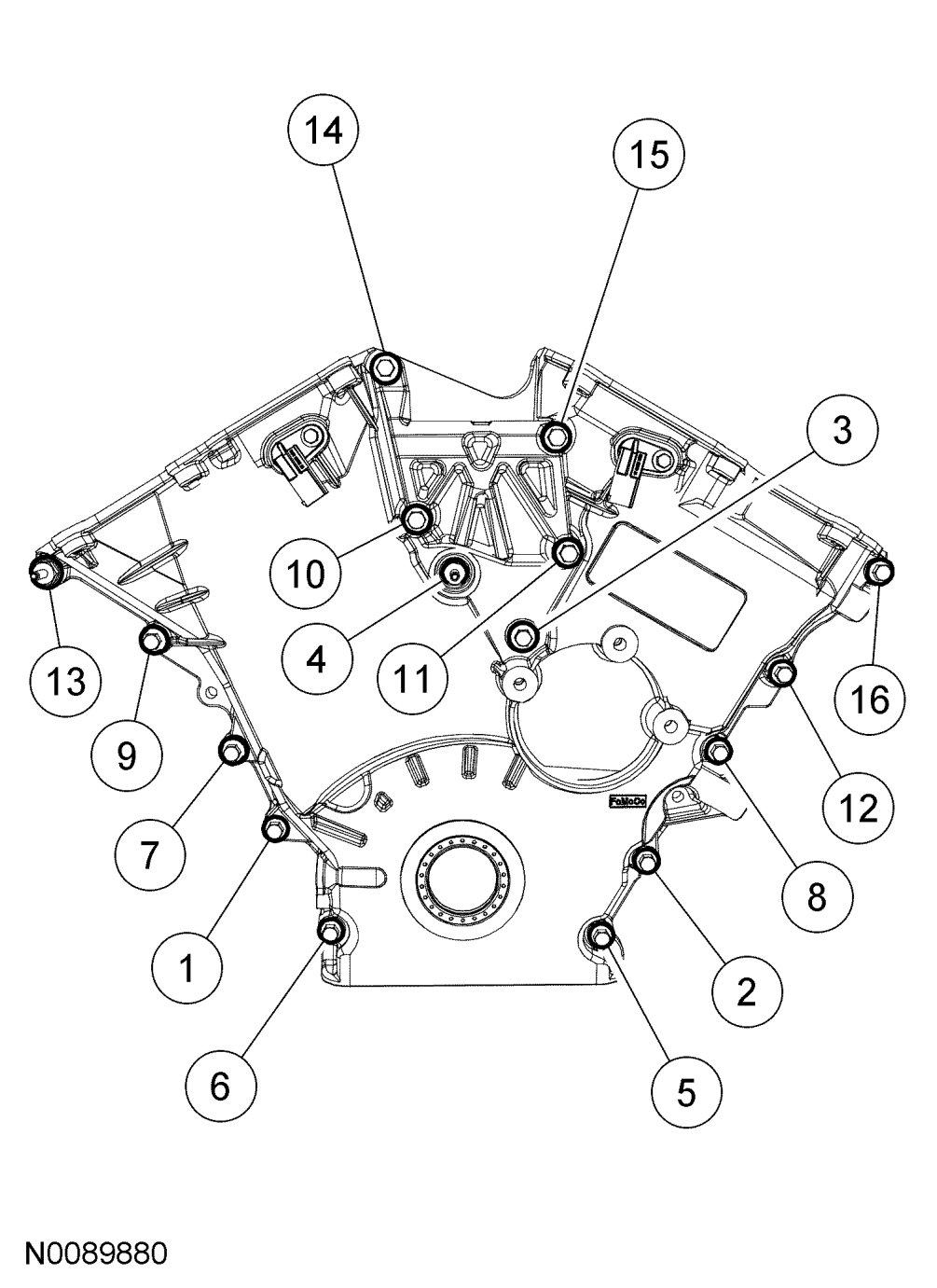

Tighten in the sequence shown to 25 Nm {2.5 kgf-m, 18 ft-lbf}
