Home >> Mazda >> 2011 >> Tribute 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Technical Data

Engine Technical Data




SPECIFICATIONS - HYBRID

General Specifications

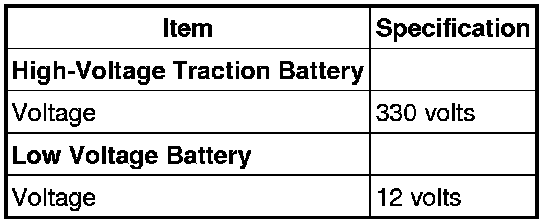

Traction Battery Specifications

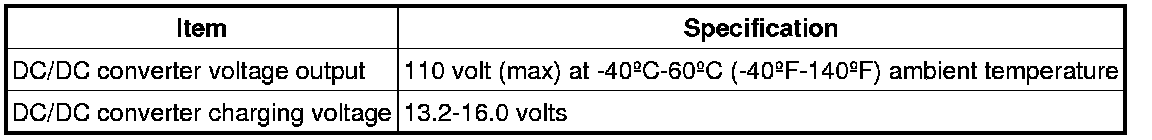

High-Voltage Converter/Inverter

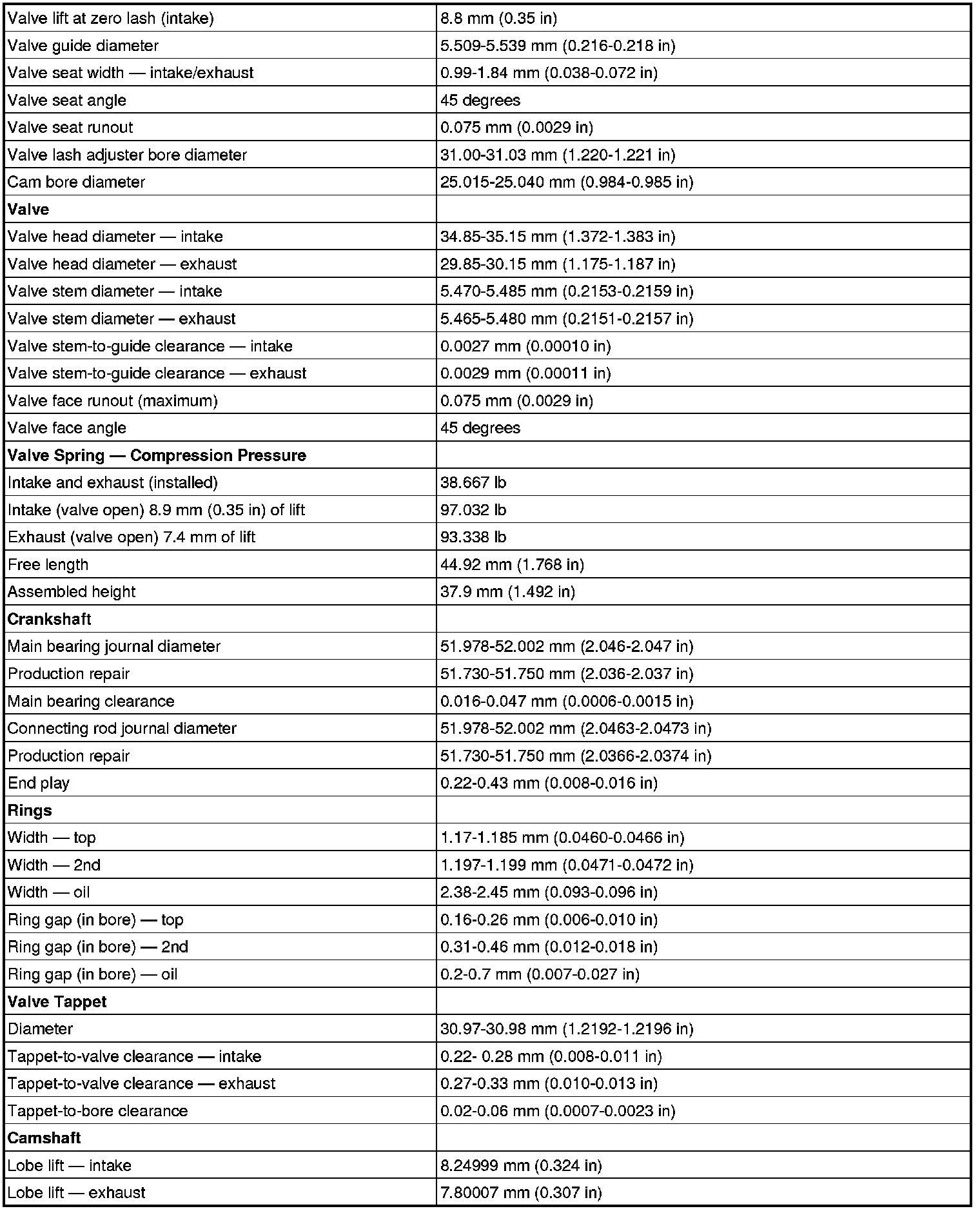

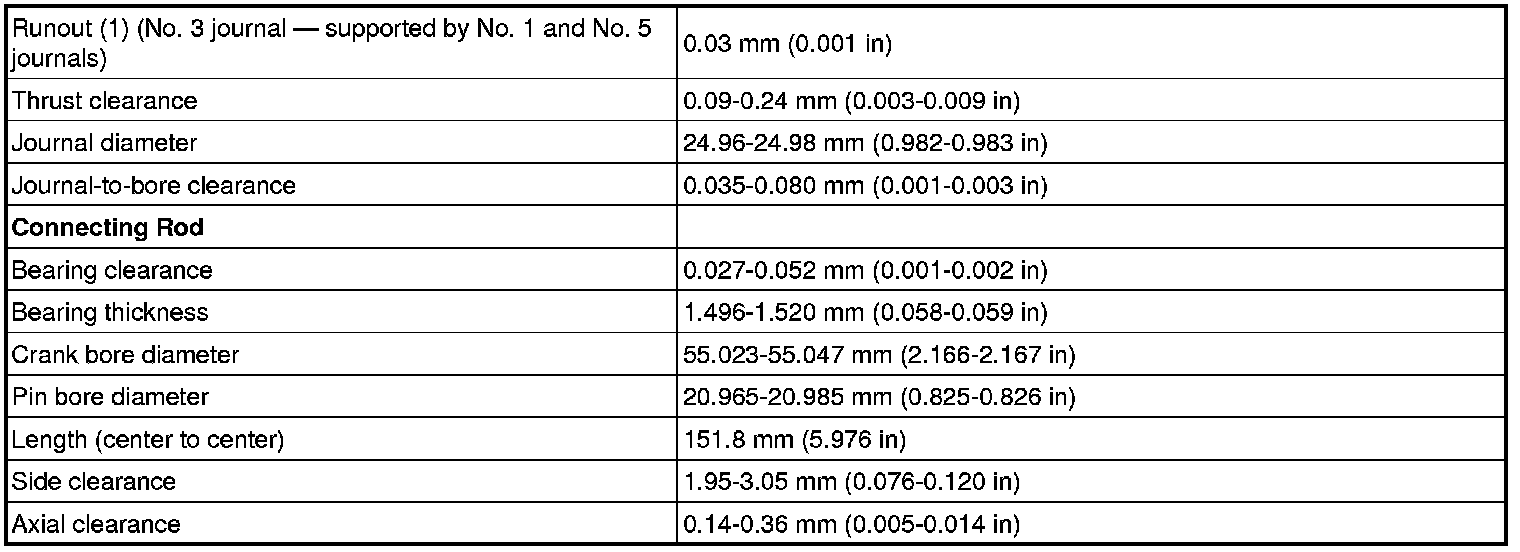

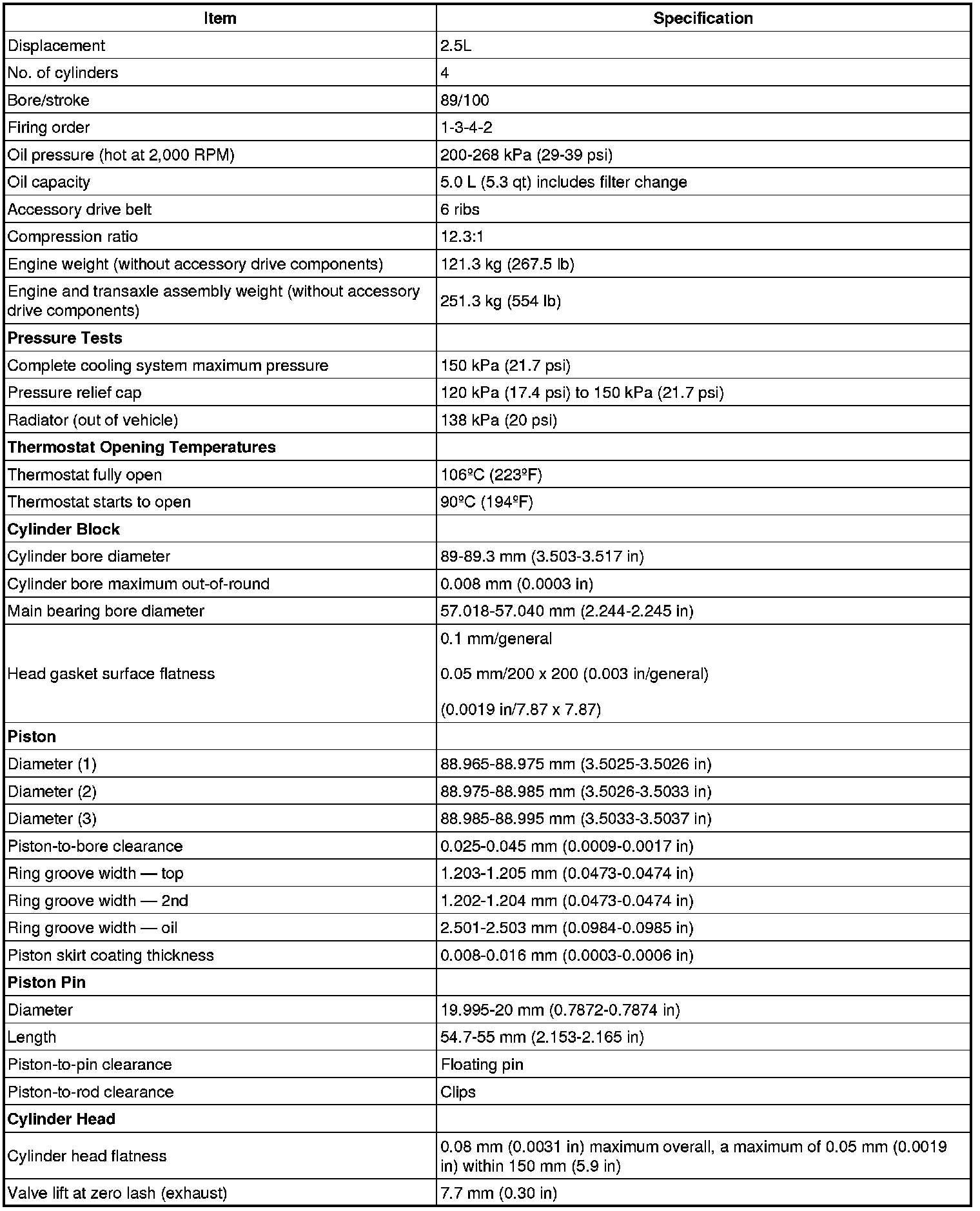

Hybrid Engine
