System Diagram

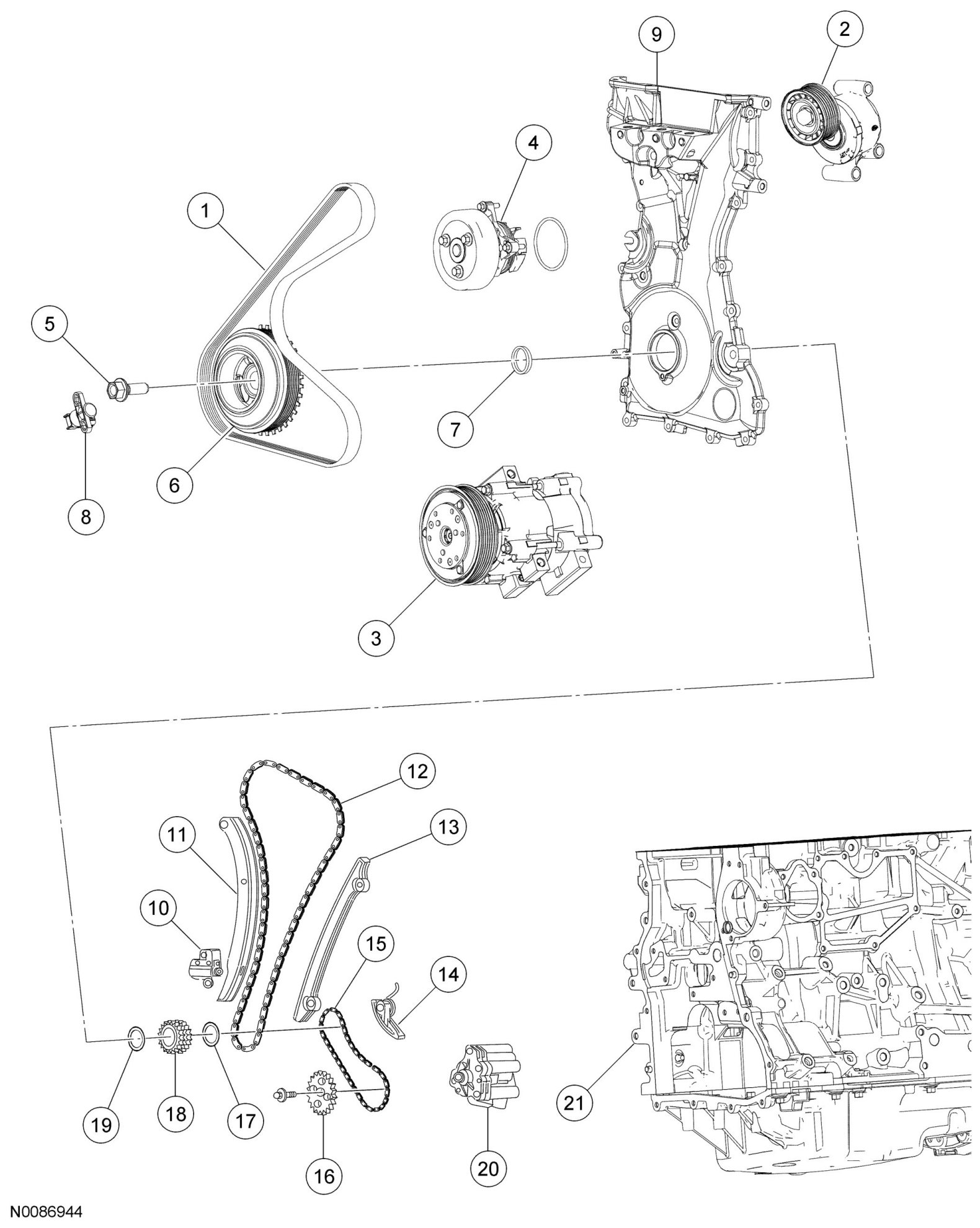

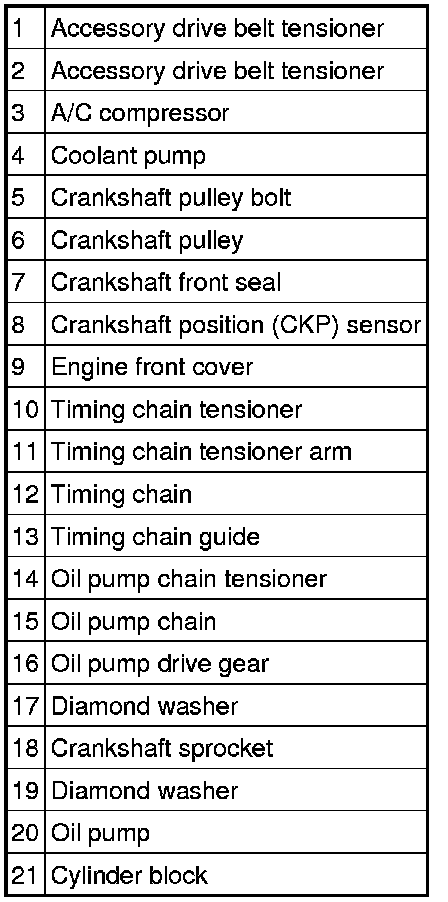

FRONT ENGINE BLOCK - HYBRID EXPLODED VIEW









1. For additional information, see the procedures.
