Engine Lubrication

ENGINE LUBRICATION COMPONENTS EXPLODED VIEW - HYBRID

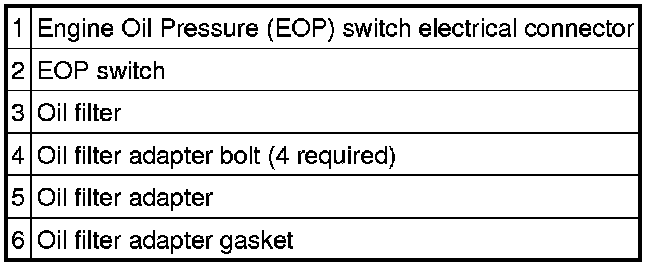

Oil Filter Adapter, Oil Filter and Engine Oil Pressure (EOP) Switch

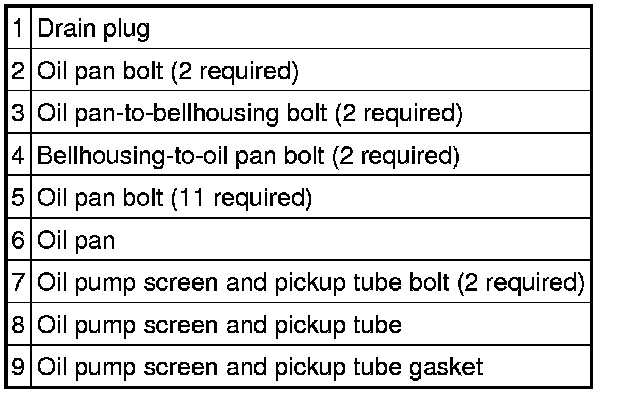

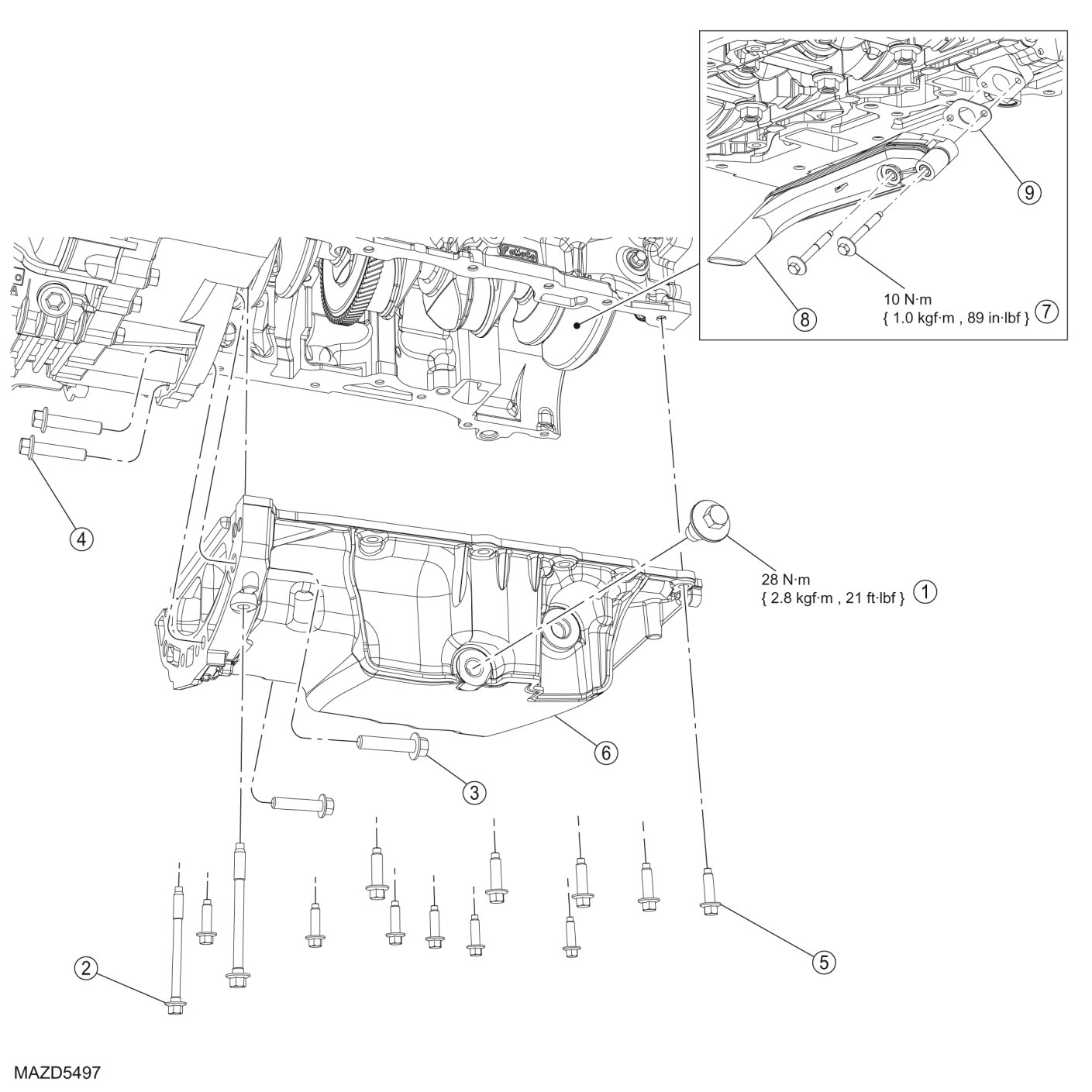

Oil Pan, Oil Pump Screen and Pickup Tube

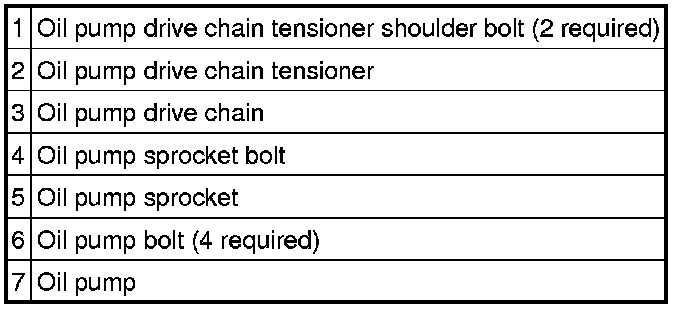

Oil Pump










1. For additional information, see - Service and Repair, - Service and Repair, - Service and Repair and - Service and Repair.
