Ignition Coil: Service and Repair

IGNITION COIL REMOVAL/INSTALLATION [13B-MSP]

1. Remove the engine cover. Service and Repair

2. Remove the battery cover. Removal and Replacement

3. Remove the negative battery cable. Removal and Replacement

4. Remove the air hose (air cleaner to throttle body). Intake-Air System Removal/Installation

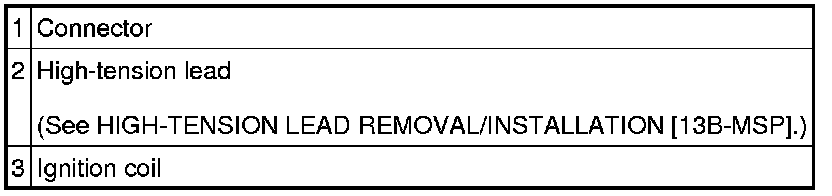

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
