Emission Control Systems: Locations




EMISSION SYSTEM LOCATION INDEX [13B-MSP]

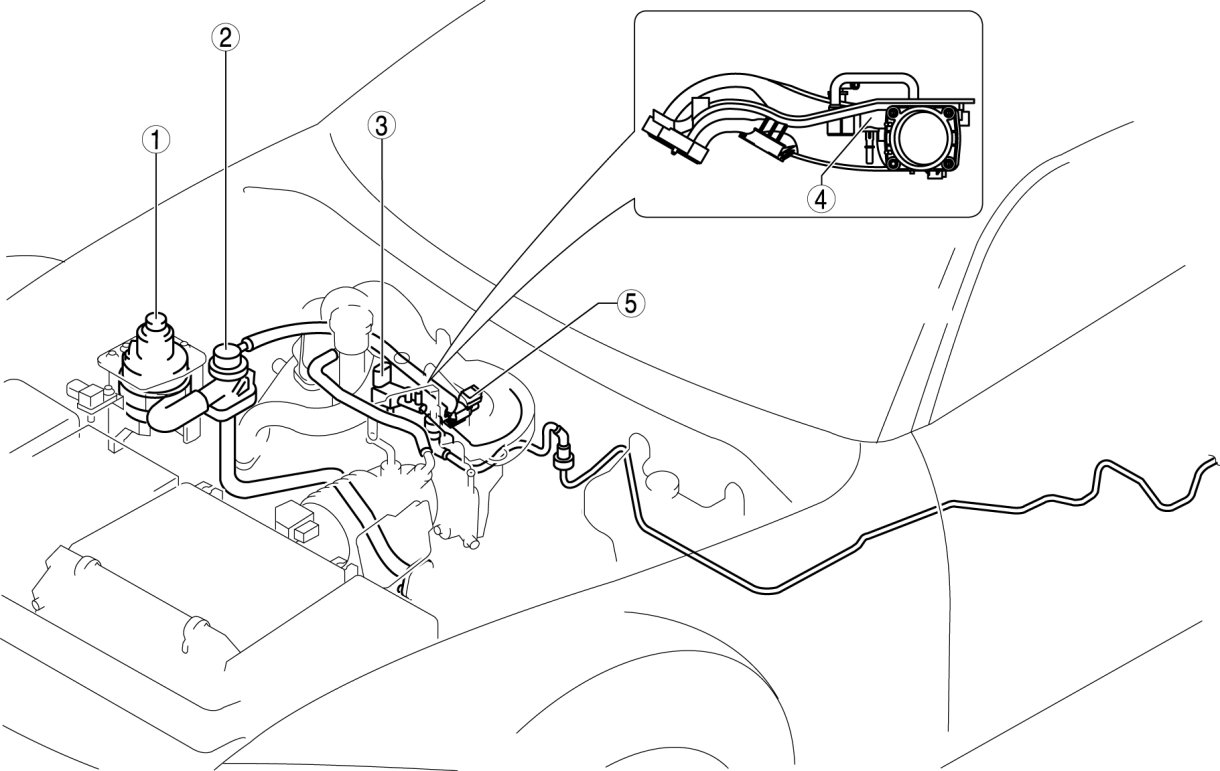

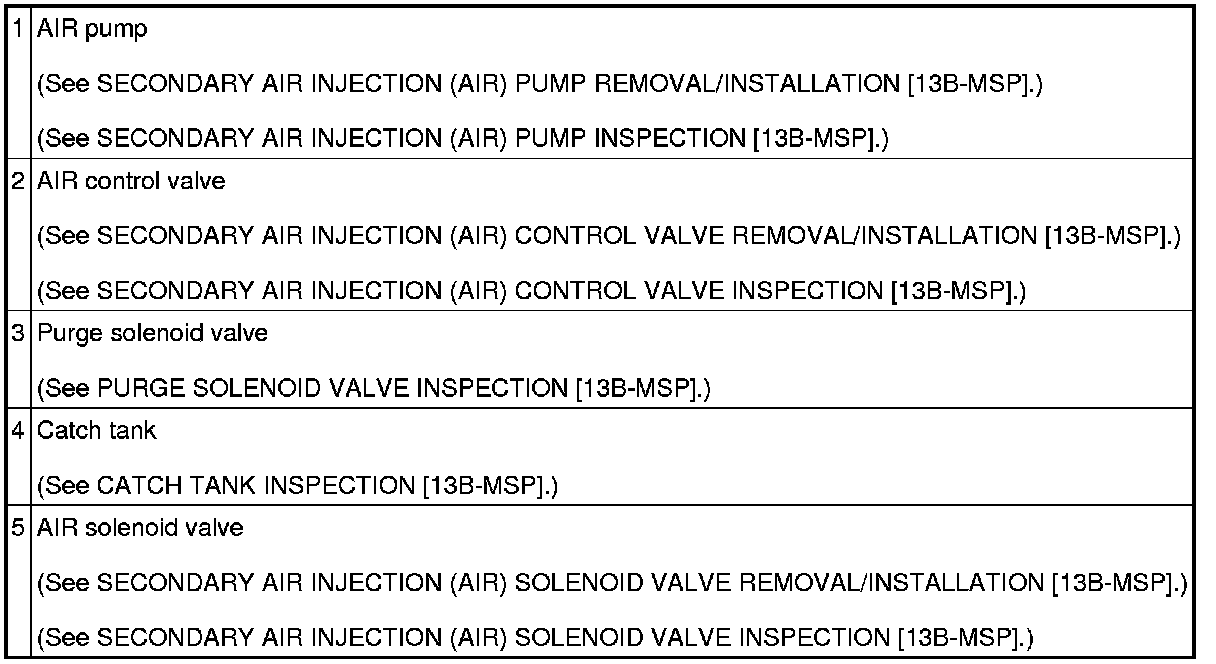

Engine Compartment Side

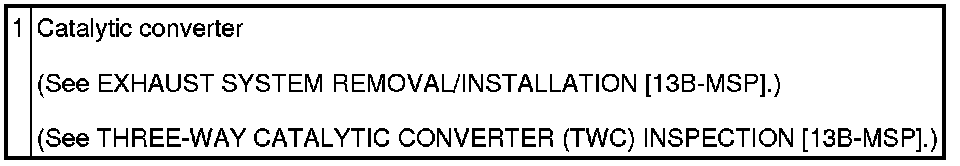

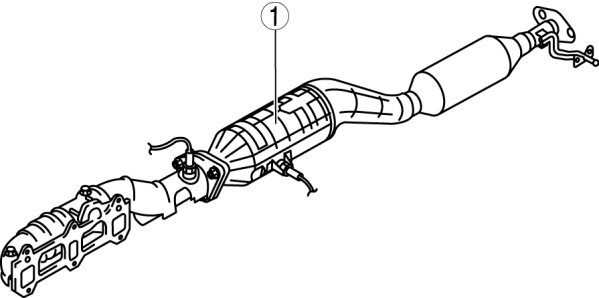

Exhaust System

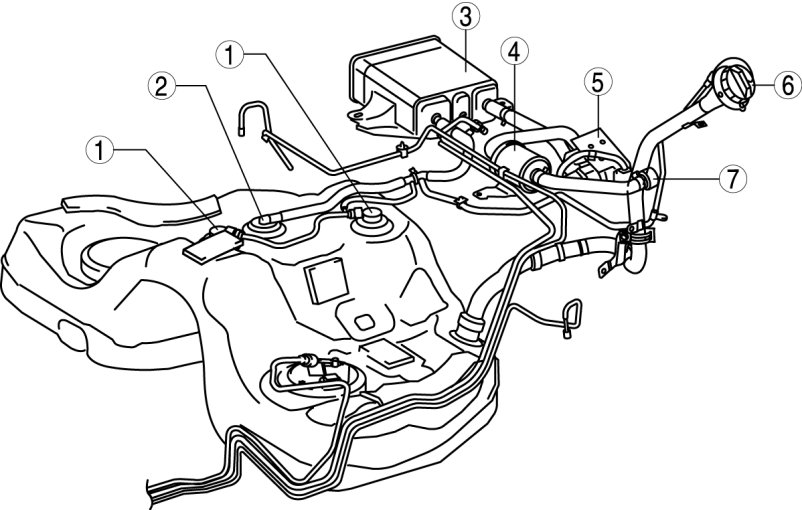

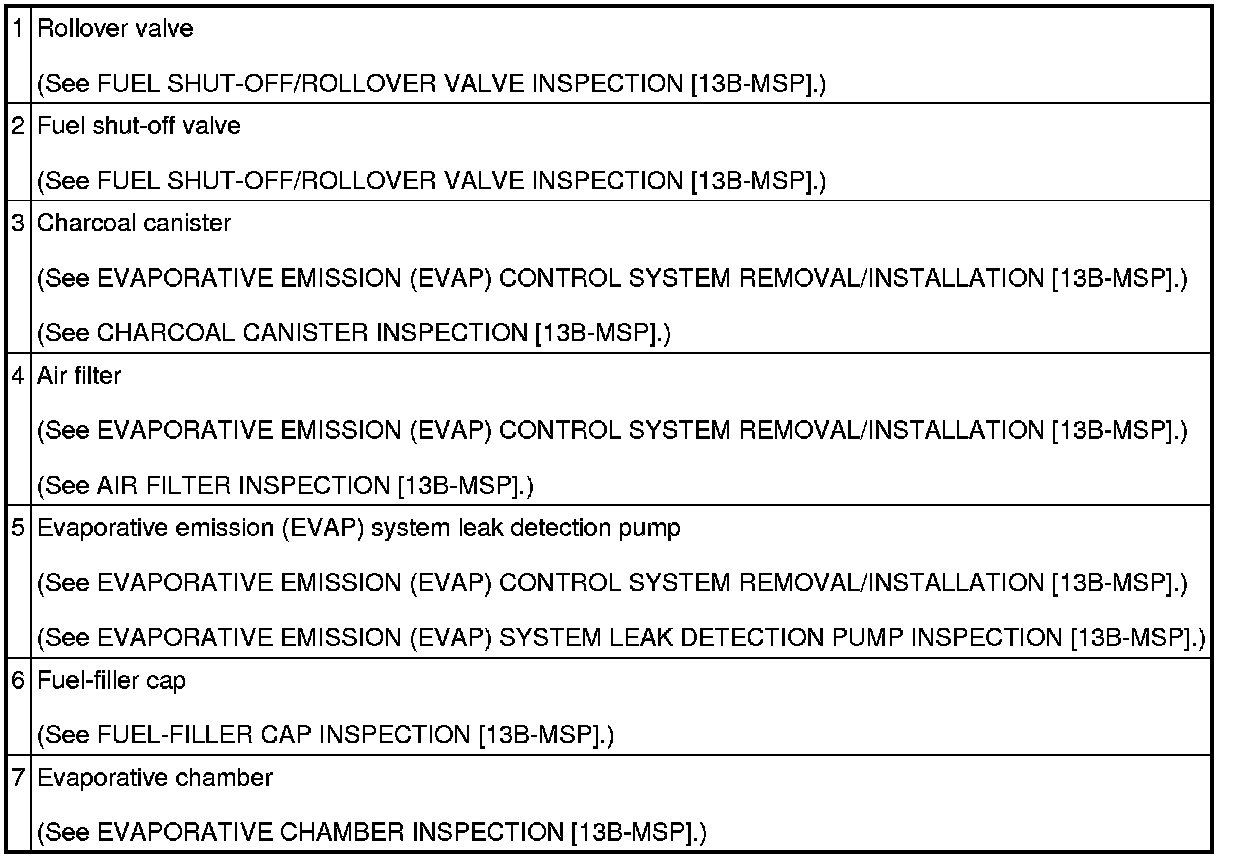

Fuel Tank Side
