Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

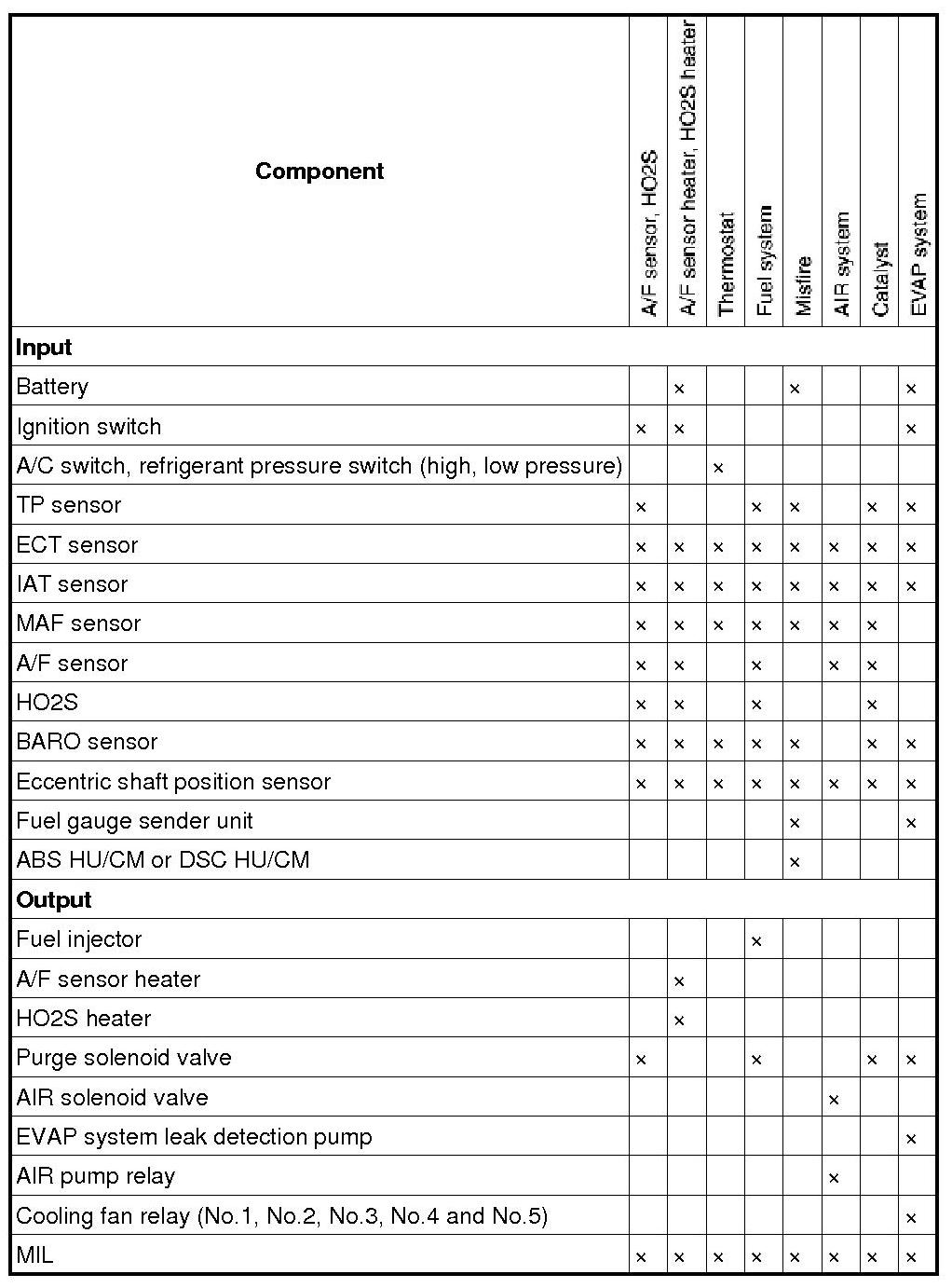

MONITORING SYSTEM AND CONTROL SYSTEM DEVICE RELATIONSHIP CHART [13B-MSP]
x: Applicable
