Fuse: Service and Repair

MAIN FUSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the main fuse block cover.

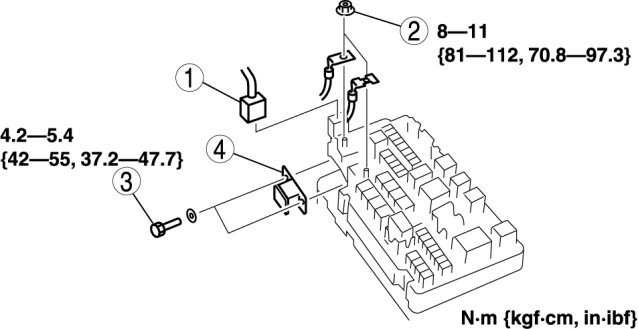

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Bolt Removal Note

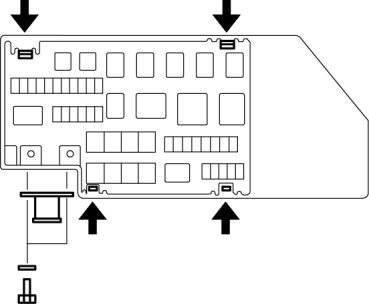

1. Press the tabs in the direction indicated by the arrows, lift the main fuse block, and then remove the bolt.
