Solar Sensor: Testing and Inspection

SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER]

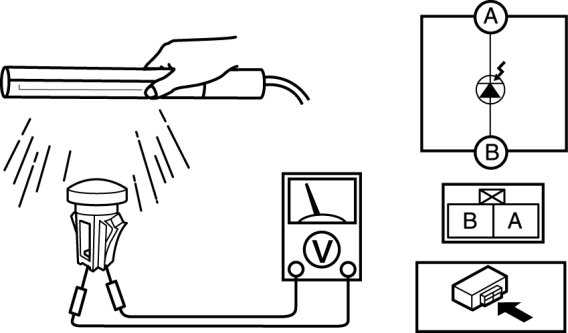

1. Shine a fluorescent light or expose the solar radiation sensor to natural sunlight.

2. Connect the positive (+) lead to terminal A and the negative (-) lead to terminal B of the solar radiation sensor, and verify that the voltage value is output.






- If the voltage is 0 V, replace the solar radiation sensor.
