Car-Navigation System

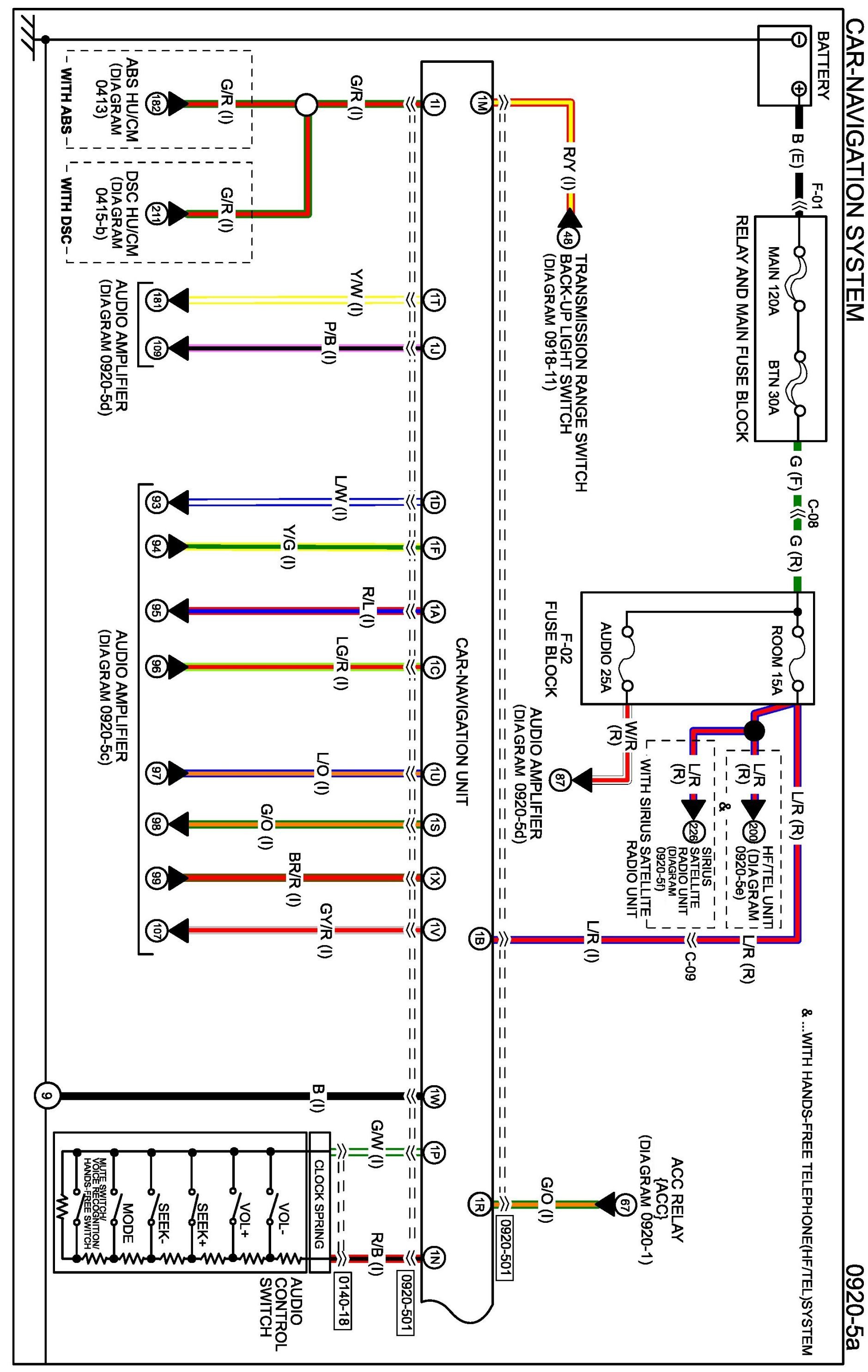

Diagram 0920-5a:

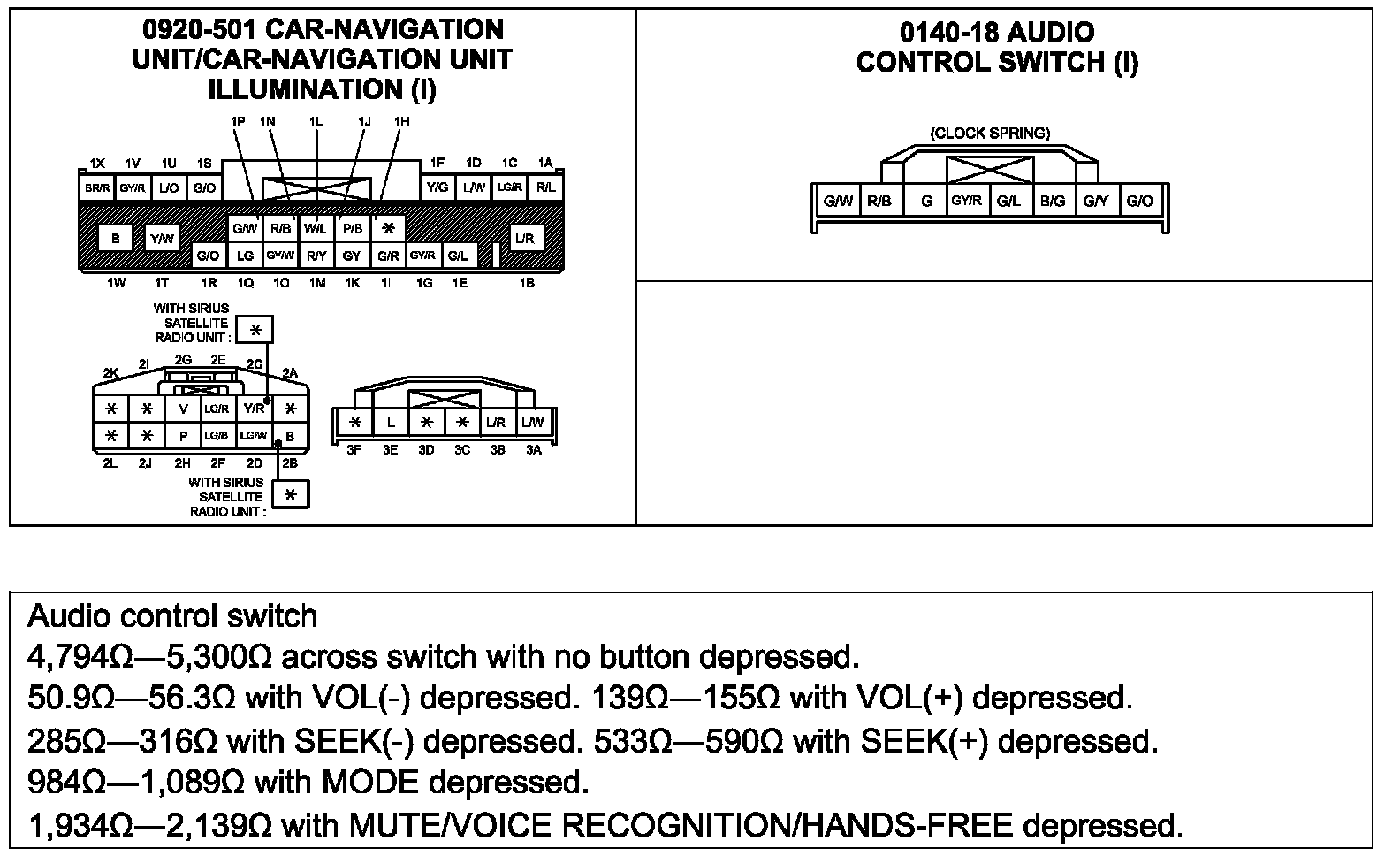

Connectors 0920-5a:

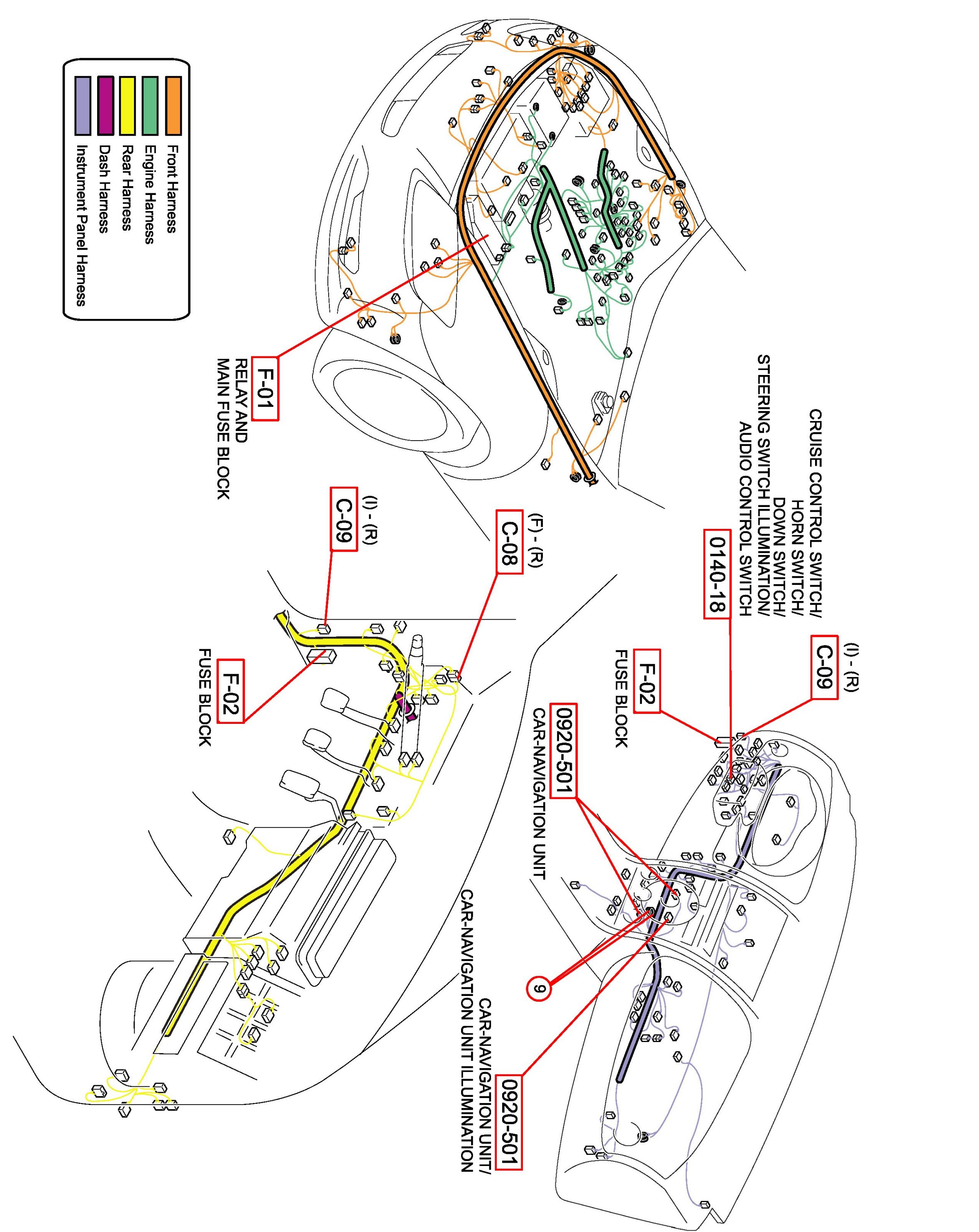

Routing View 0920-5a:

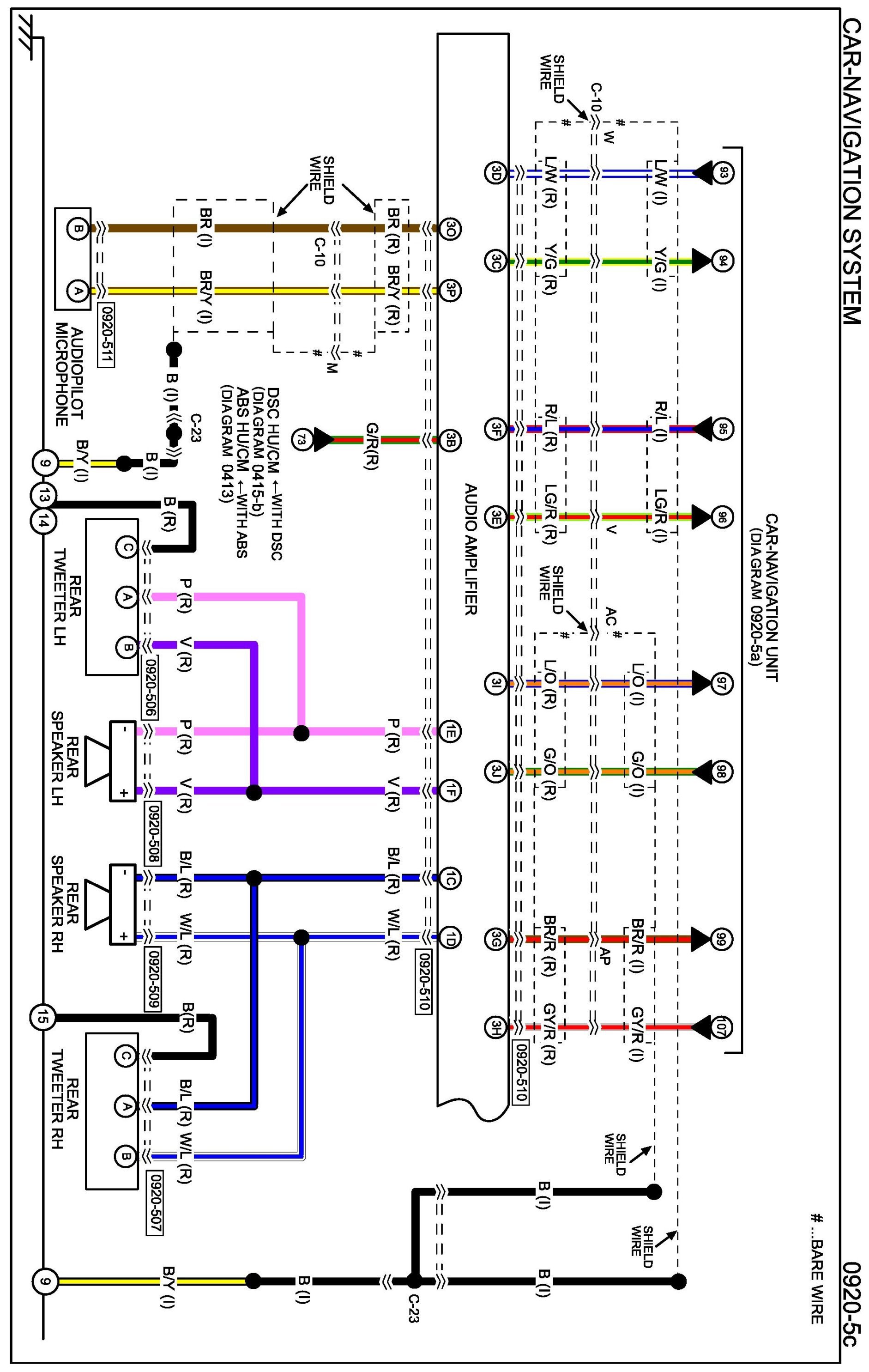

Diagram 0920-5c:

Connectors 0920-5c:

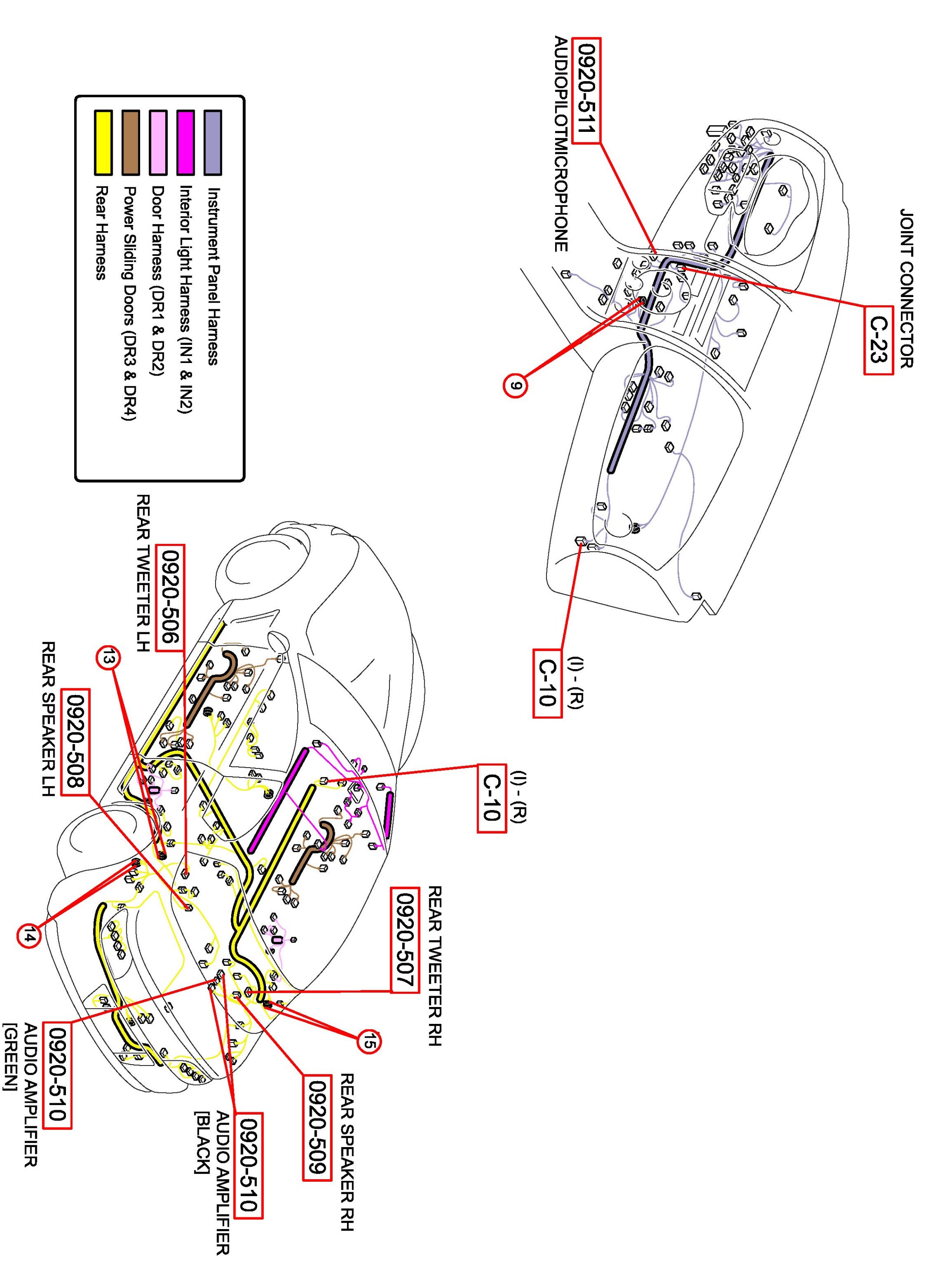

Routing View 0920-5c:

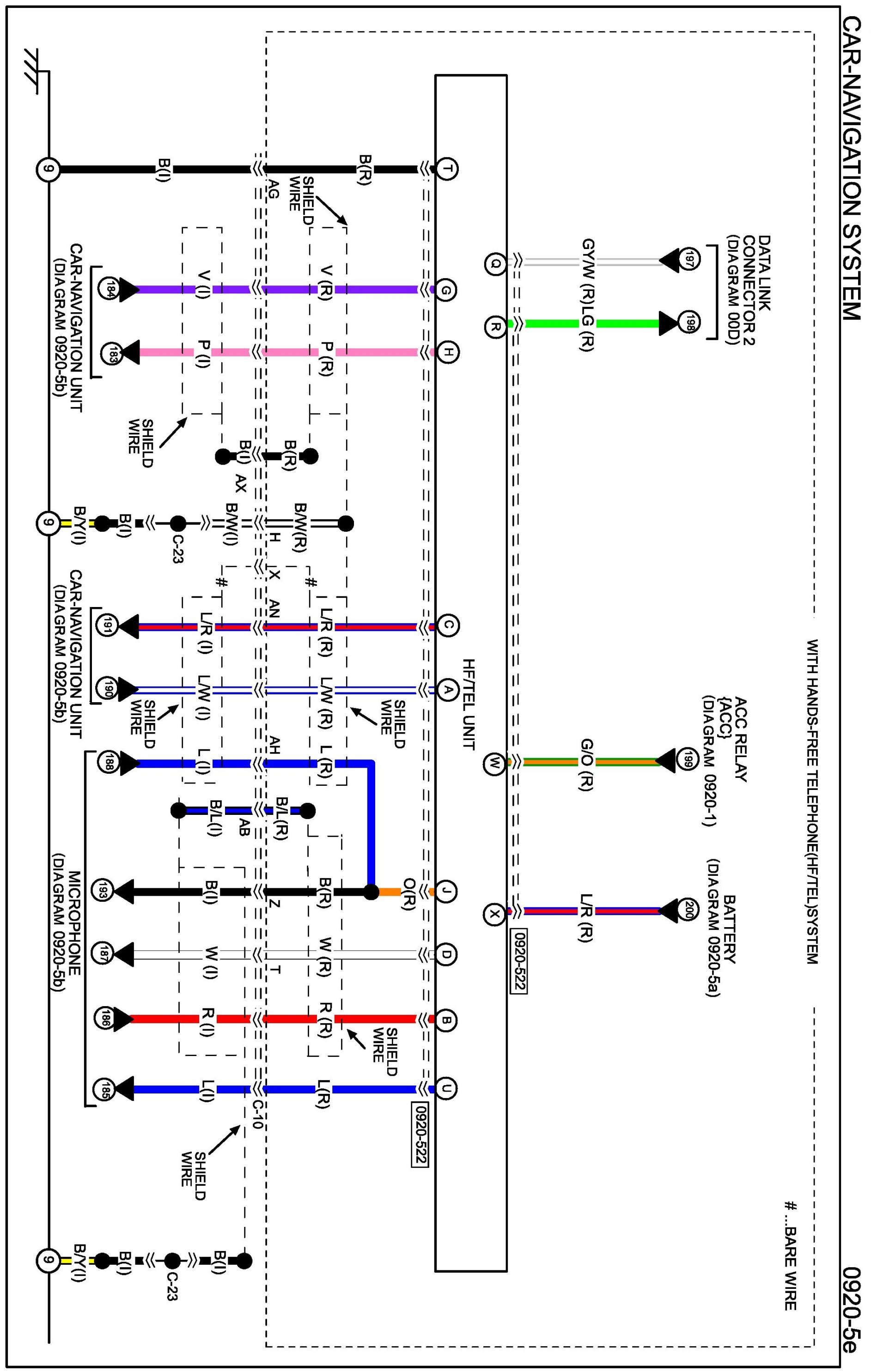

Diagram 0920-5e:

Connectors 0920-5e:

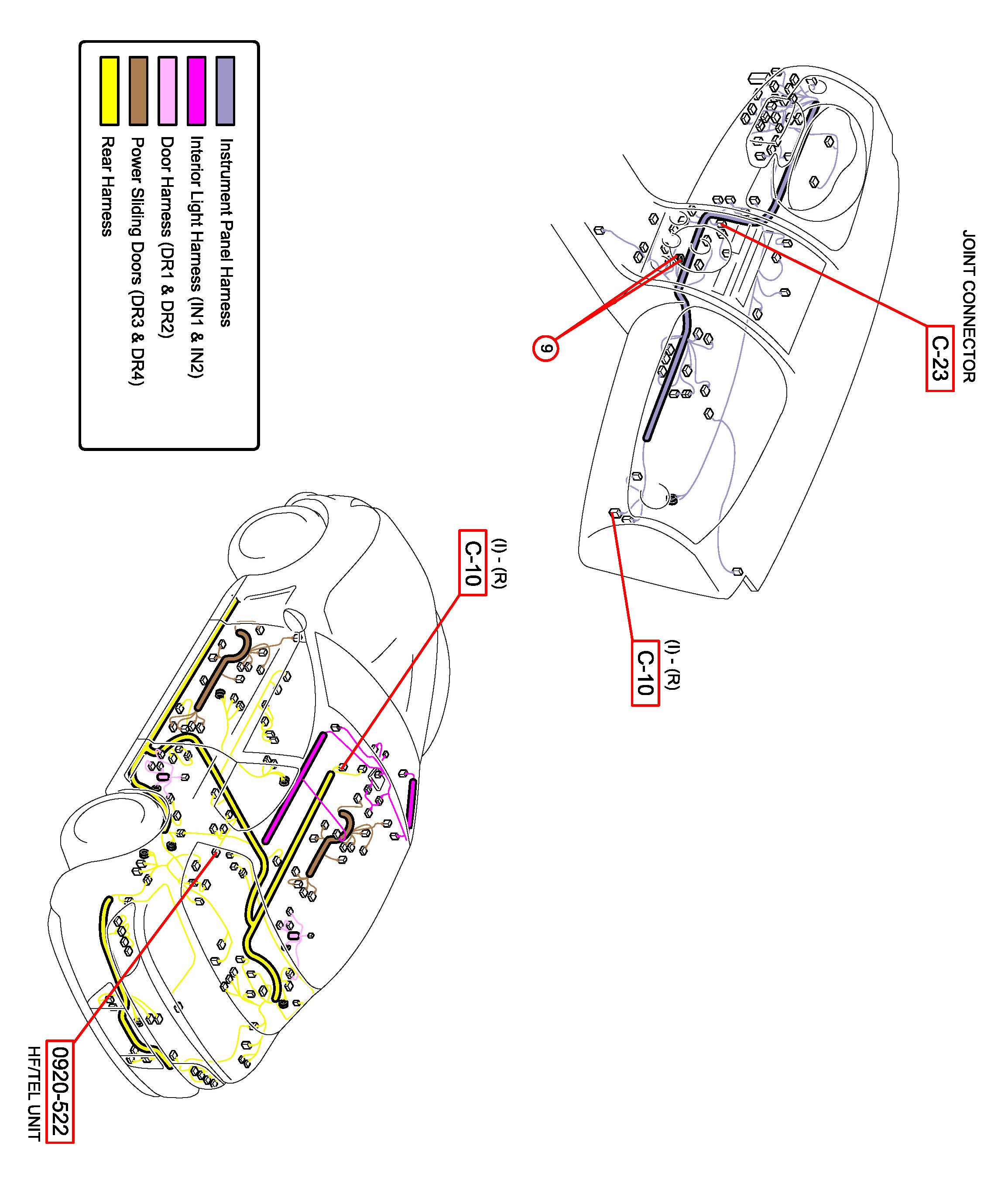

Routing View 0920-5e:

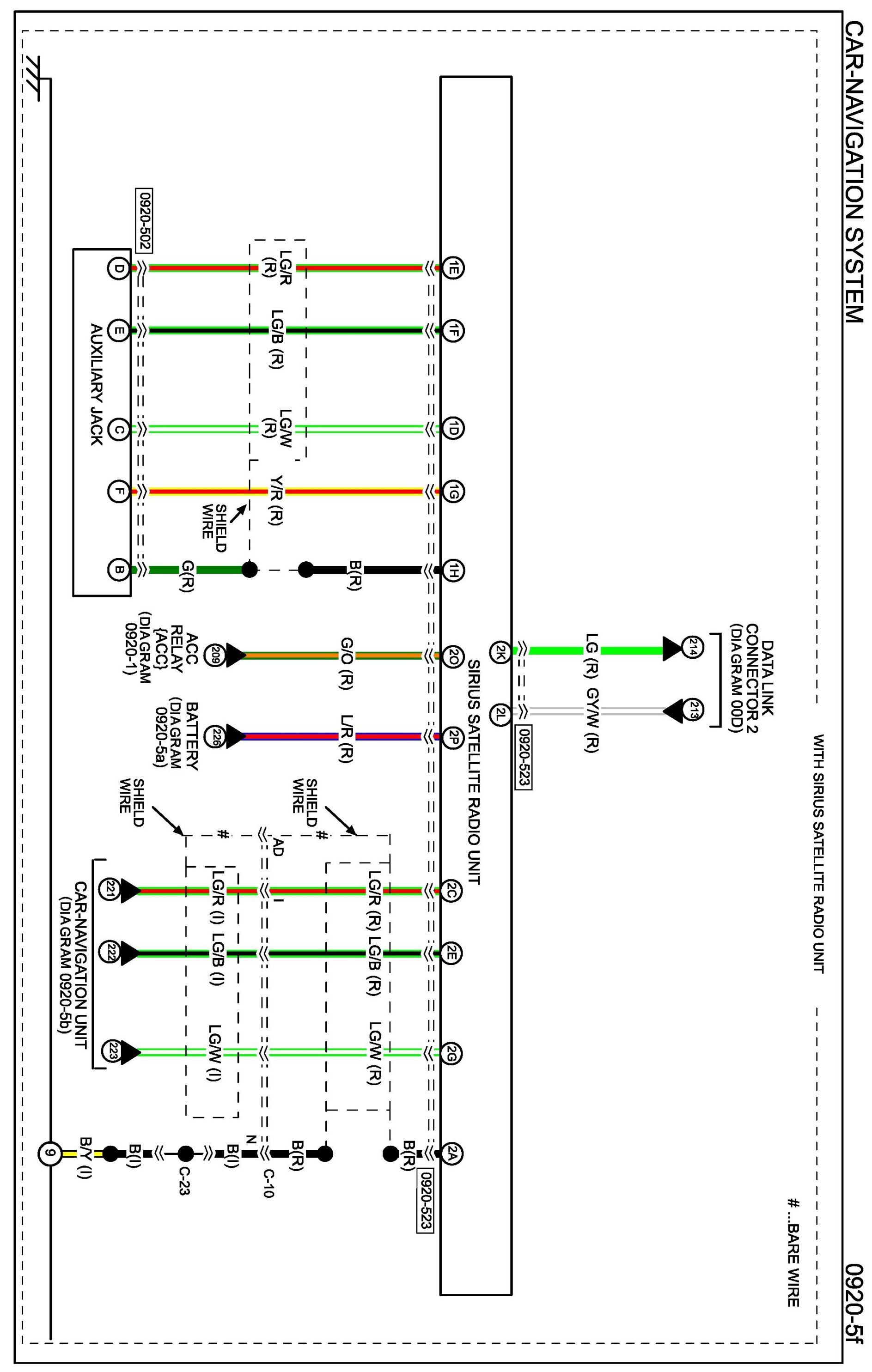

Diagram 0920-5f:

Connectors 0920-5f:

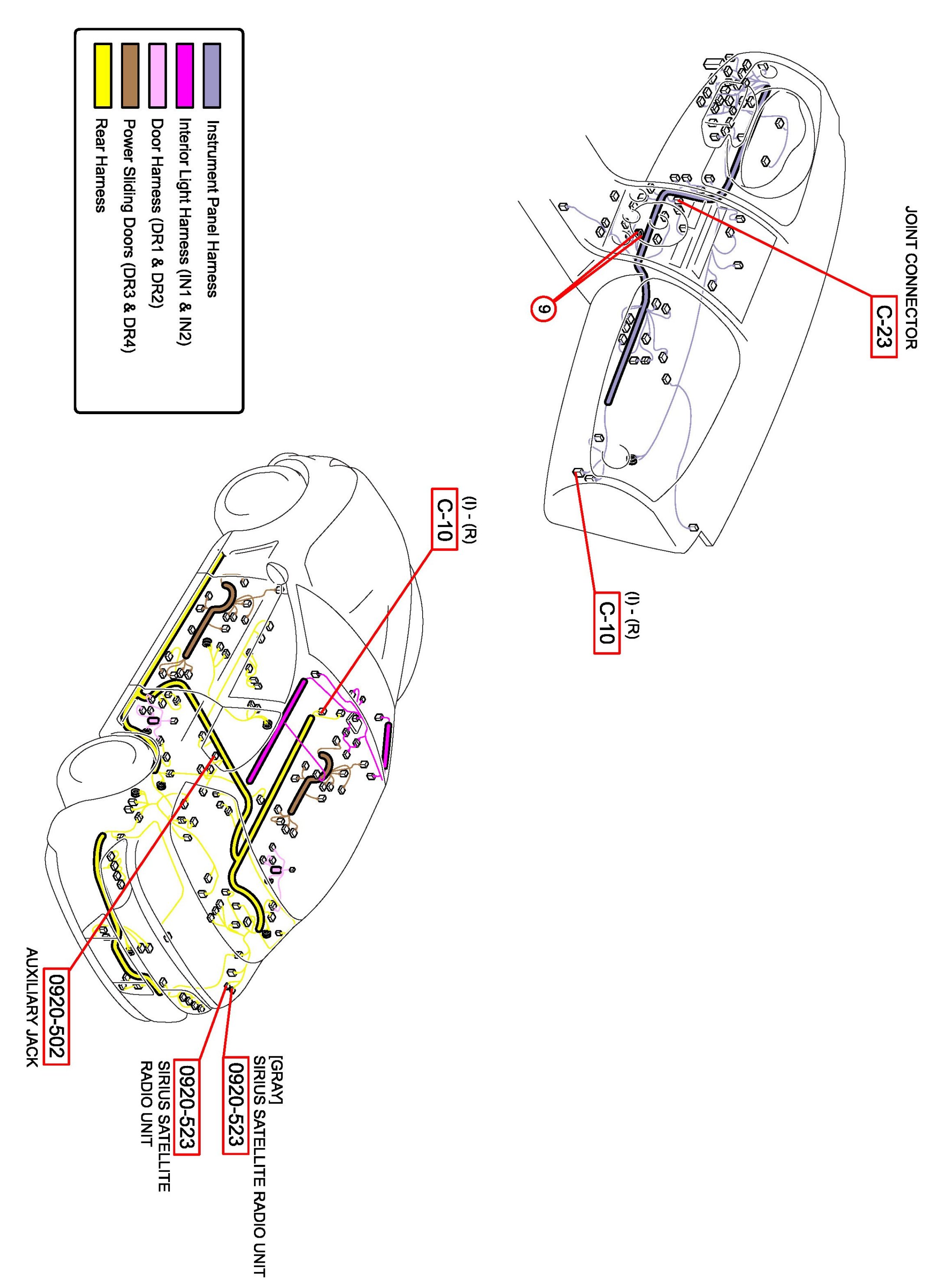

Routing View 0920-5f:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
