Locations
>>
Connector Locations
Connector Locations

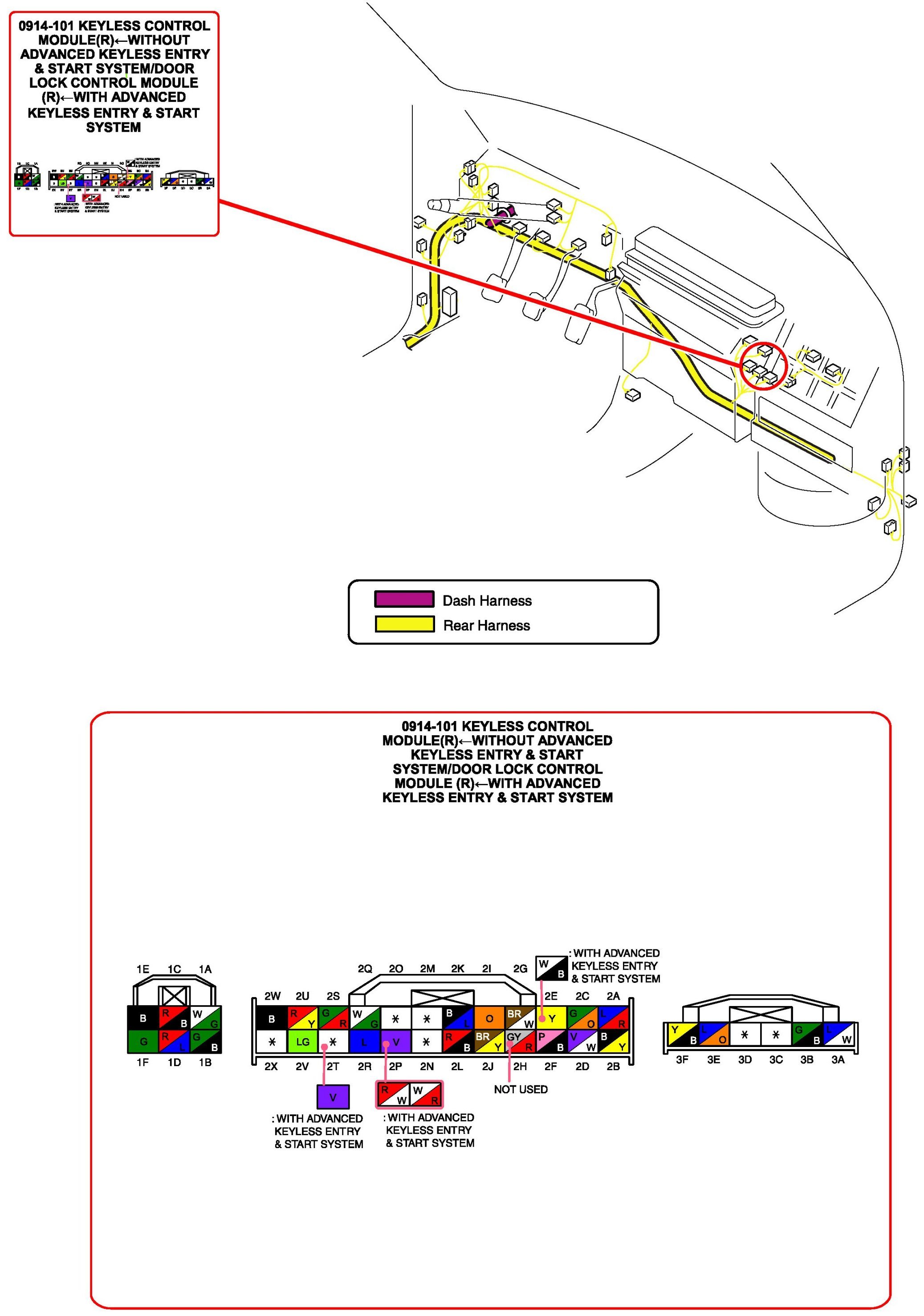

Keyless Control Module (R)<--Without Advanced Keyless Entry & Start System/Door Lock Control Module (R)<--With Advanced Keyless Entry & Start System
