Emission Control Systems: Locations




EMISSION SYSTEM LOCATION INDEX [L3 WITH TC]

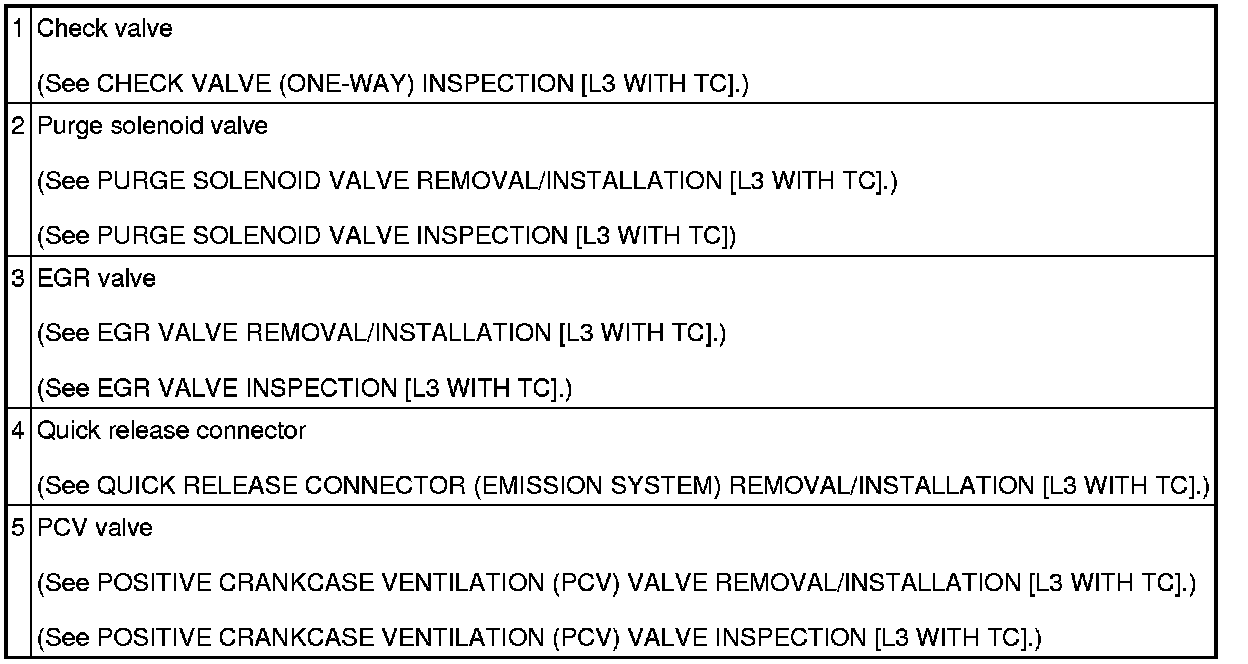

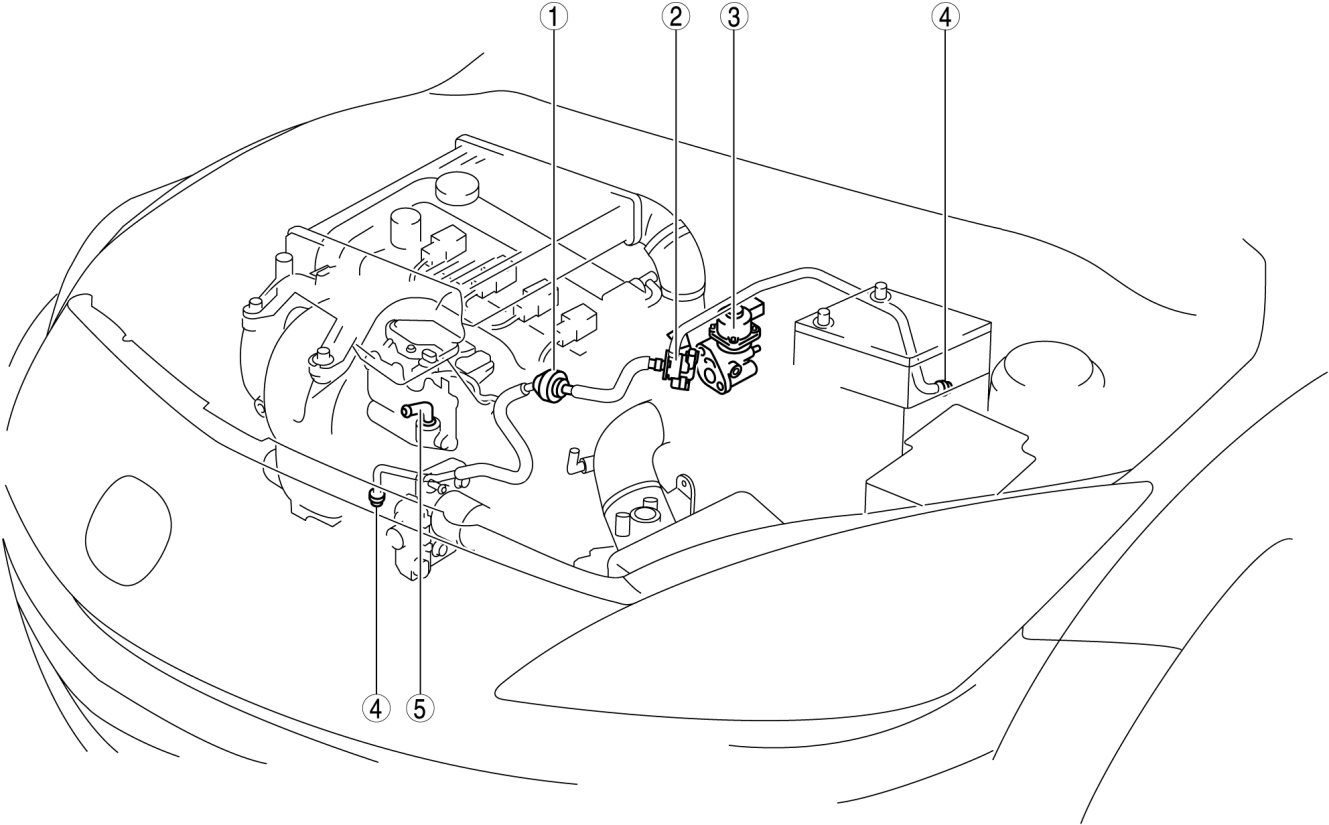

Engine Compartment Side

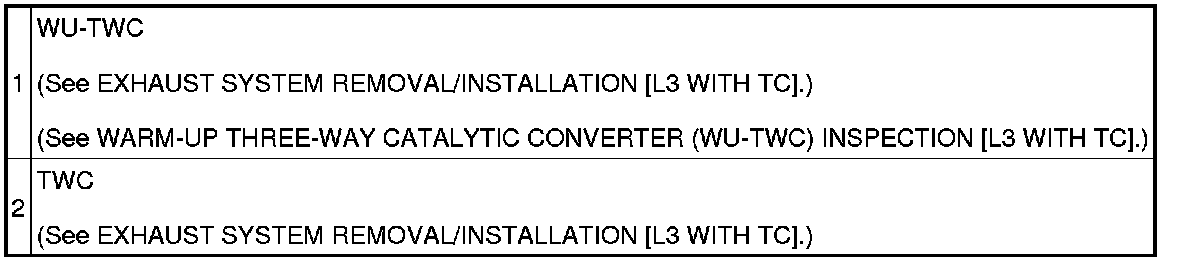

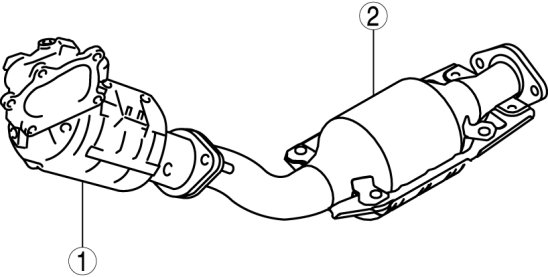

Exhaust System Side

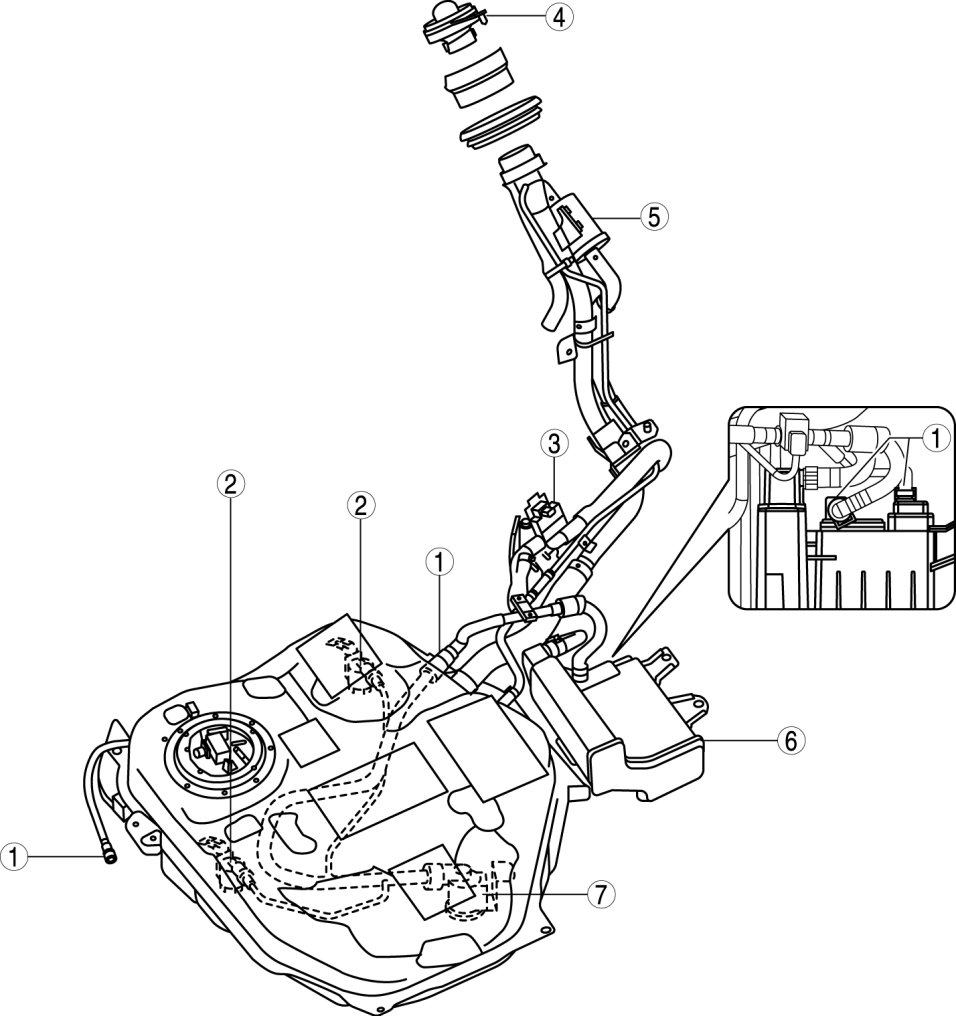

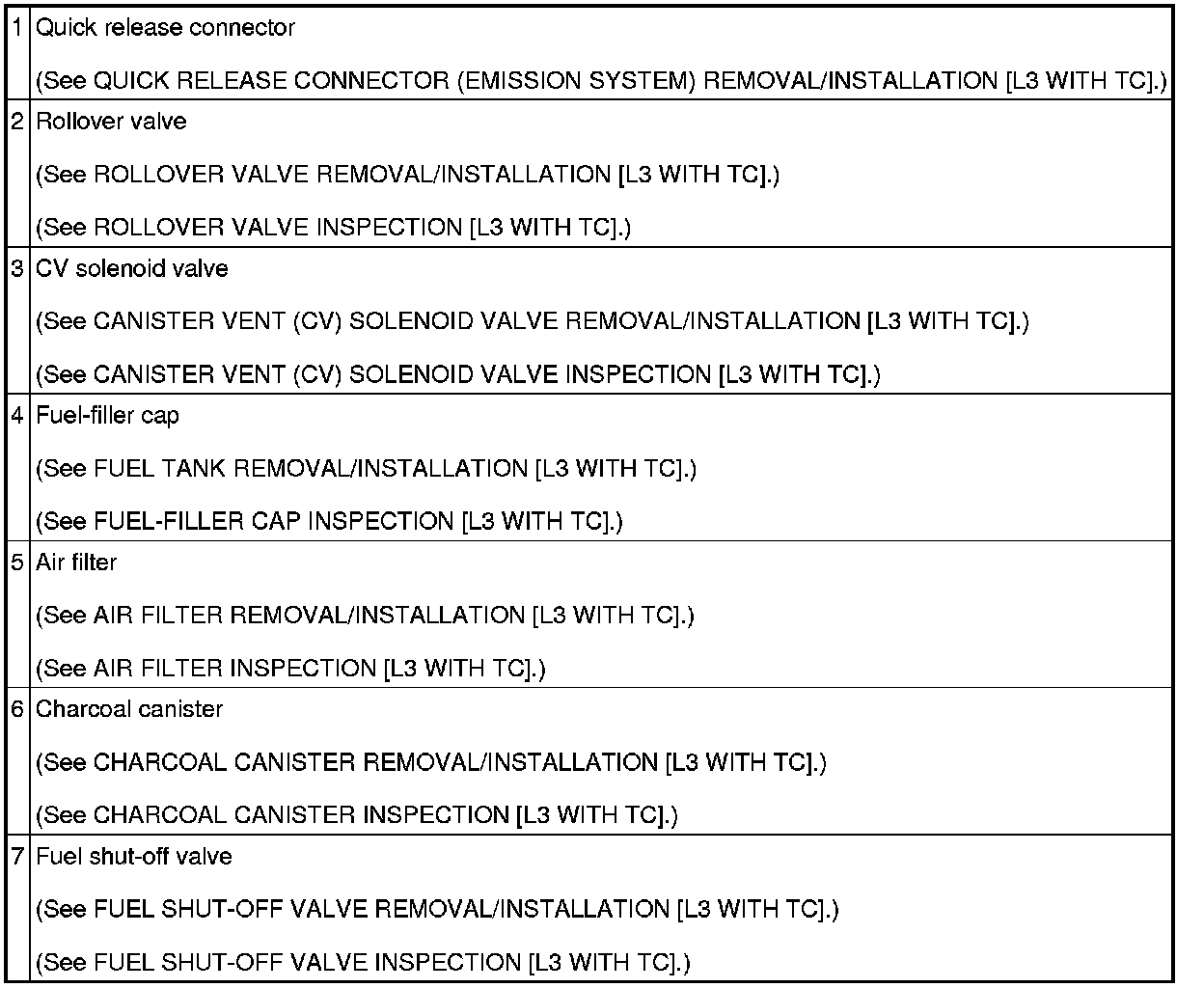

Fuel Tank Side
