Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [L3 WITH TC]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

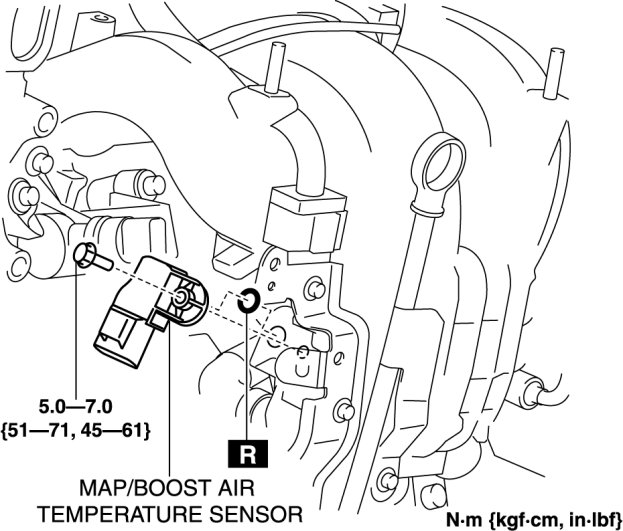

3. Remove the oil level gauge pipe. Service and Repair

4. Disconnect the MAP/boost air temperature sensor connector.

5. Remove the MAP/boost air temperature sensor.






6. Install in the reverse order of removal.
