Monitoring System And Control System Device Relationship Chart

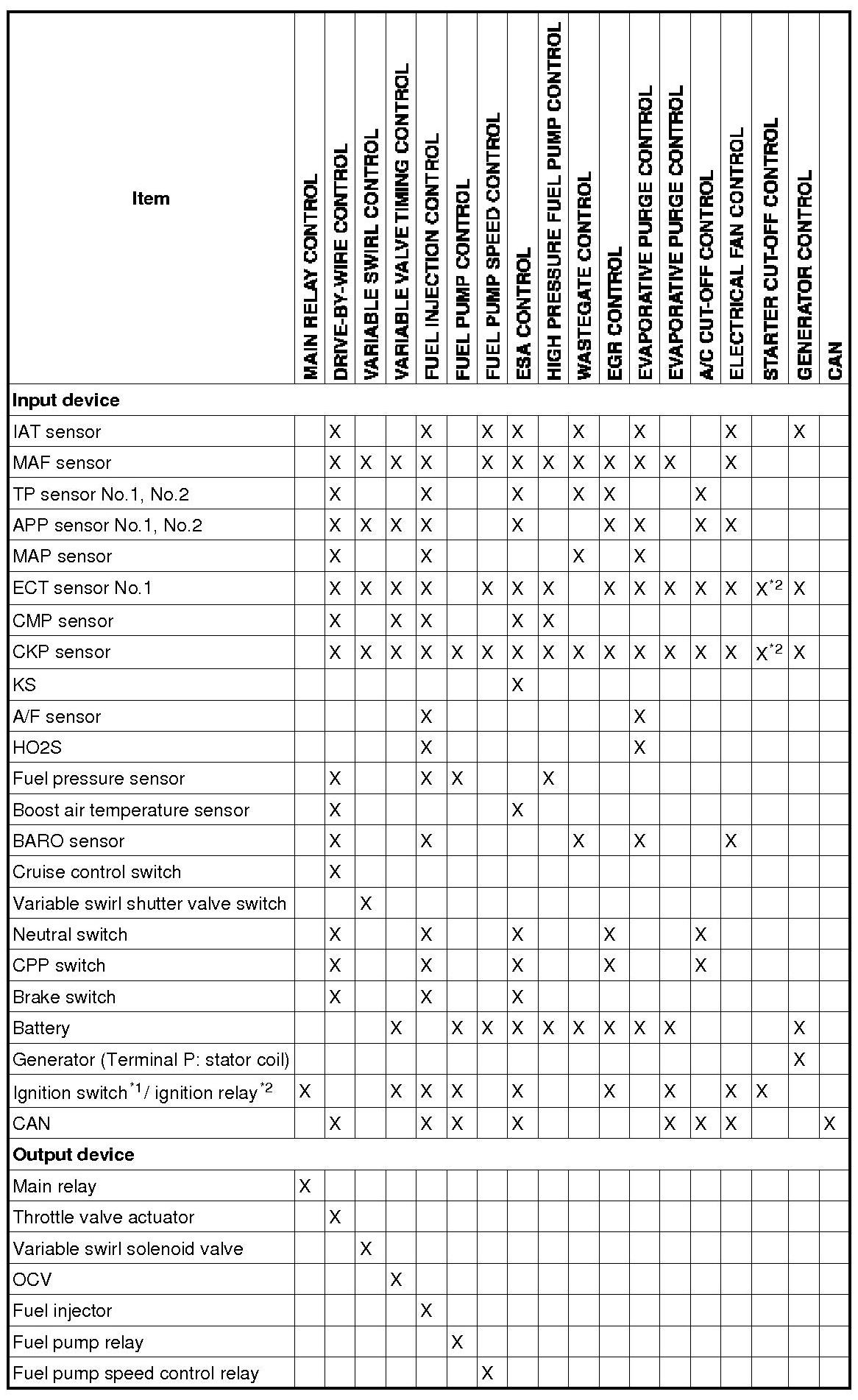

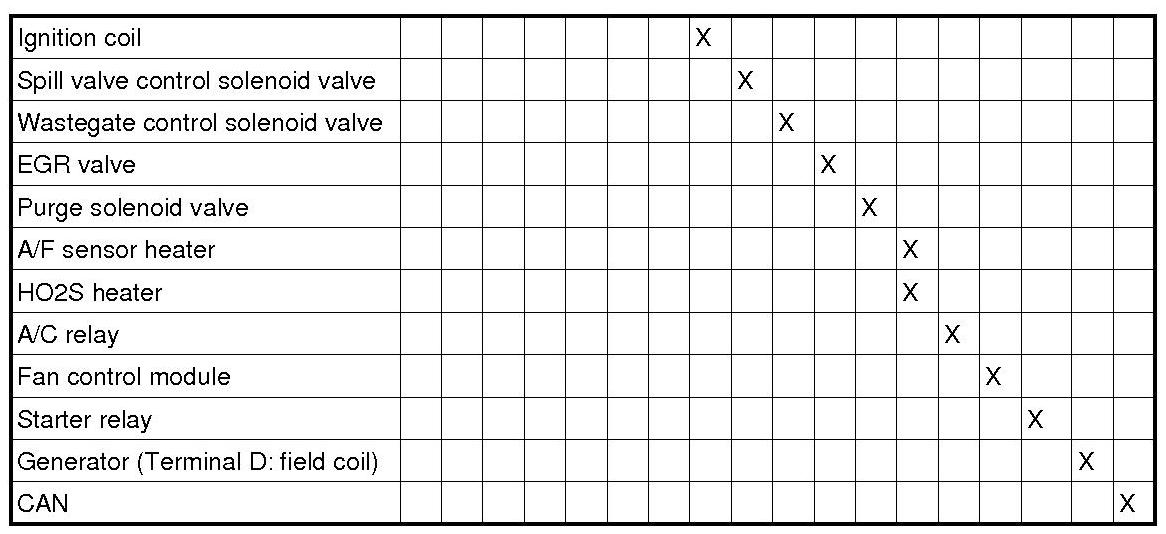

MONITORING SYSTEM AND CONTROL SYSTEM DEVICE RELATIONSHIP CHART [L3 WITH TC]
X: Applied









*1
Without advanced keyless entry and push button start system
*2
With advanced keyless entry and push button start system
