lemon-mirror
:
Home
>>
Mazda
>>
2011
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>

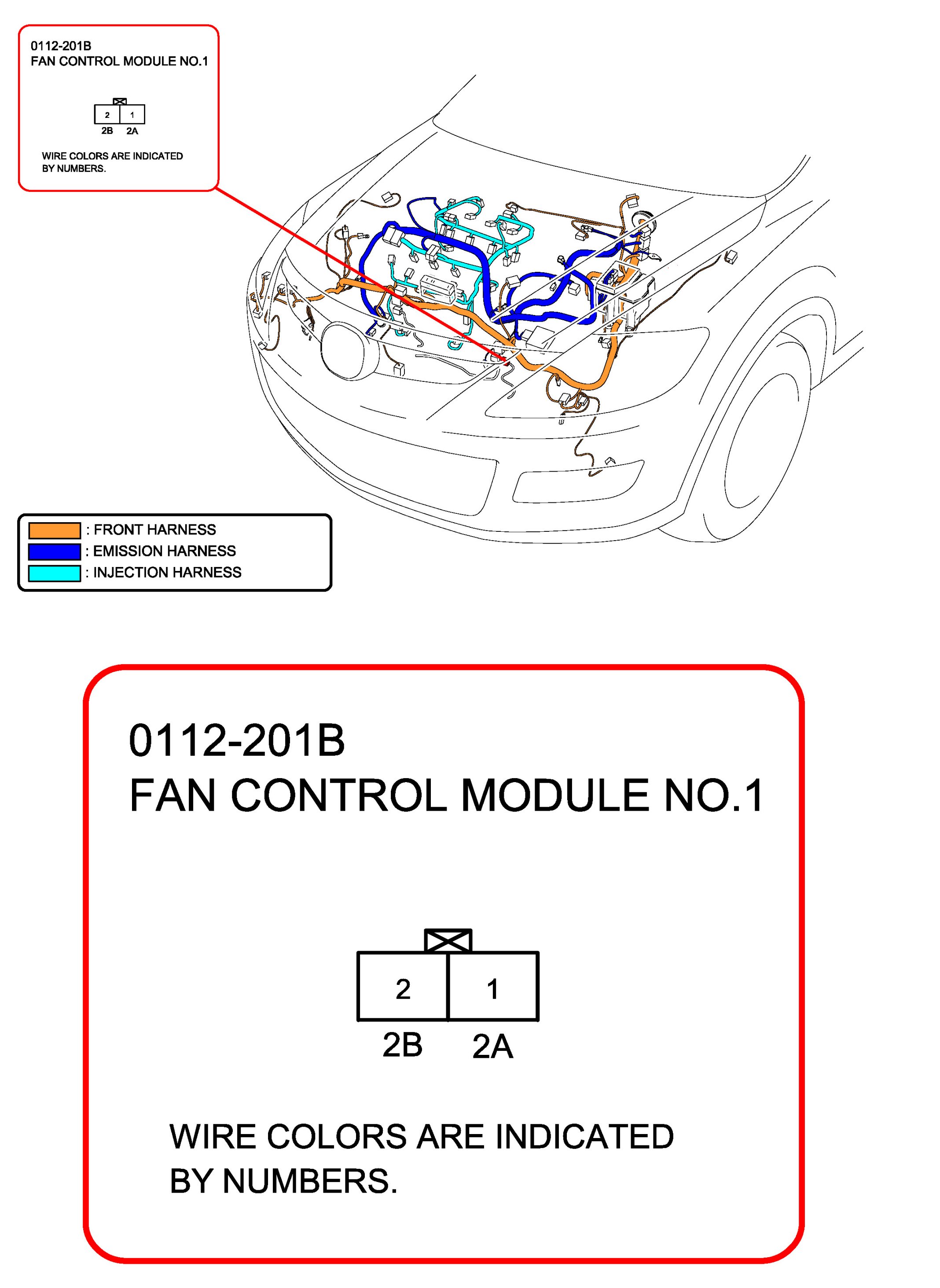

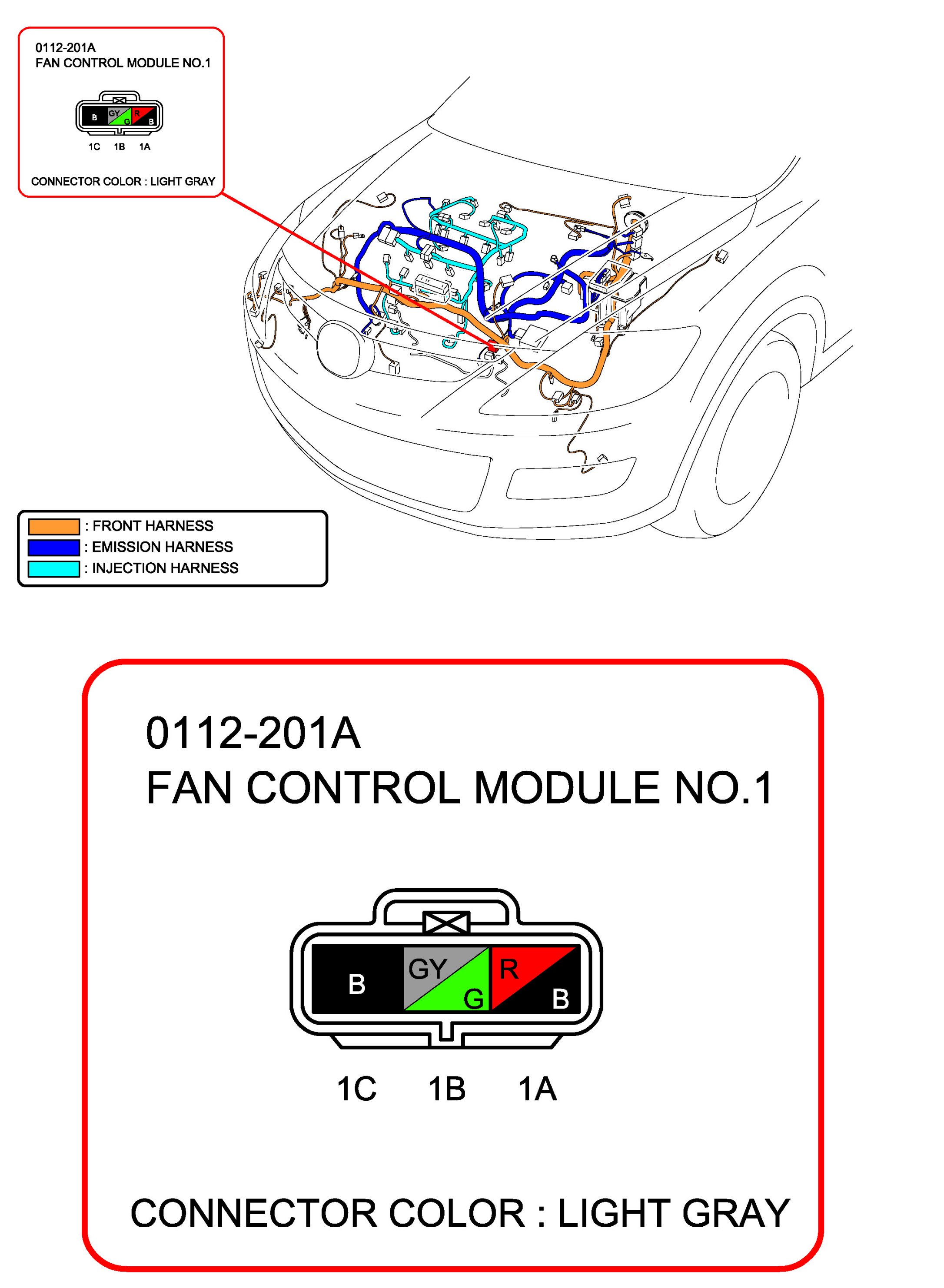

Fan Control Module No.1 (Dual Fan Control Module)
Fan Control Module No.1 (Dual Fan Control Module)
