Home >> Mazda >> 2011 >> CX-7 FWD L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

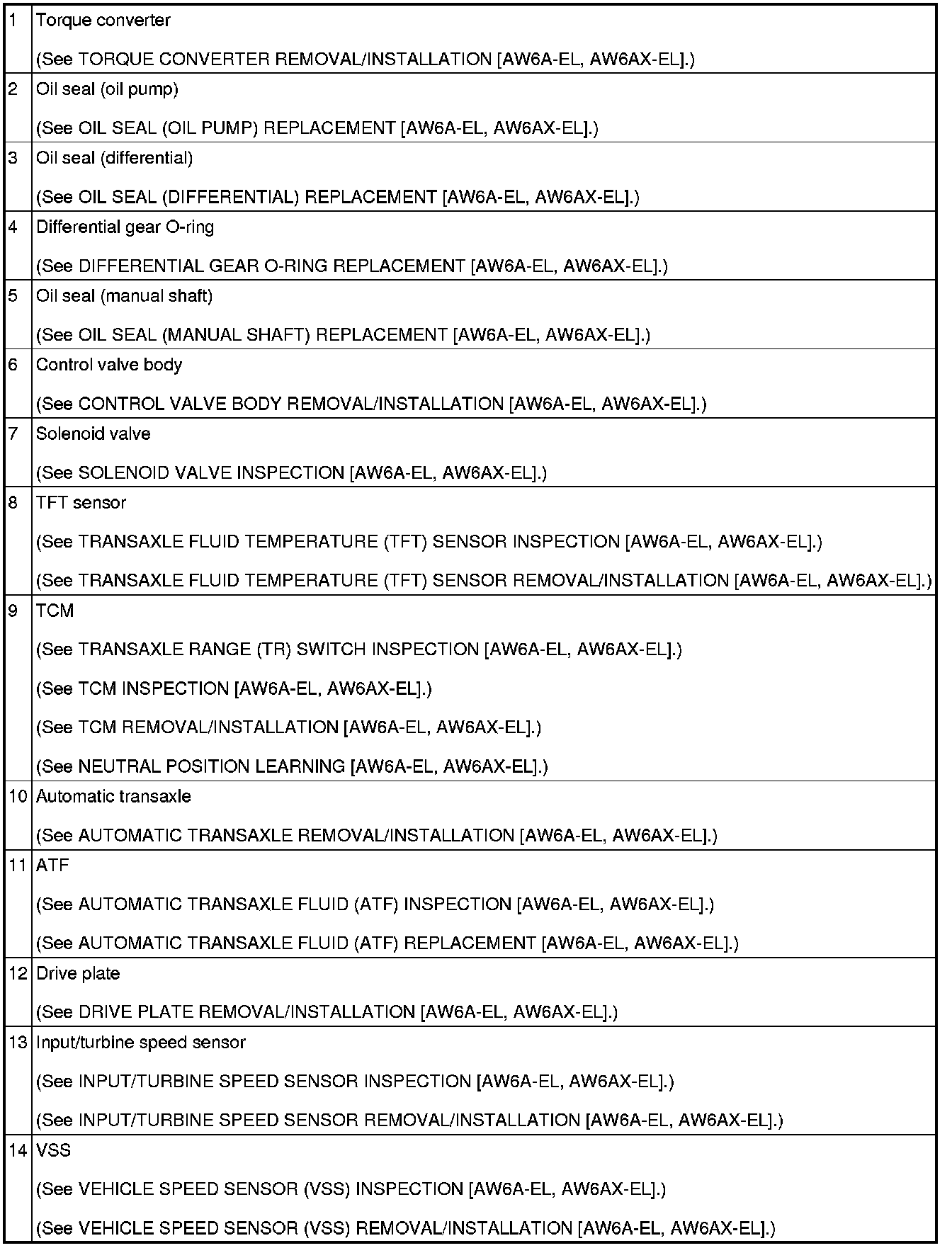

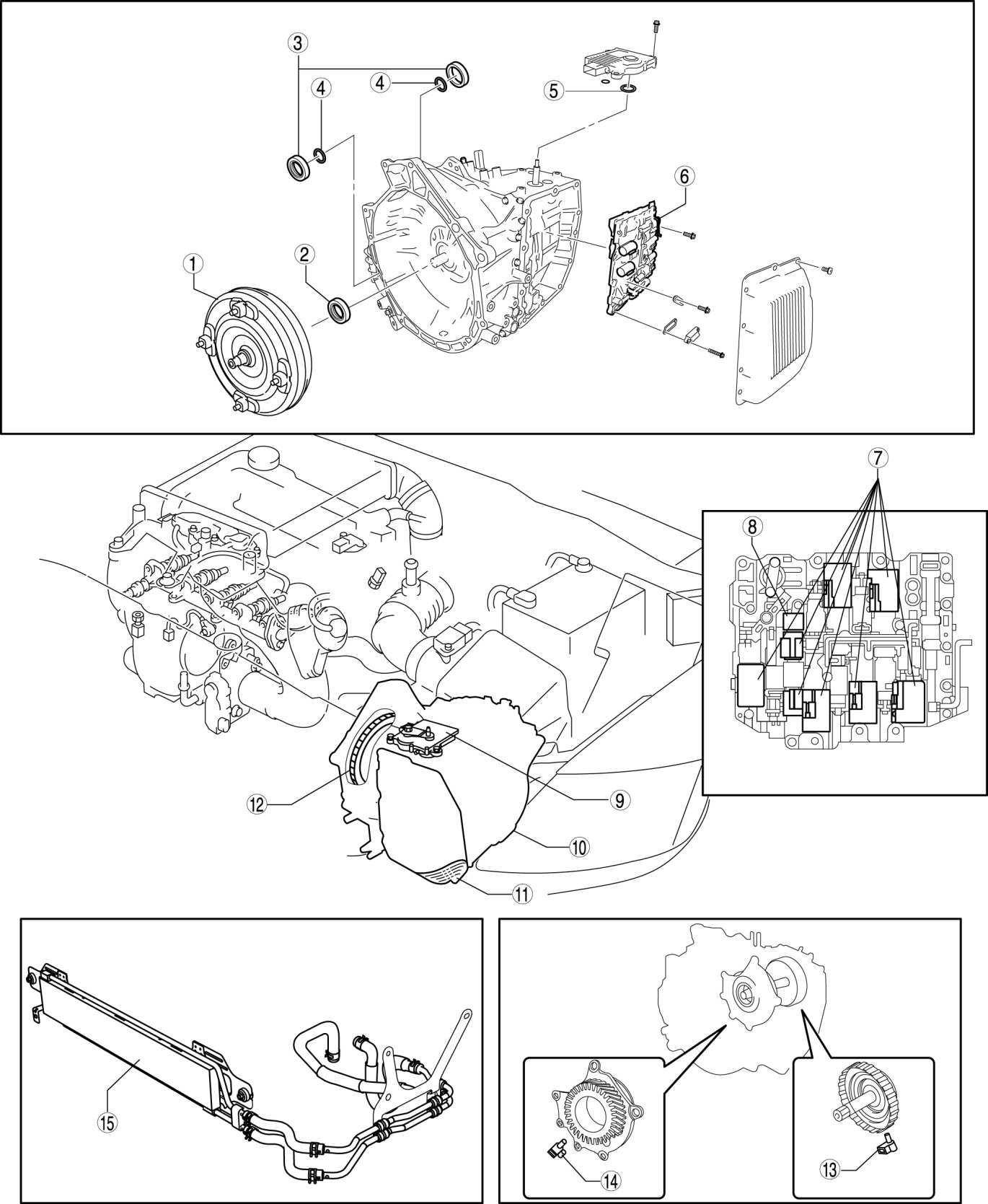

AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL, AW6AX-EL]
