Home >> Mazda >> 2010 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Relay Block

Relay Block

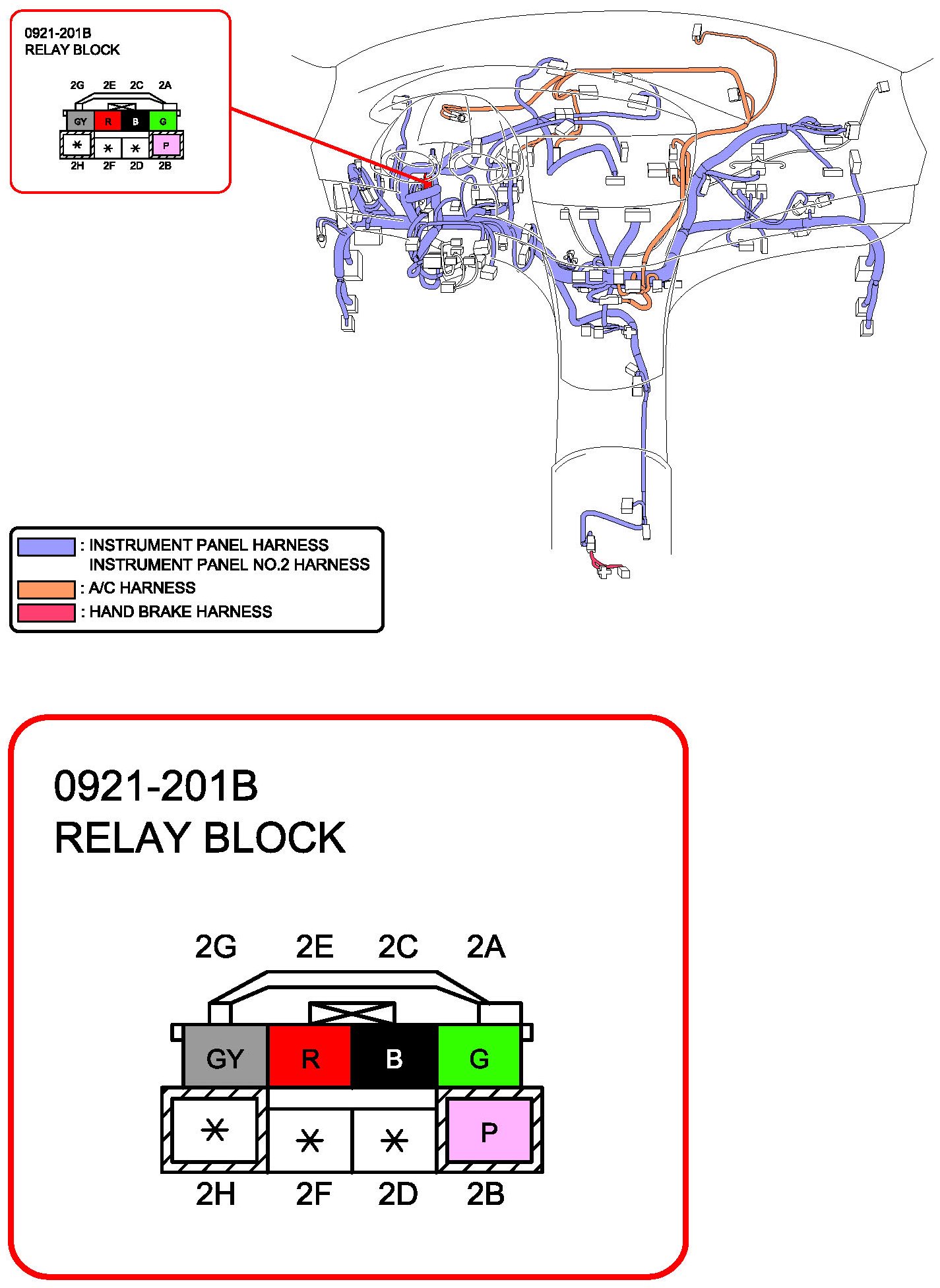

Relay Block:

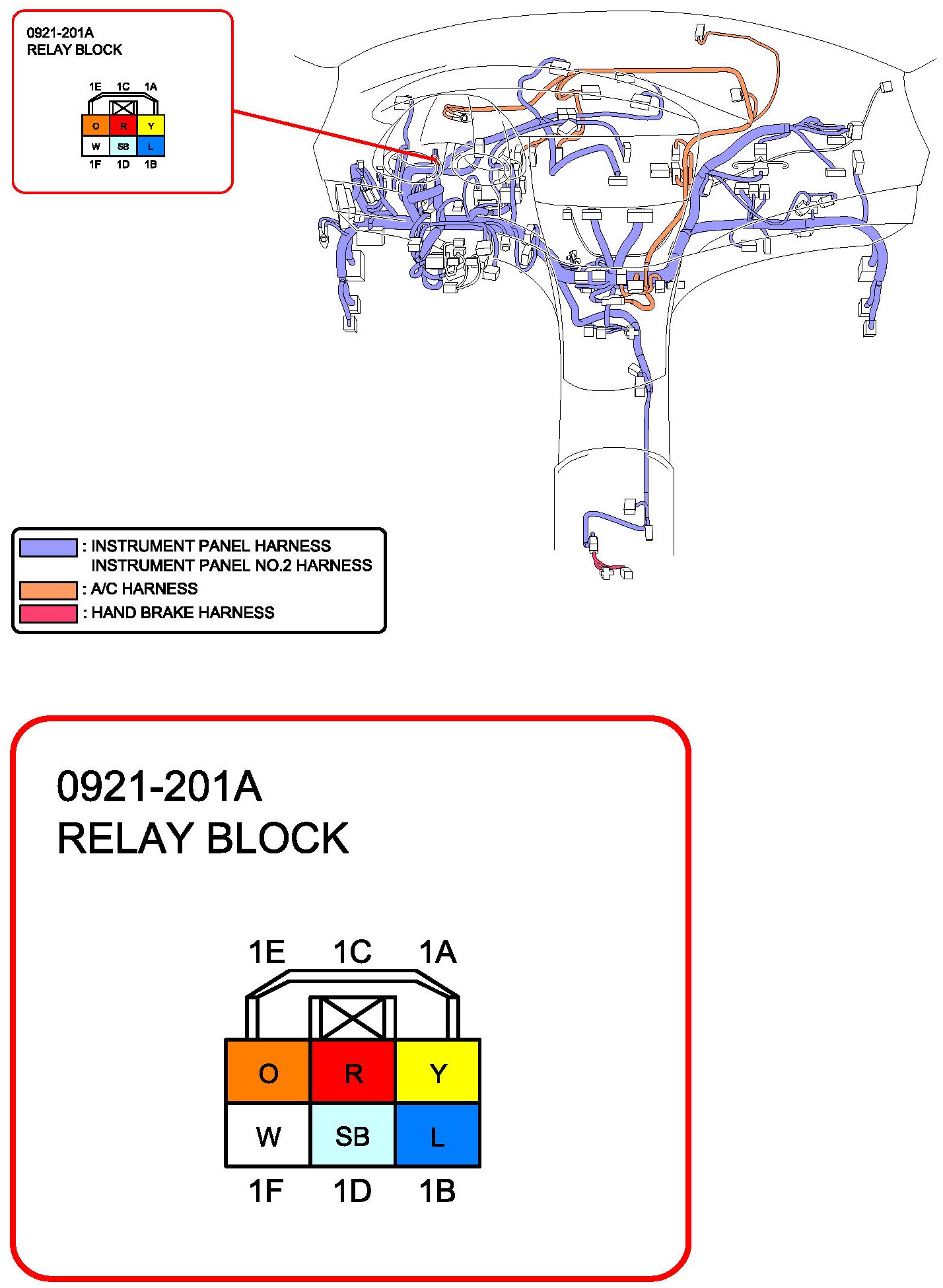

Relay Block:
