Home >> Mazda >> 2010 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Keyless Control Module

Keyless Control Module

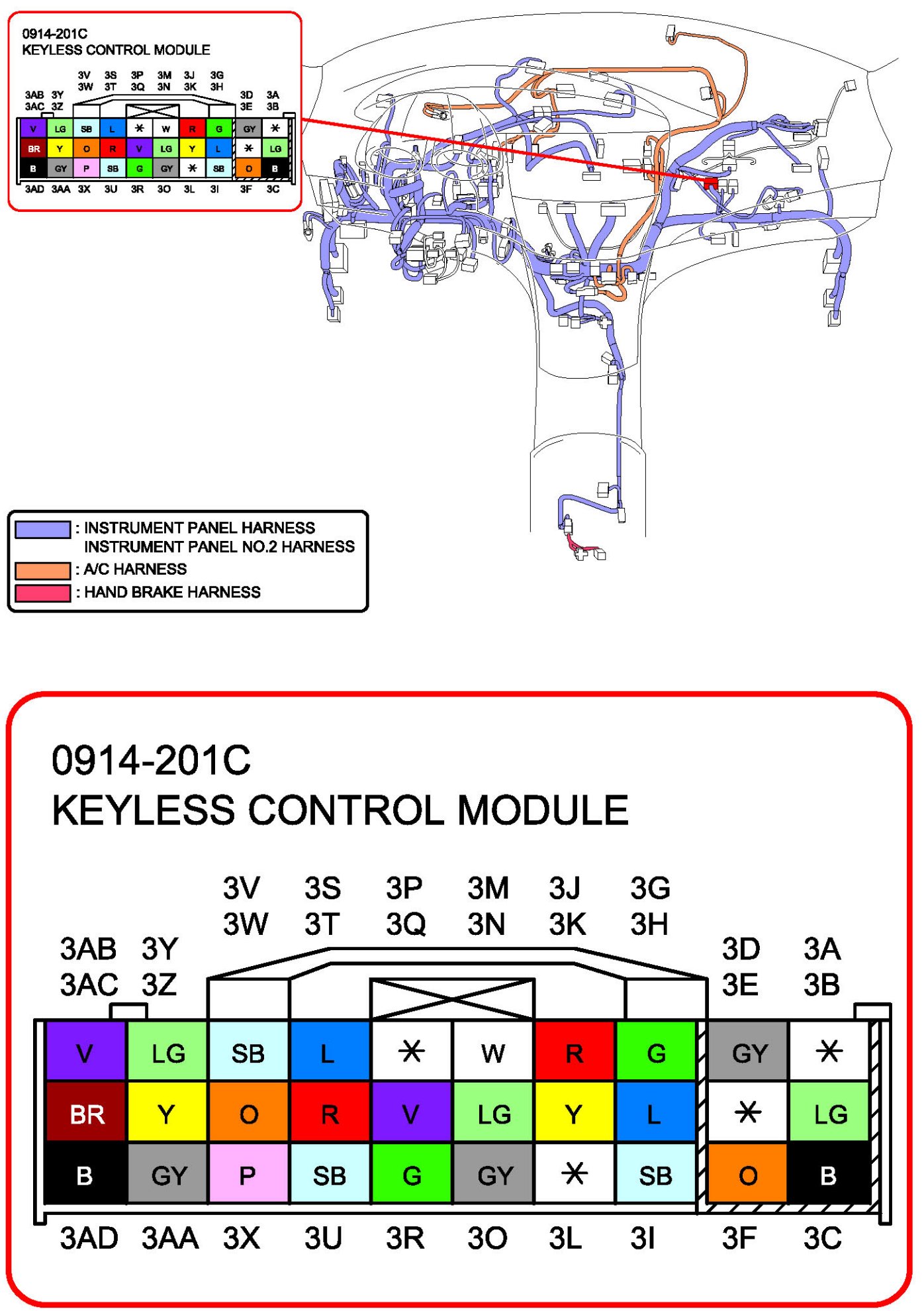

Keyless Control Module:

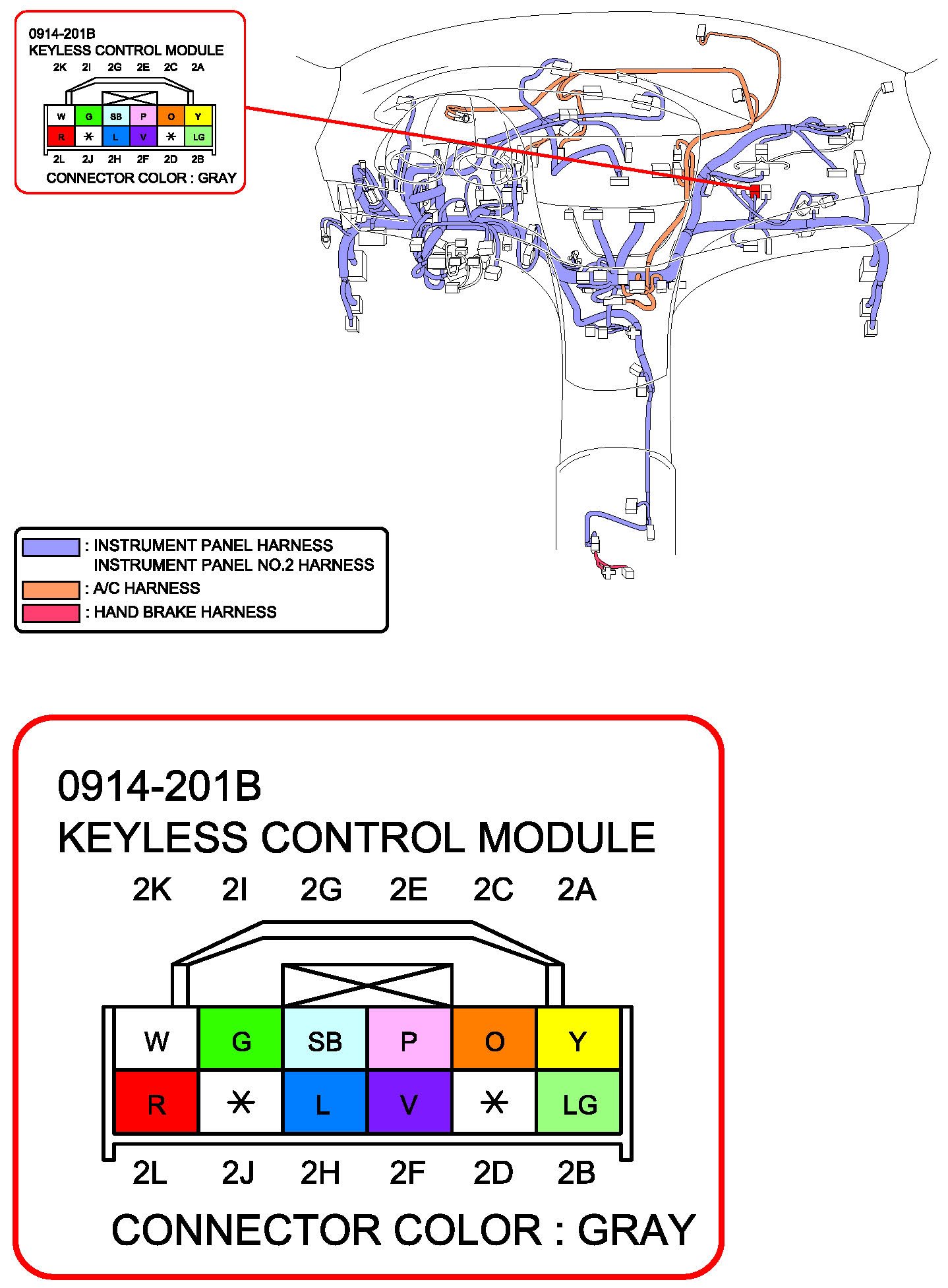

Keyless Control Module:

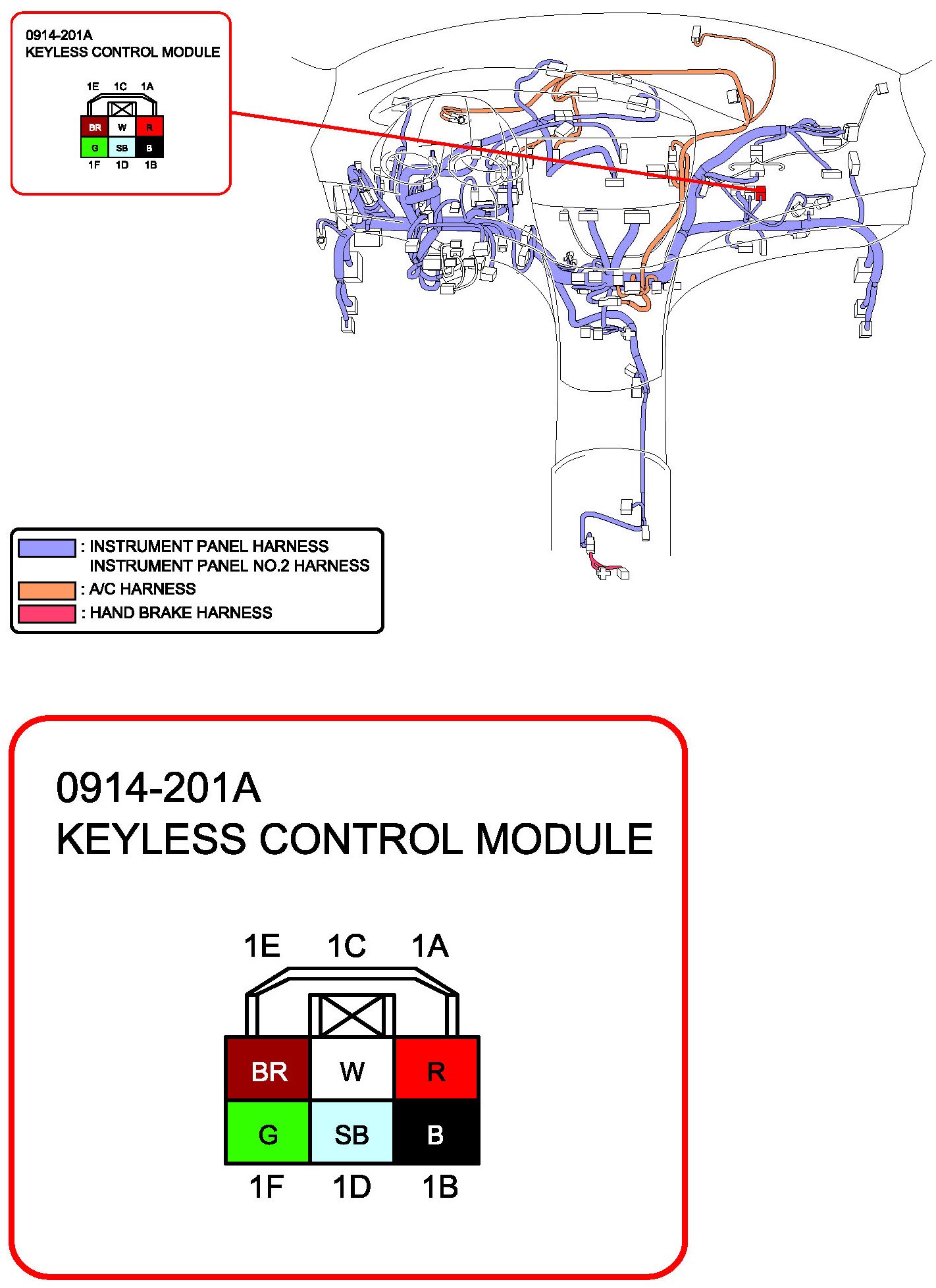

Keyless Control Module:

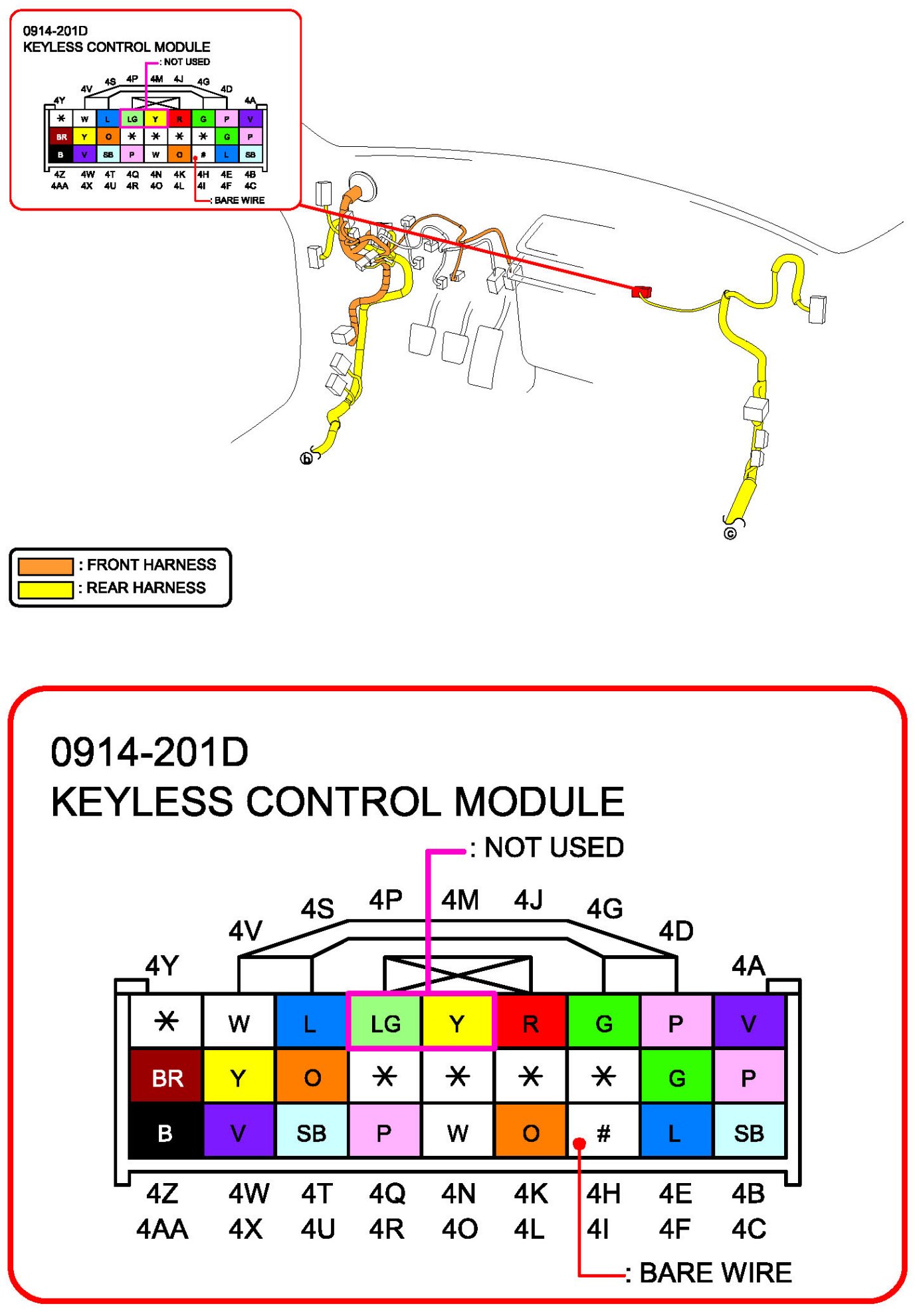

Keyless Control Module:
