Home >> Mazda >> 2010 >> MX-5 Miata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Components >> Power Retractable Hardtop Control Module

Power Retractable Hardtop Control Module

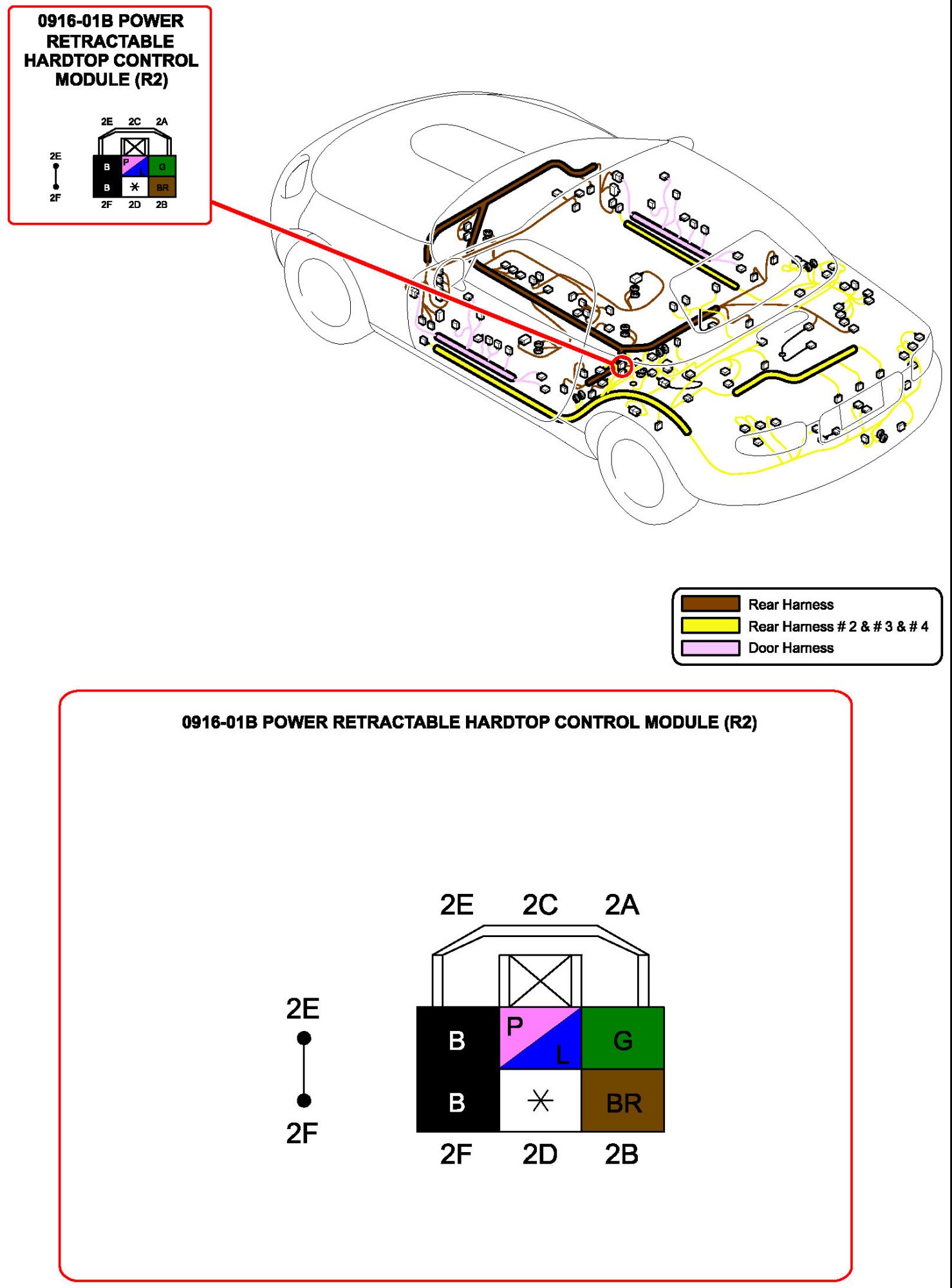

Power Retractable Hardtop Control Module:

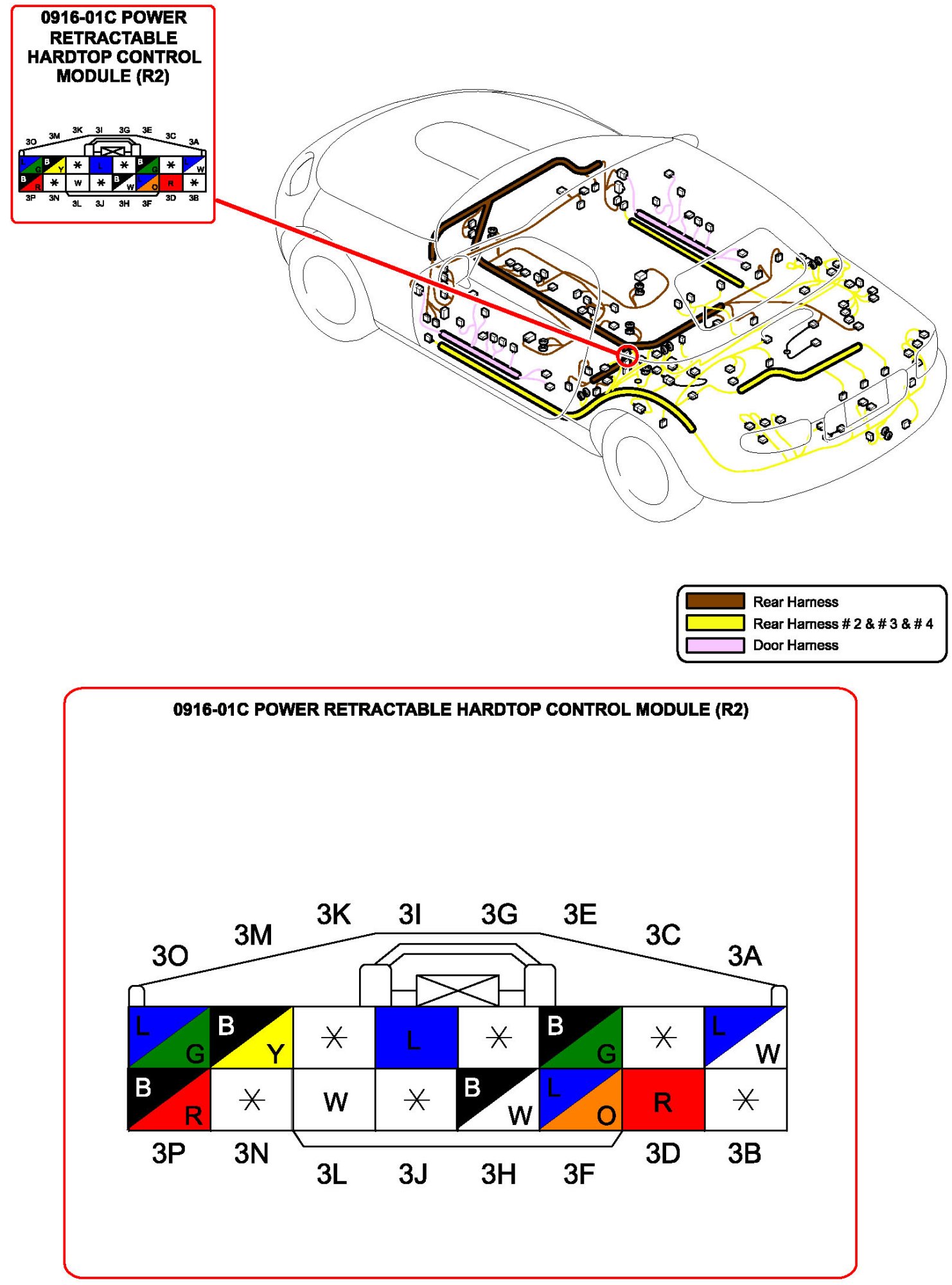

Power Retractable Hardtop Control Module:

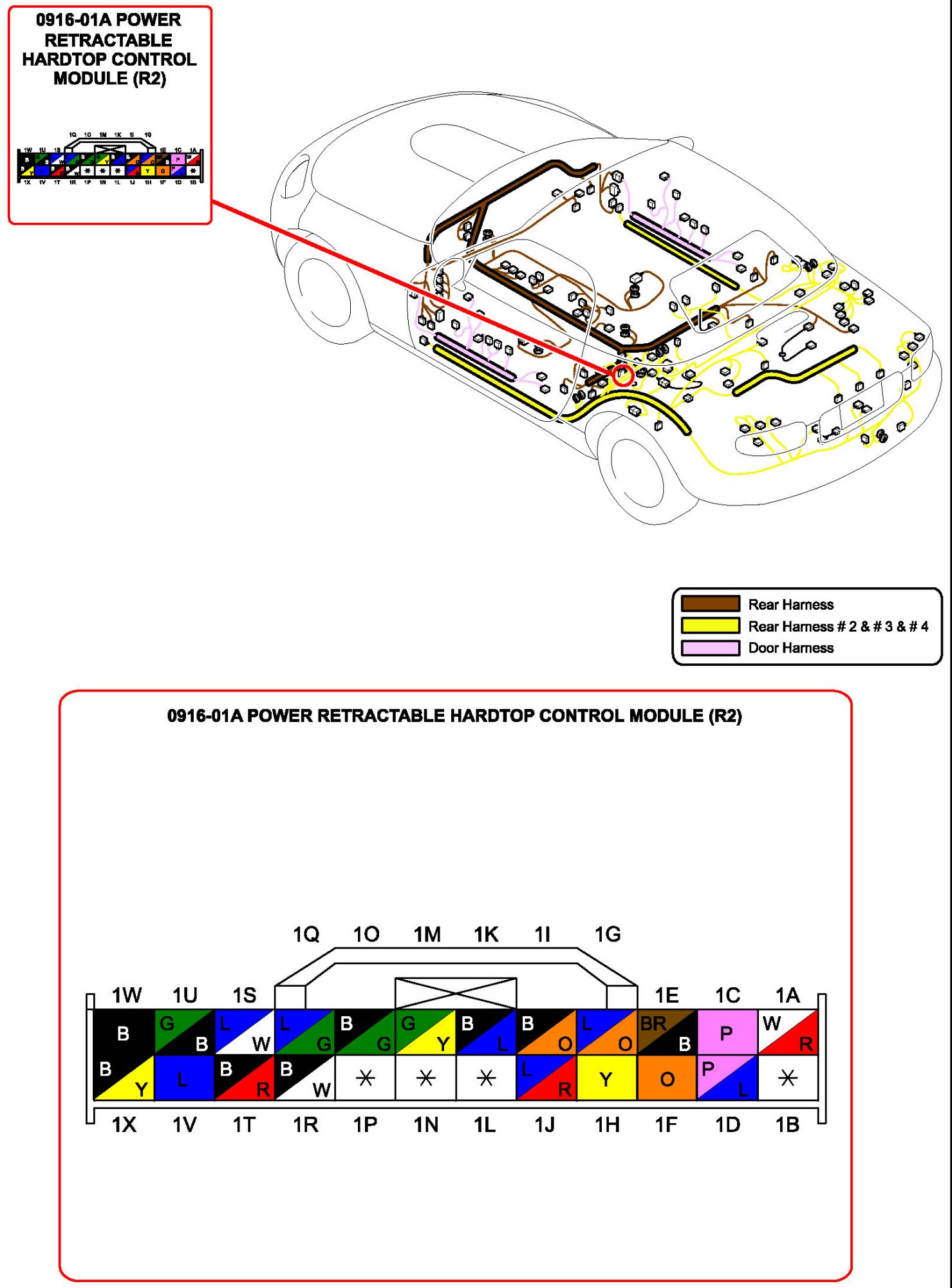

Power Retractable Hardtop Control Module:
