Home >> Mazda >> 2010 >> MX-5 Miata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Components >> Keyless Control Module

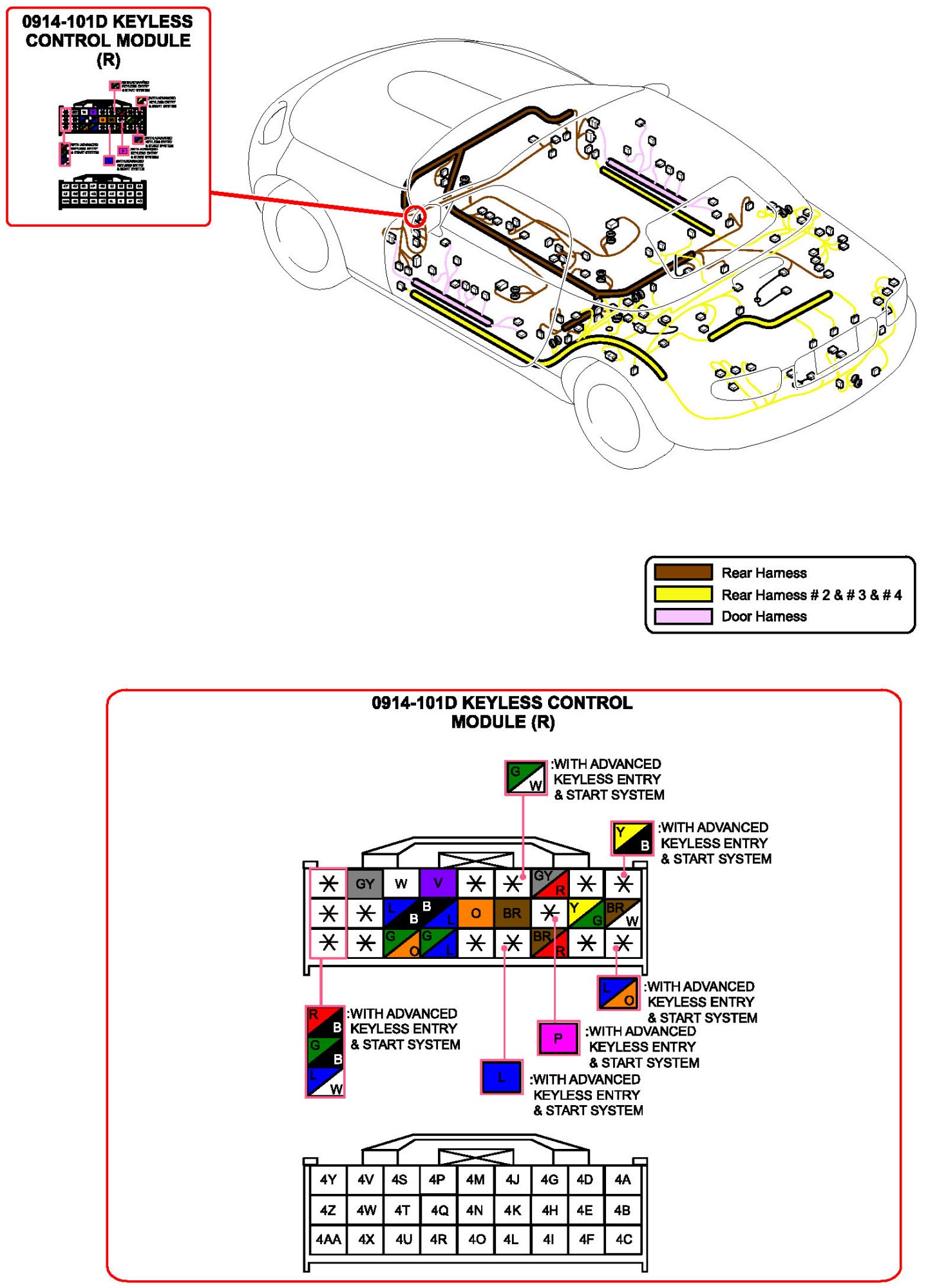

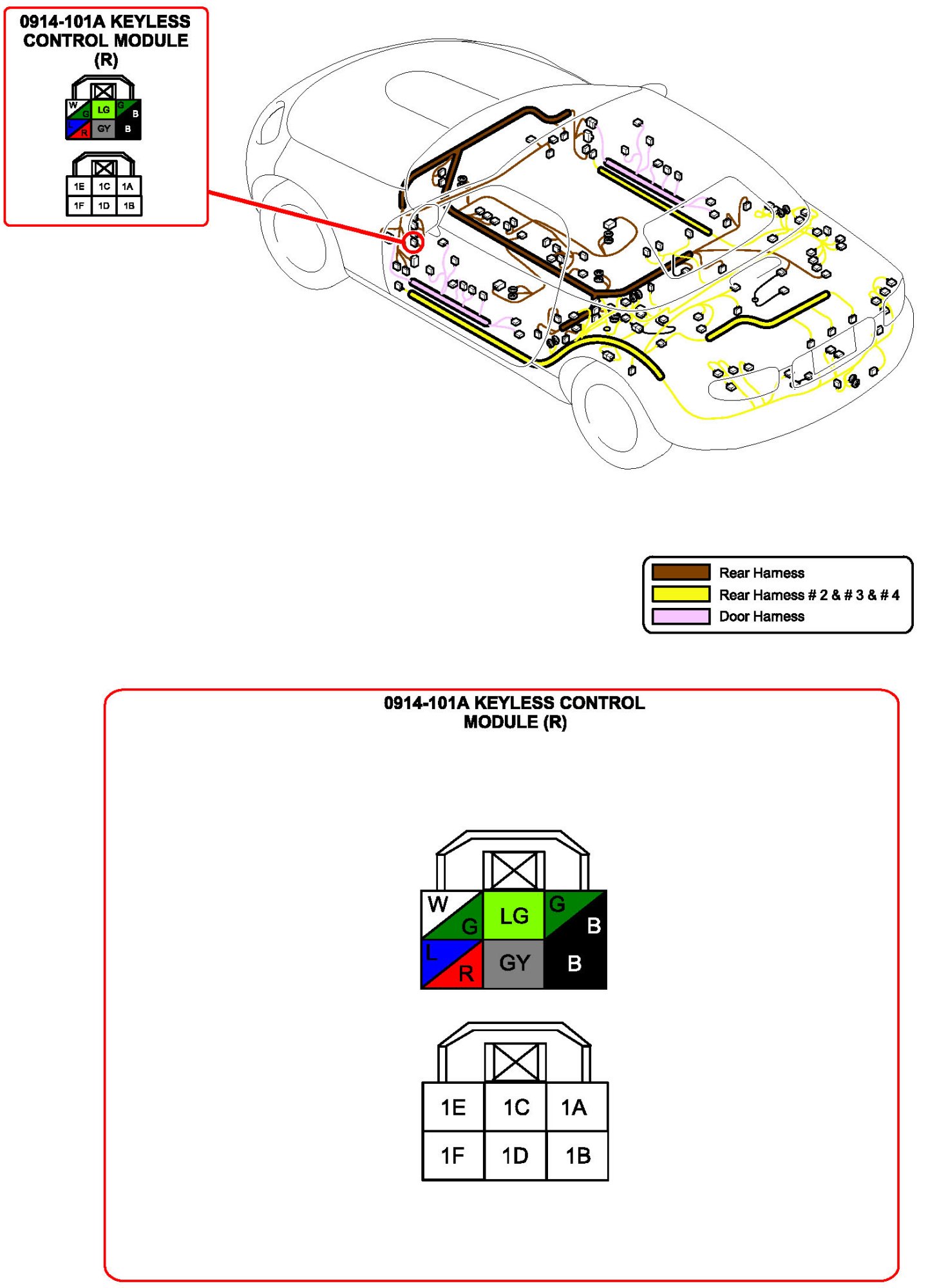

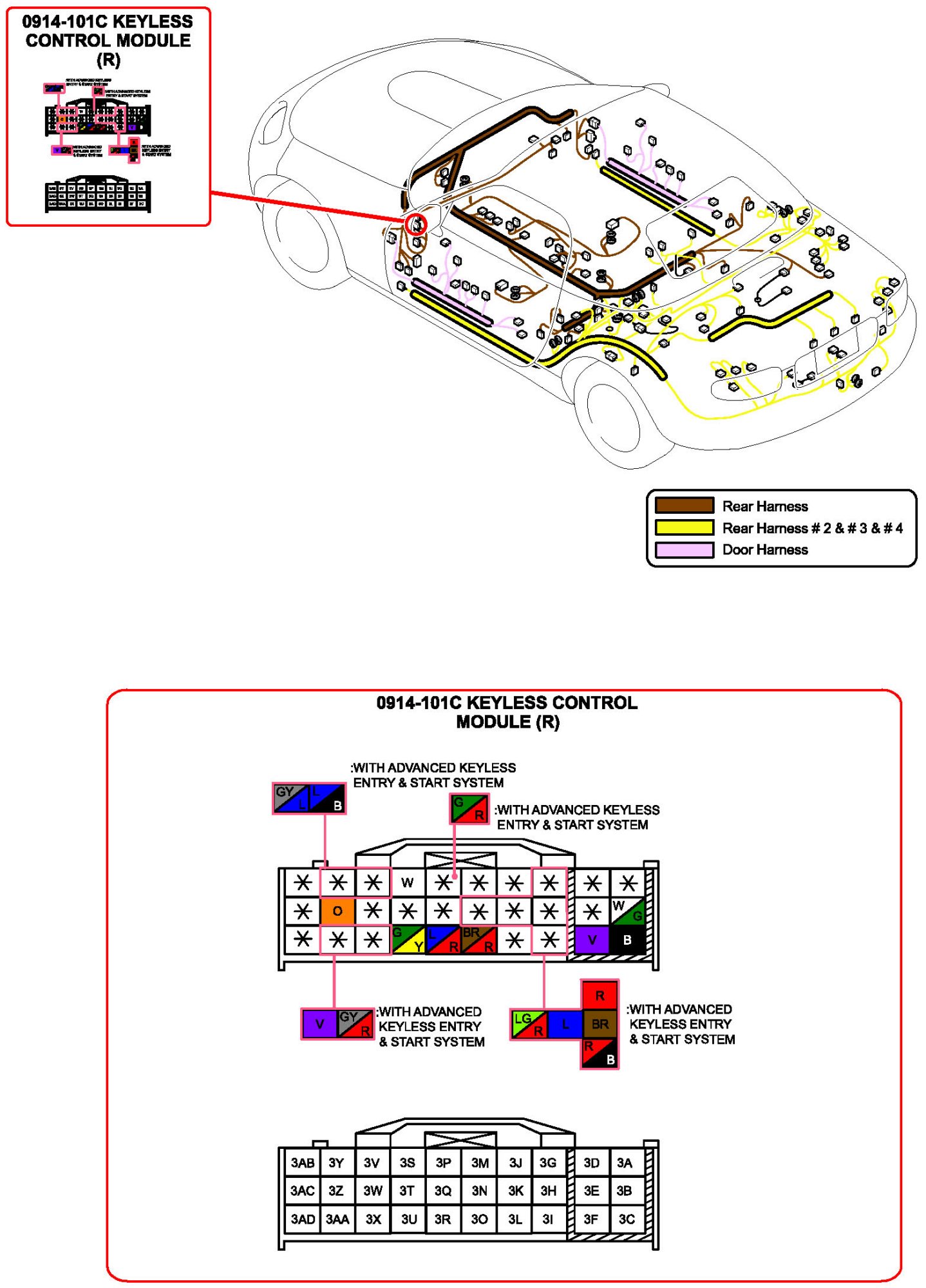

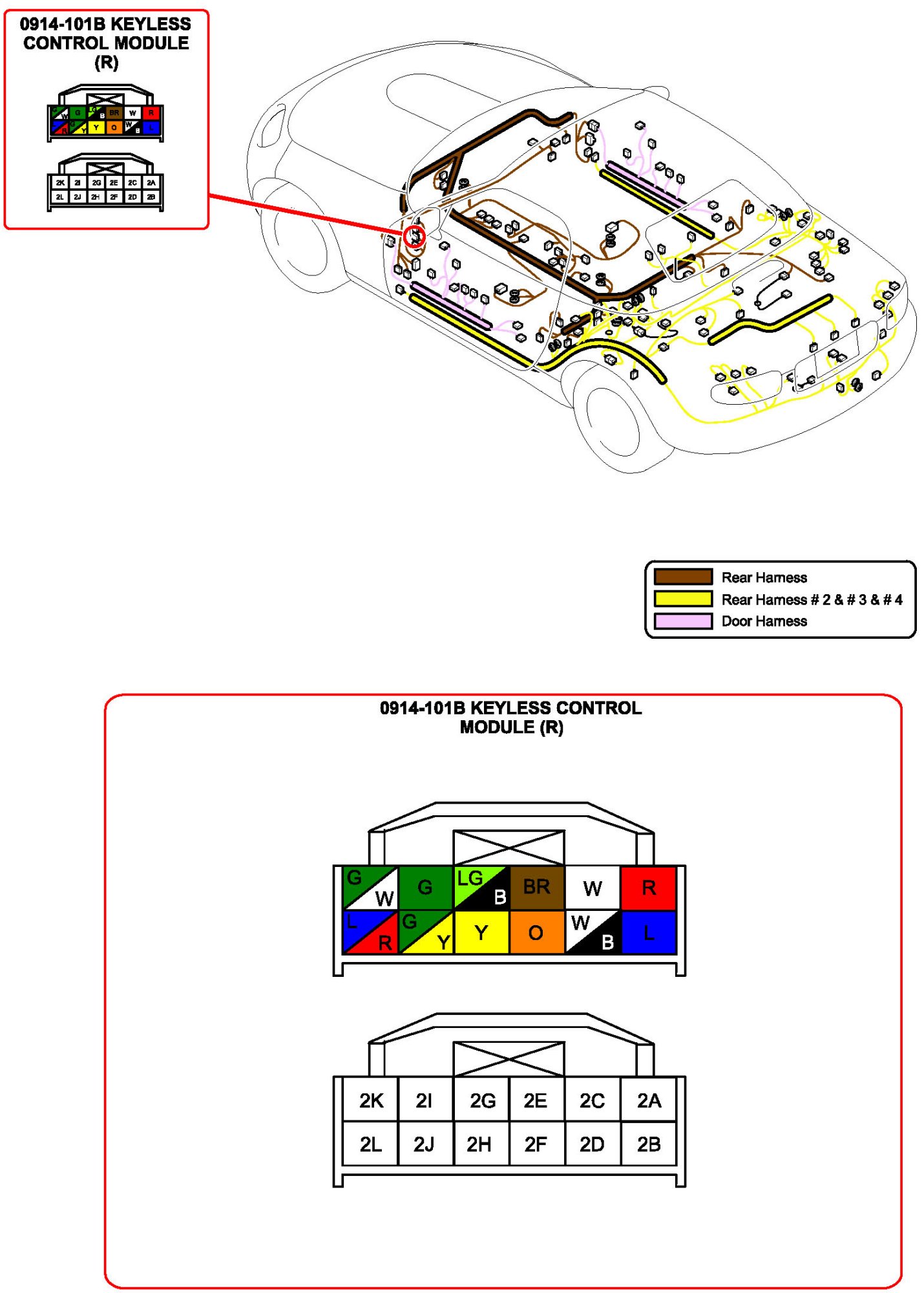

Keyless Control Module

Keyless Control Module:





Keyless Control Module:





Keyless Control Module:





Keyless Control Module:
