Transmission Position Sensor/Switch: Locations

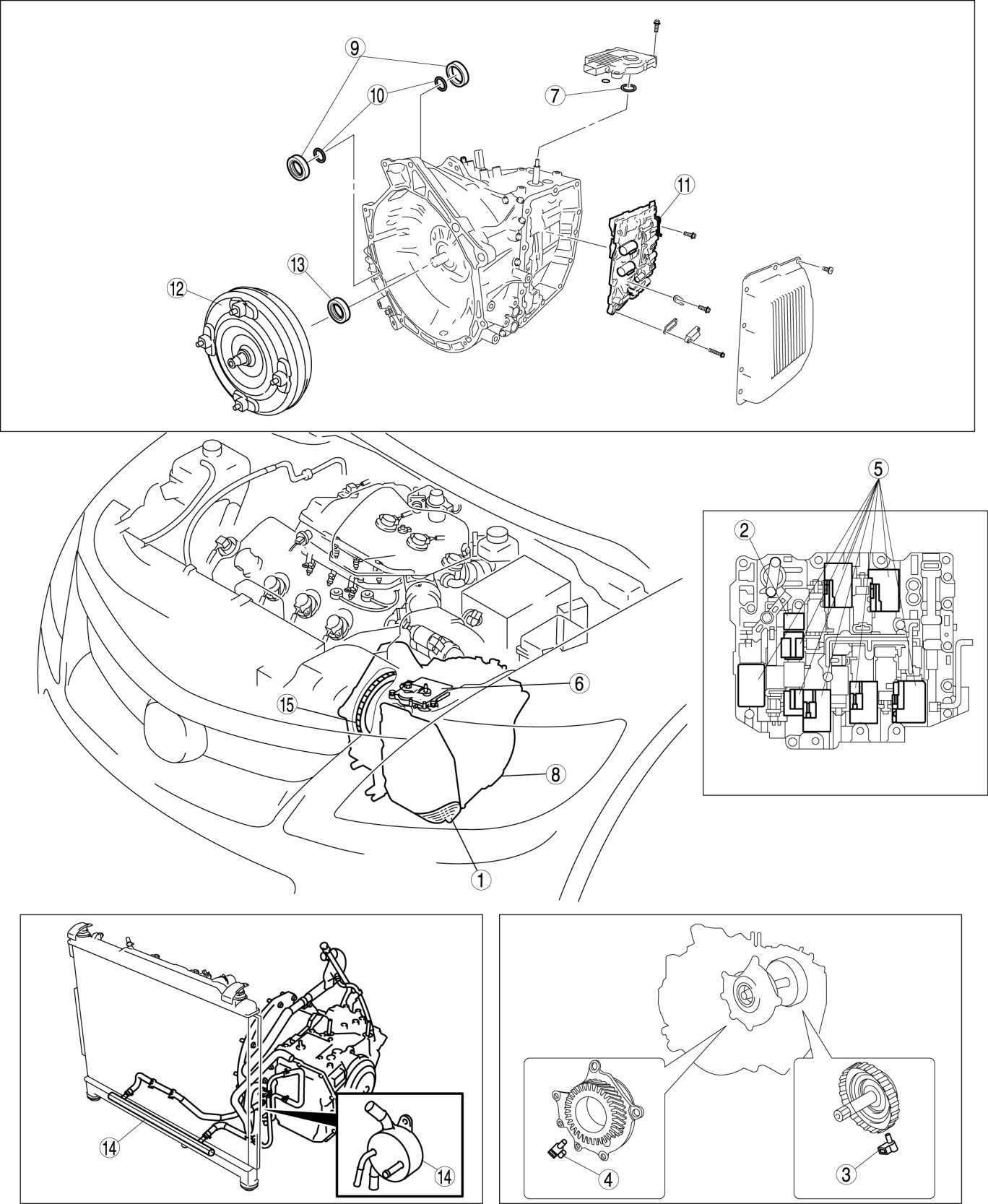

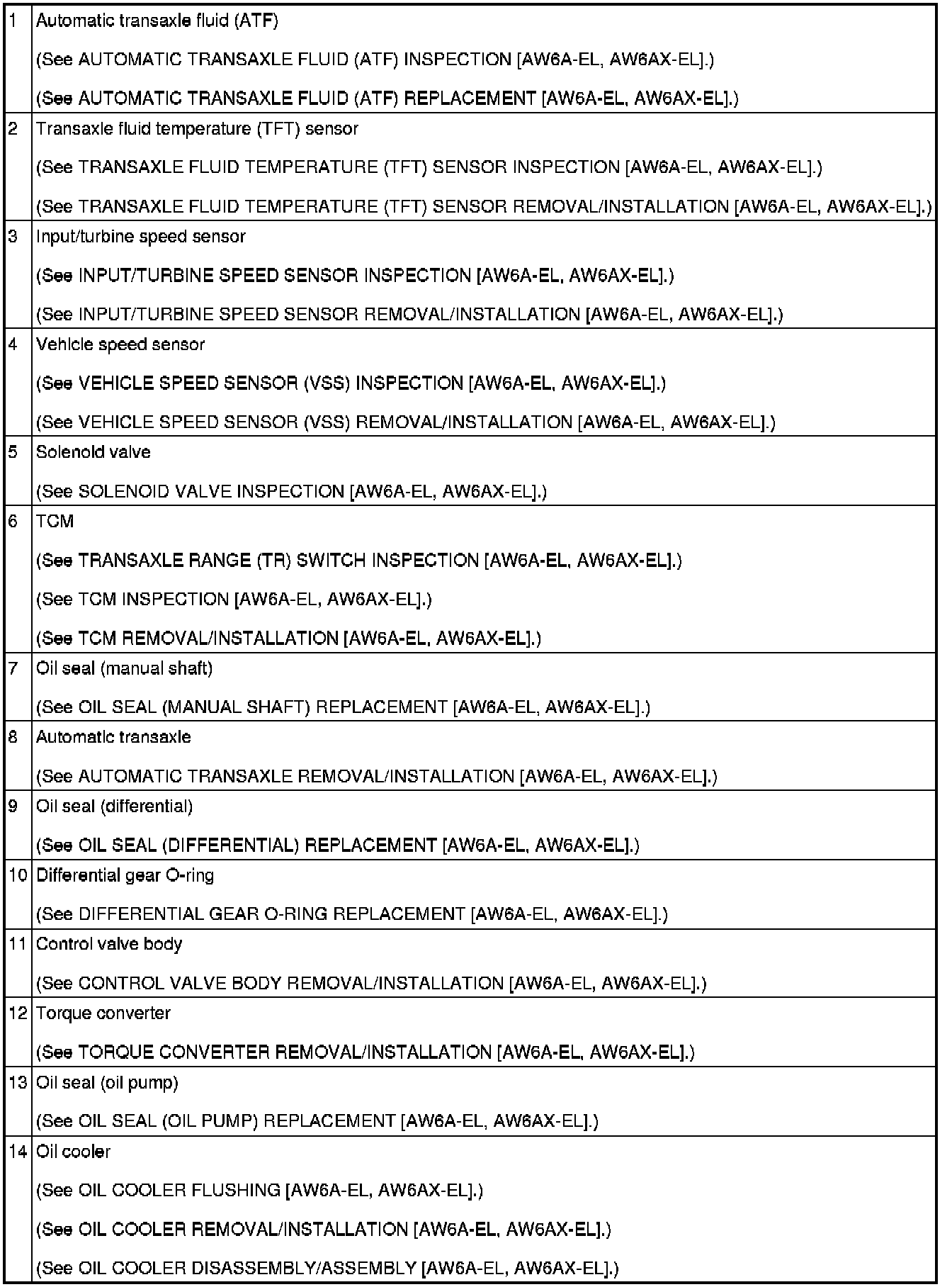

AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL, AW6AX-EL]
