Audio Unit/Car-Navigation Unit
Audio Unit/Car-Navigation Unit

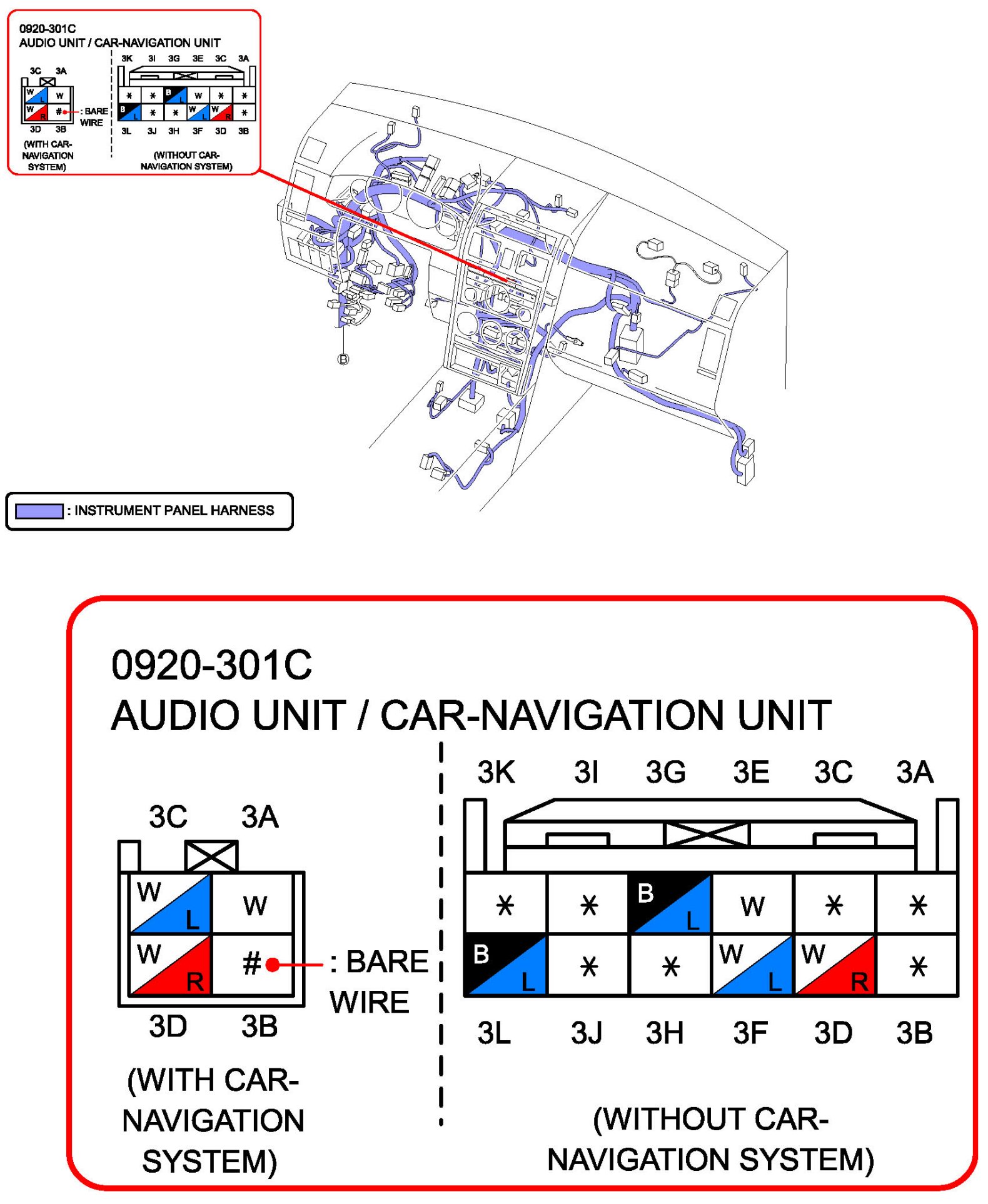

Audio Unit / Car-Navigation Unit:

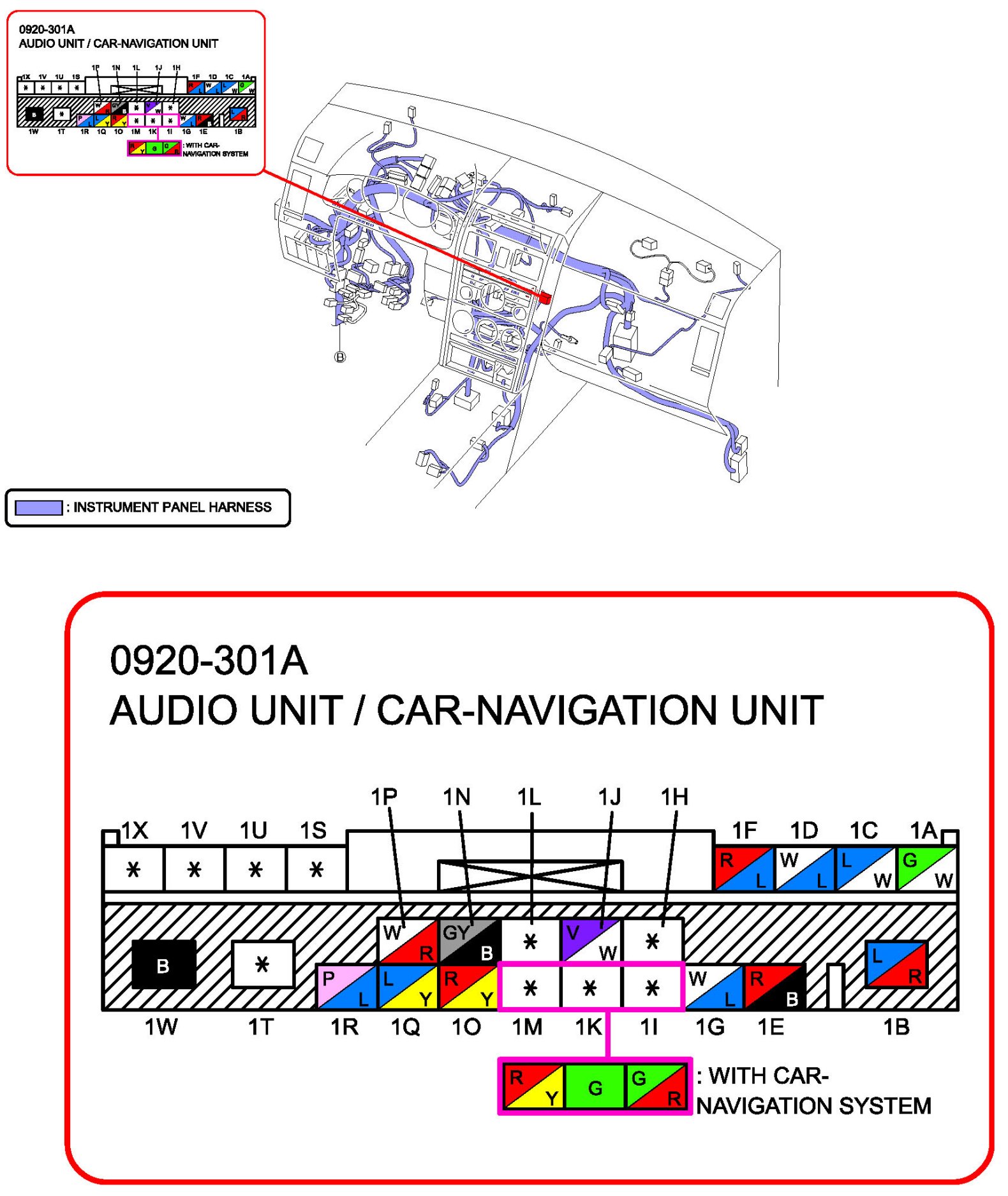

Audio Unit / Car-Navigation Unit:

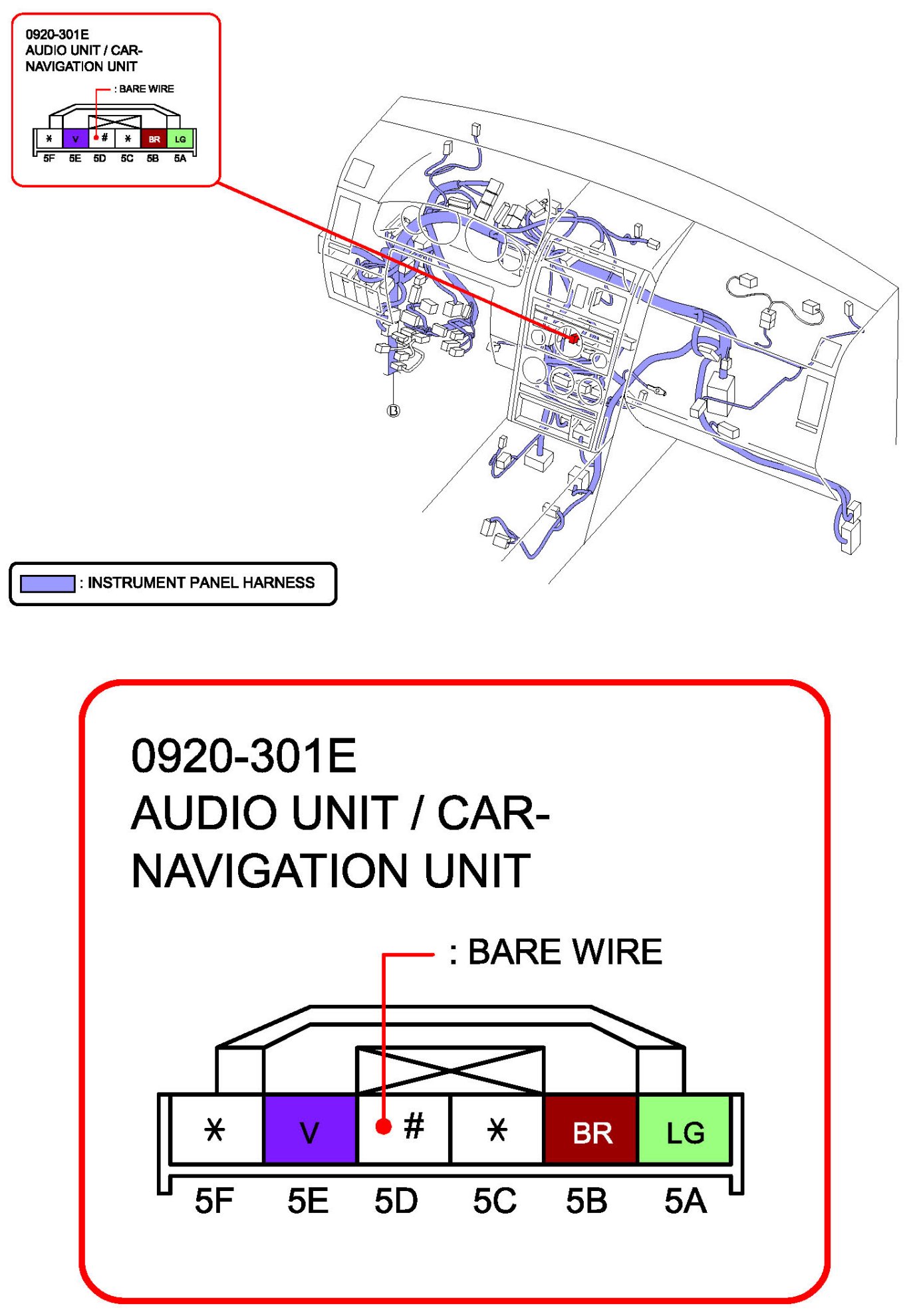

Audio Unit / Car-Navigation Unit:

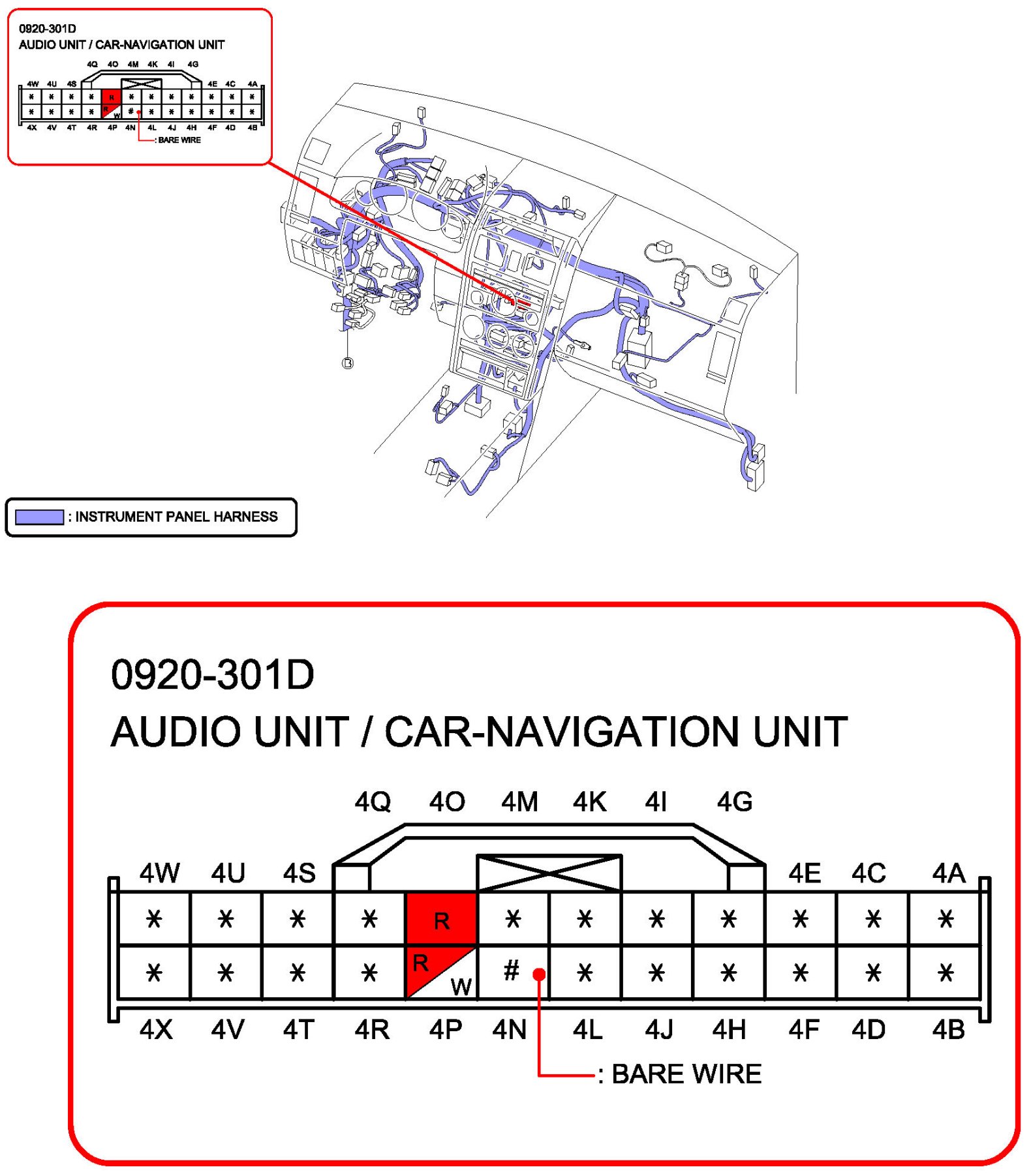

Audio Unit / Car-Navigation Unit:

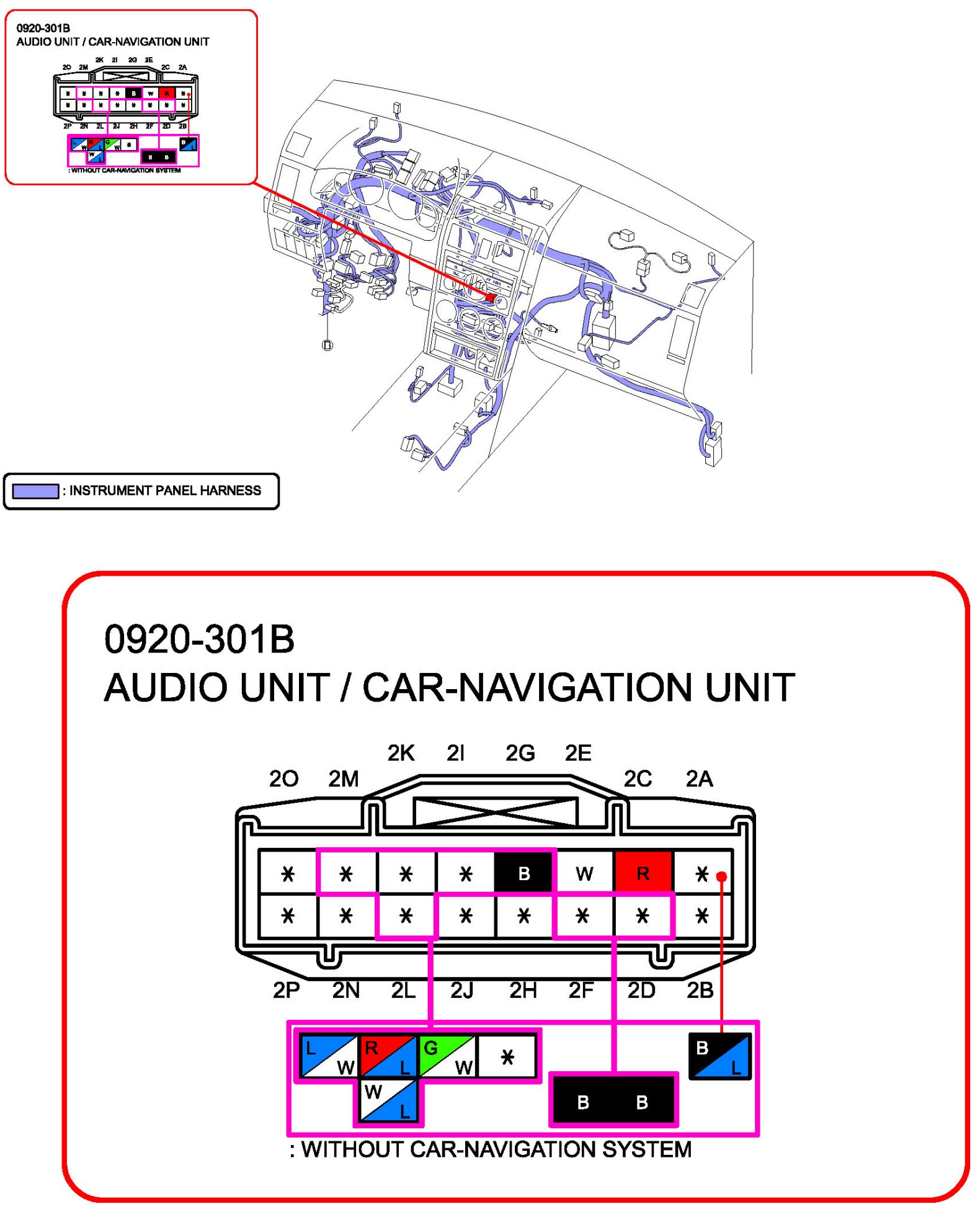

Audio Unit / Car-Navigation Unit:
