Home >> Mazda >> 2010 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Audio Unit

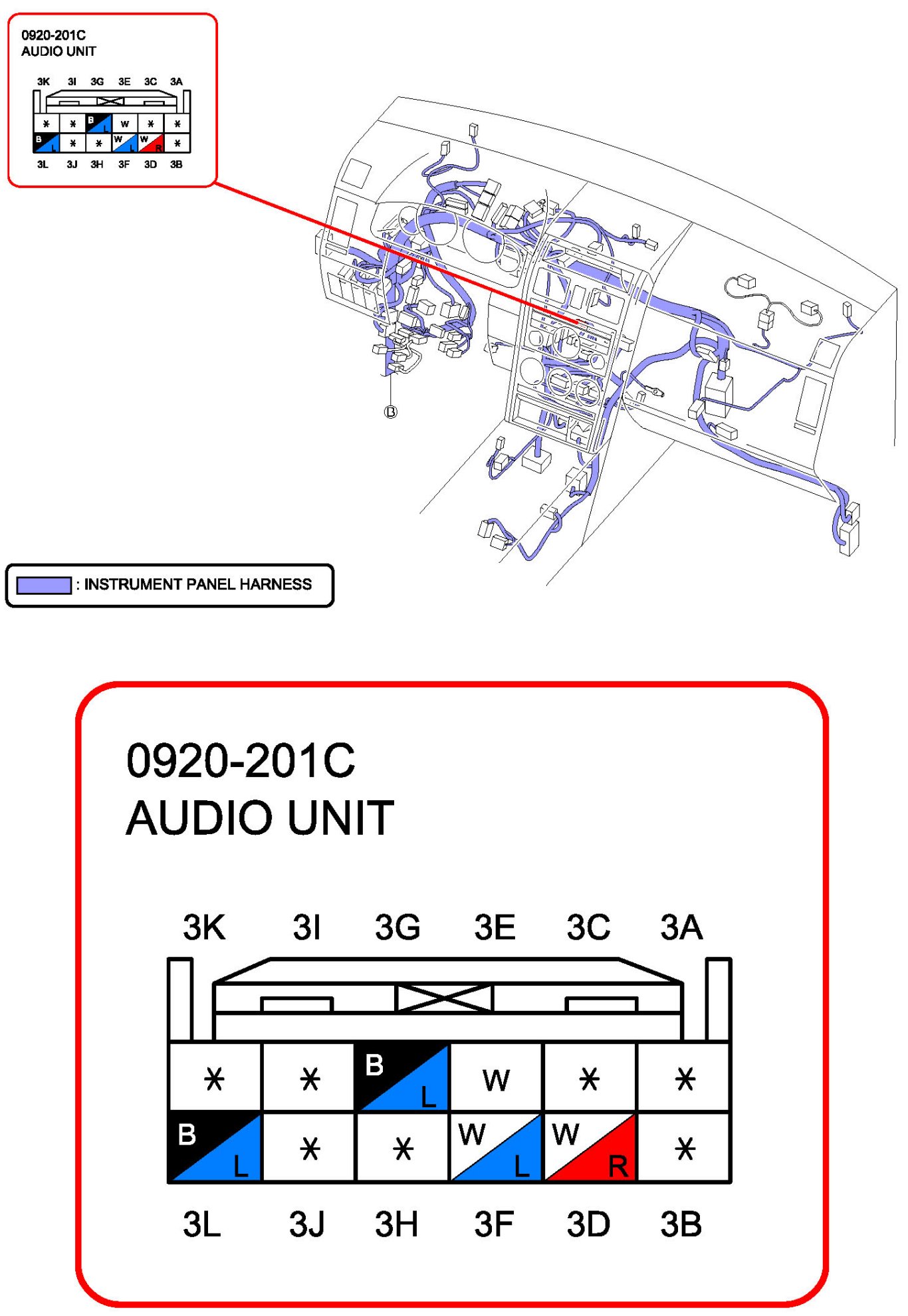

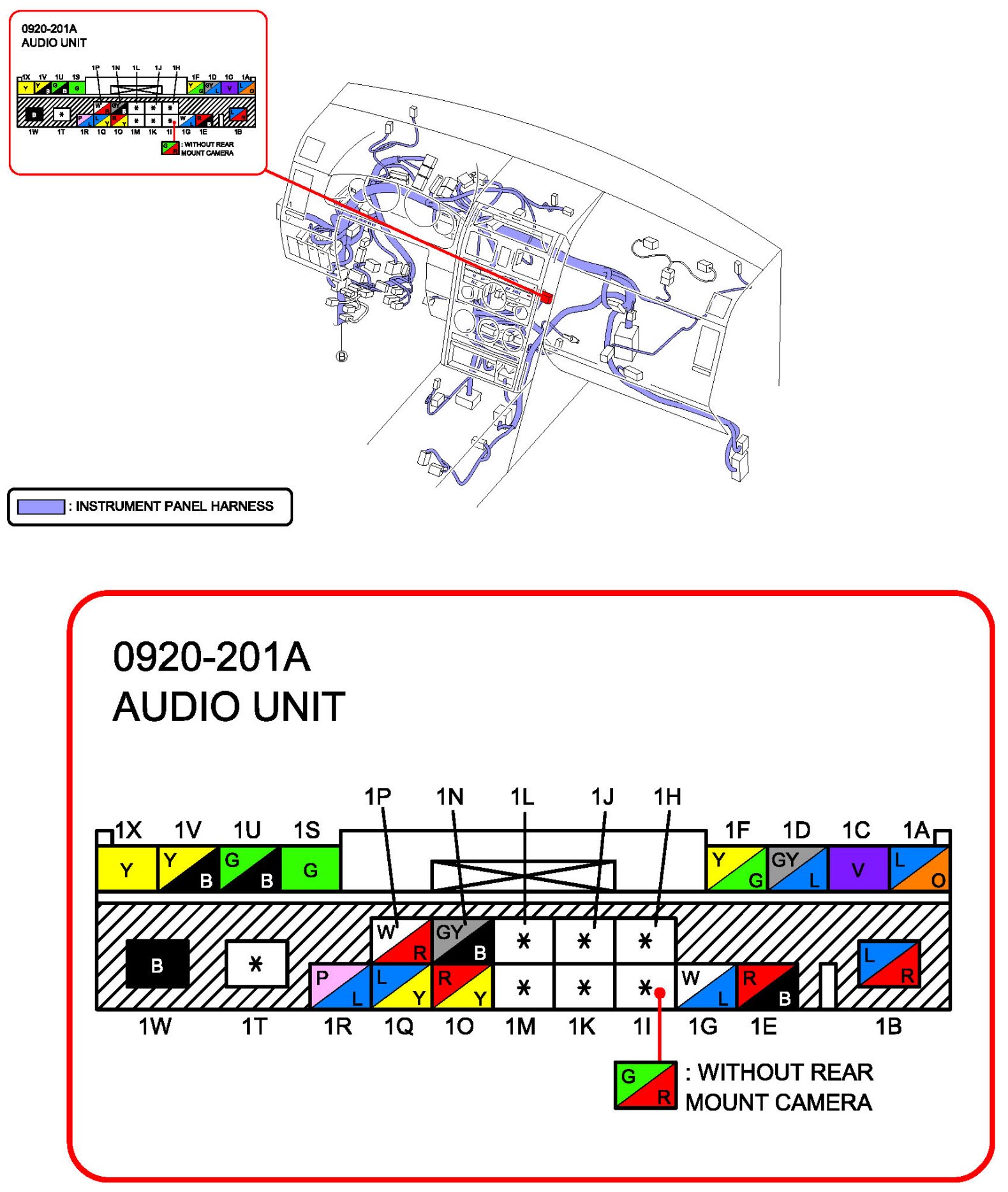

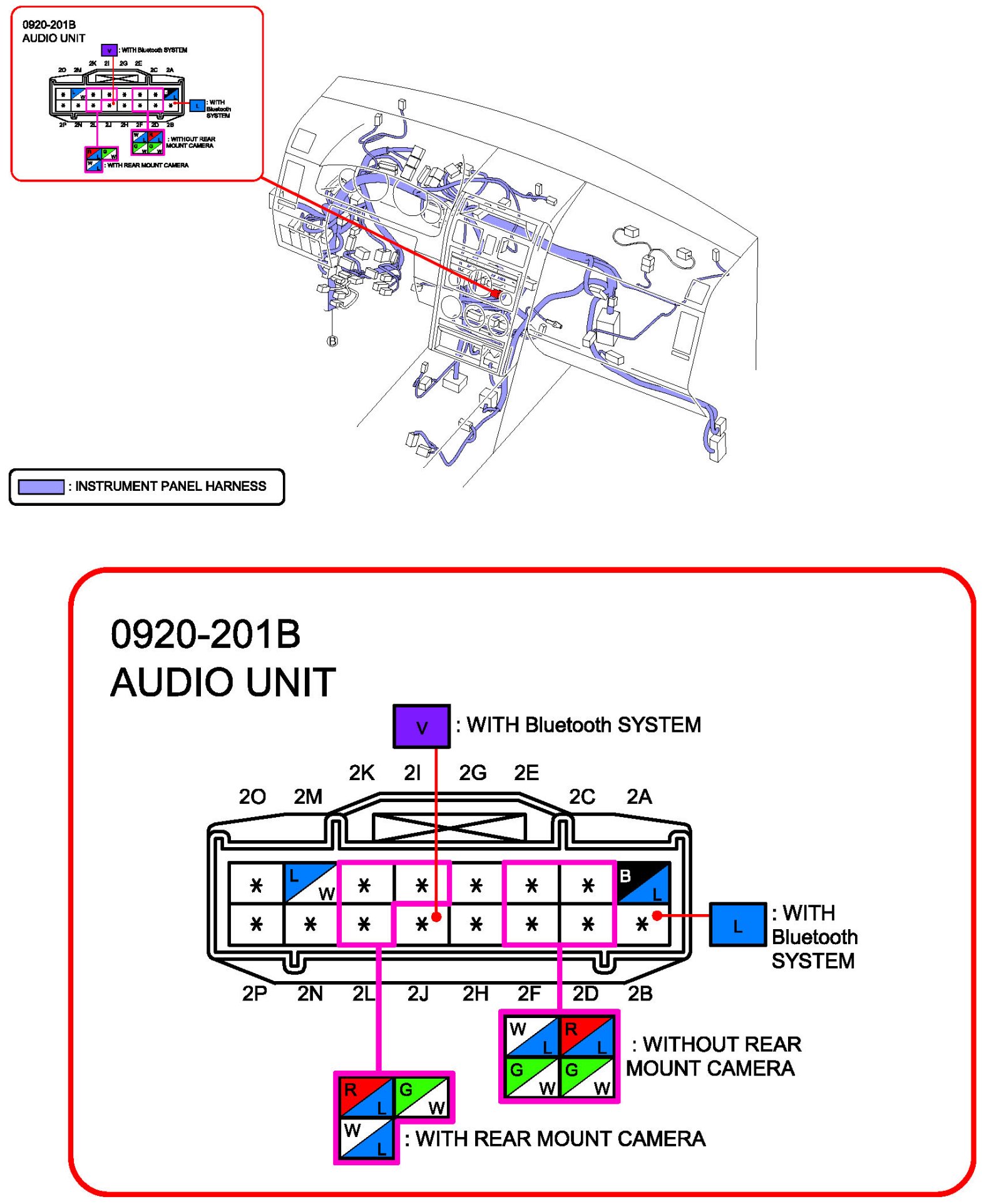

Audio Unit

Audio Unit:






Audio Unit:






Audio Unit:
