Auto Light/Wiper Control Module Removal/Installation - Lighting Systems

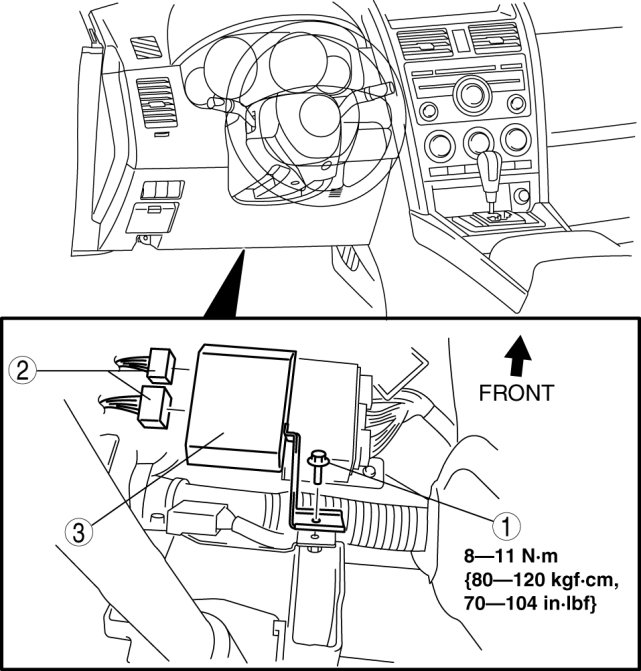

AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

NOTE:
- Auto light-off system are integrated with the auto light/wiper control module.

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Driver side). Dashboard Under Cover Removal/Installation

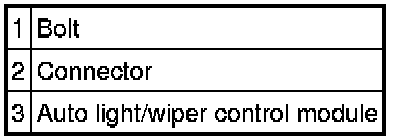

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
