System Specifications
TRANSMISSION/TRANSAXLE TECHNICAL DATA

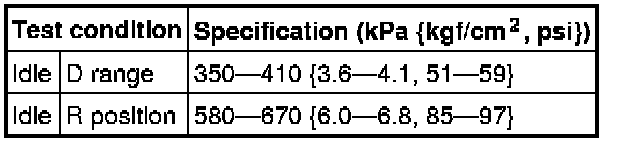

Line Pressure

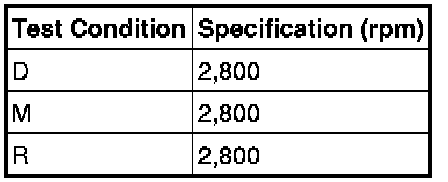

Stall Speed

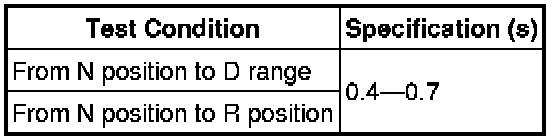

Time Lag

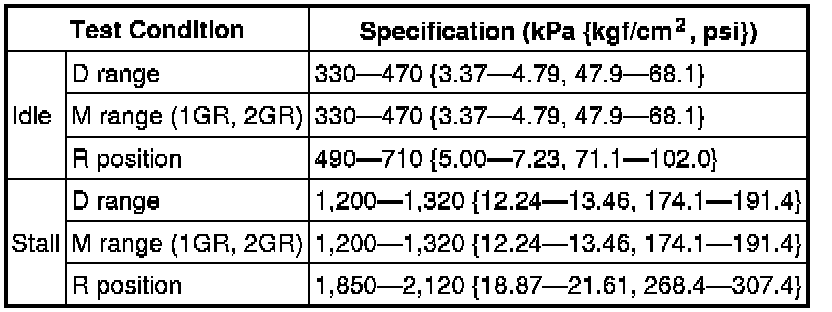

Line pressure specification (while idling)

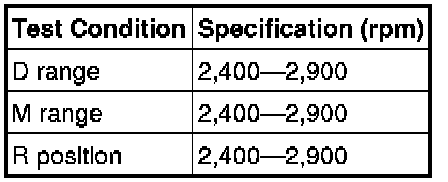

Stall speed

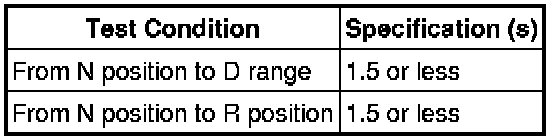

Time lag

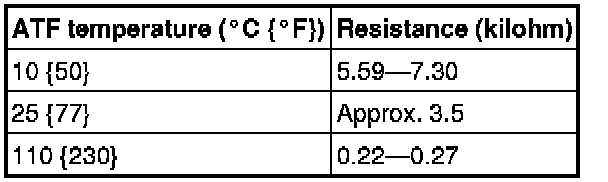

Transaxle fluid temperature (TFT) sensor
Input/turbine speed sensor
VSS

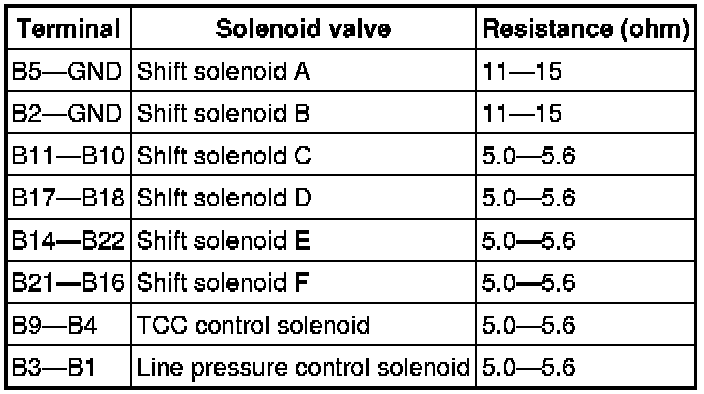

Solenoid valve resistance (ATF temperature: 20 °C {68 °F})
