Main Relay (Computer/Fuel System): Locations




RELAY LOCATION

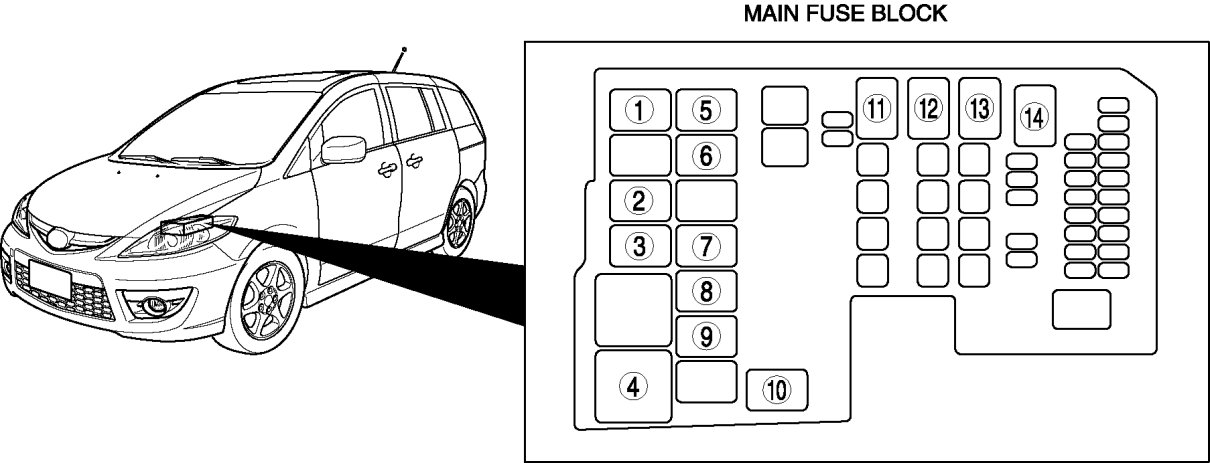

Without Rear Vent

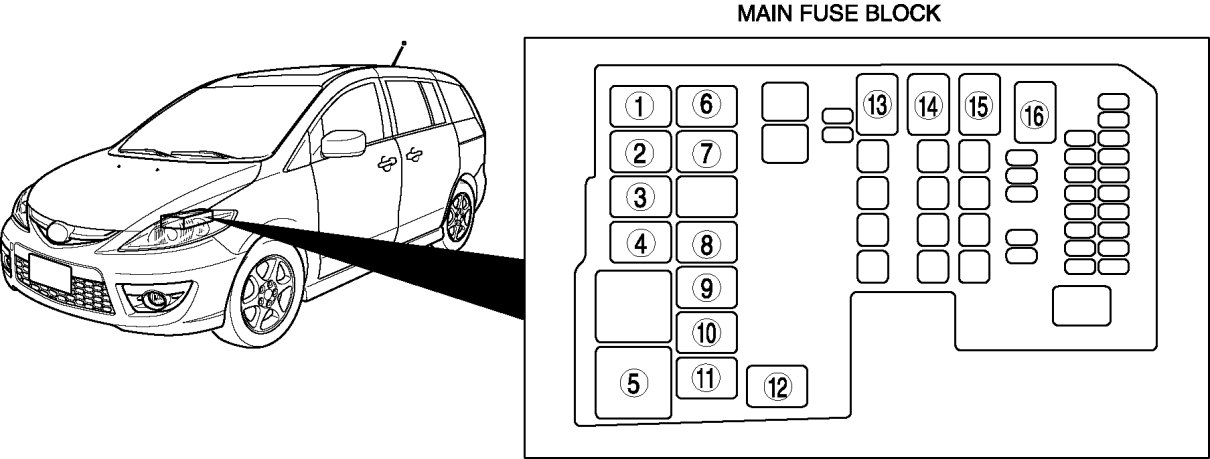

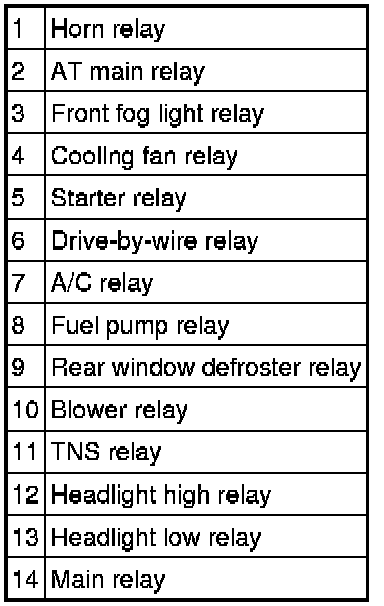

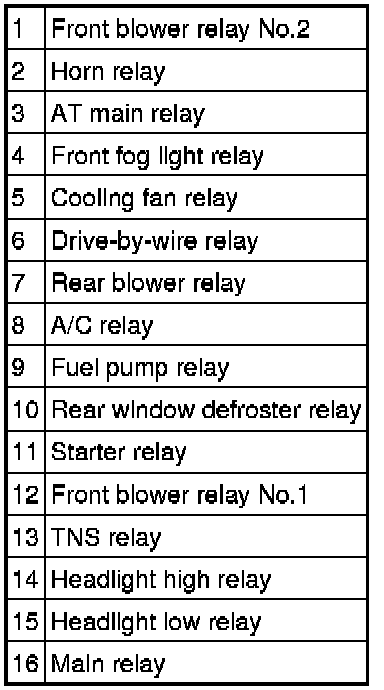

With Rear Vent











From Wiring Information

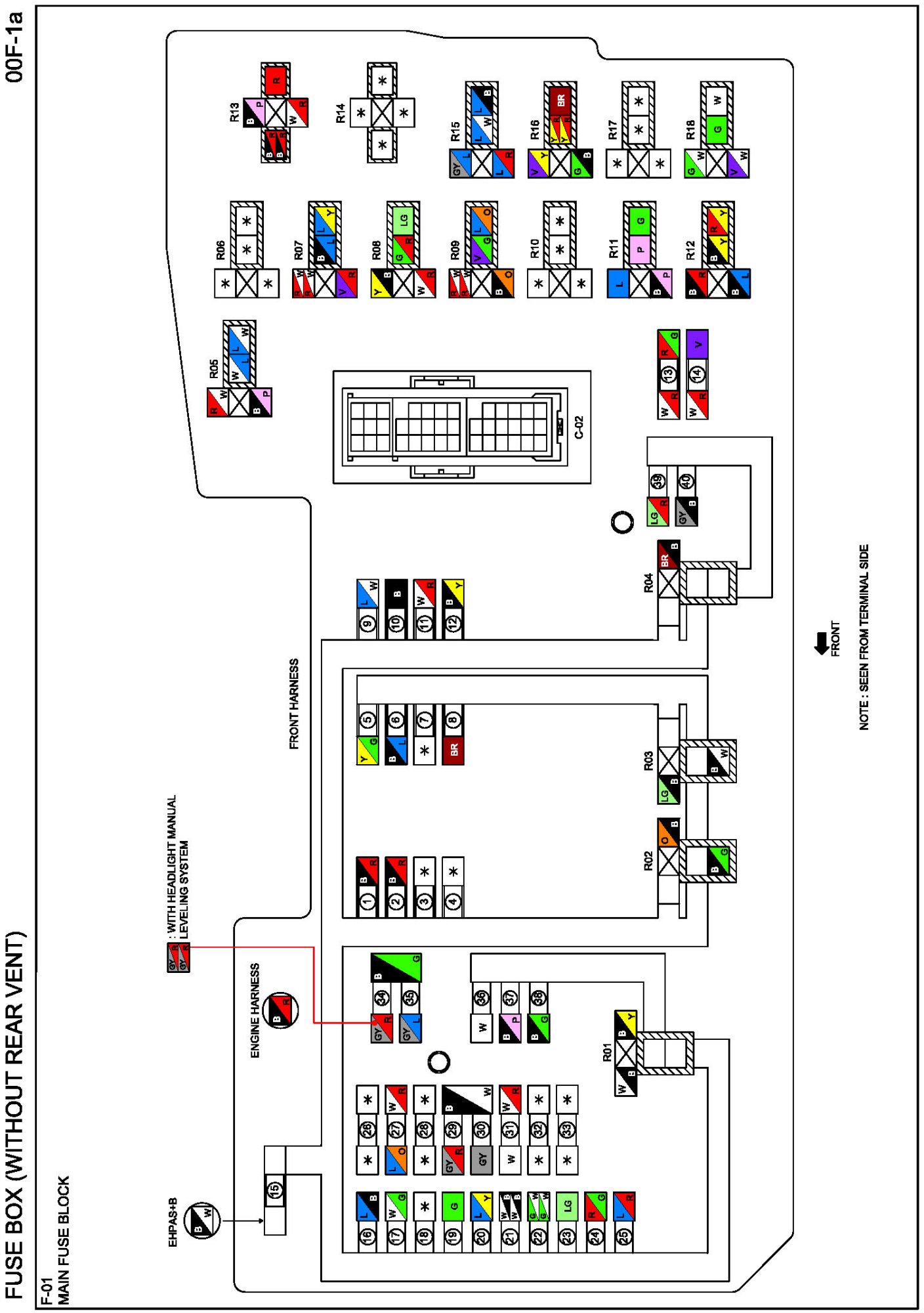

Diagram 00F-1a:

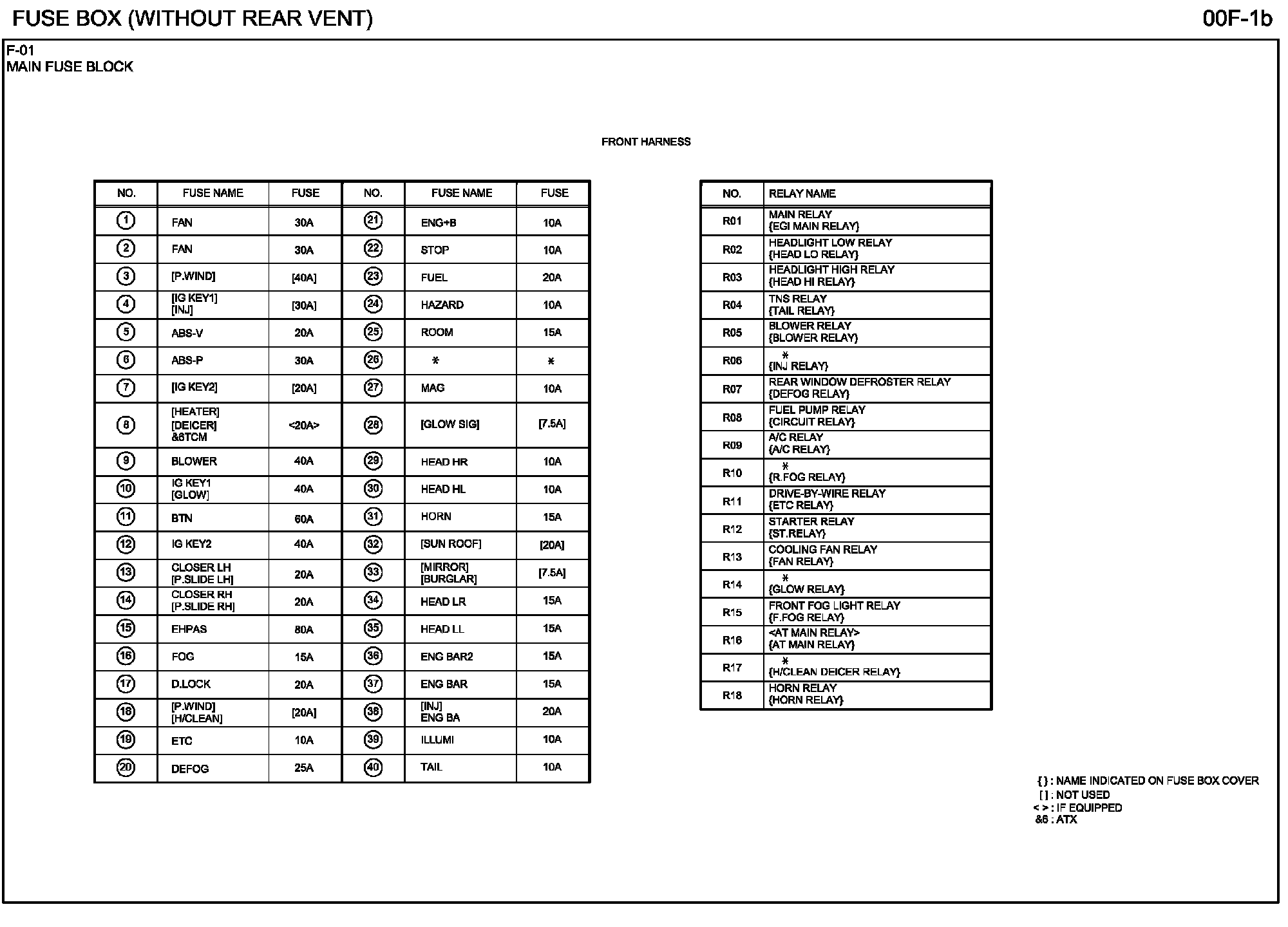

Diagram 00F-1b:

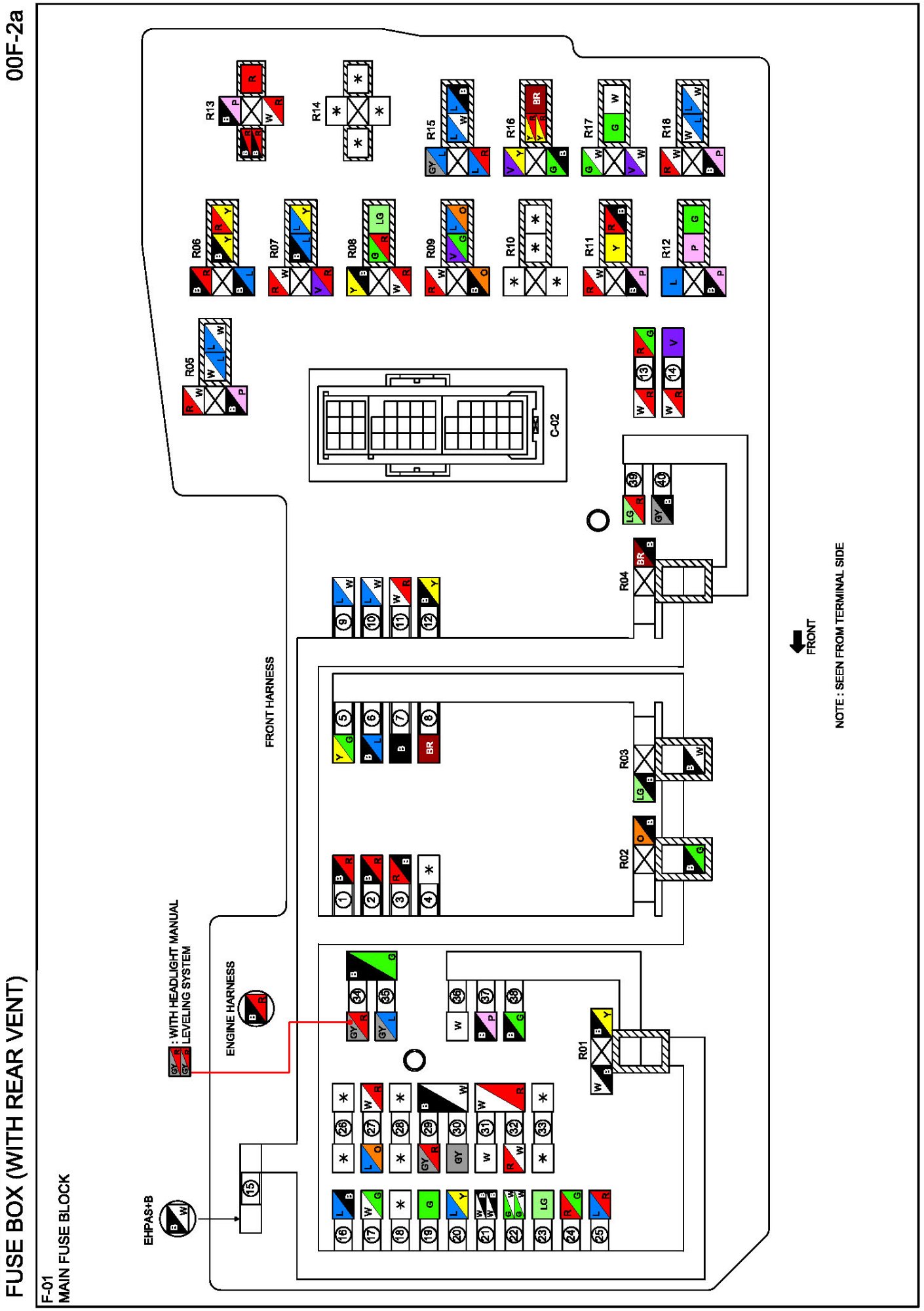

Diagram 00F-2a:

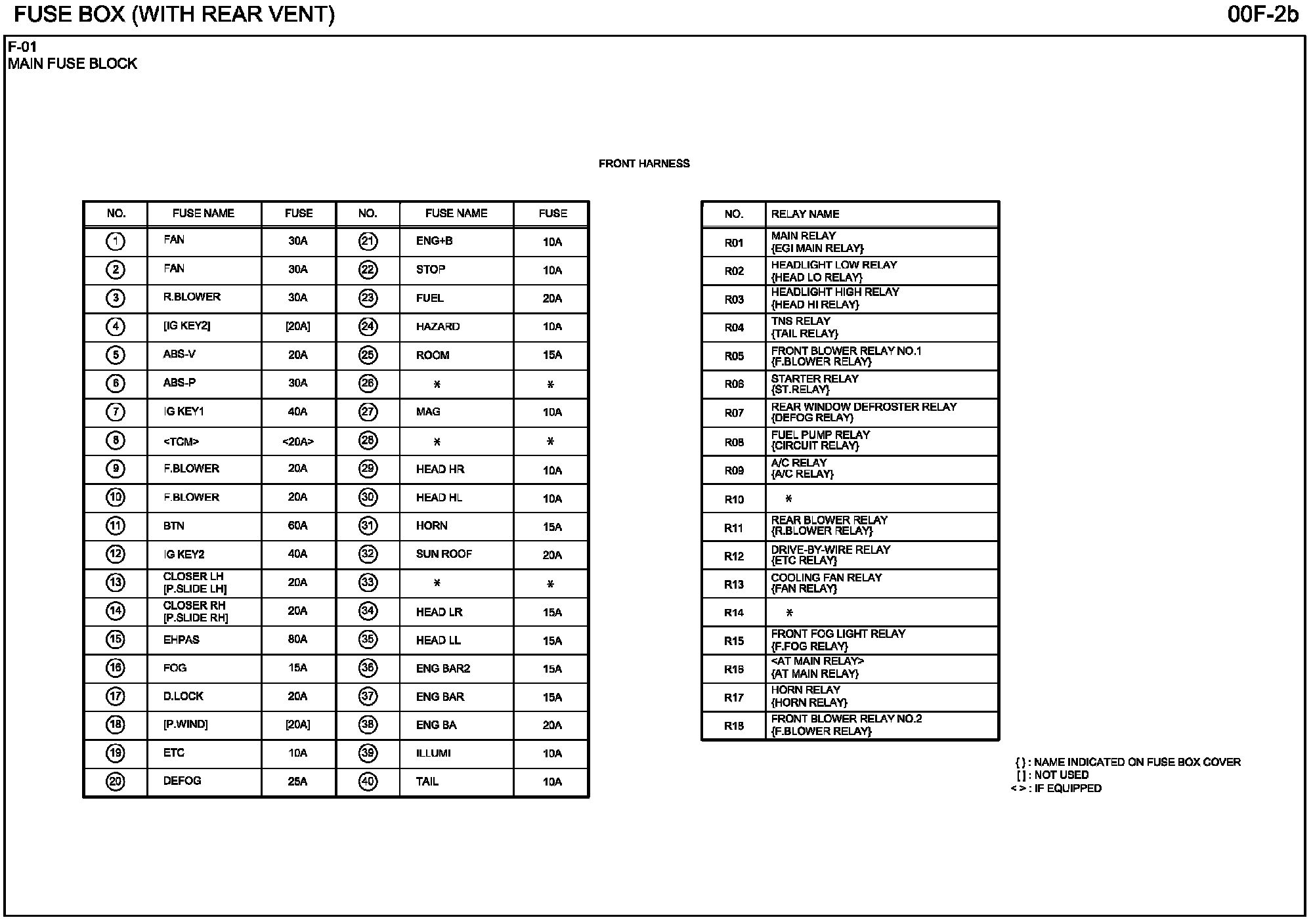

Diagram 00F-2b:
