Home >> Mazda >> 2010 >> 5 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Testing and Inspection

Keyless Entry Module: Testing and Inspection

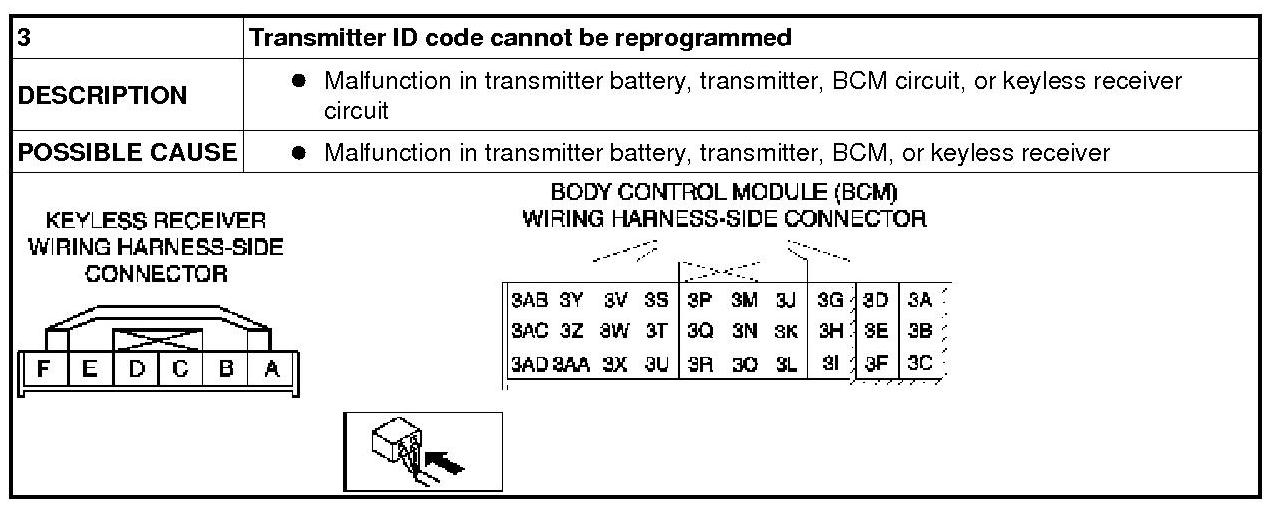

NO.3 TRANSMITTER ID CODE CANNOT BE REPROGRAMMED [KEYLESS ENTRY SYSTEM]

Description/Possible Cause:





Diagnostic procedure

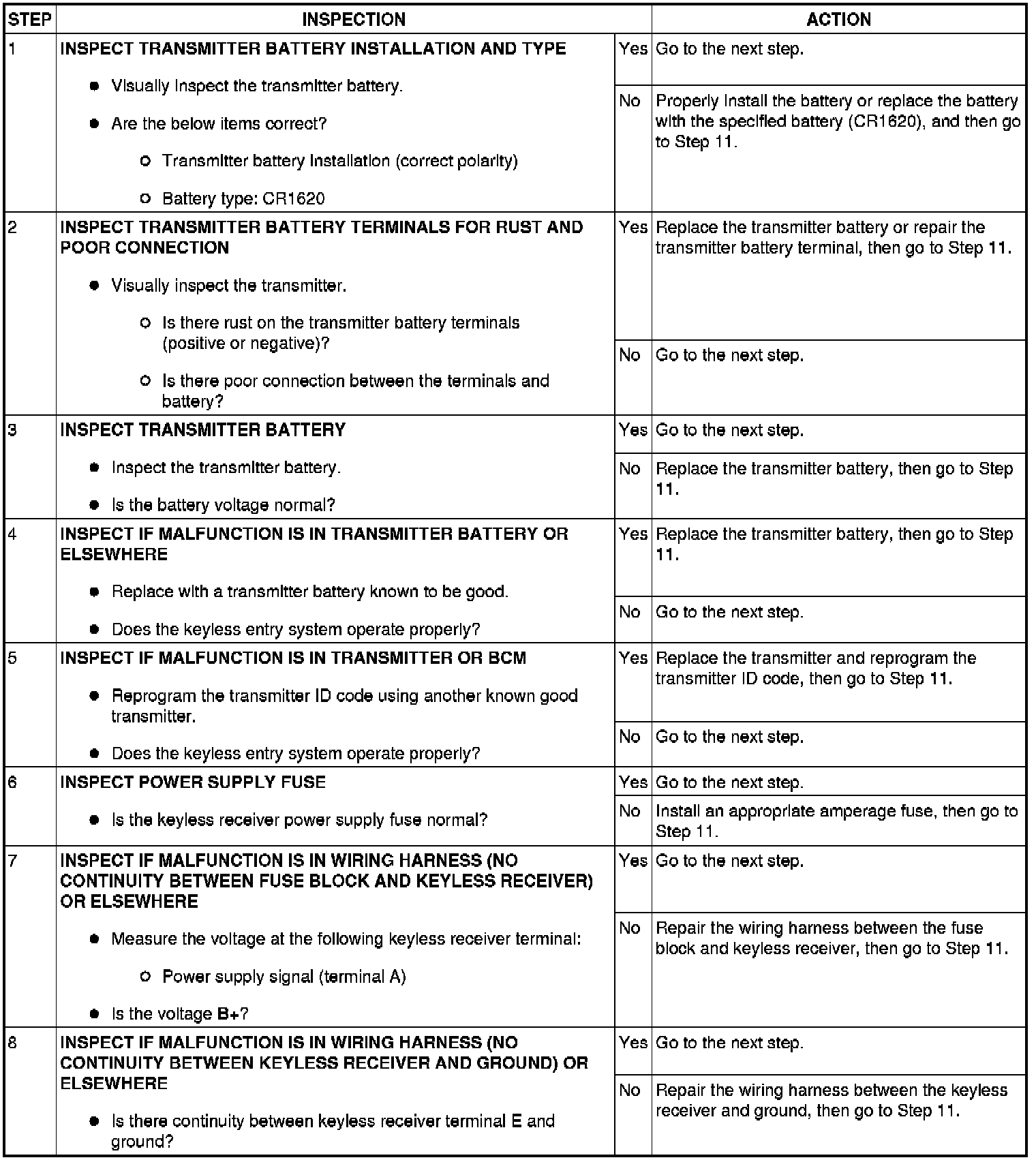

Step 1-Step 8:

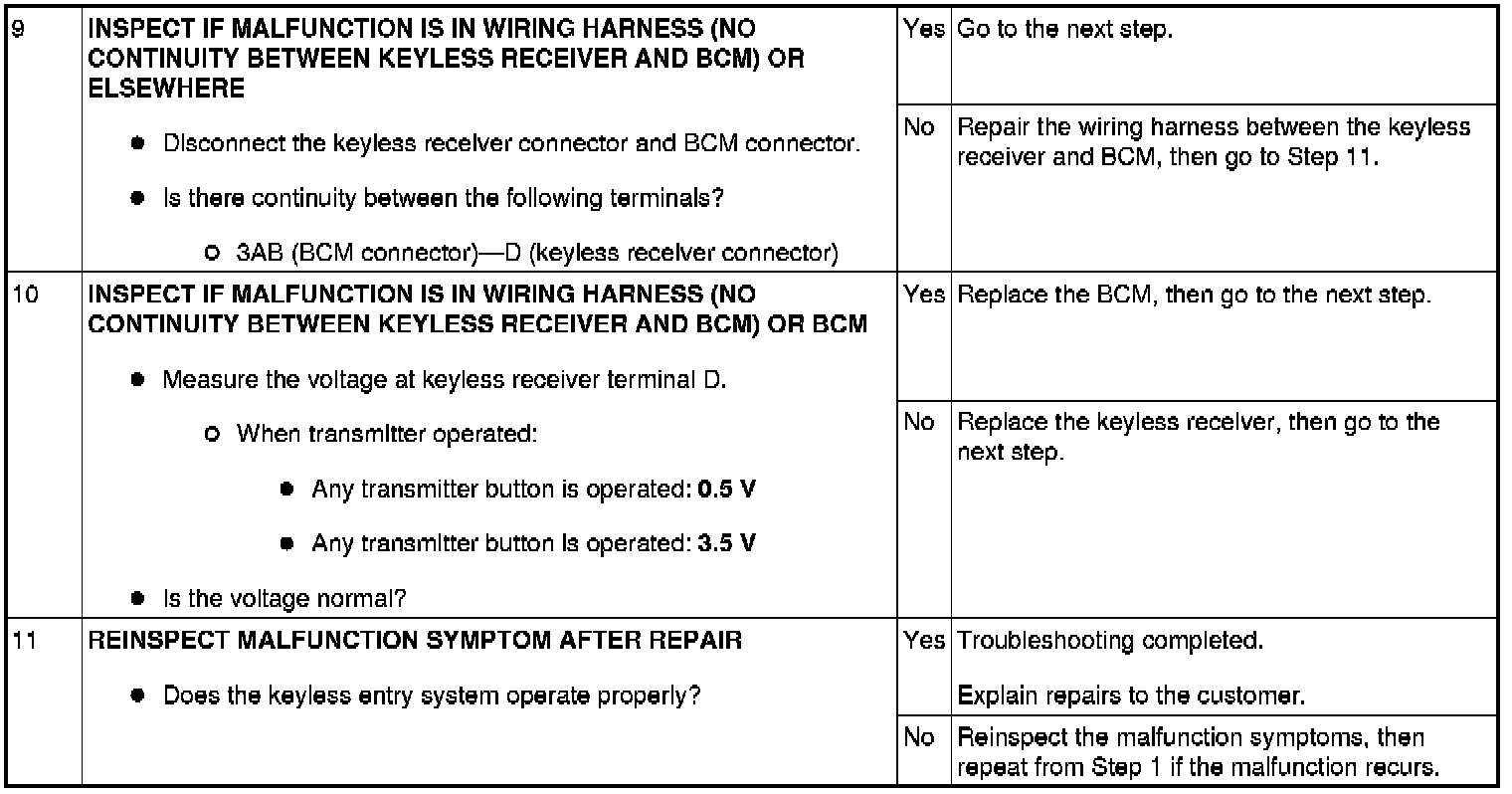

Step 9-Step 11:
