Home >> Mazda >> 2009 >> Tribute 2WD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram



-

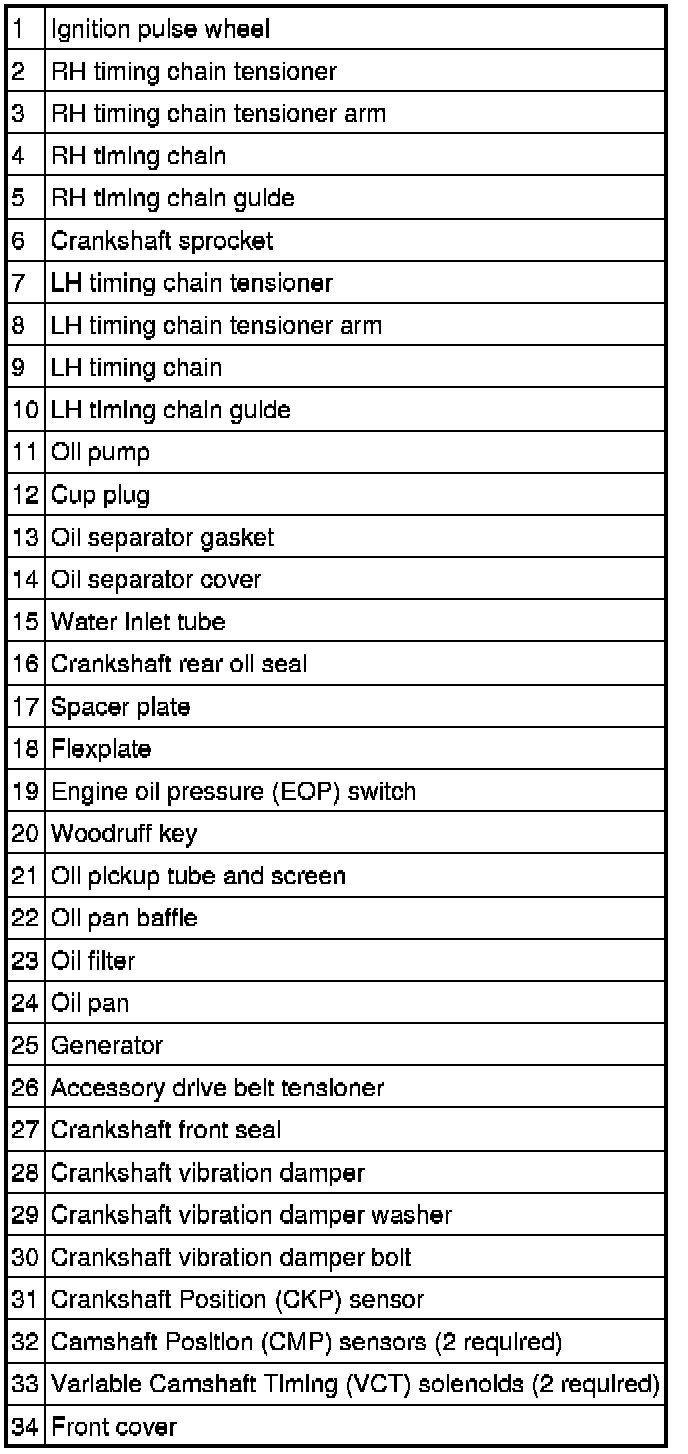

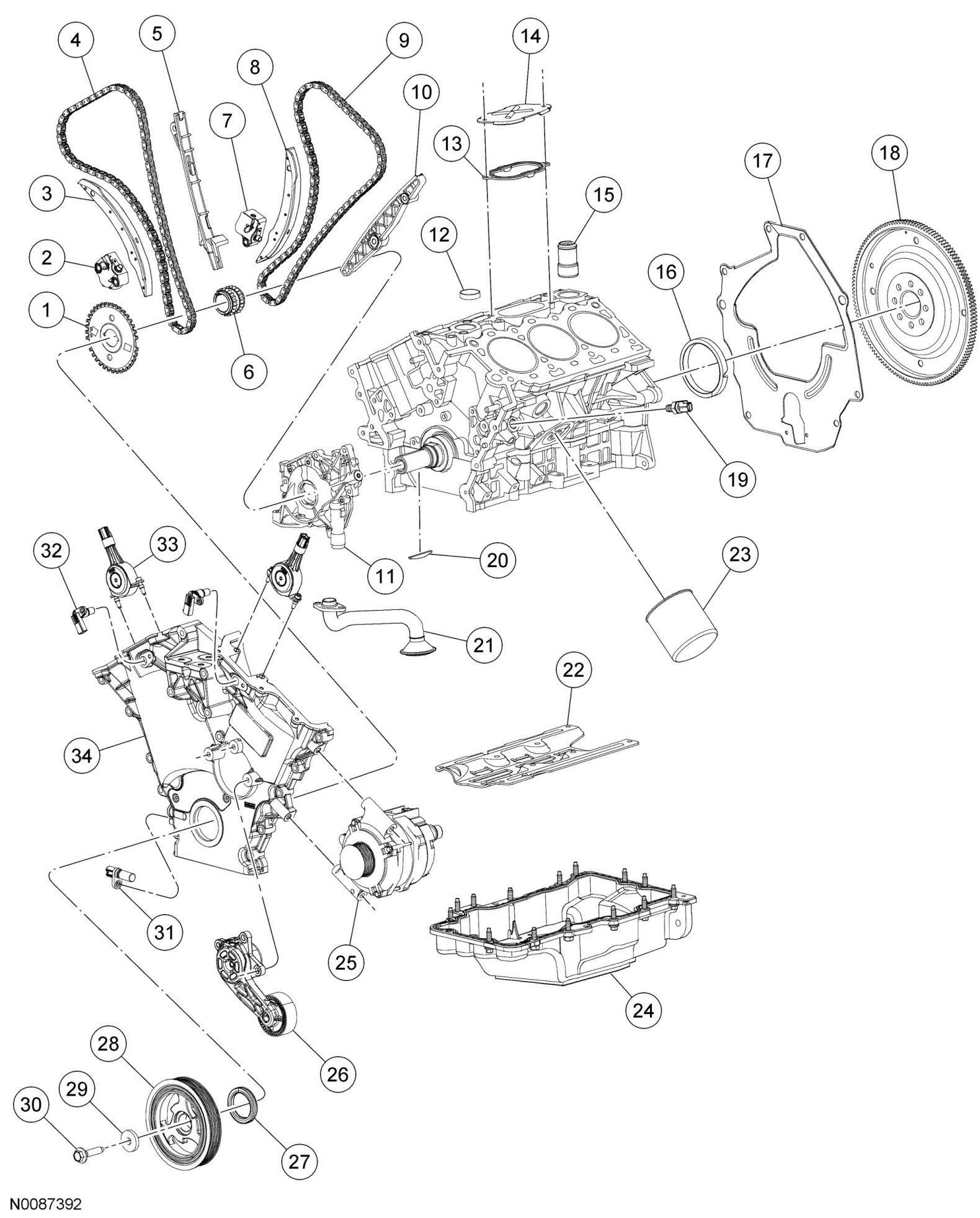

FRONT AND LOWER ENGINE BLOCK- 3.0L EXPLODED VIEW


















1. For additional information, see the procedures.
