Test 11: Ignition Scope Test

TEST 11: IGNITION SCOPE TEST

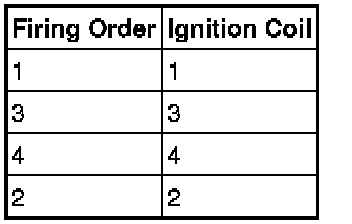

CAUTION:Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.2.5L

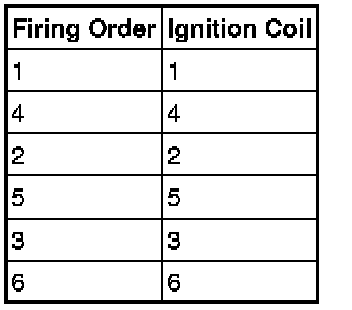

3.0L

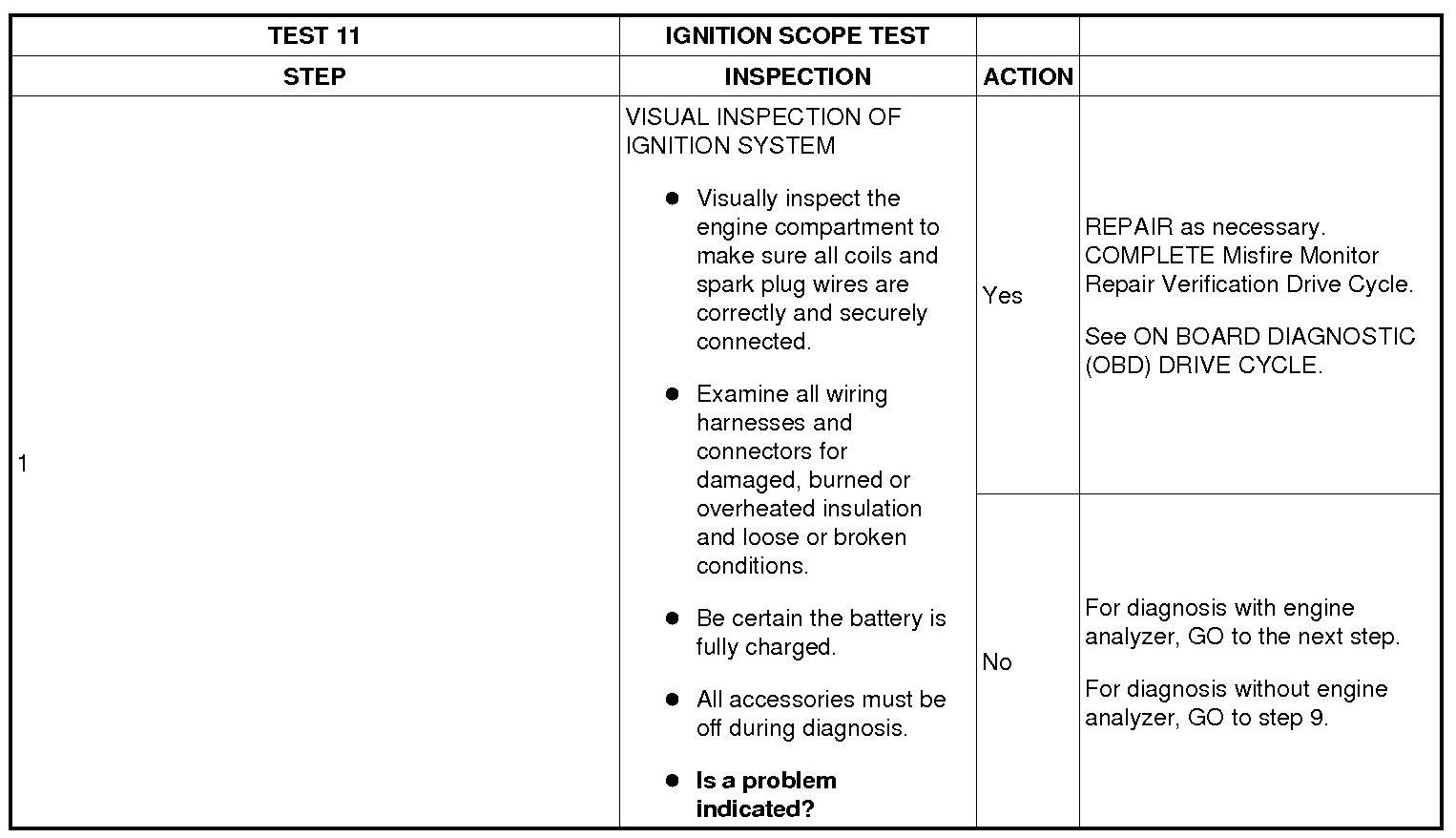

Step 1:

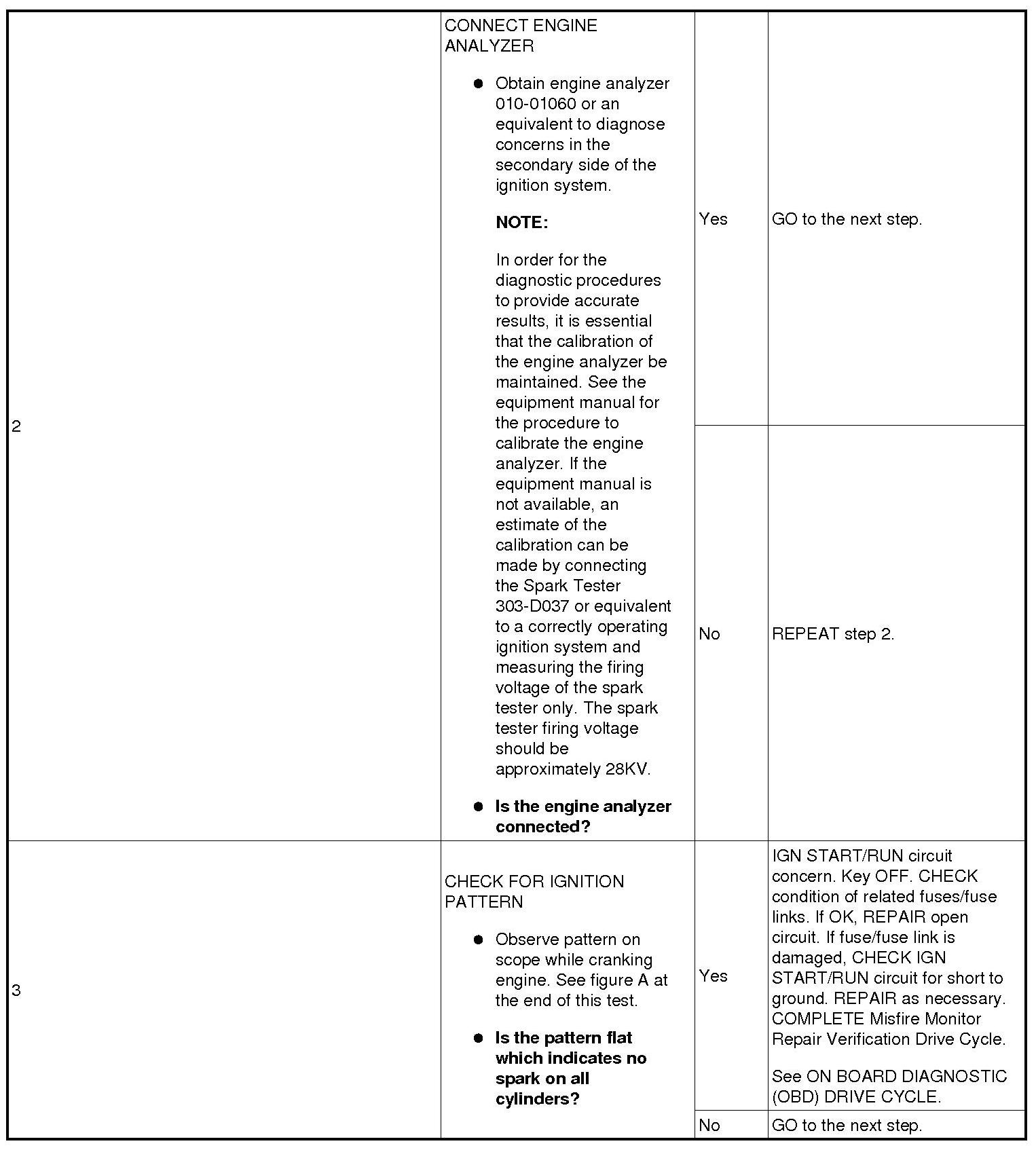

Step 2-Step 3:

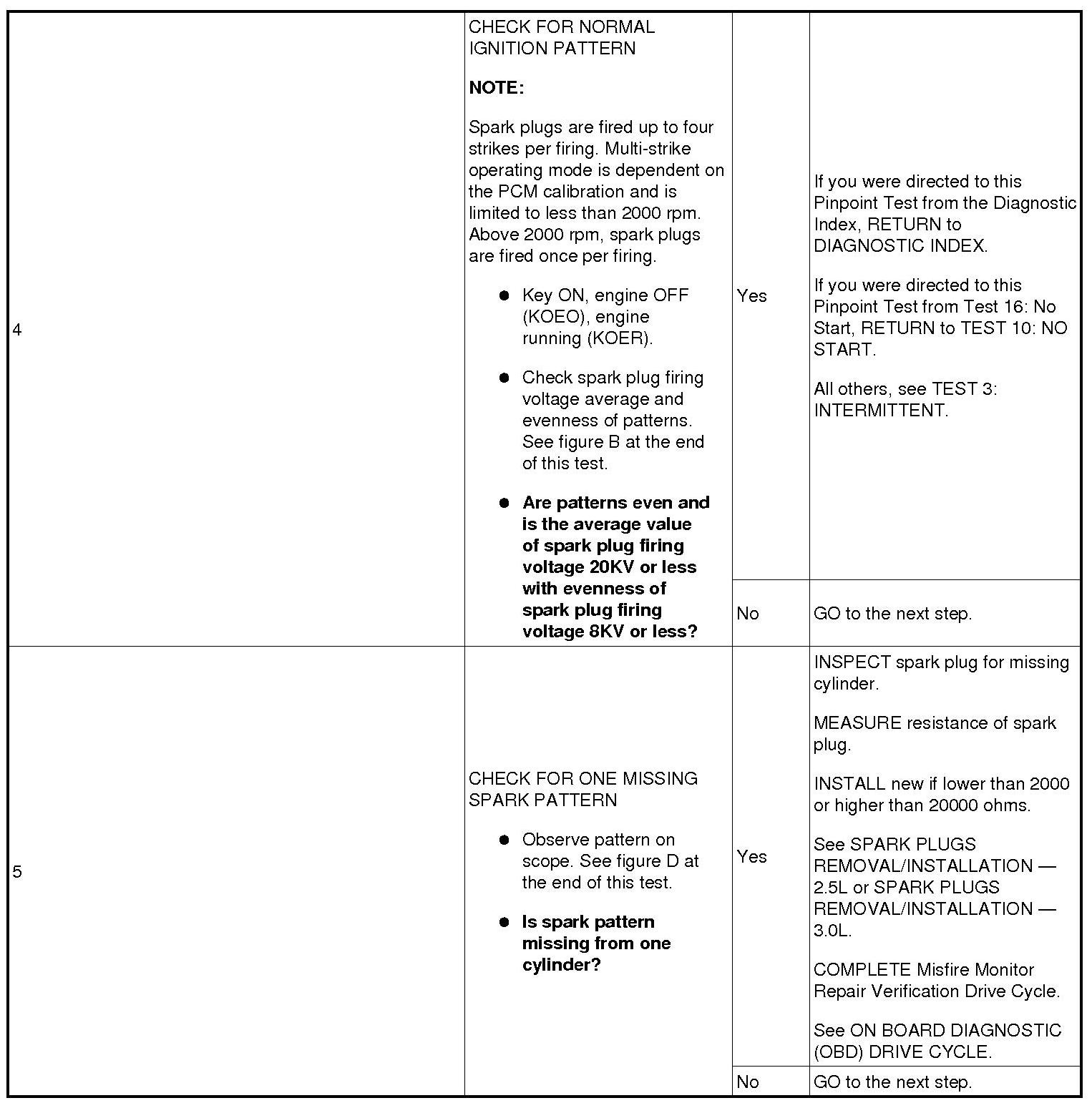

Step 4-Step 5:

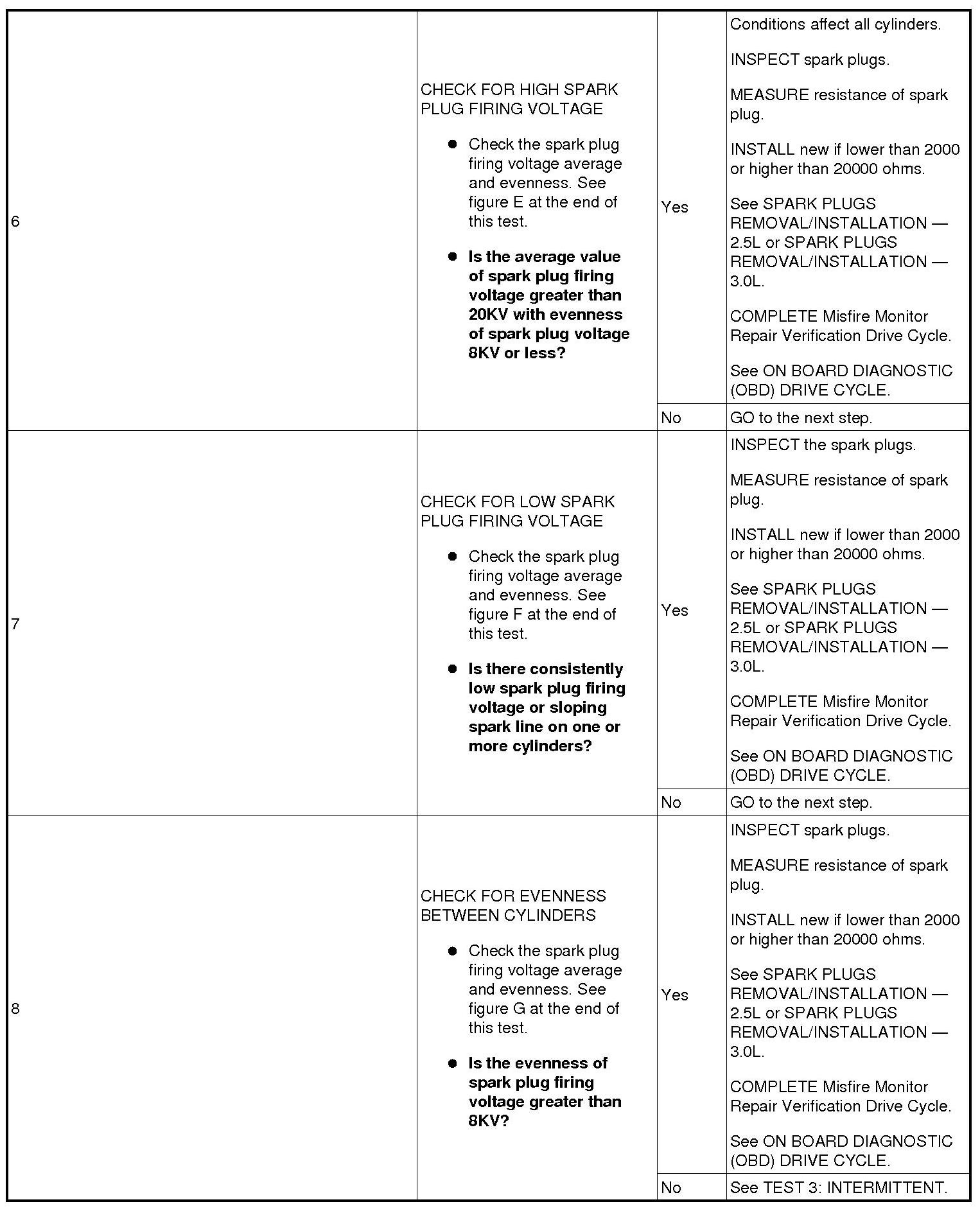

Step 6-Step 8:

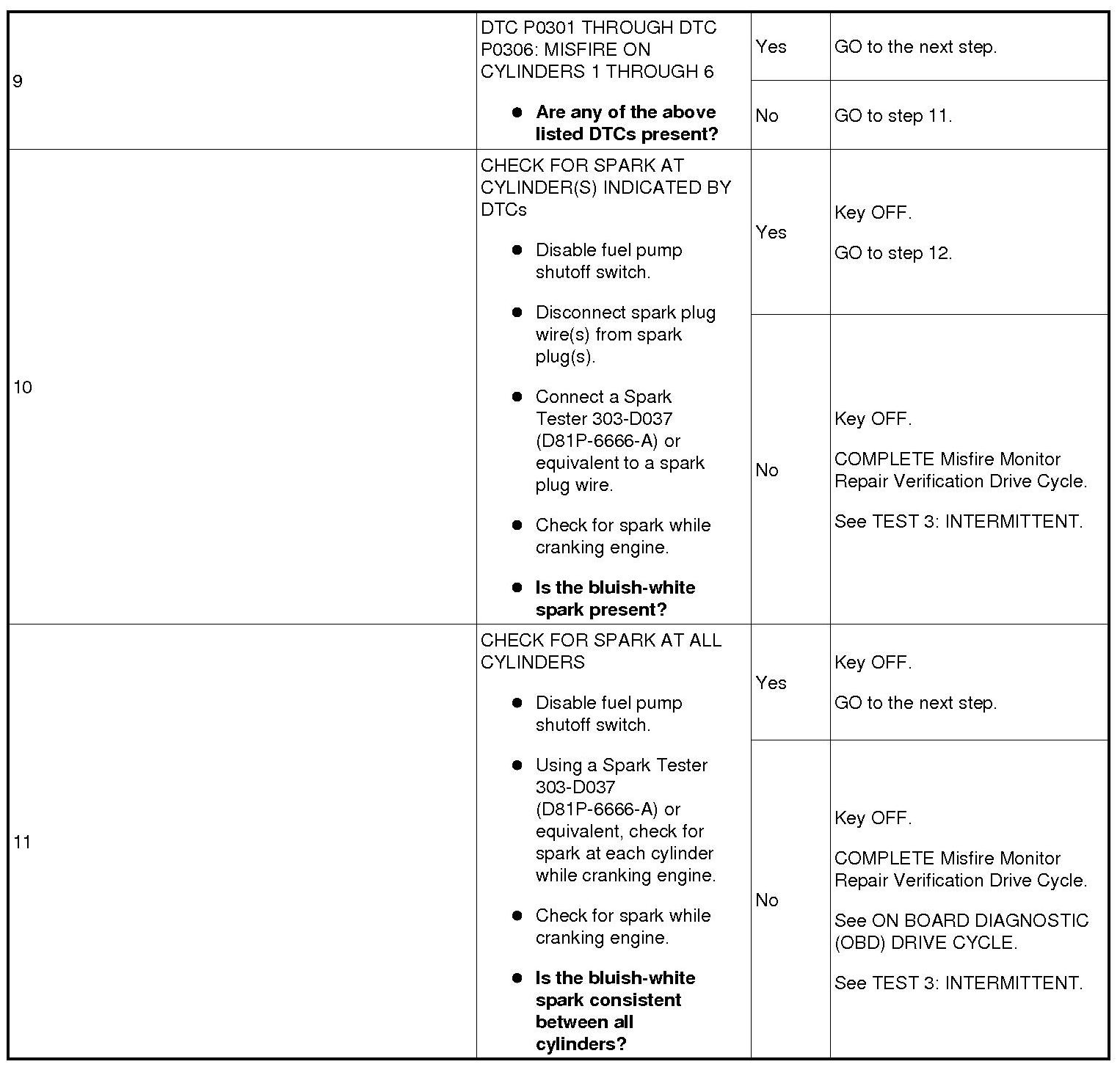

Step 9-Step 11:

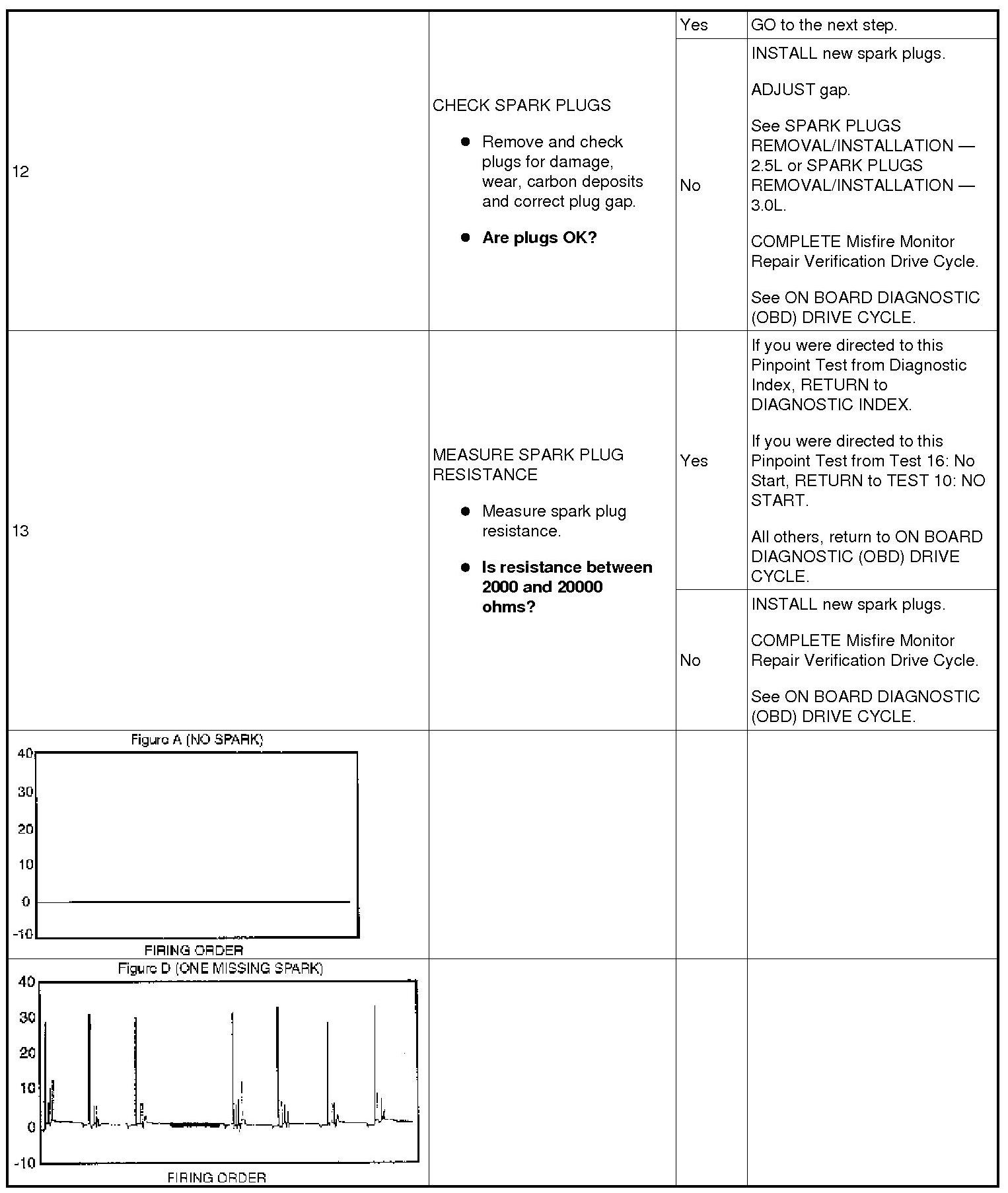

Step 12-Step 13:

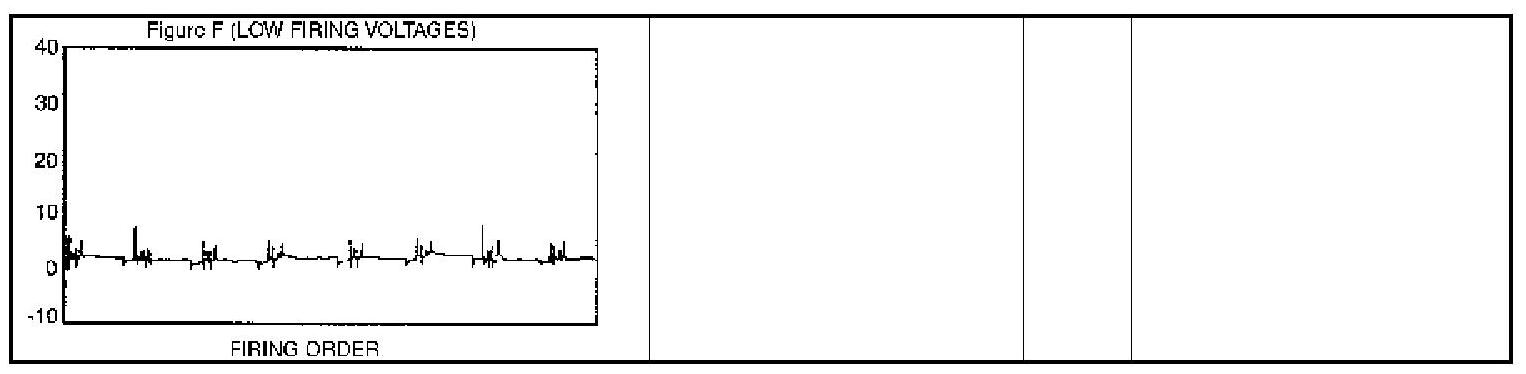

Step 13 Continued:
