Front Blower Motor Resistor Assembly
Front Blower Motor Resistor Assembly

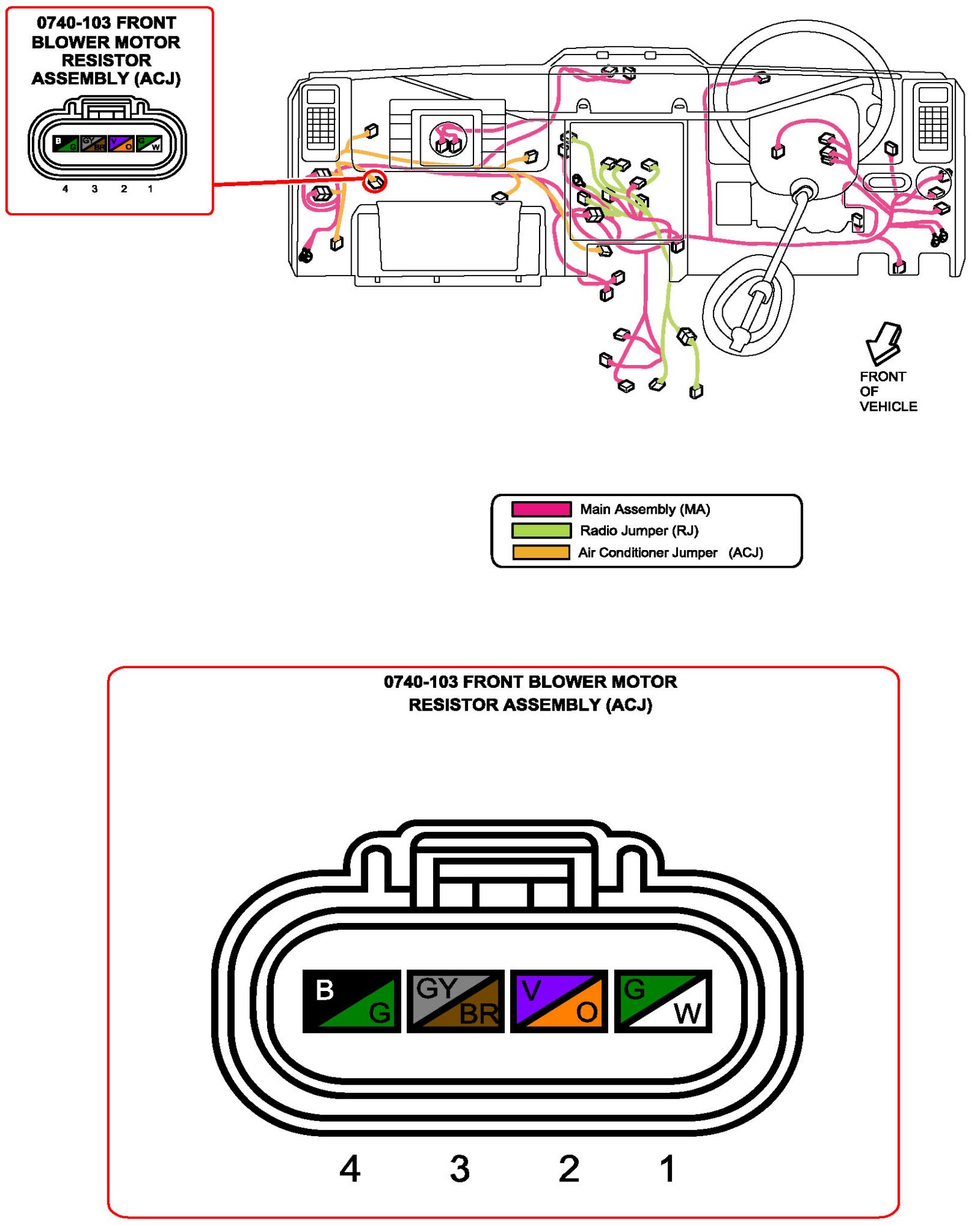

Front Blower Motor Resistor Assembly:
