System Diagram



-

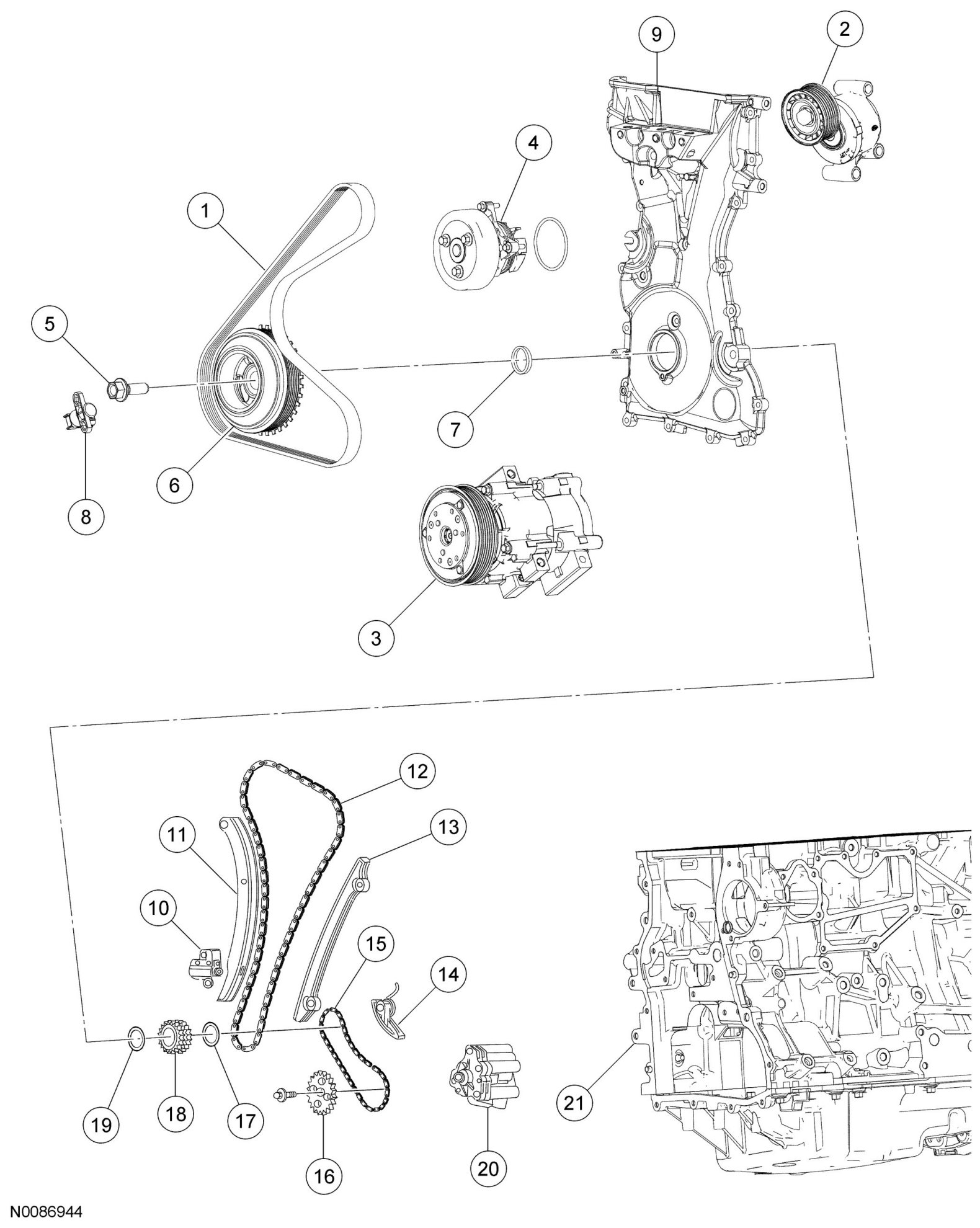

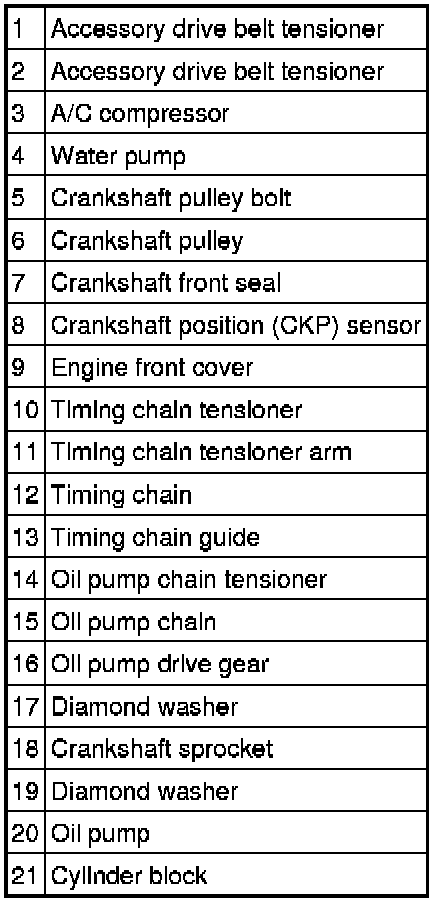

FRONT ENGINE BLOCK - HYBRID EXPLODED VIEW










1. For additional information, see the procedures.
