Engine Lubrication

-
ENGINE LUBRICATION COMPONENTS EXPLODED VIEW - HYBRID

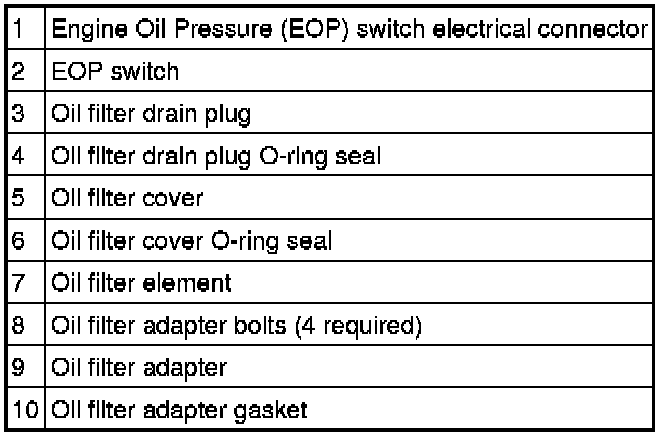

Oil Filter Adapter, Oil Filter Element and Engine Oil Pressure (EOP) Switch

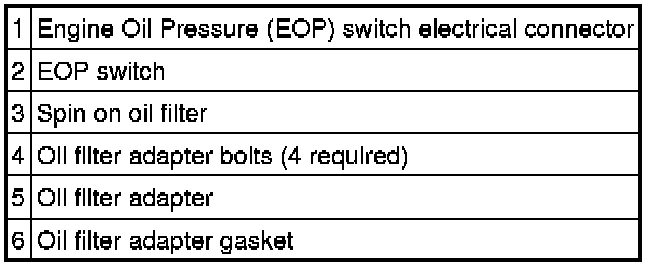

Oil Filter Adapter, Spin On Oil Filter and Engine Oil Pressure (EOP) Switch

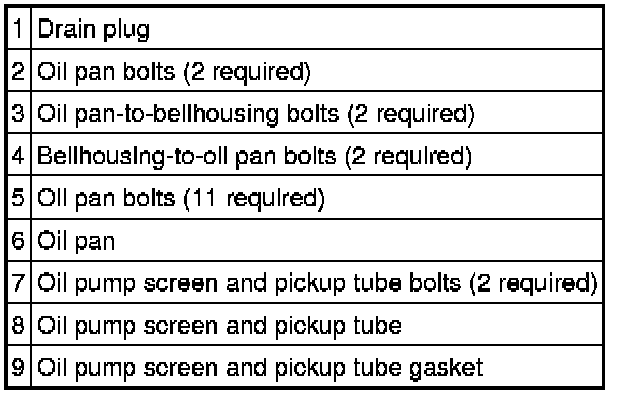

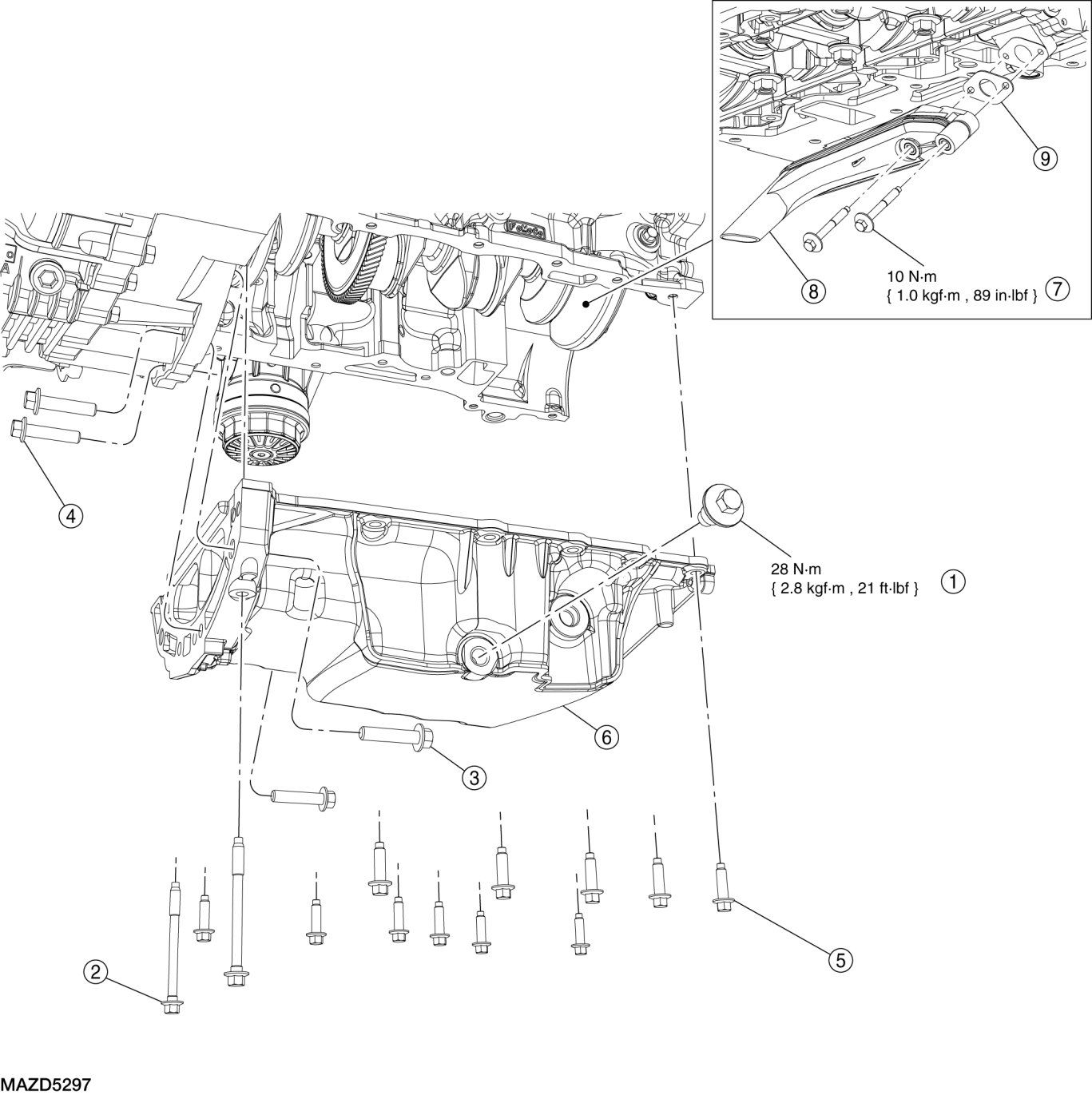

Oil Pan, Oil Pump Screen and Pickup Tube

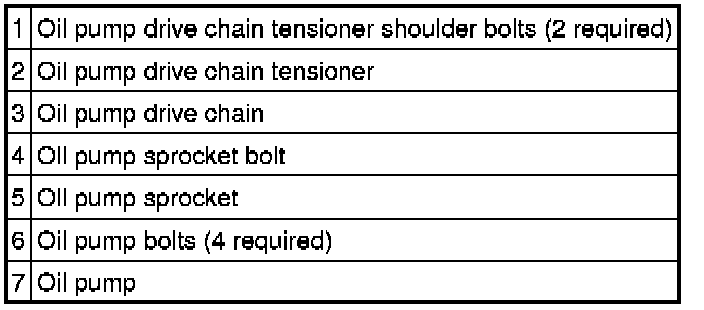

Oil Pump










1. For additional information, see the procedures.
