Emission Control Systems: Locations




EMISSION SYSTEM LOCATION INDEX [13B-MSP]

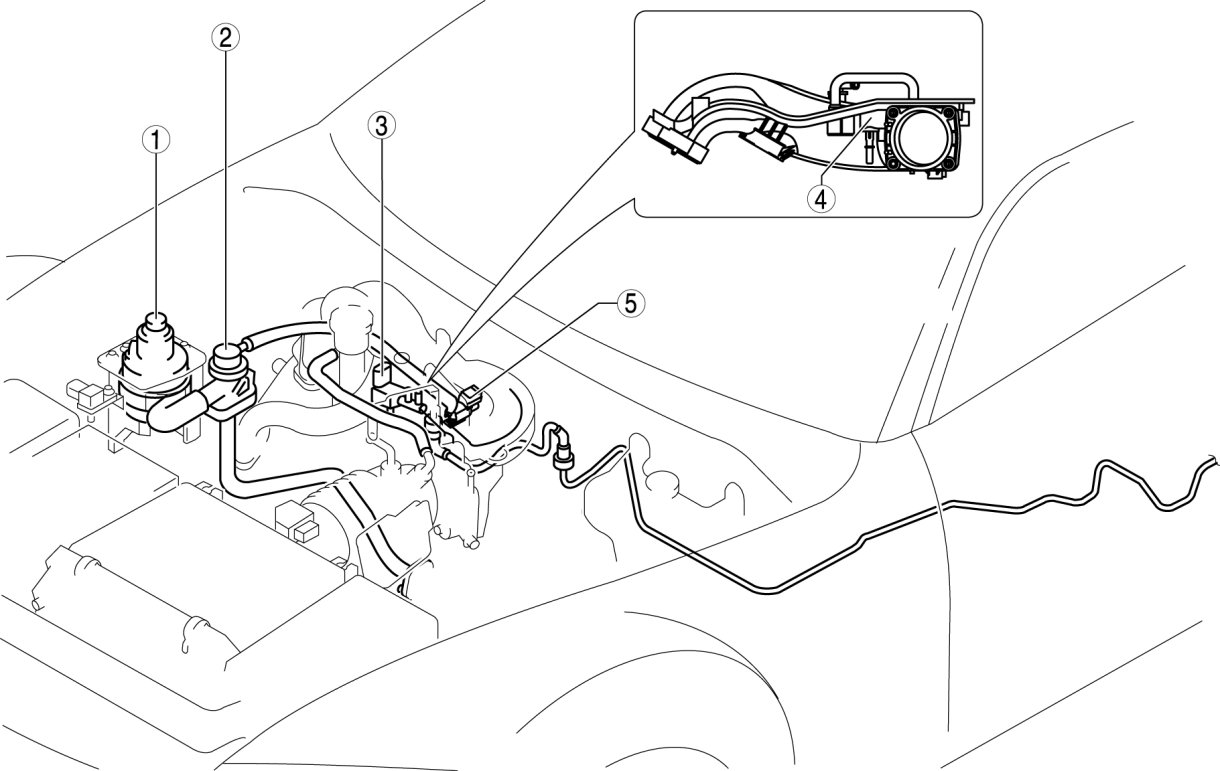

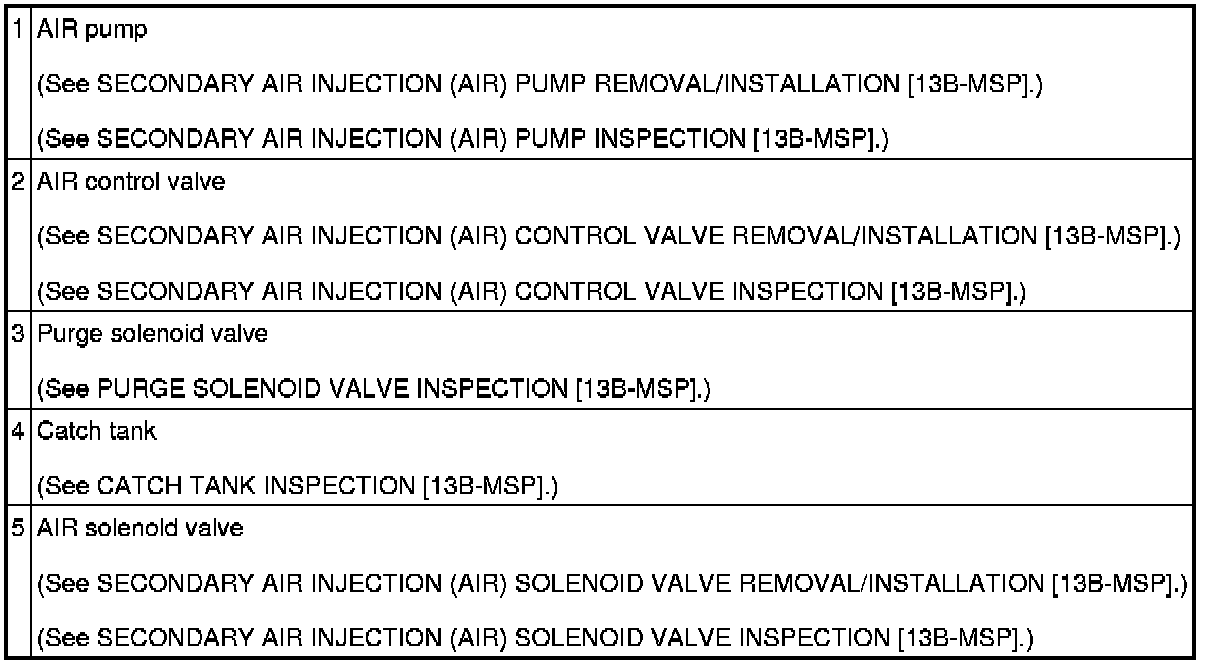

Engine Compartment Side

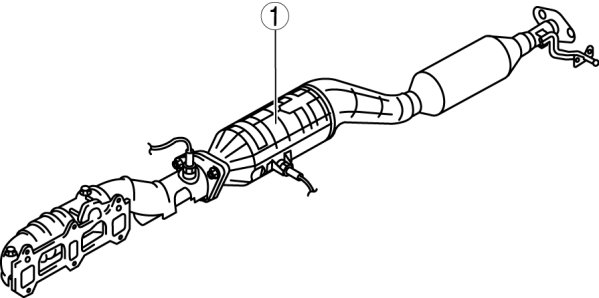

Exhaust System

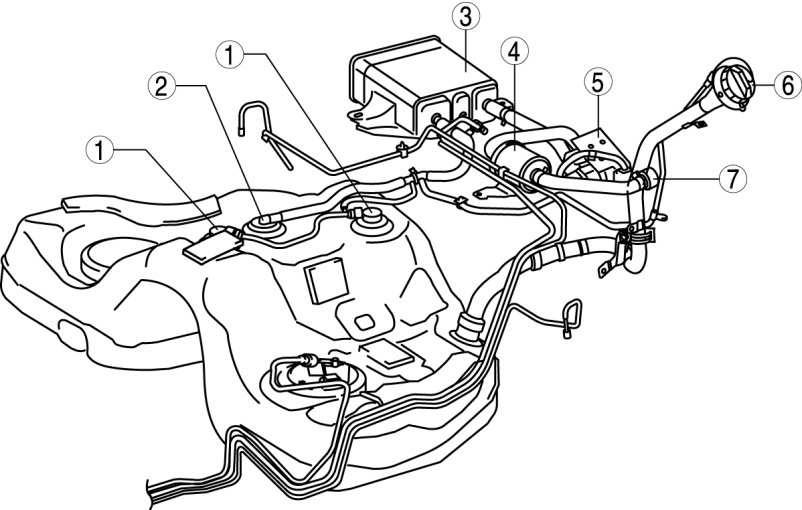

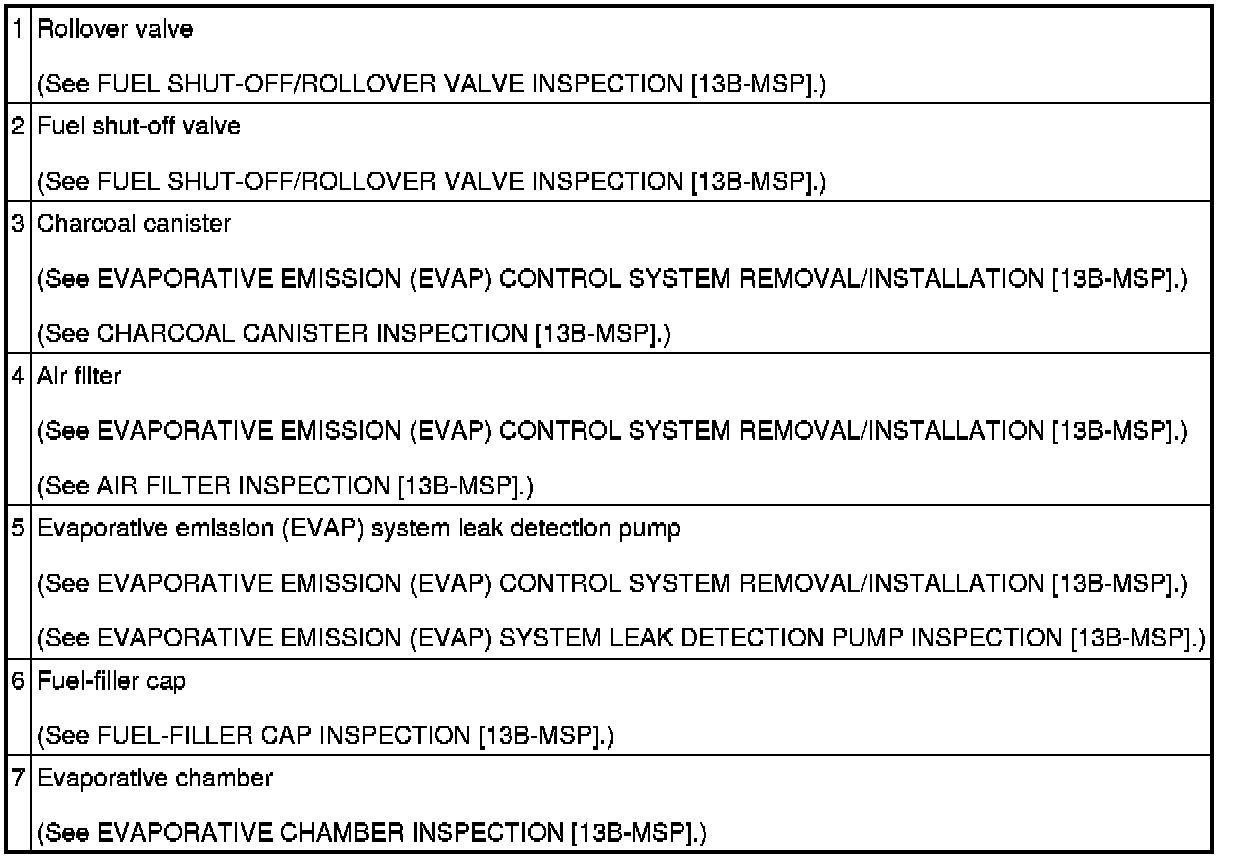

Fuel Tank Side
