Front Tilt Motor/Front Tilt Position Sensor

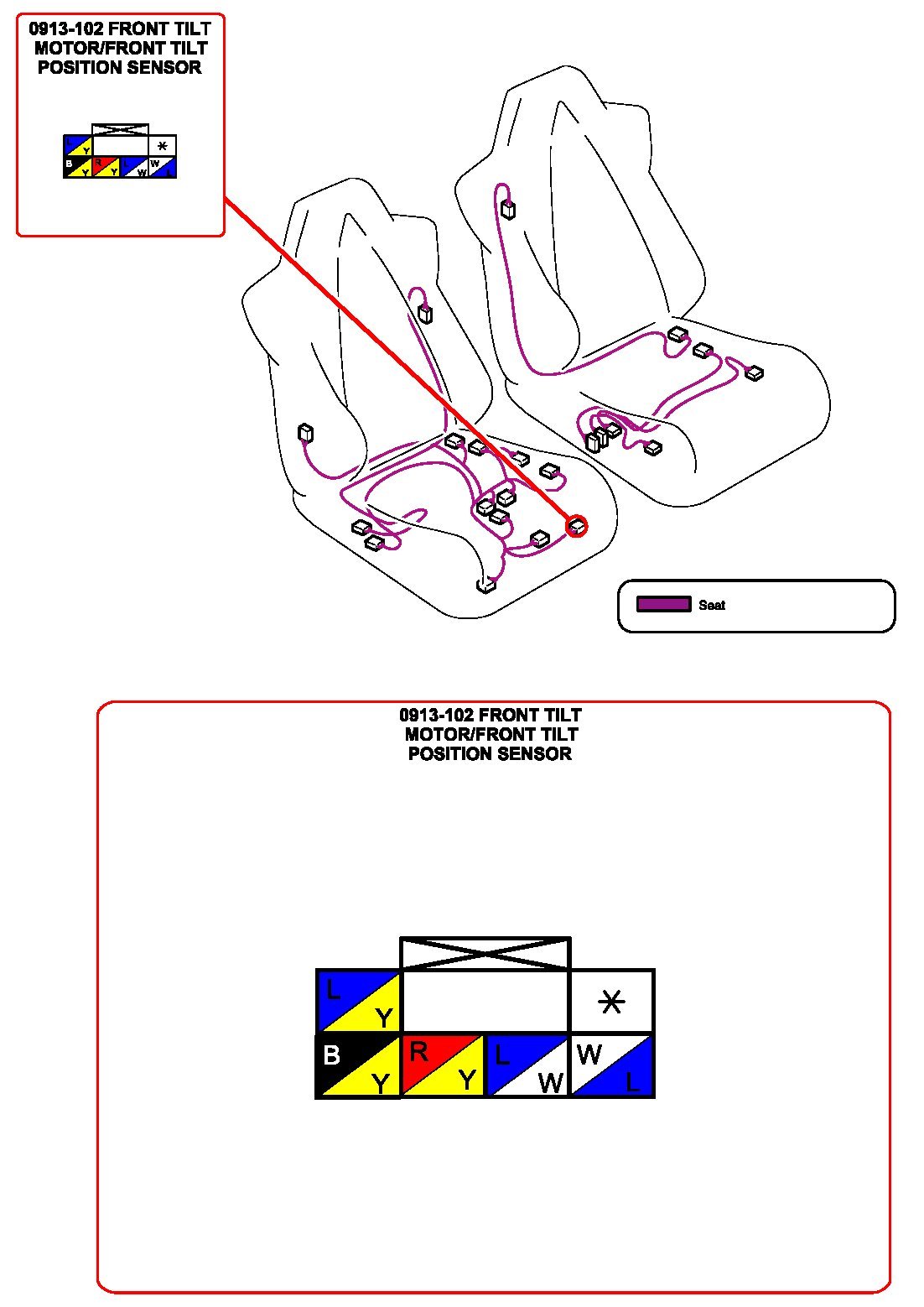

Front Tilt Motor/Front Tilt Position Sensor:



Slide Motor/Slide Position Sensor:

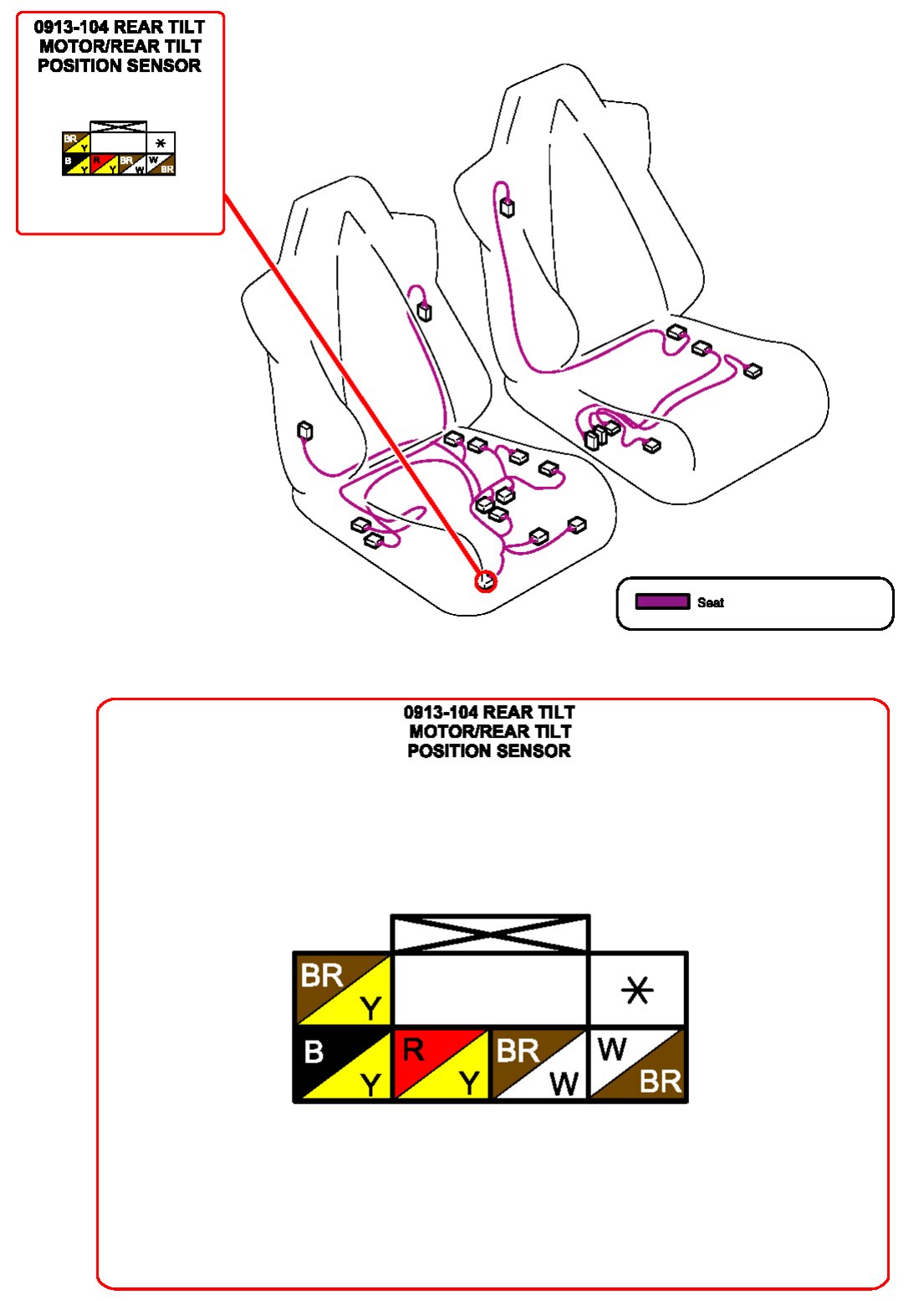

Rear Tilt Motor/Rear Tilt Position Sensor:

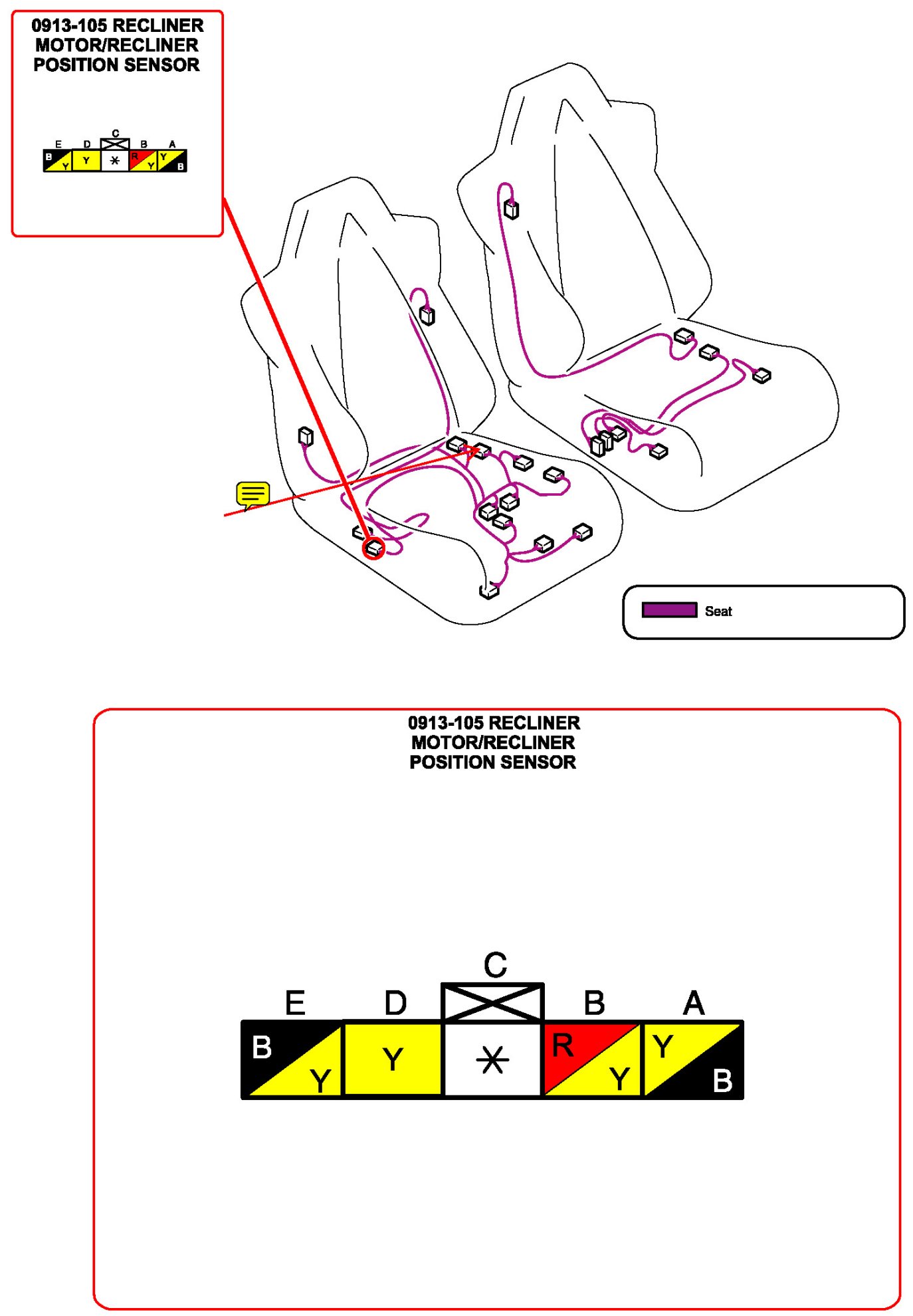

Recliner Motor/Recliner Position Sensor:
