Home >> Mazda >> 2009 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Diagrams >> Components >> Crash Zone Sensor

Crash Zone Sensor

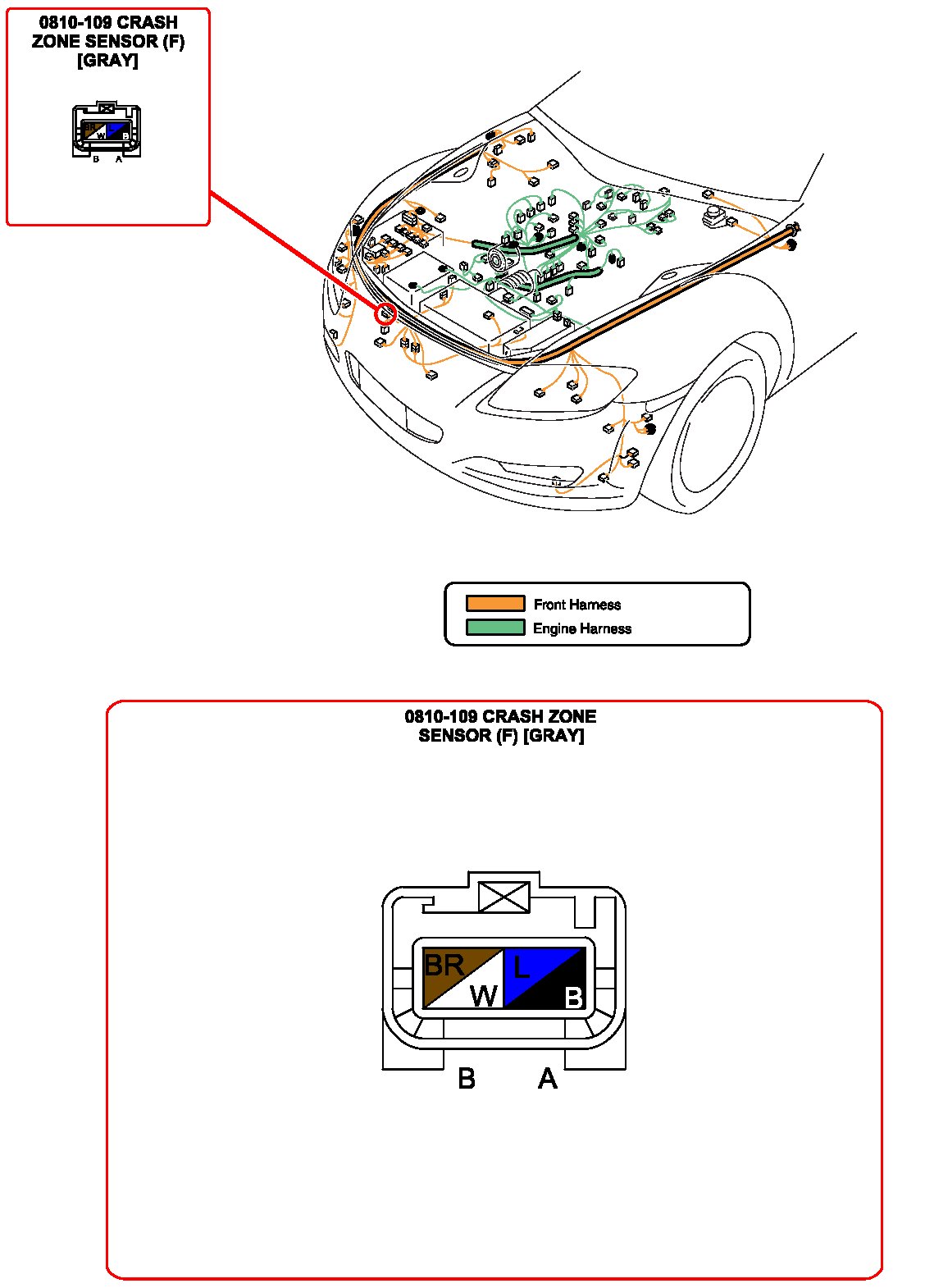

Crash Zone Sensor:

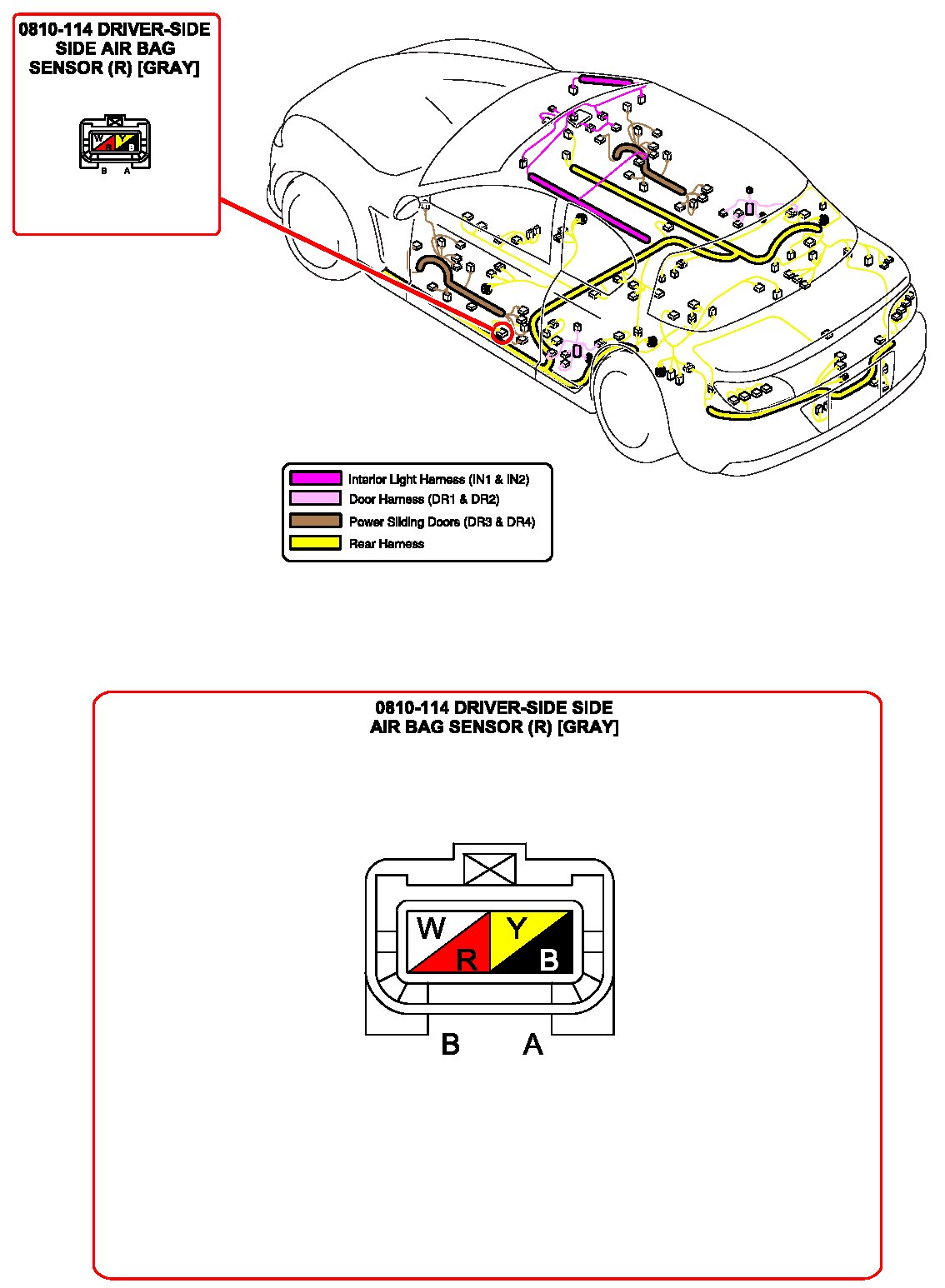

Driver-Side Side Air Bag Sensor:

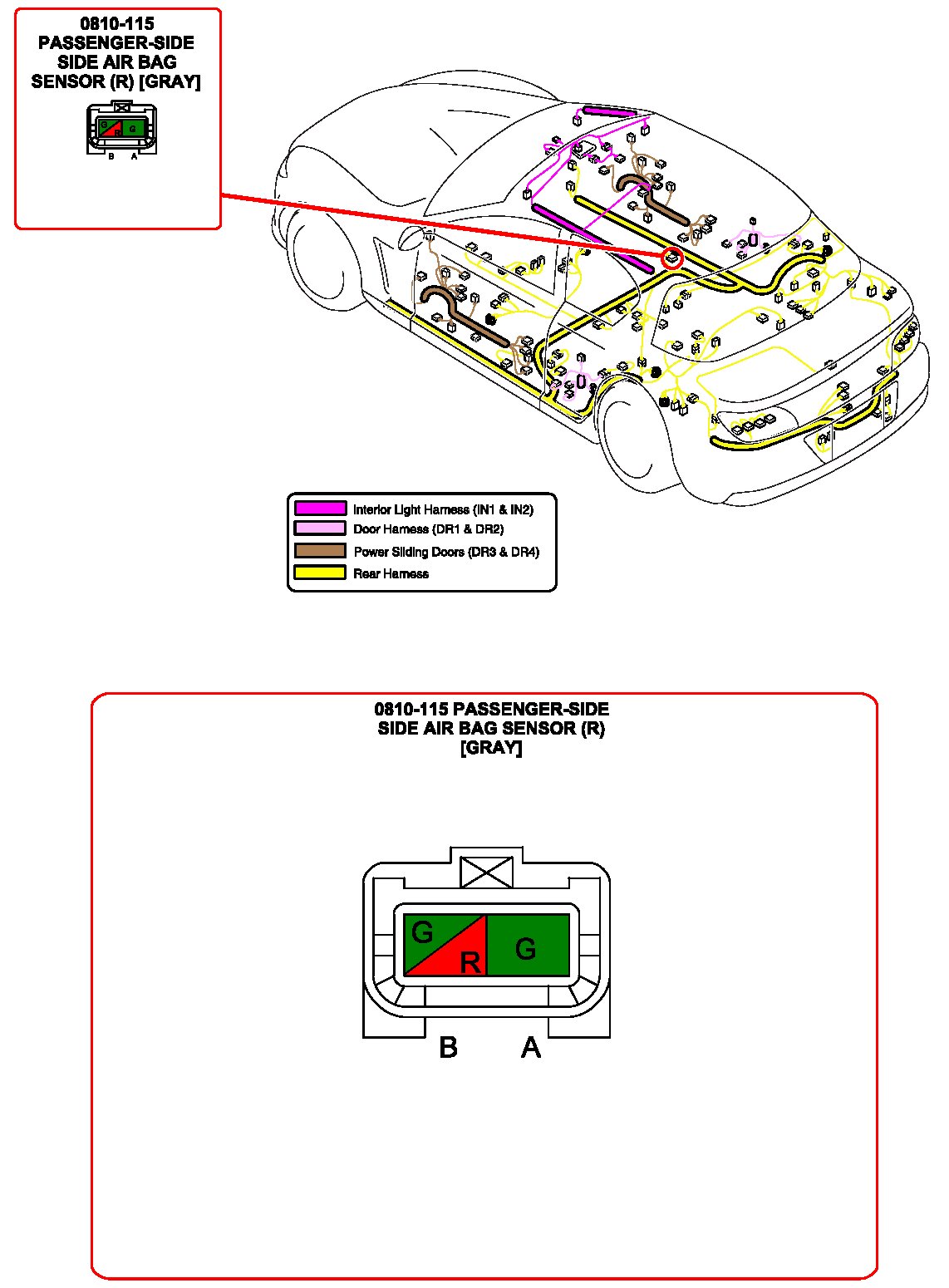

Passenger-Side Side Air Bag Sensor:
