ABS Wheel-Speed Sensor LF

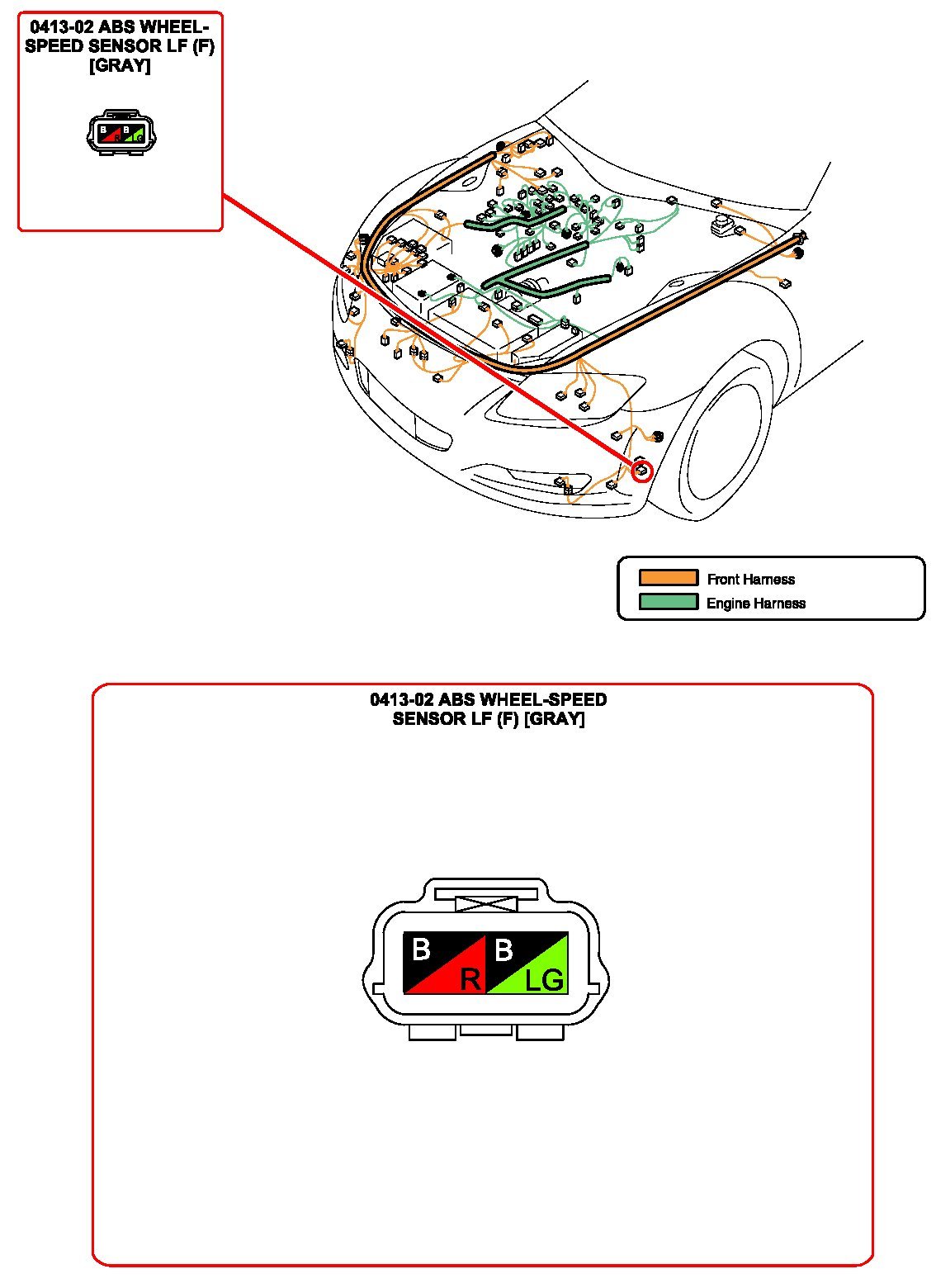

ABS Wheel-Speed Sensor LF:



ABS Wheel-Speed Sensor RF:



ABS Wheel-Speed Sensor LR:

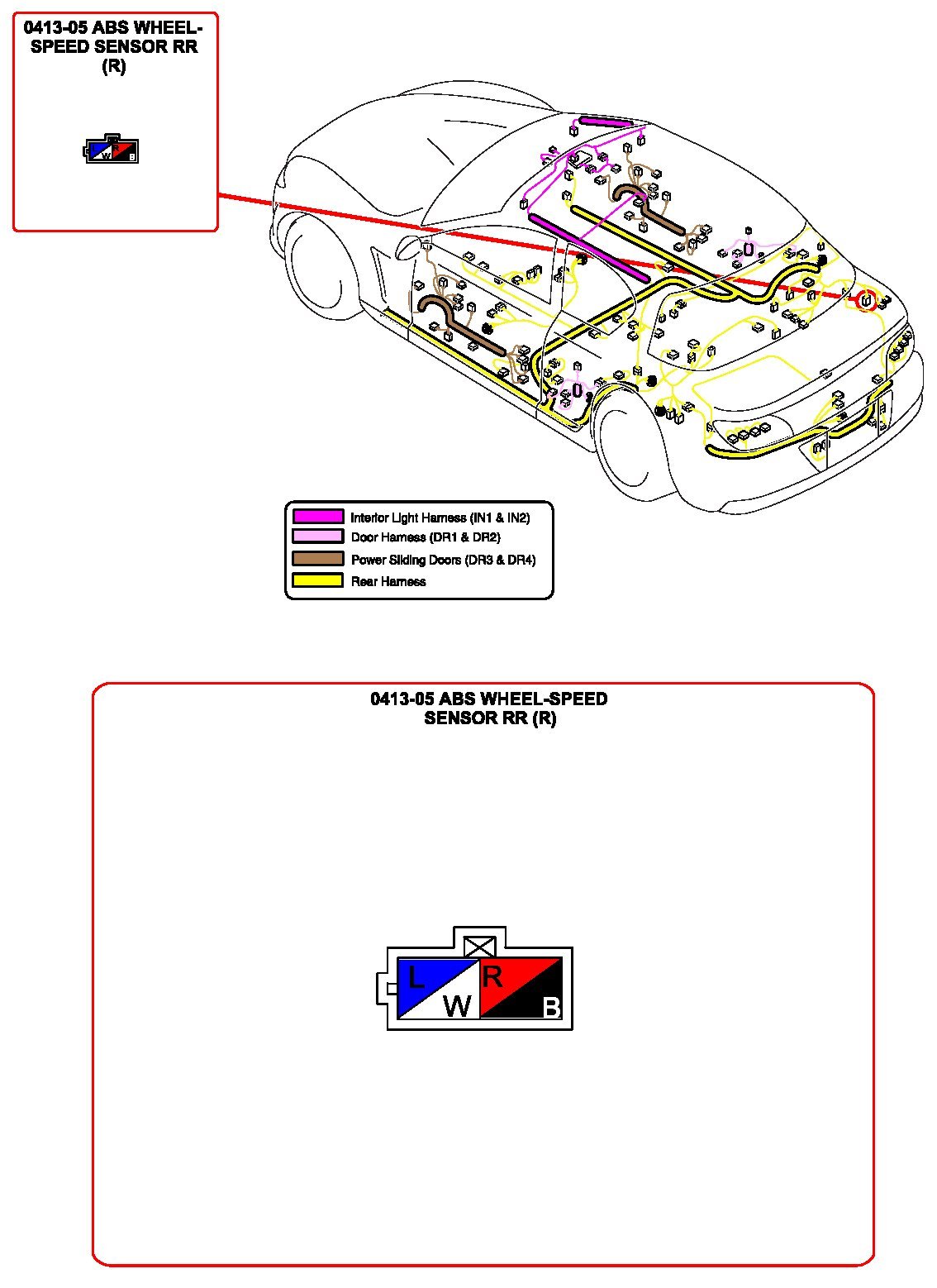

ABS Wheel-Speed Sensor RR:

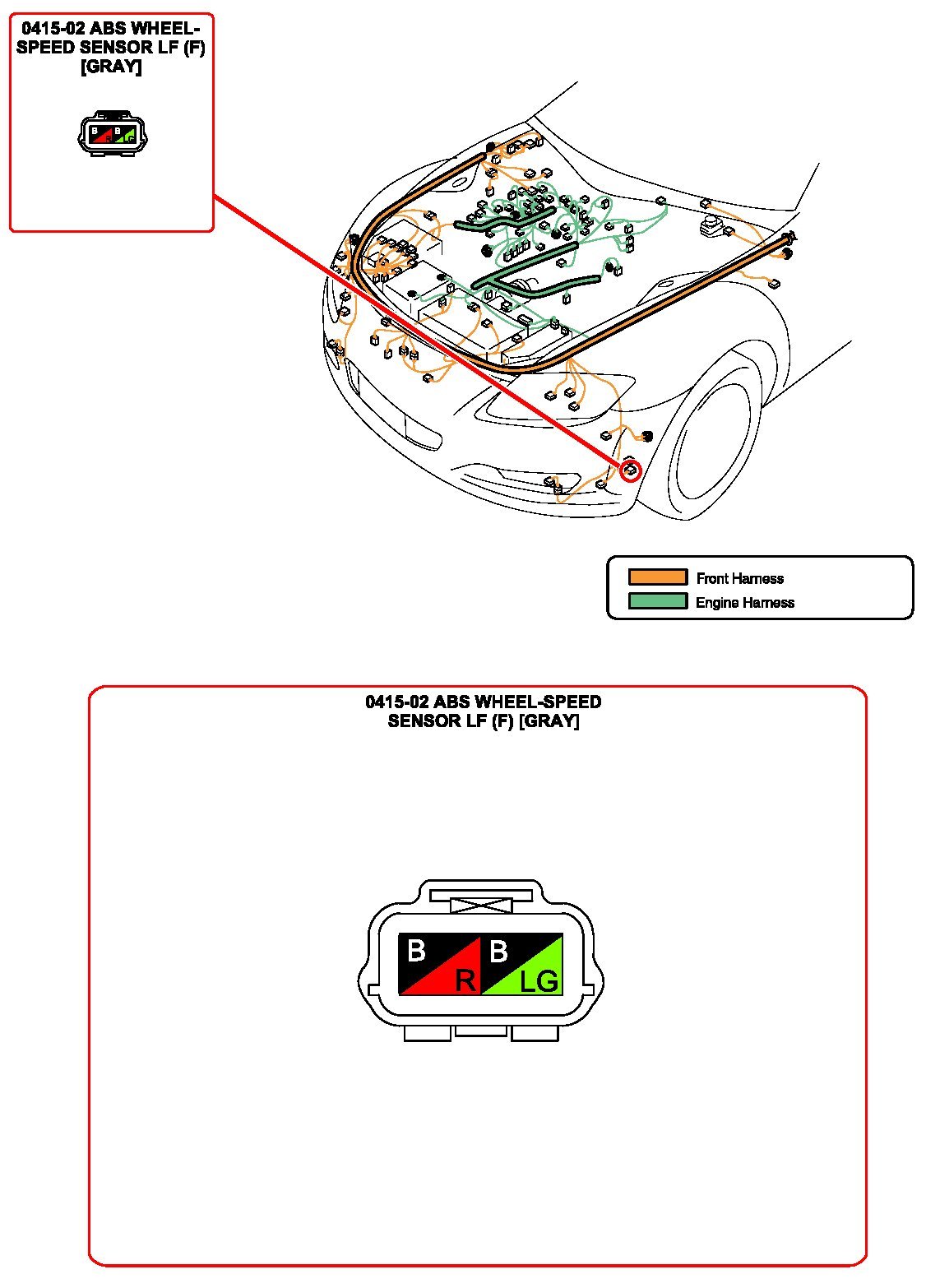

ABS Wheel-Speed Sensor LF (DSC):



ABS Wheel-Speed Sensor RF (DSC):

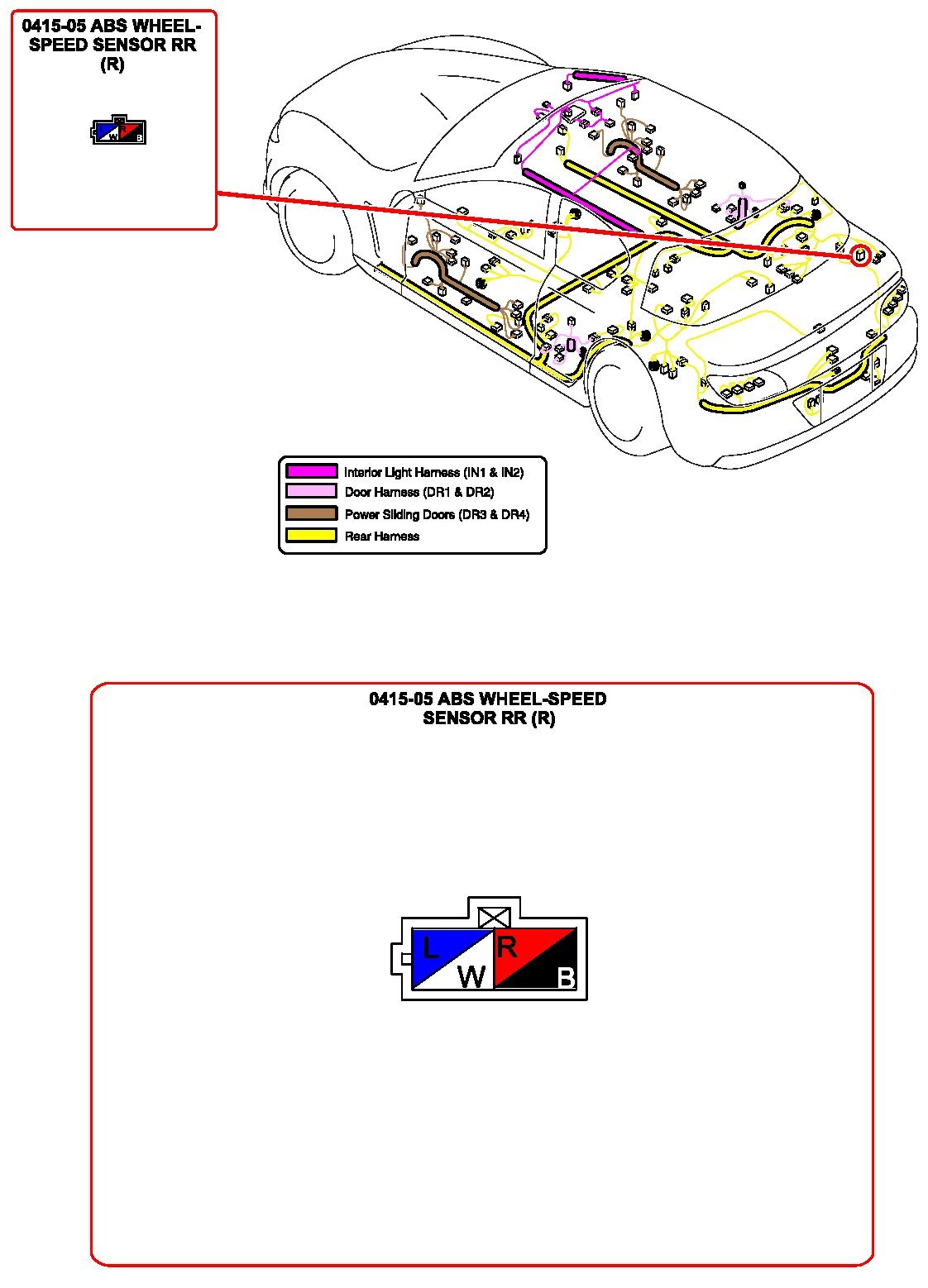

ABS Wheel-Speed Sensor RR (DSC):
