Home >> Mazda >> 2009 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations >> Component Locations

Component Locations




SECURITY AND LOCKS LOCATION INDEX

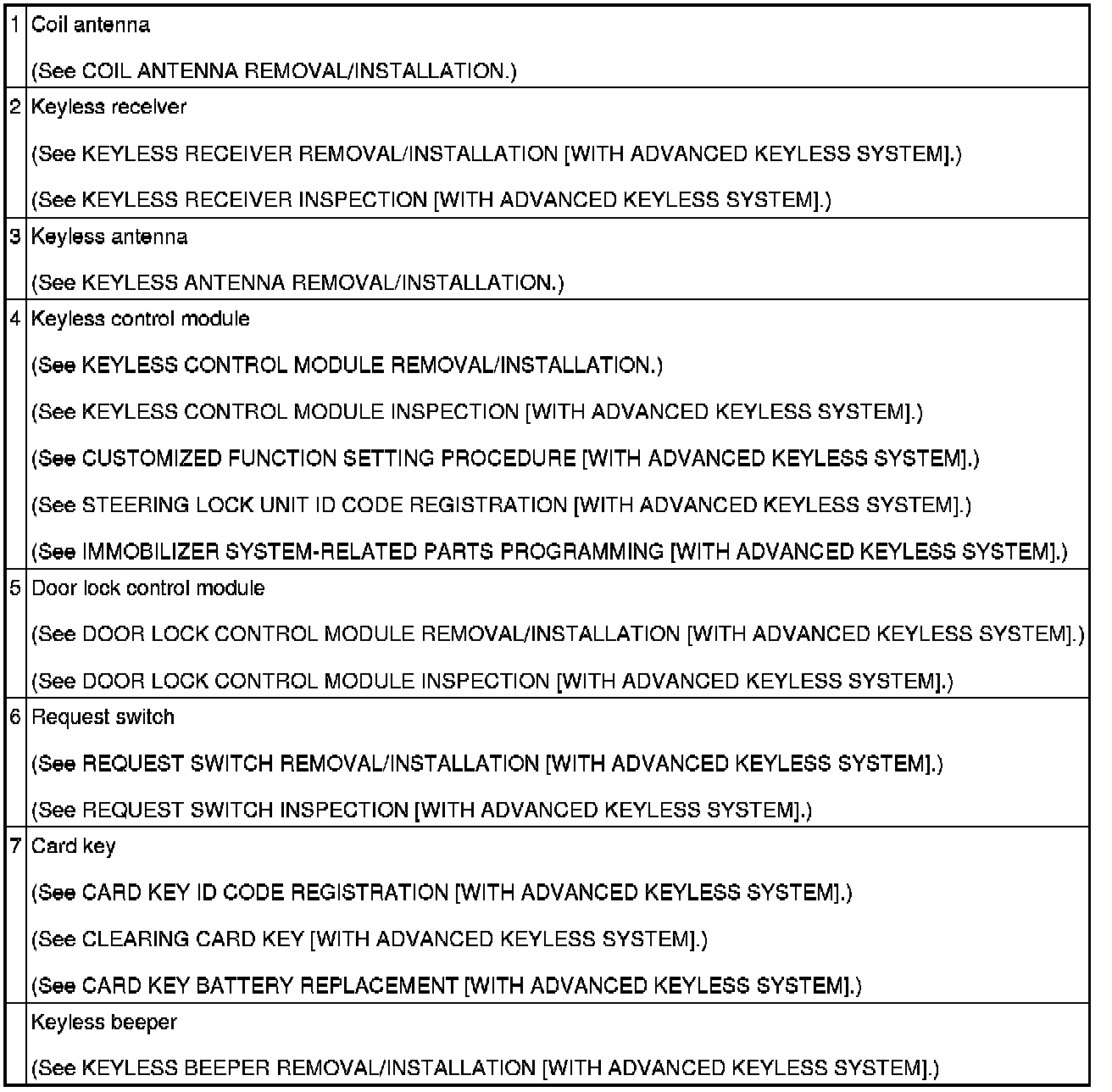

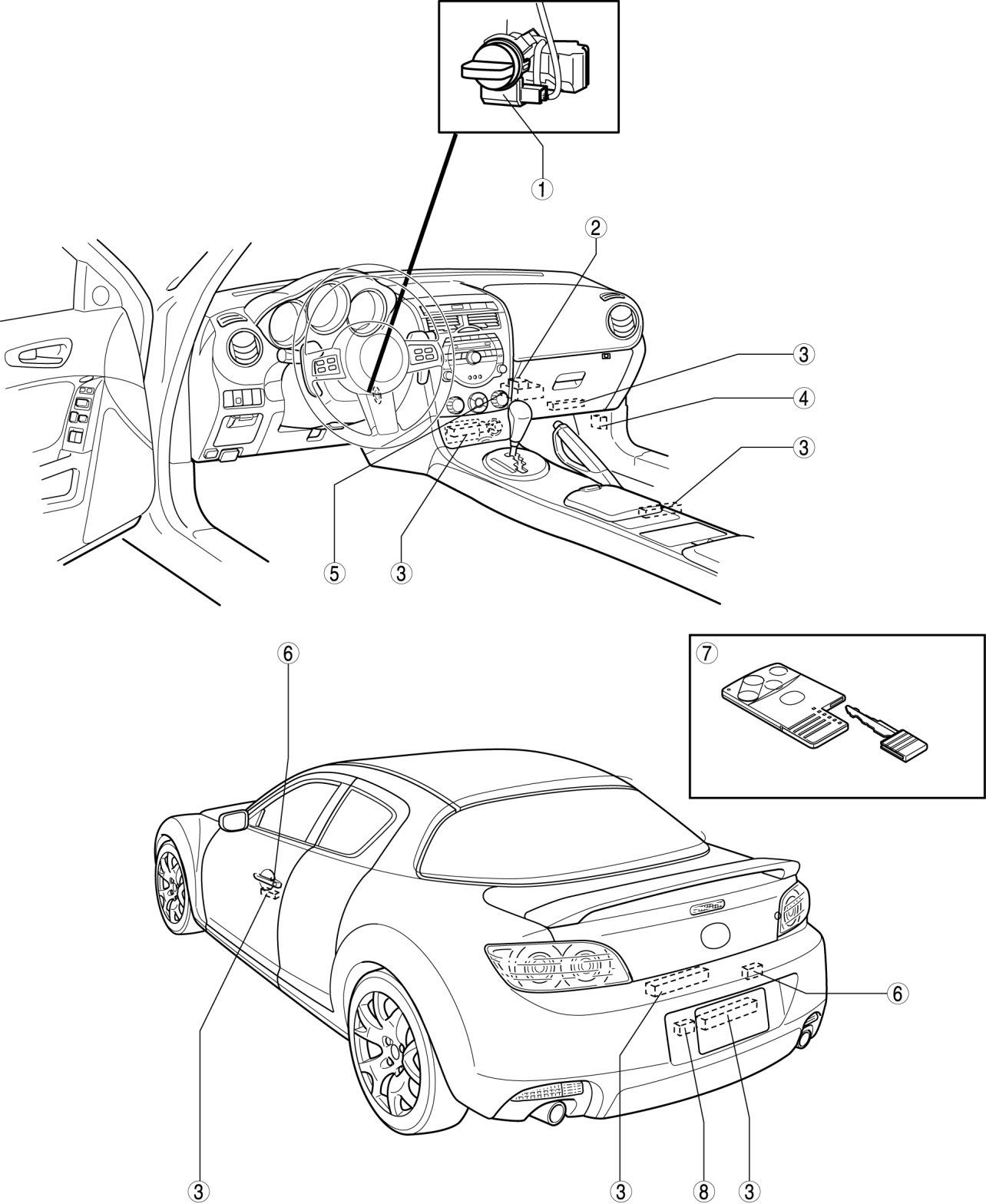

Keyless Entry System and Immobilizer System [Advanced Keyless System]

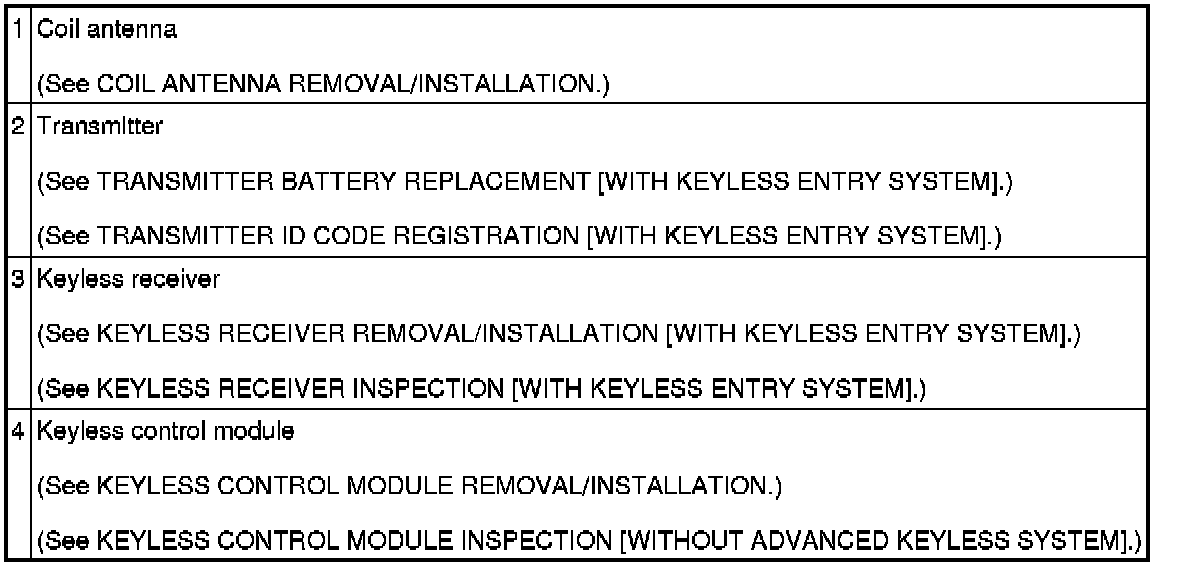

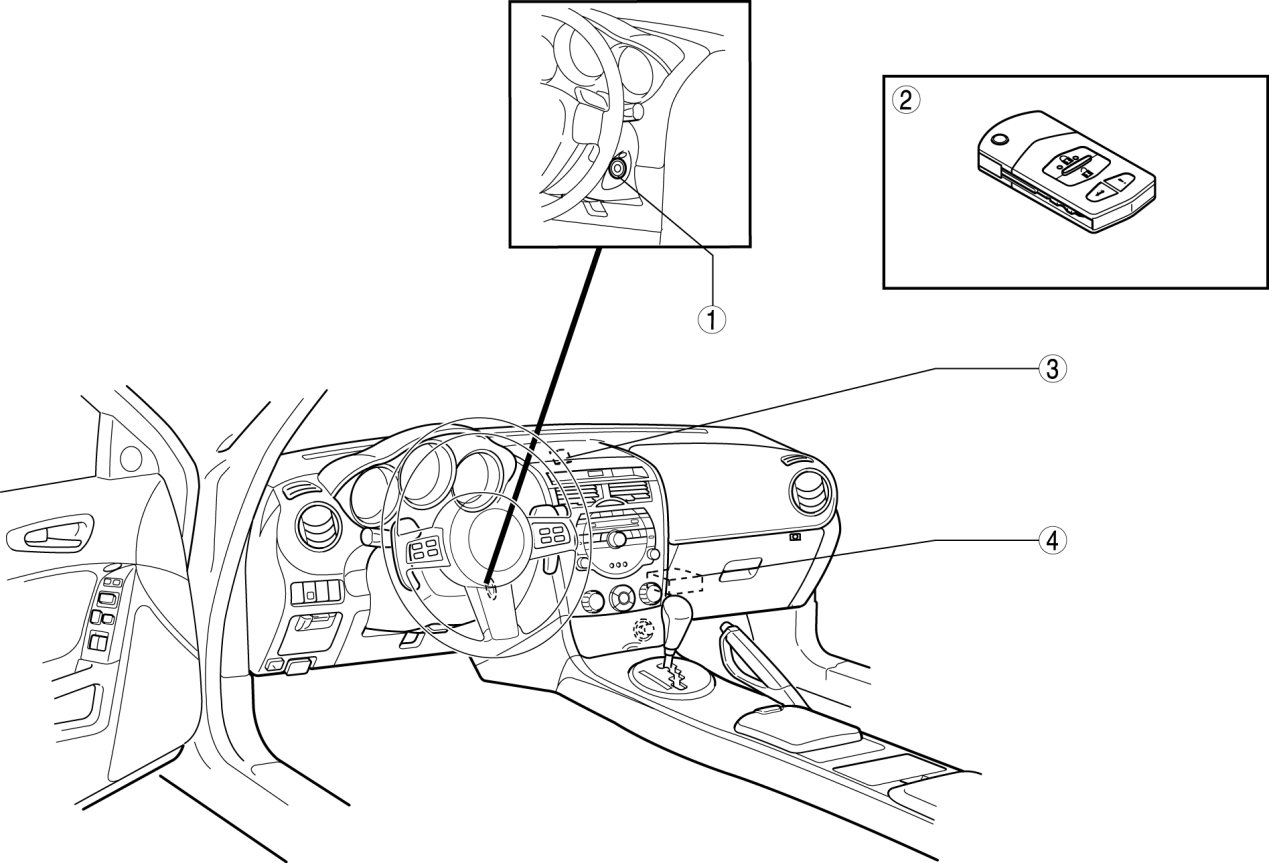

Keyless Entry System and Immobilizer System [Keyless entry System]
