Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

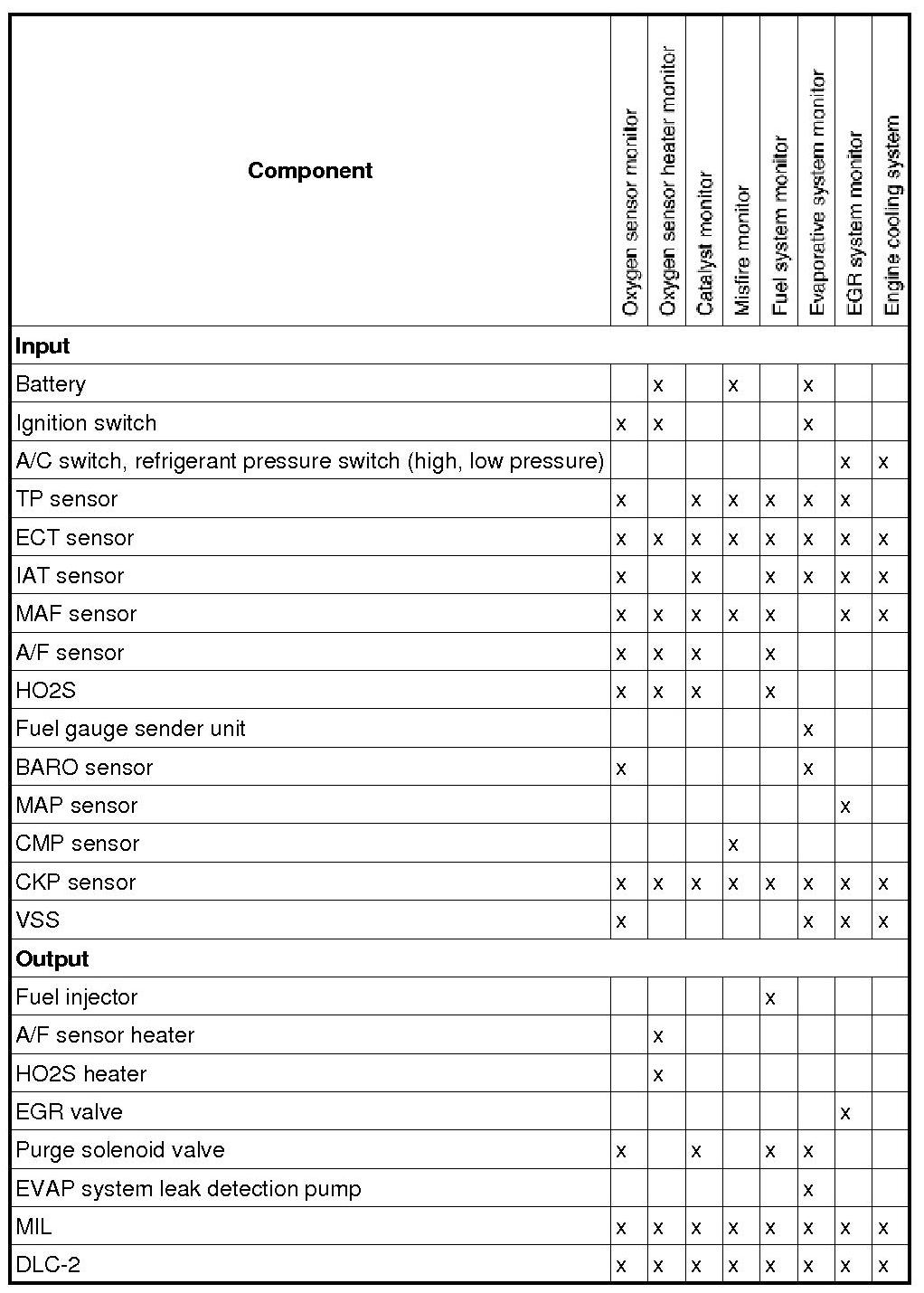

MONITORING SYSTEM AND CONTROL SYSTEM DEVICE RELATIONSHIP CHART [L3 WITH TC]
x: Applicable
