Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Crash Zone Sensor

Crash Zone Sensor

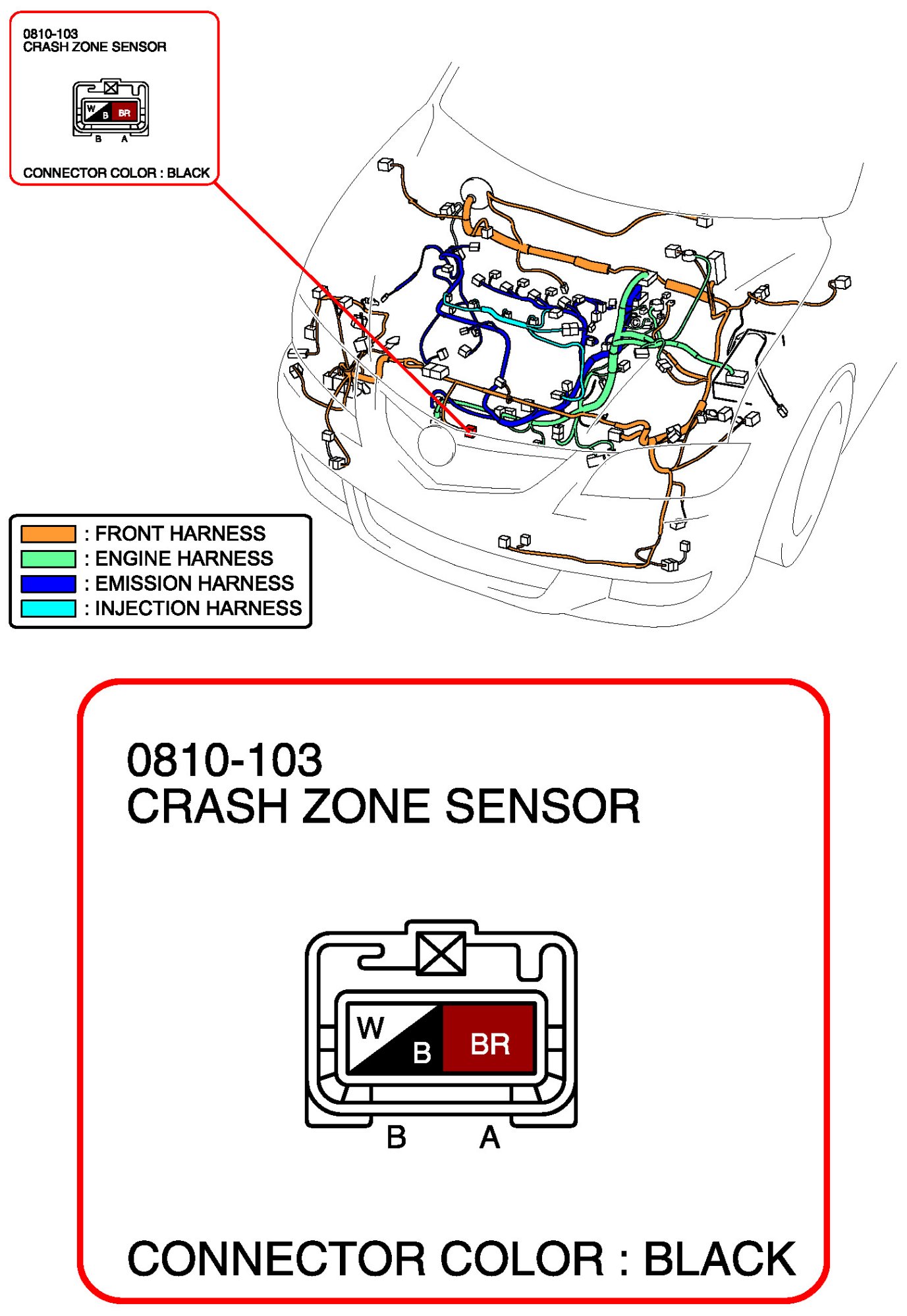

Crash Zone Sensor:

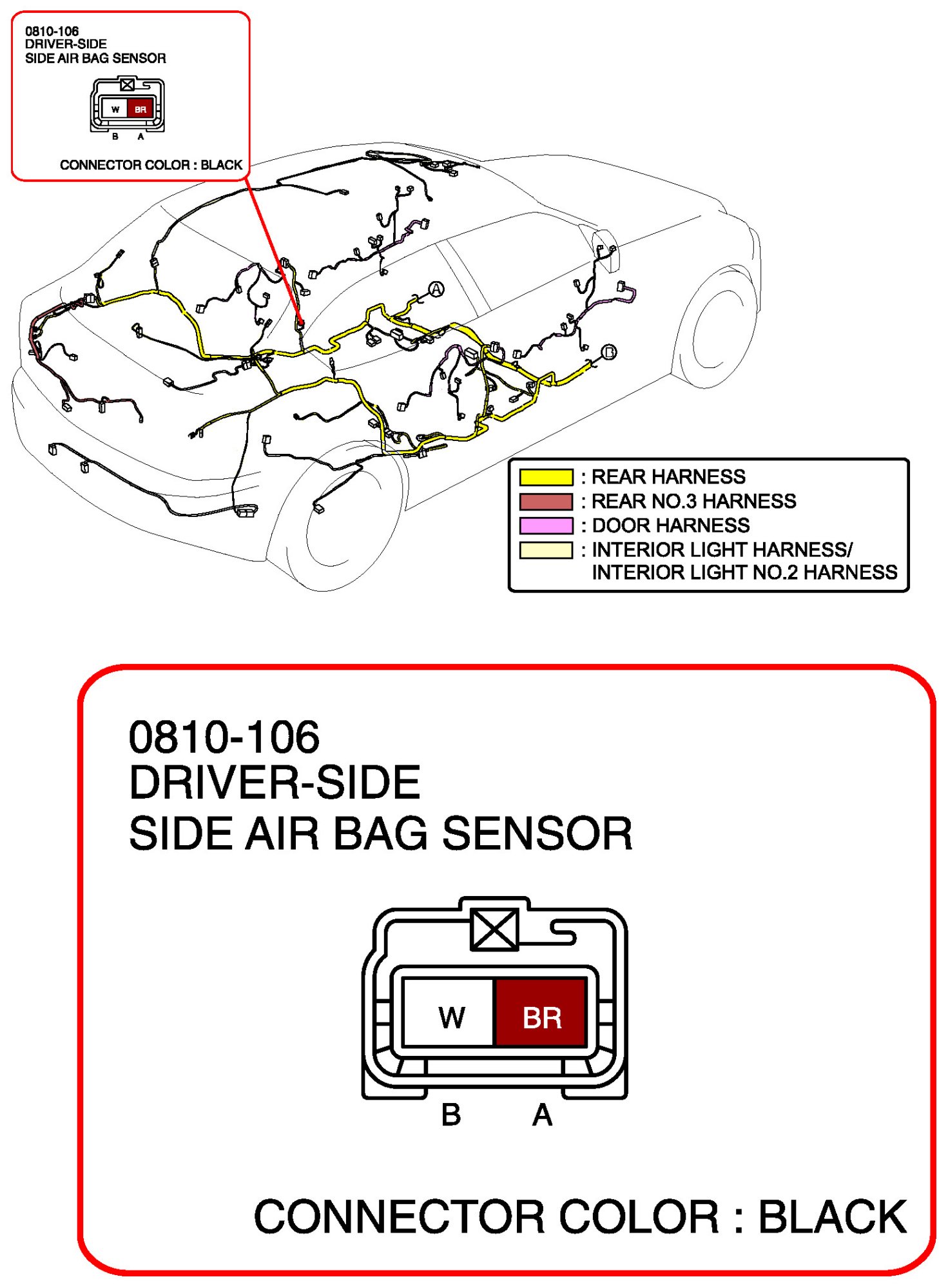

Driver-Side Side Air Bag Sensor:

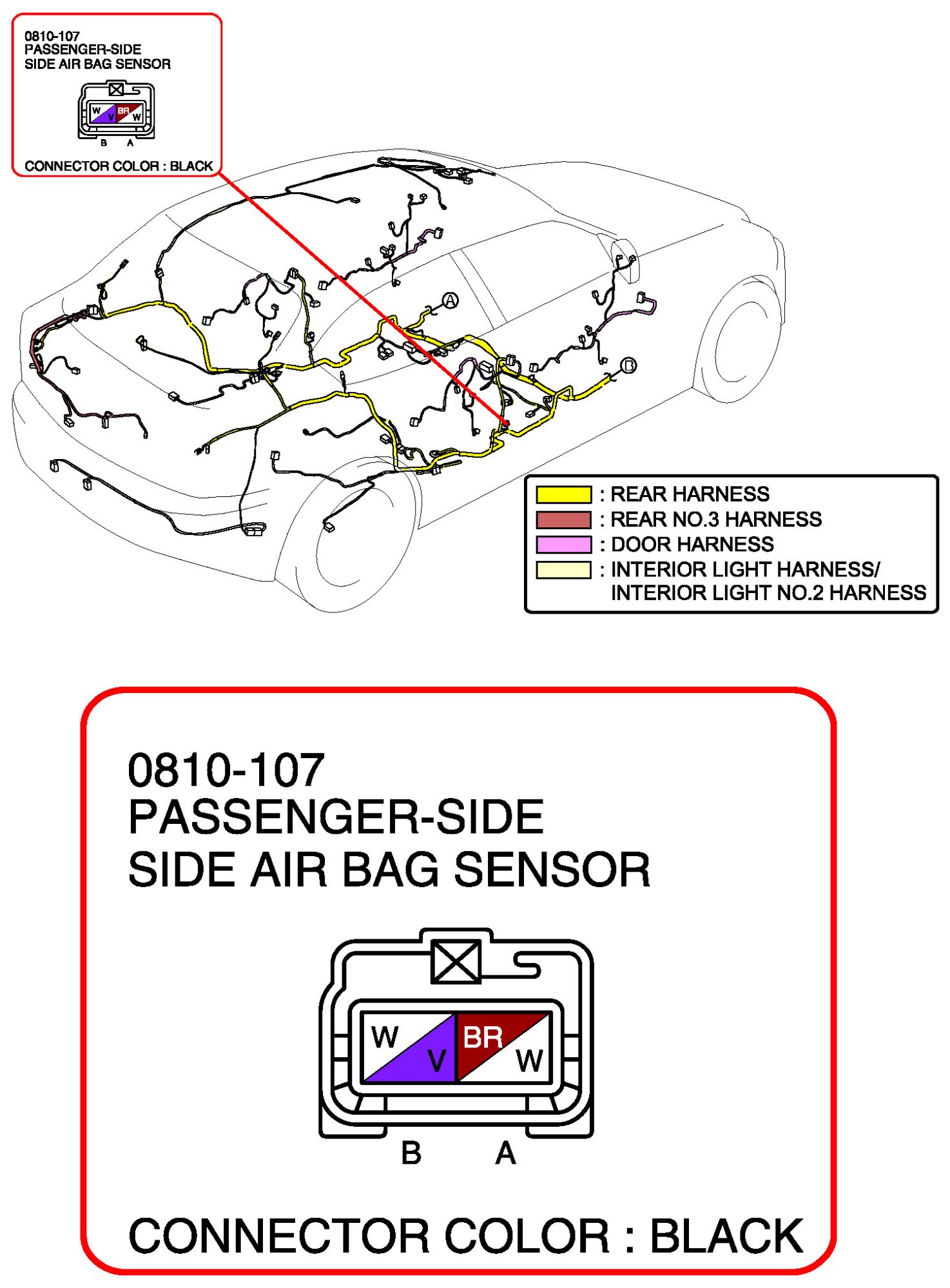

Passenger-Side Side Air Bag Sensor:
