PID/Data Monitor Tables
PCM INSPECTION [LF]

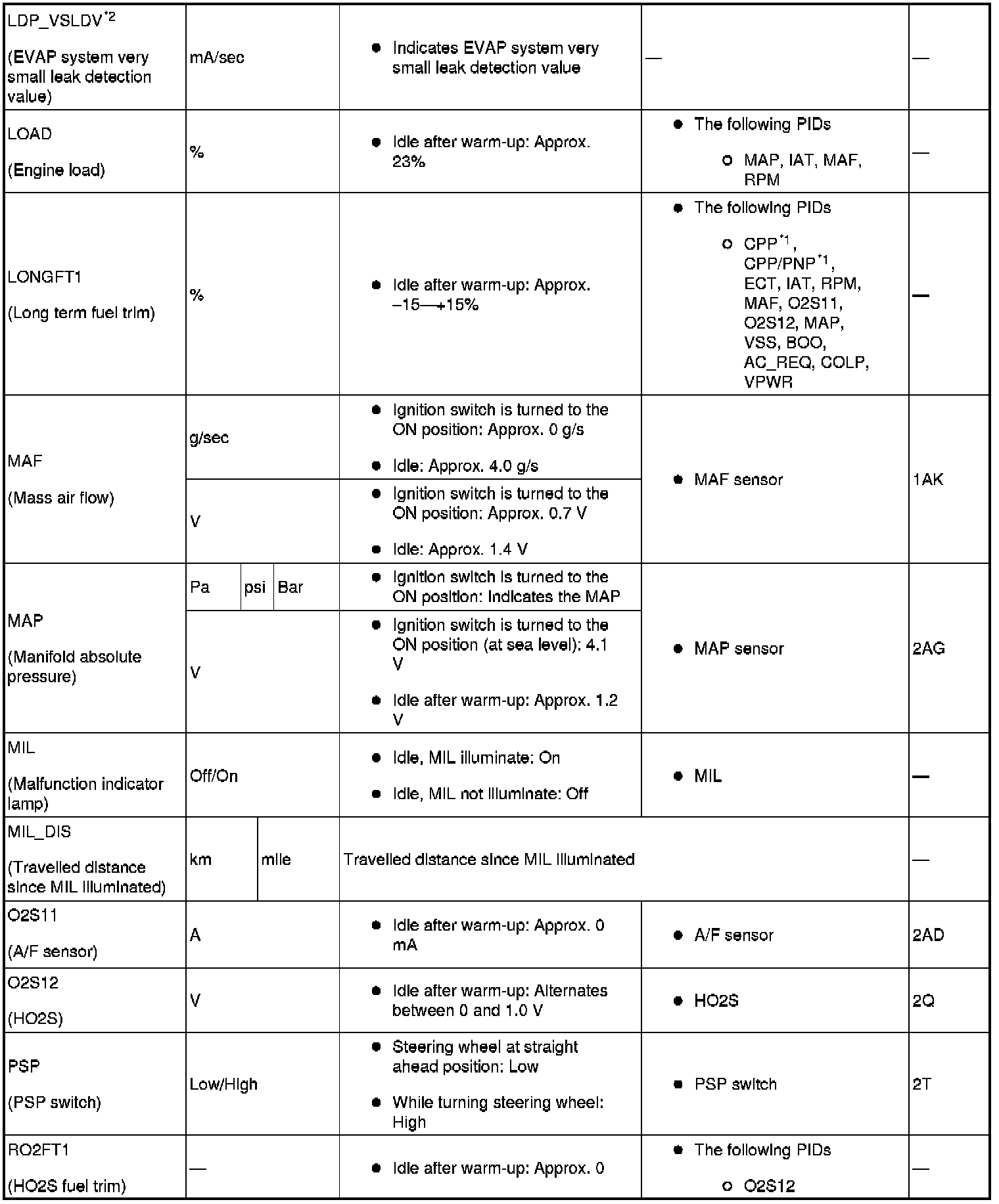

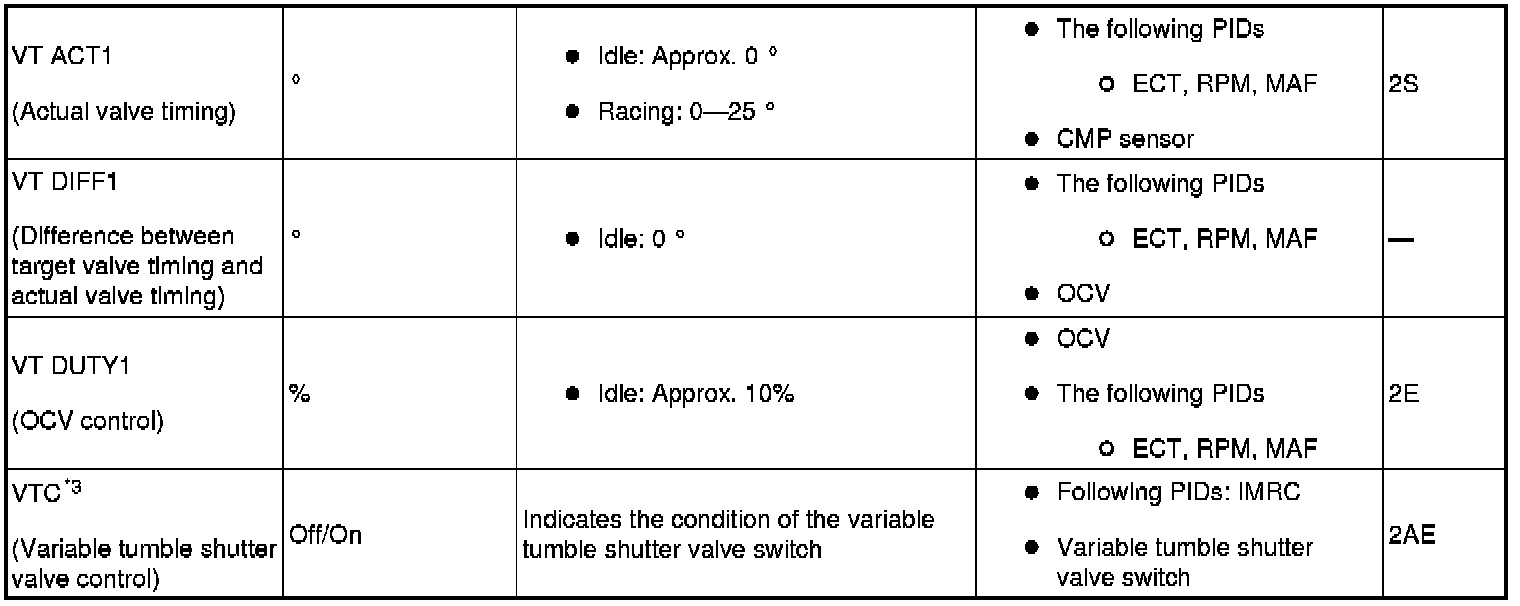

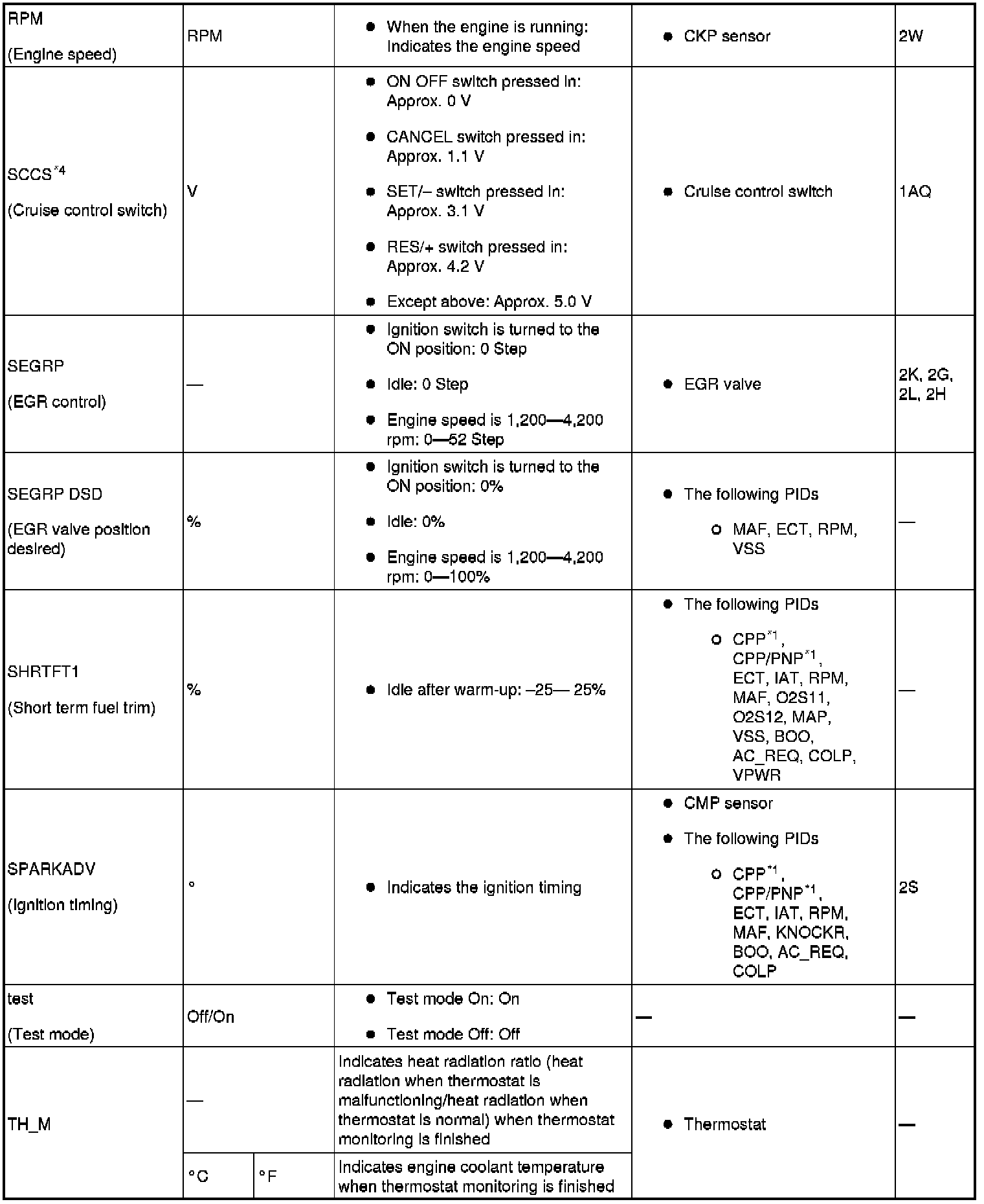

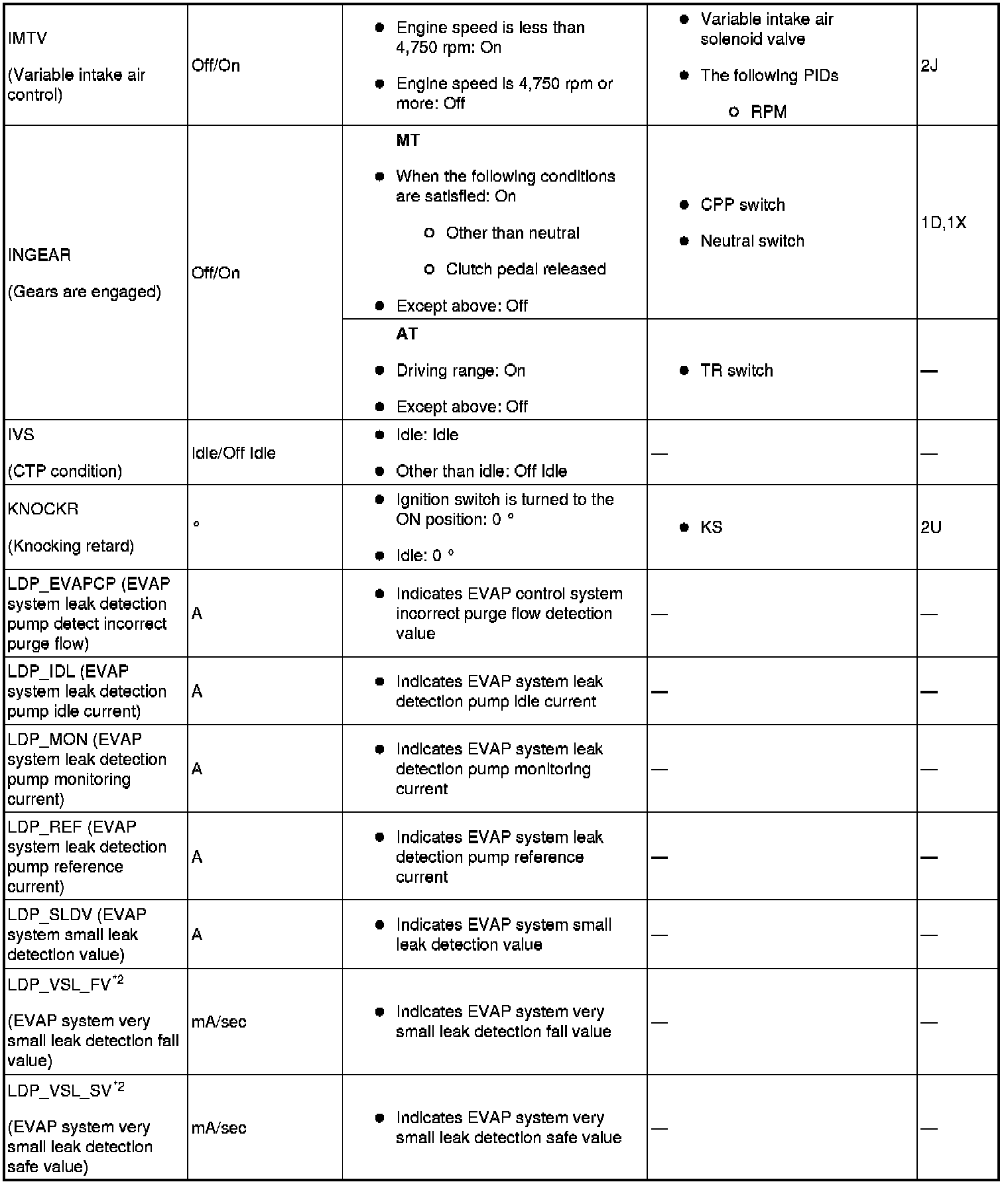

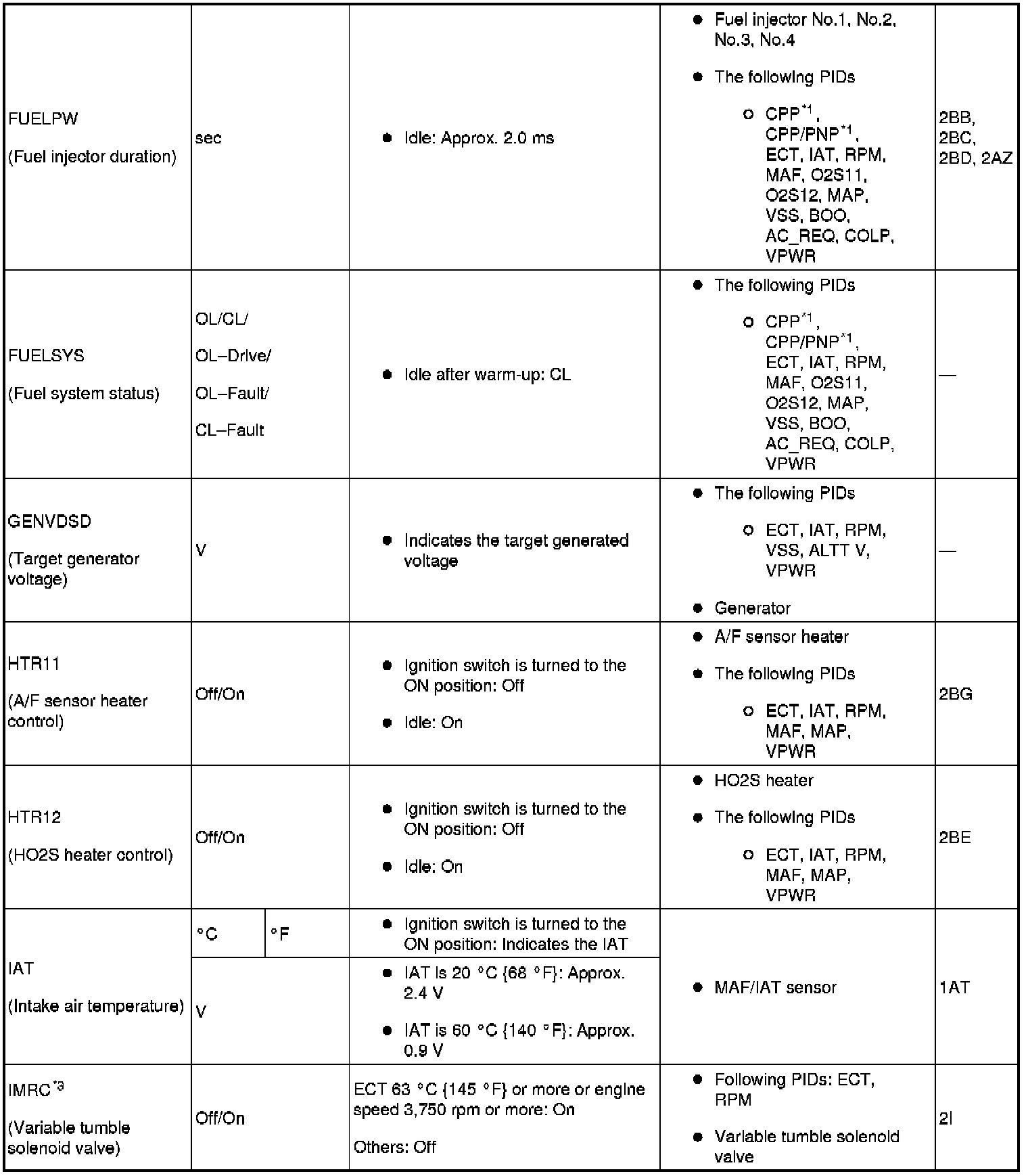

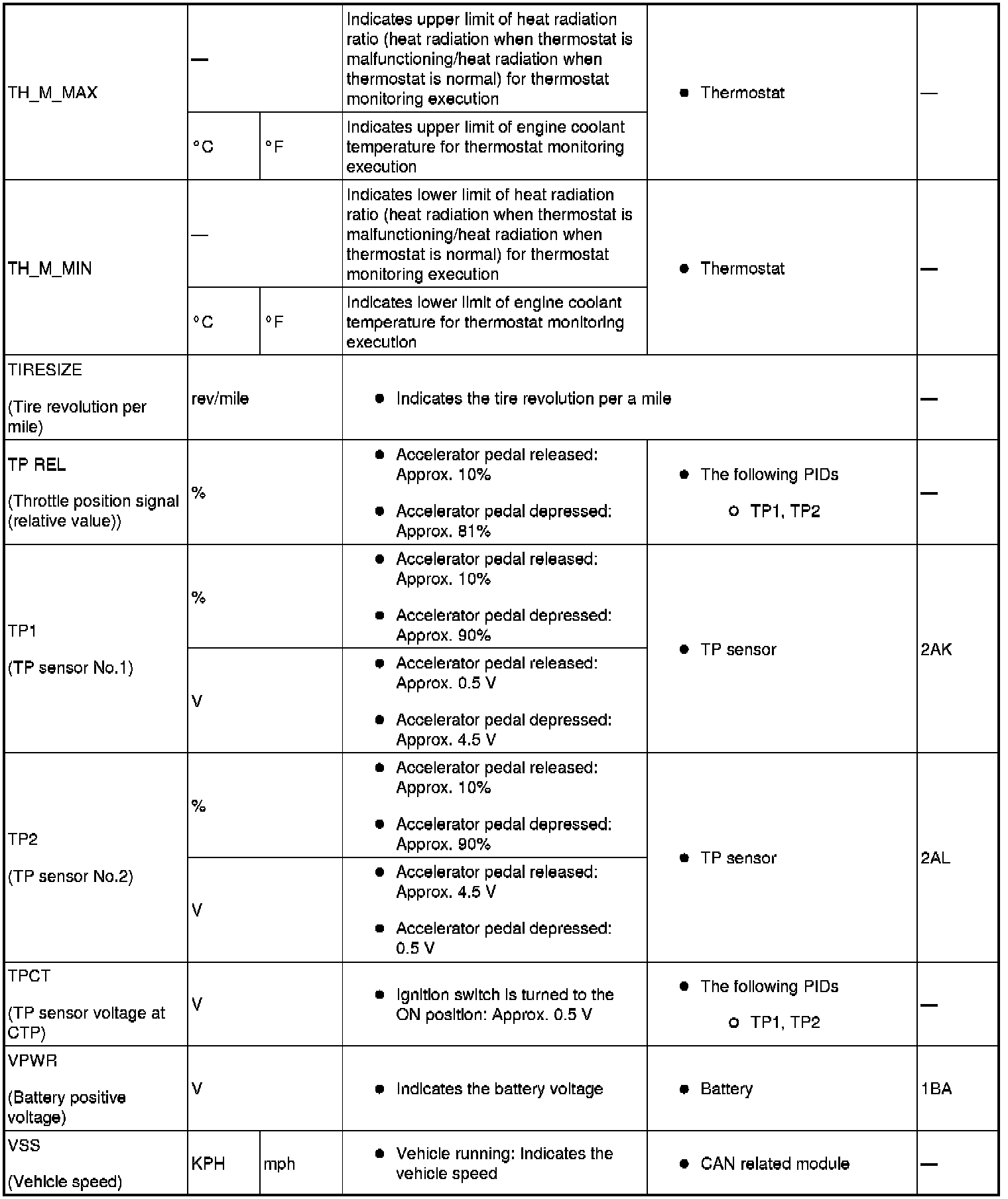

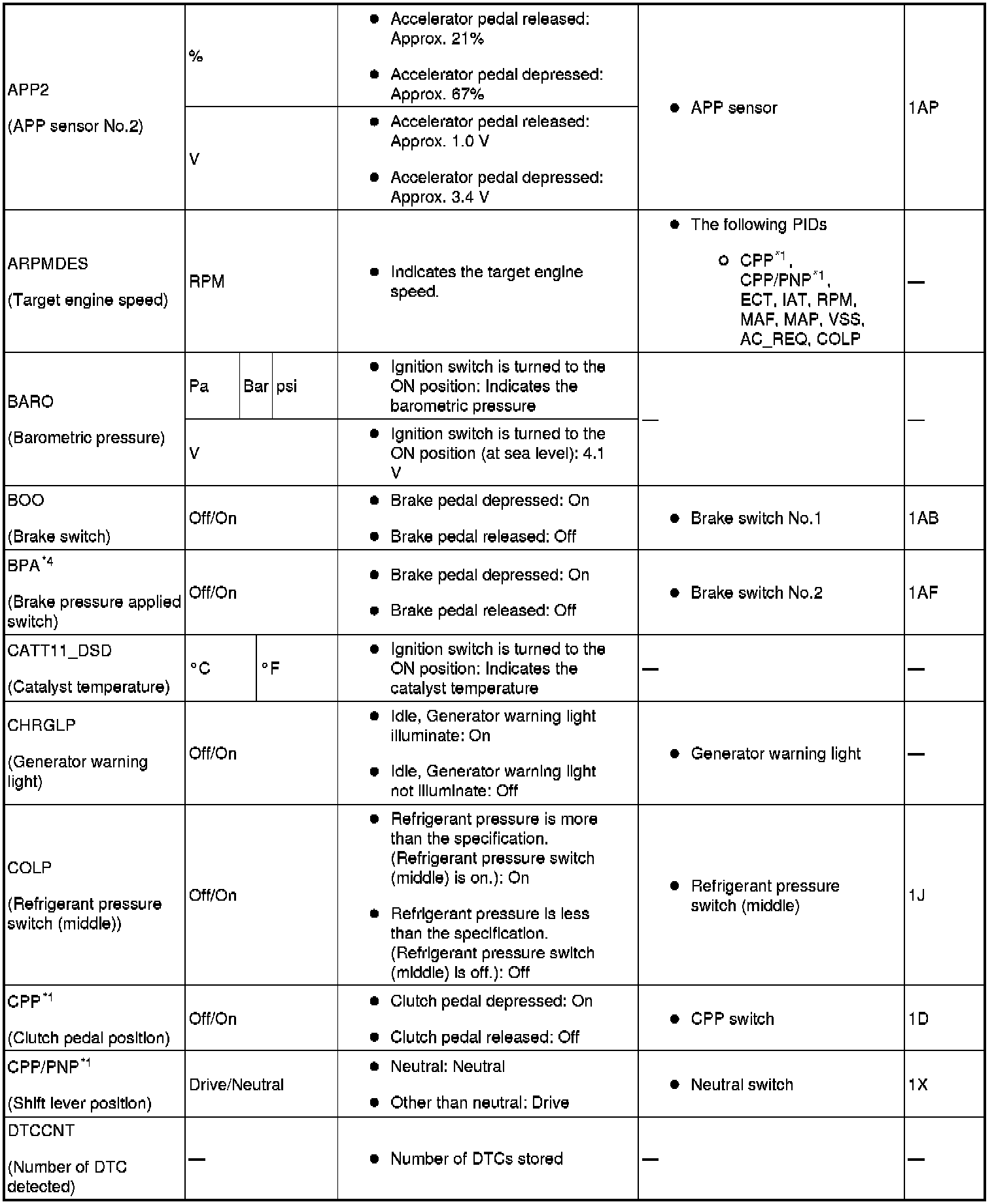

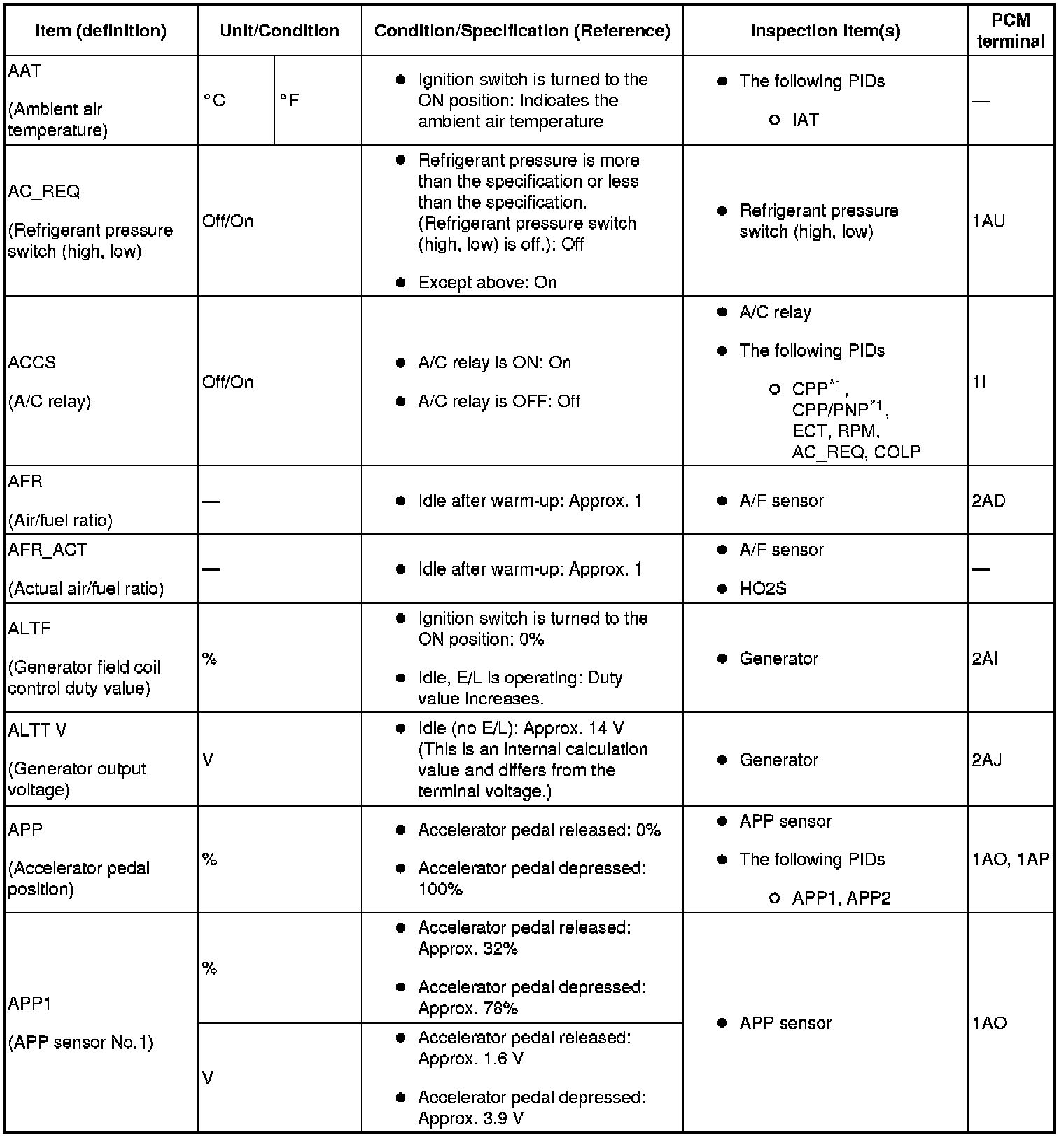

PID/DATA monitor table (reference)
PID/DATA Monitor Table (Part 1):
PID/DATA Monitor Table (Part 2):
PID/DATA Monitor Table (Part 3):
PID/DATA Monitor Table (Part 4):
PID/DATA Monitor Table (Part 5):
PID/DATA Monitor Table (Part 6):
PID/DATA Monitor Table (Part 7):
PID/DATA Monitor Table (Part 8):
PID/DATA Monitor Table (Part 9):
*1
MT
*2
California emission regulation applicable model
*3
AT
*4
With cruise control system
