Drive-Side Air Bag Module

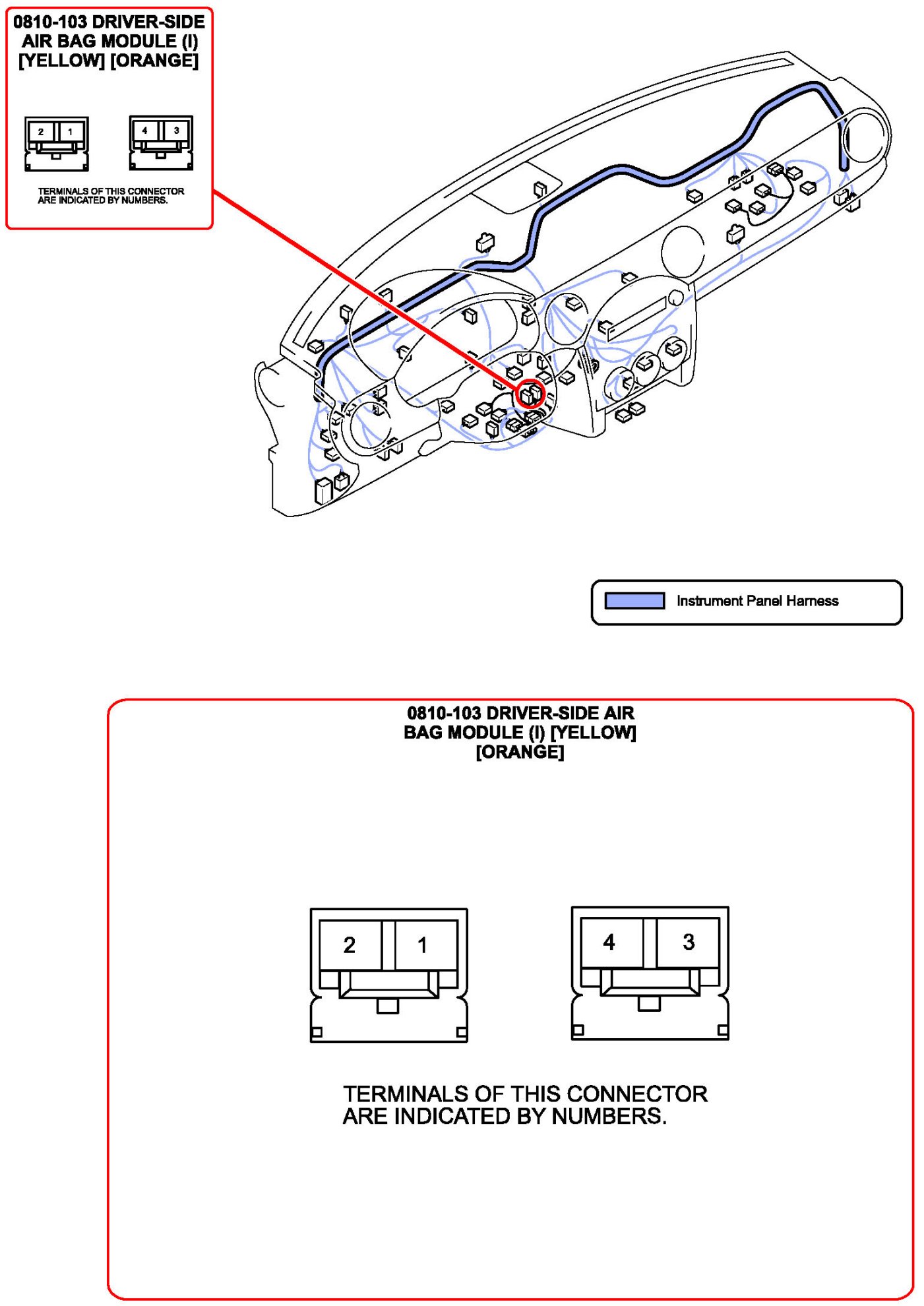

Driver-Side Air Bag Module:

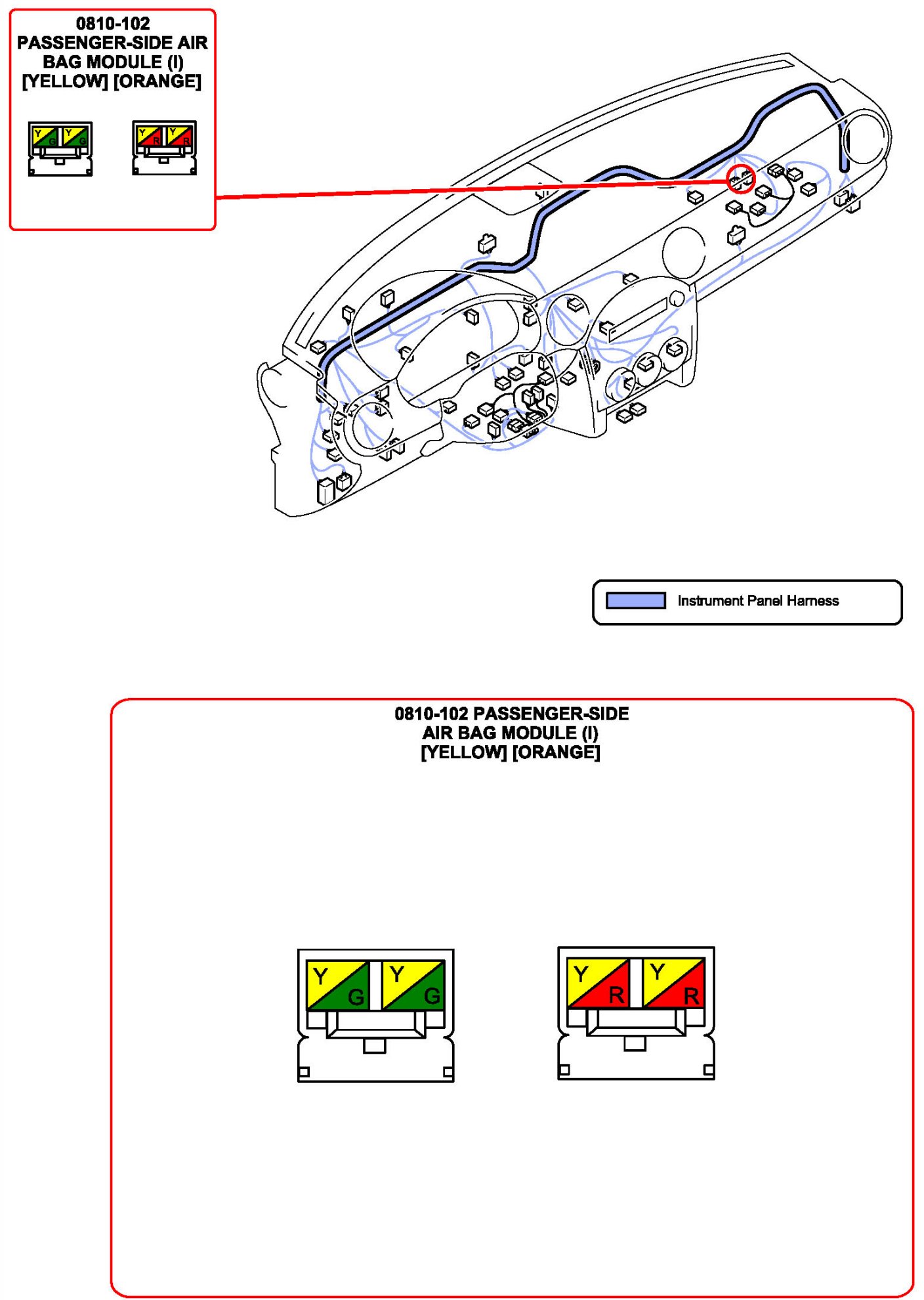

Passenger-Side Air Bag Module:

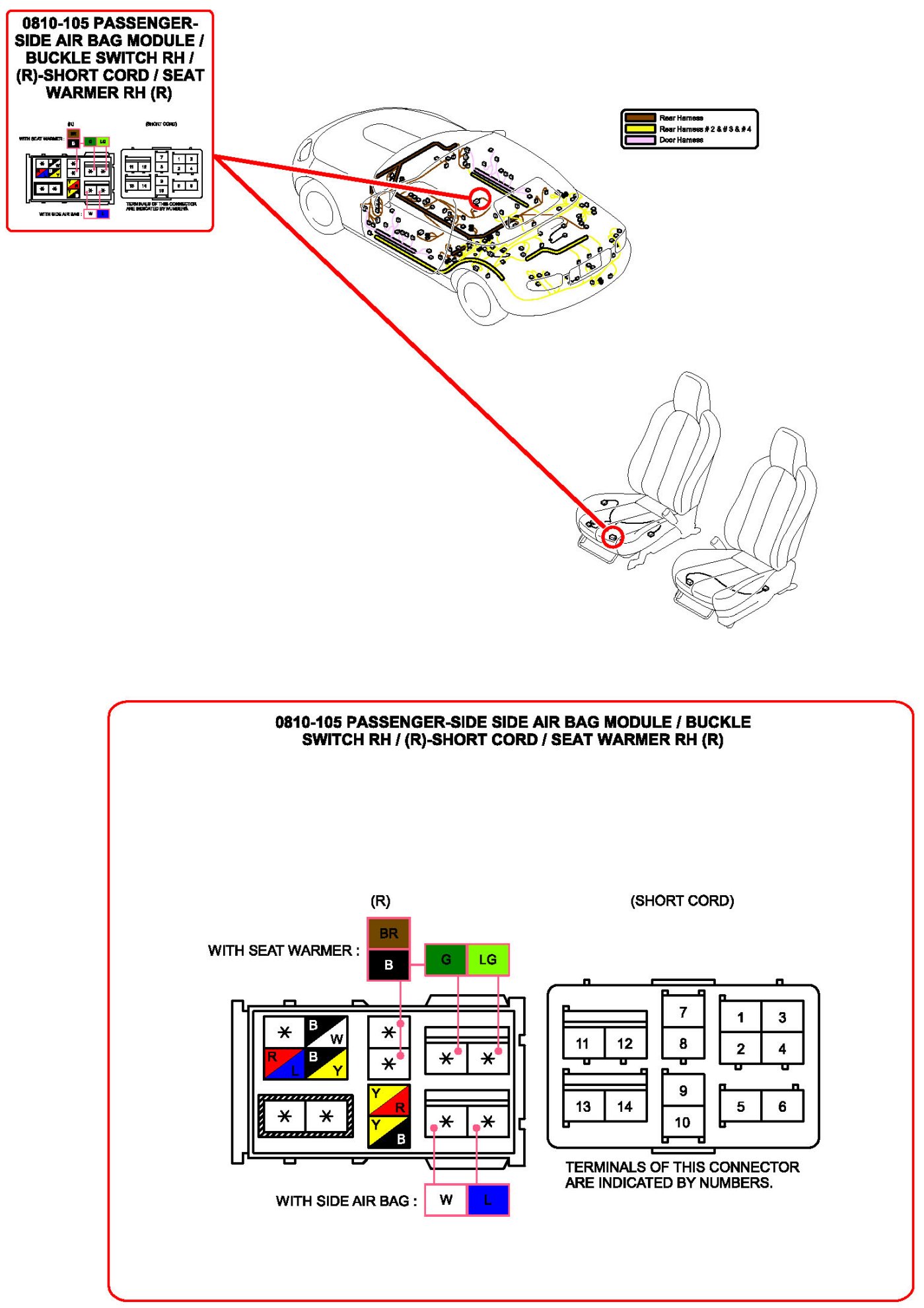

0810-105 Passenger-Side Air Bag Module / Buckle Switch RH (R) / Short Cord / Seat Warmer RH (R):

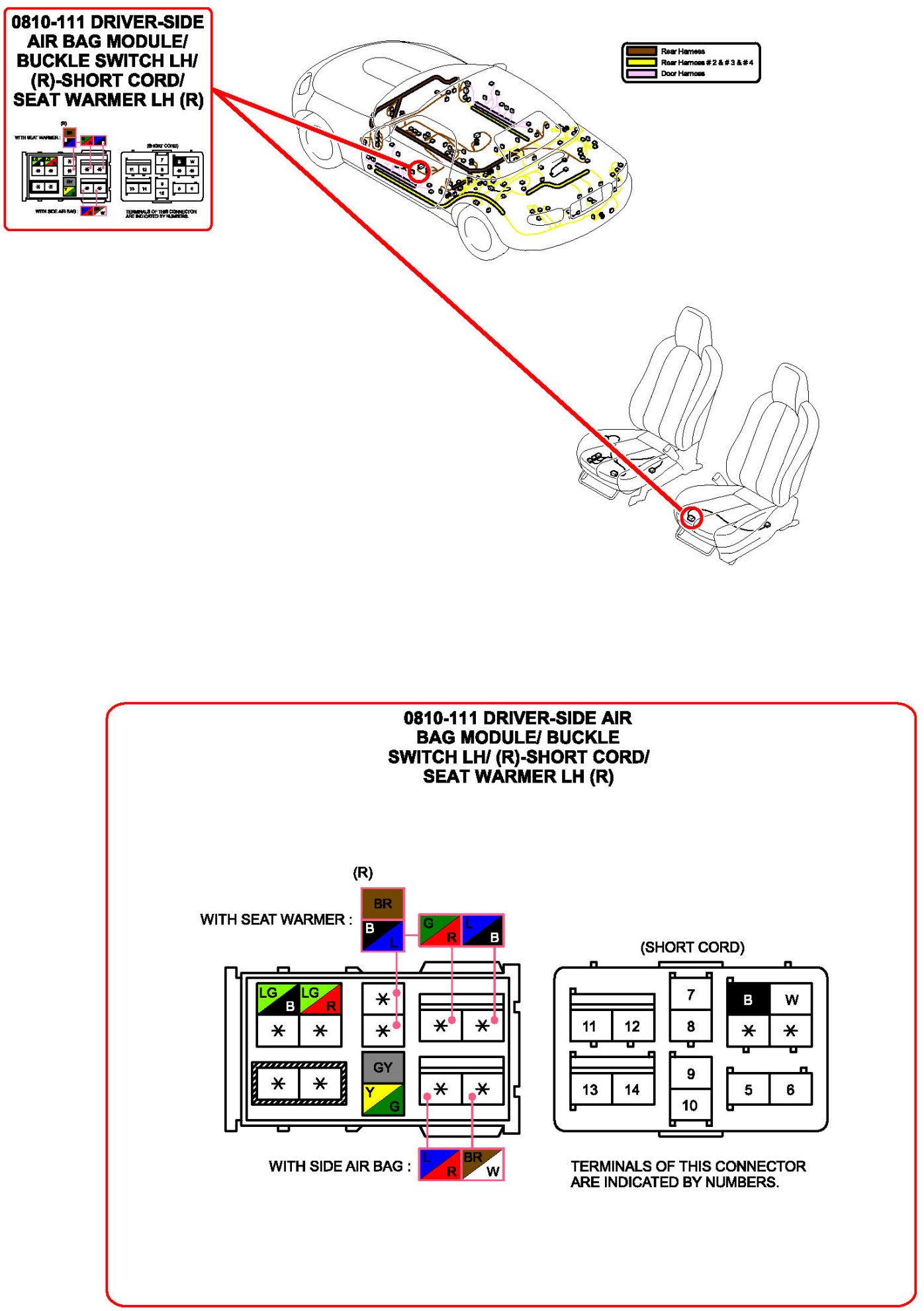

Driver-Side Air Bag Module/Buckle Switch LH/Short Cord/Seat Warmer LH:



Driver-Side Air Bag Module/Buckle Switch LH/Short Cord/Seat Warmer LH:



0810-105 Passenger-Side Air Bag Module / Buckle Switch RH / Short Cord / Seat Warmer RH:
