Home >> Mazda >> 2009 >> MX-5 Miata L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Starting System >> Testing and Inspection >> Scan Tool Testing and Procedures >> Active Command Mode Table [Advanced Keyless And Start System]

Active Command Mode Table [Advanced Keyless And Start System]




PID/DATA MONITOR TABLE [ADVANCED KEYLESS AND START SYSTEM]

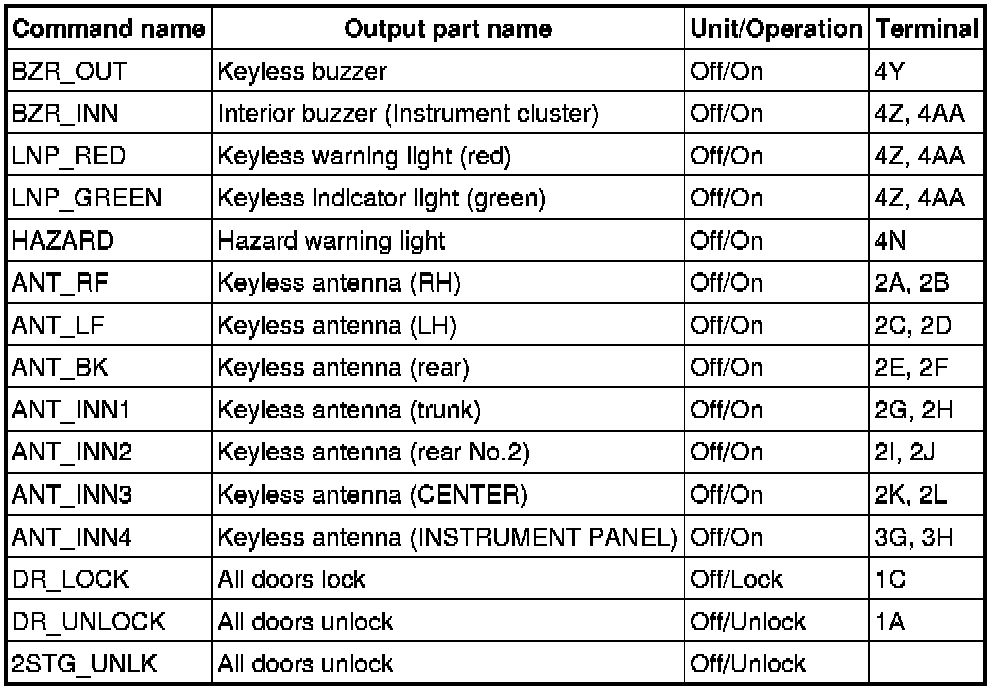

Active command mode table

Active Command Mode Table:
