Home >> Mazda >> 2009 >> CX-7 FWD L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> SAS Control Module

SAS Control Module

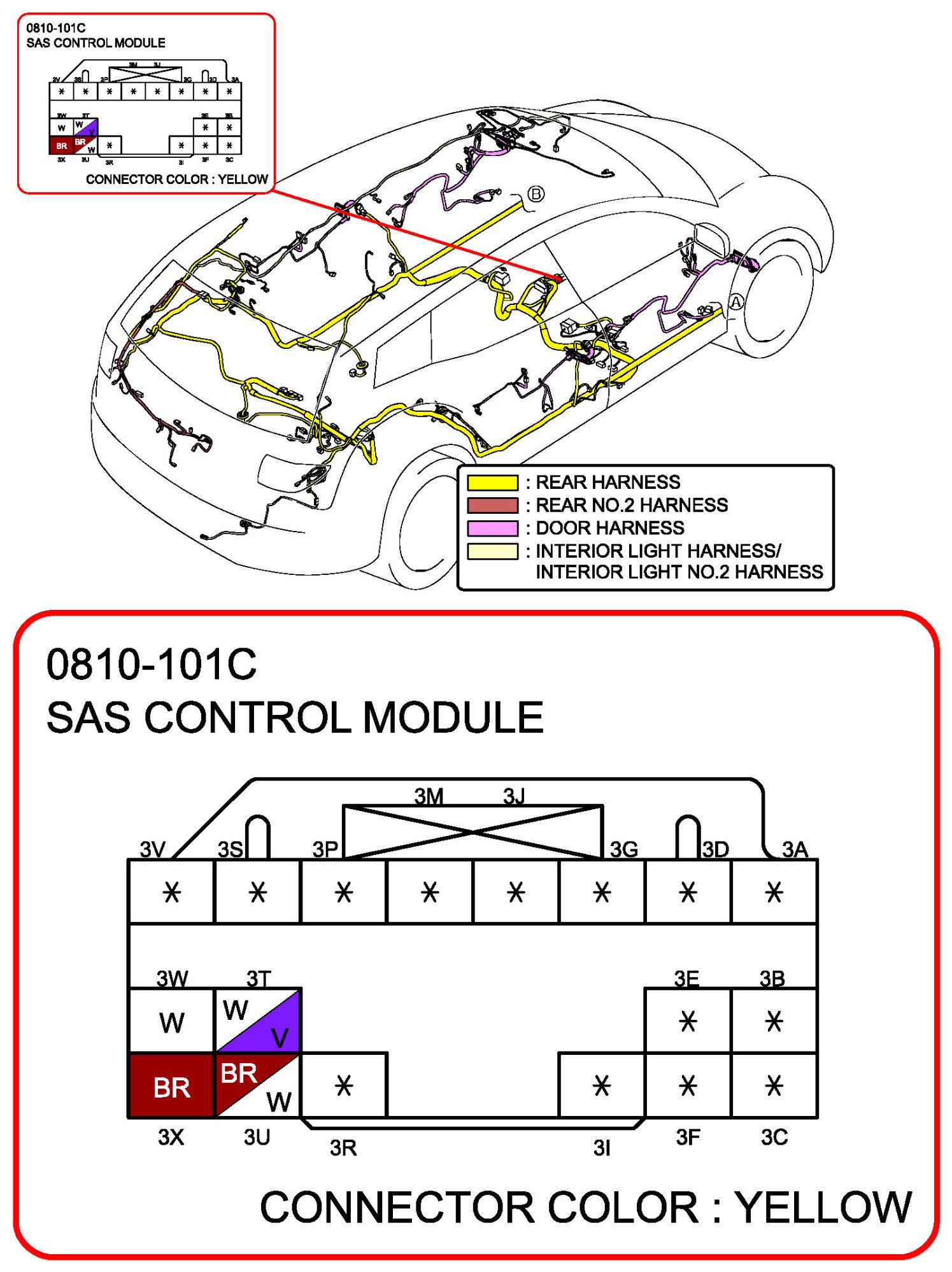

SAS Control Module:

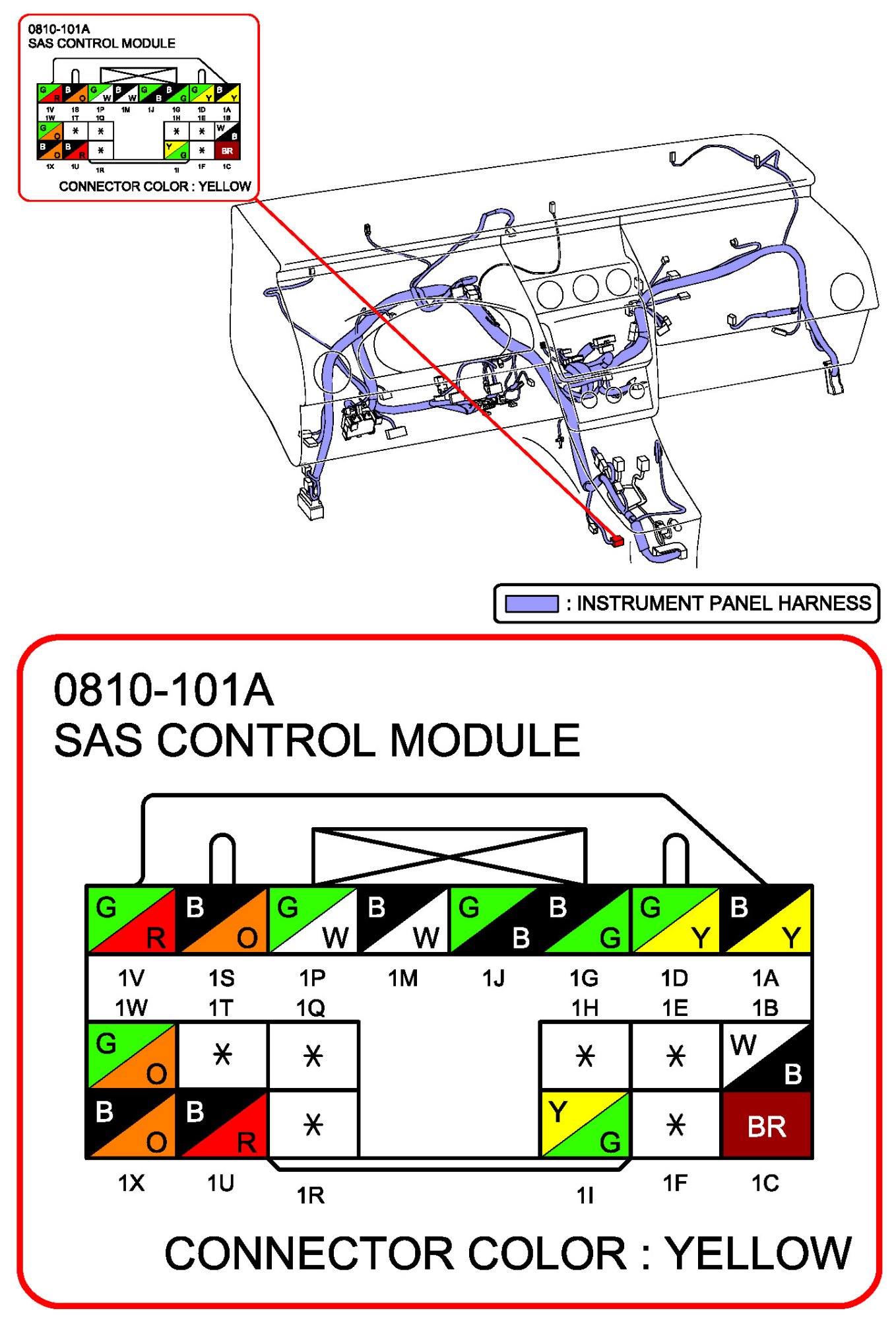

SAS Control Module:

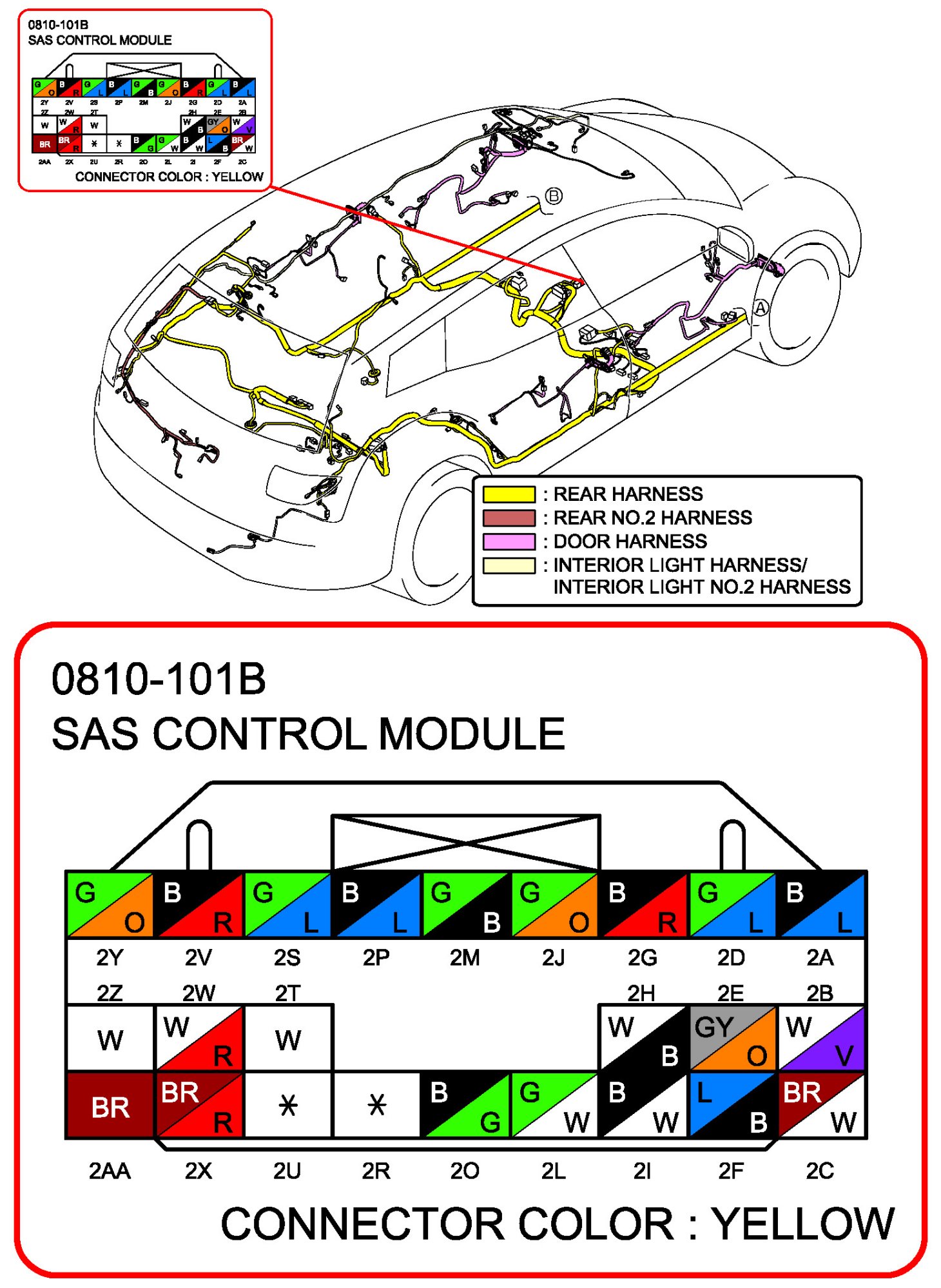

SAS Control Module:

Seat Weight Sensor Control Module:
