Home >> Mazda >> 2009 >> CX-7 FWD L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Audio Unit

Audio Unit

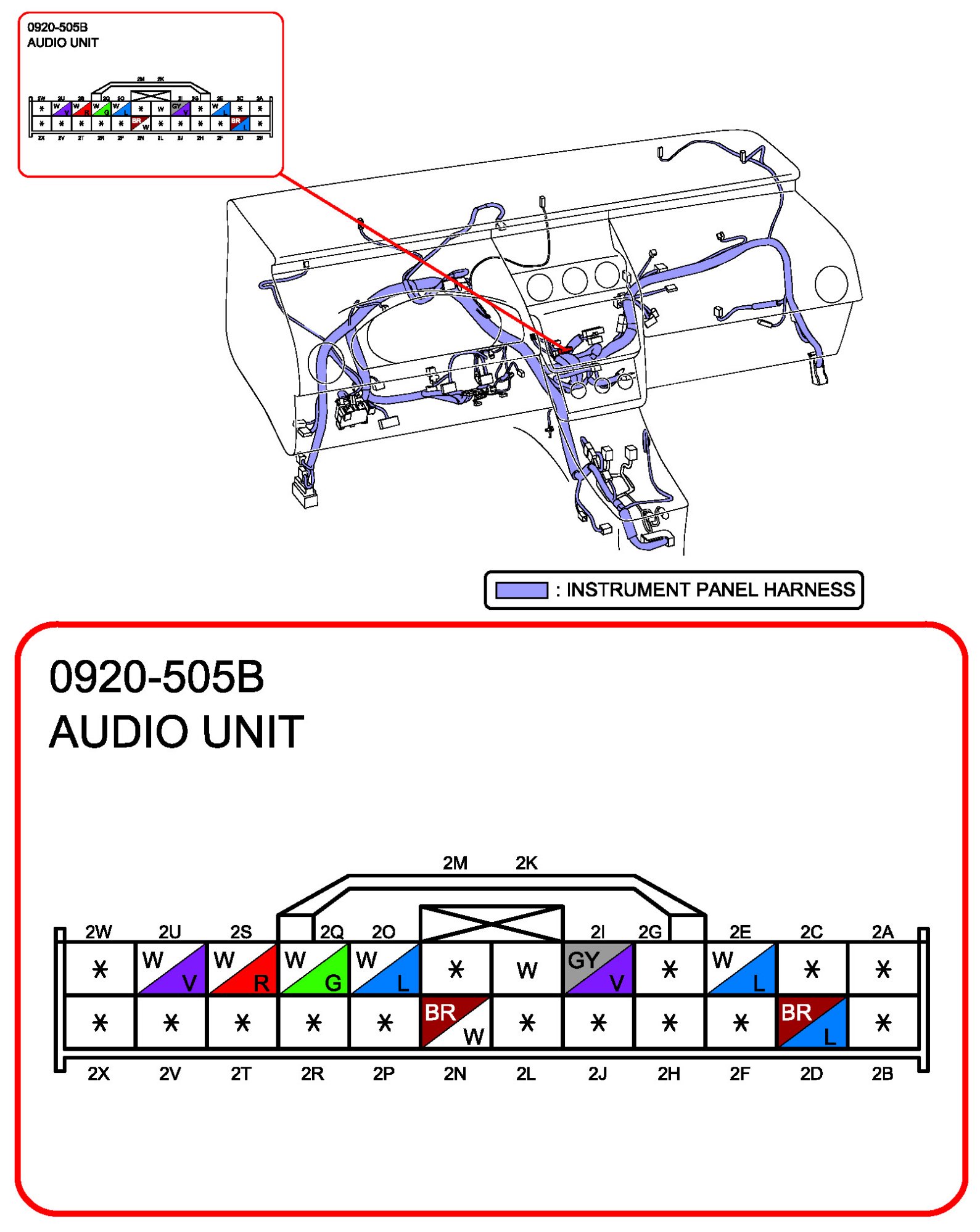

Audio Unit:

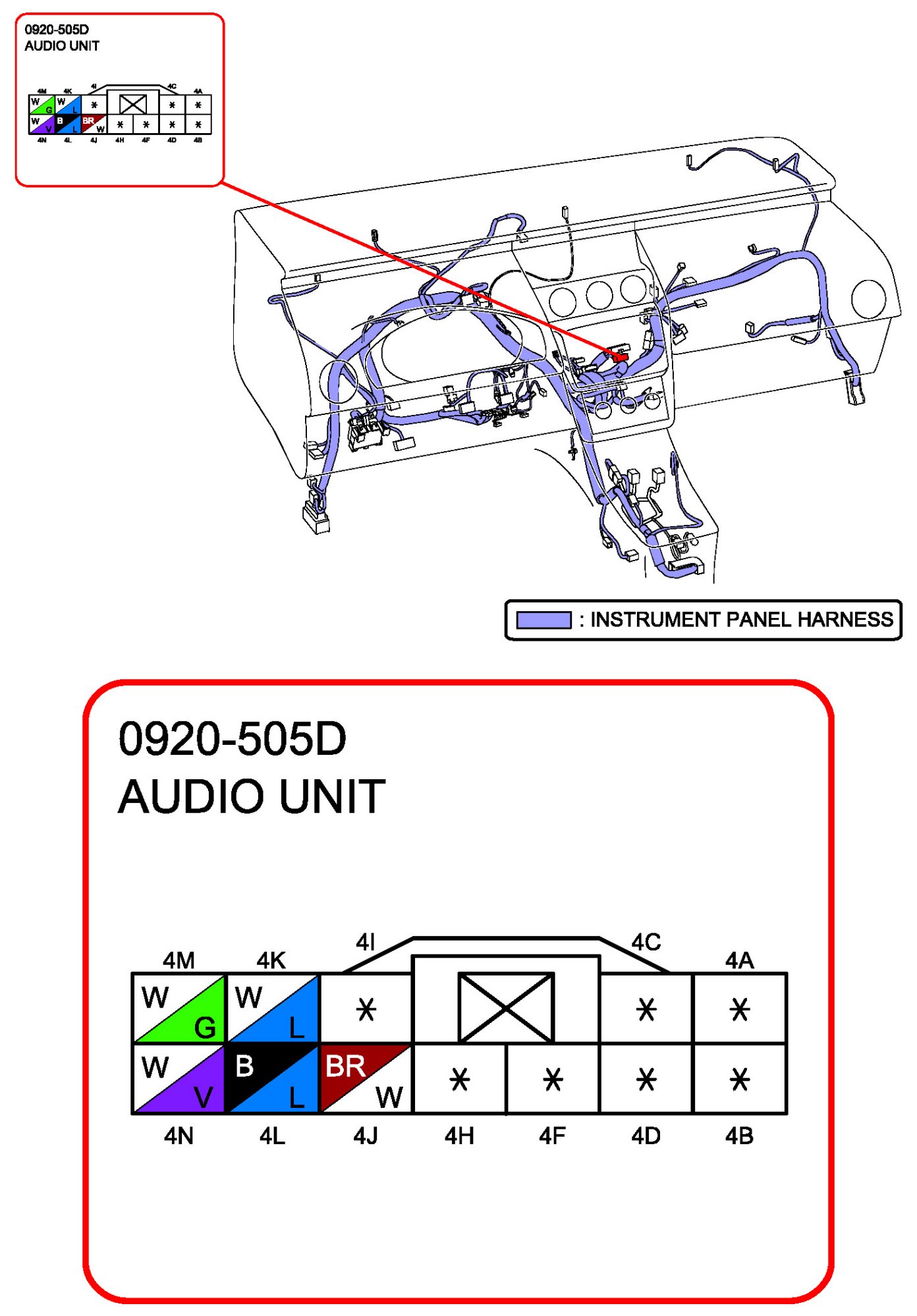

Audio Unit:

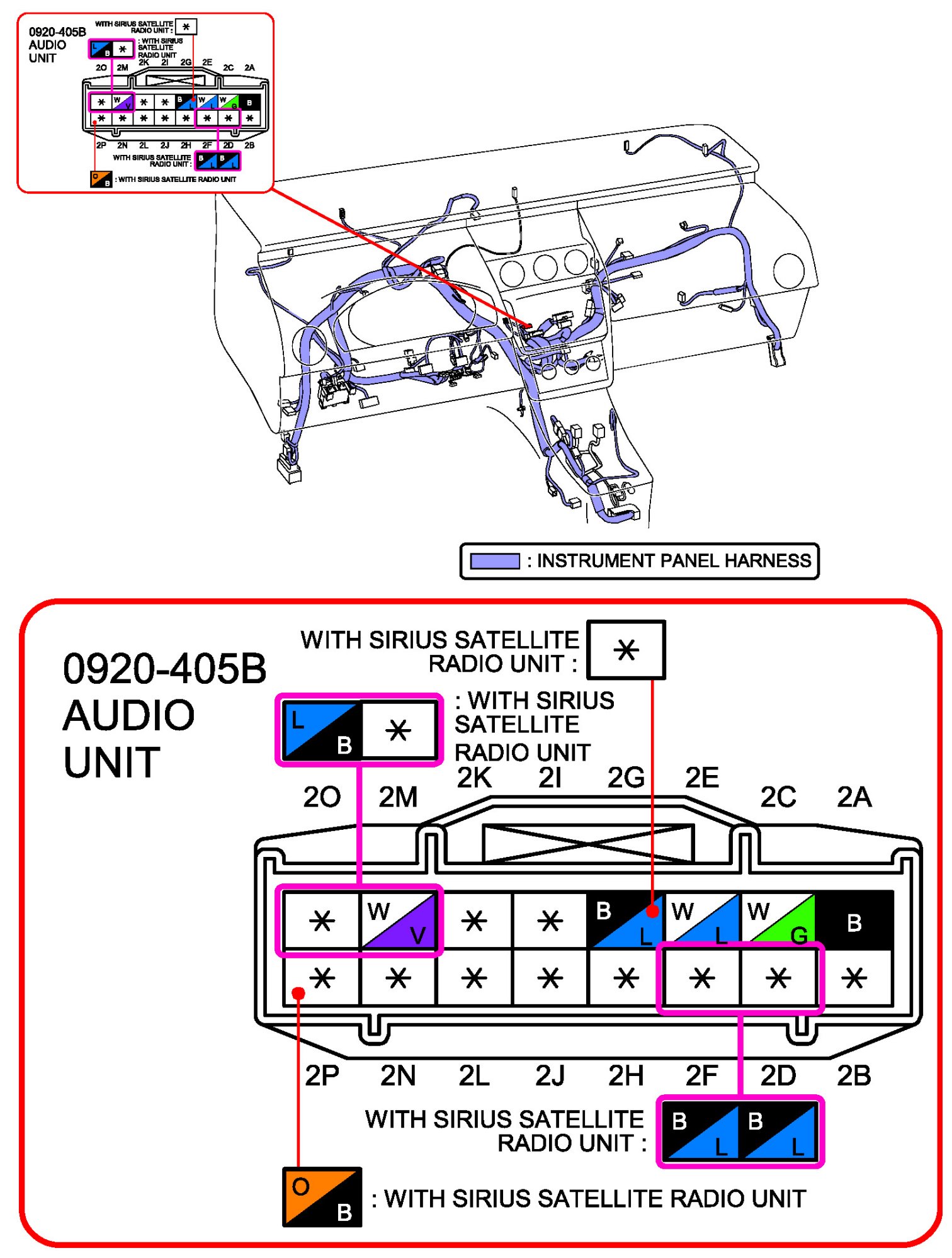

Audio Unit:

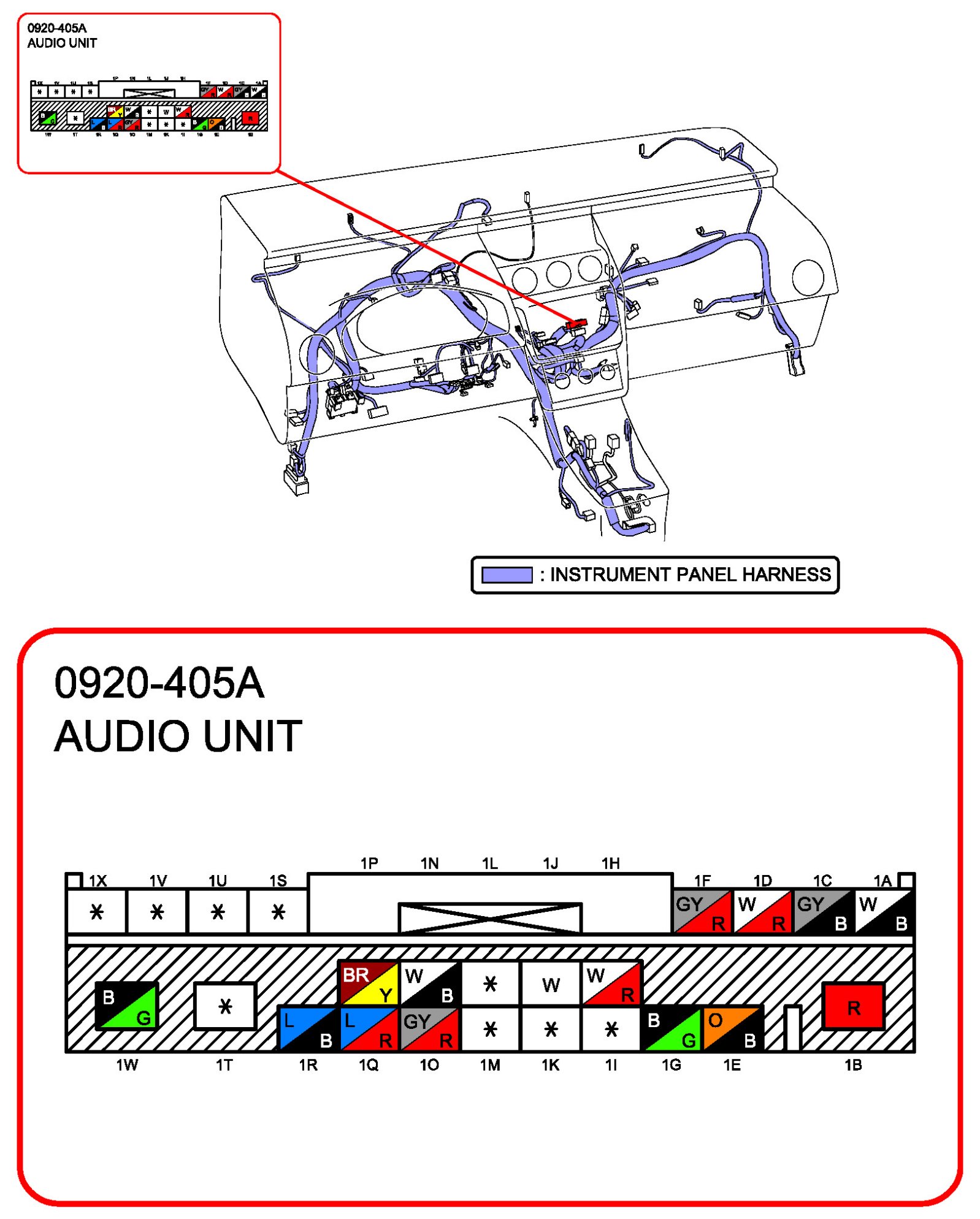

Audio Unit:

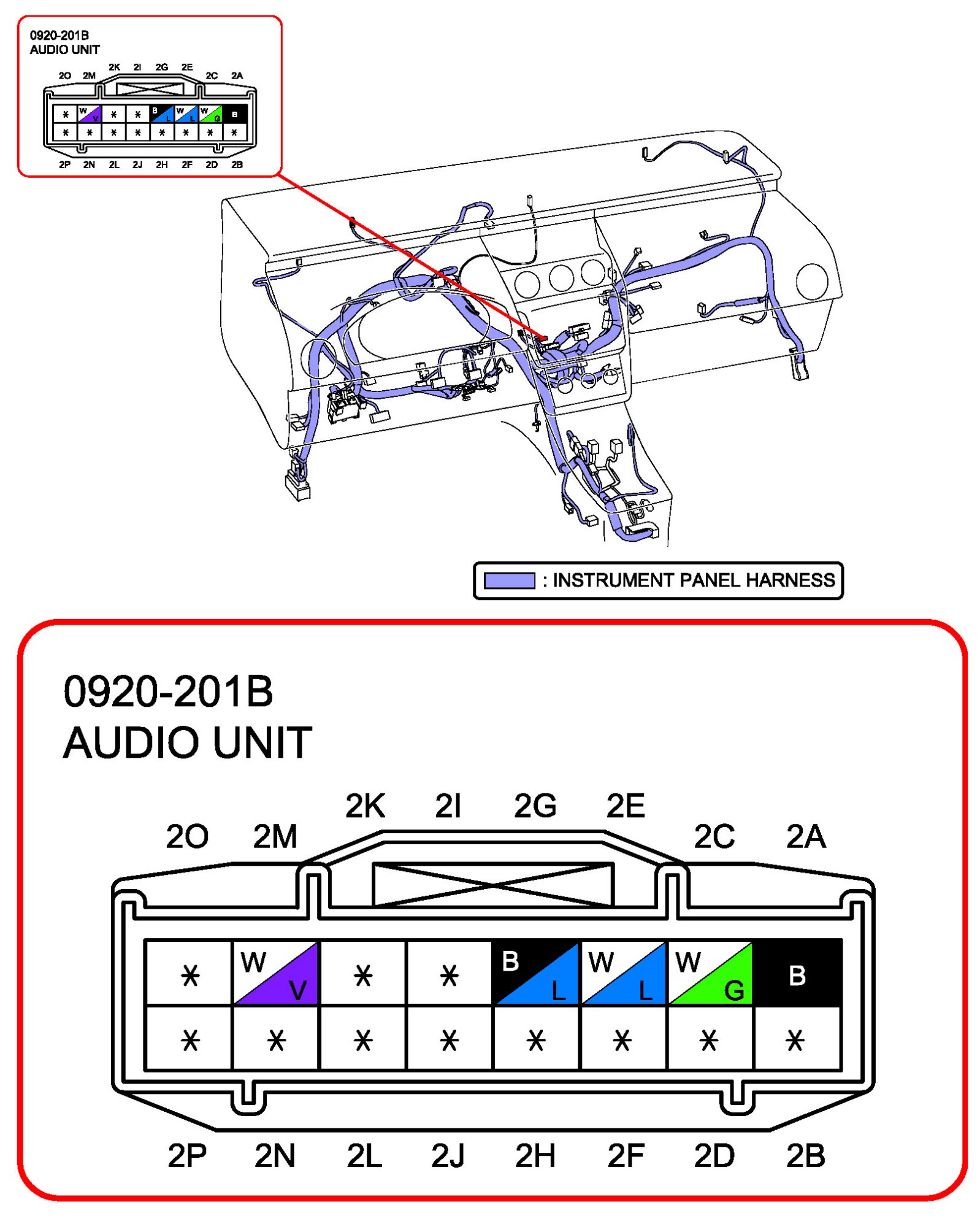

Audio Unit:

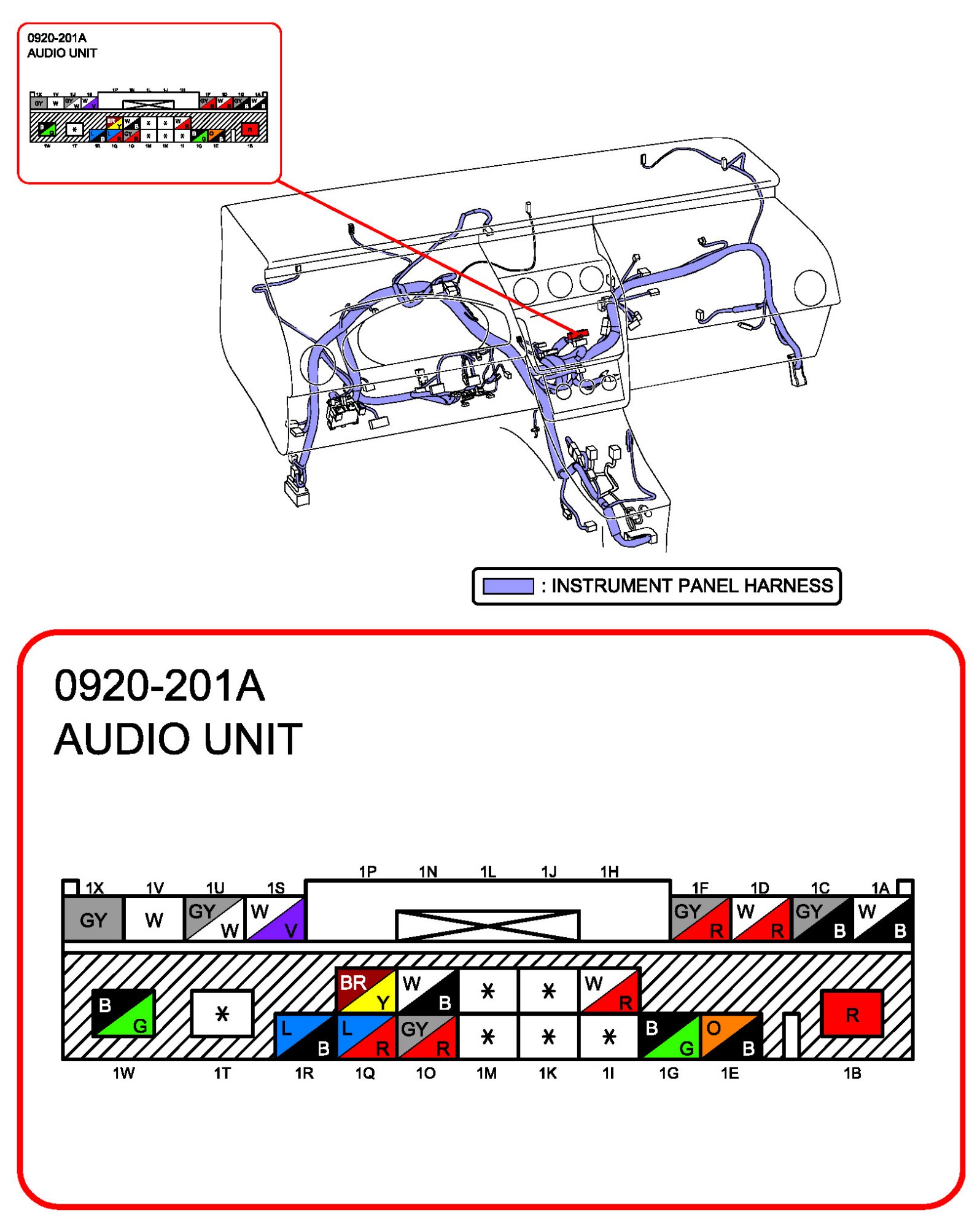

Audio Unit:

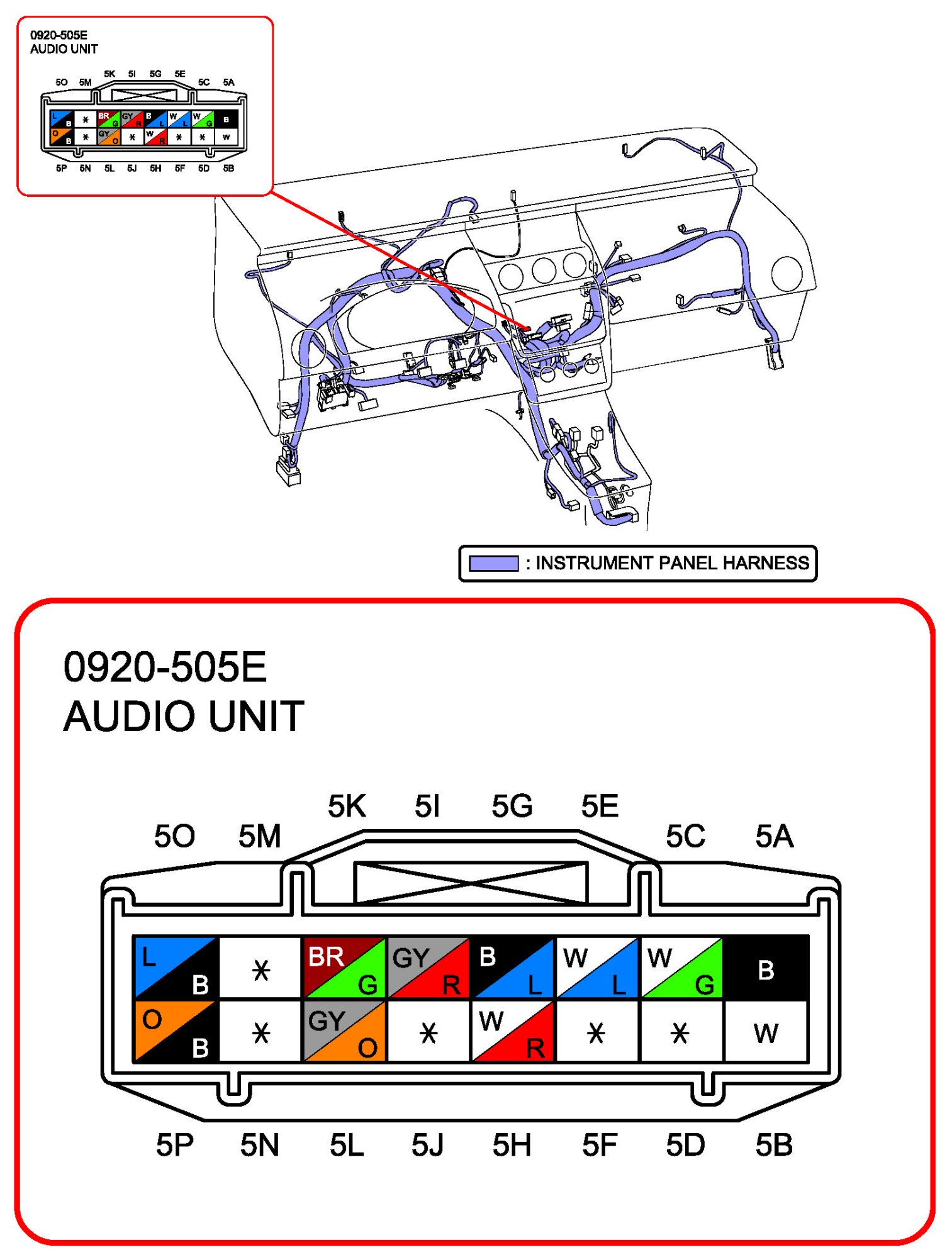

Audio Unit:

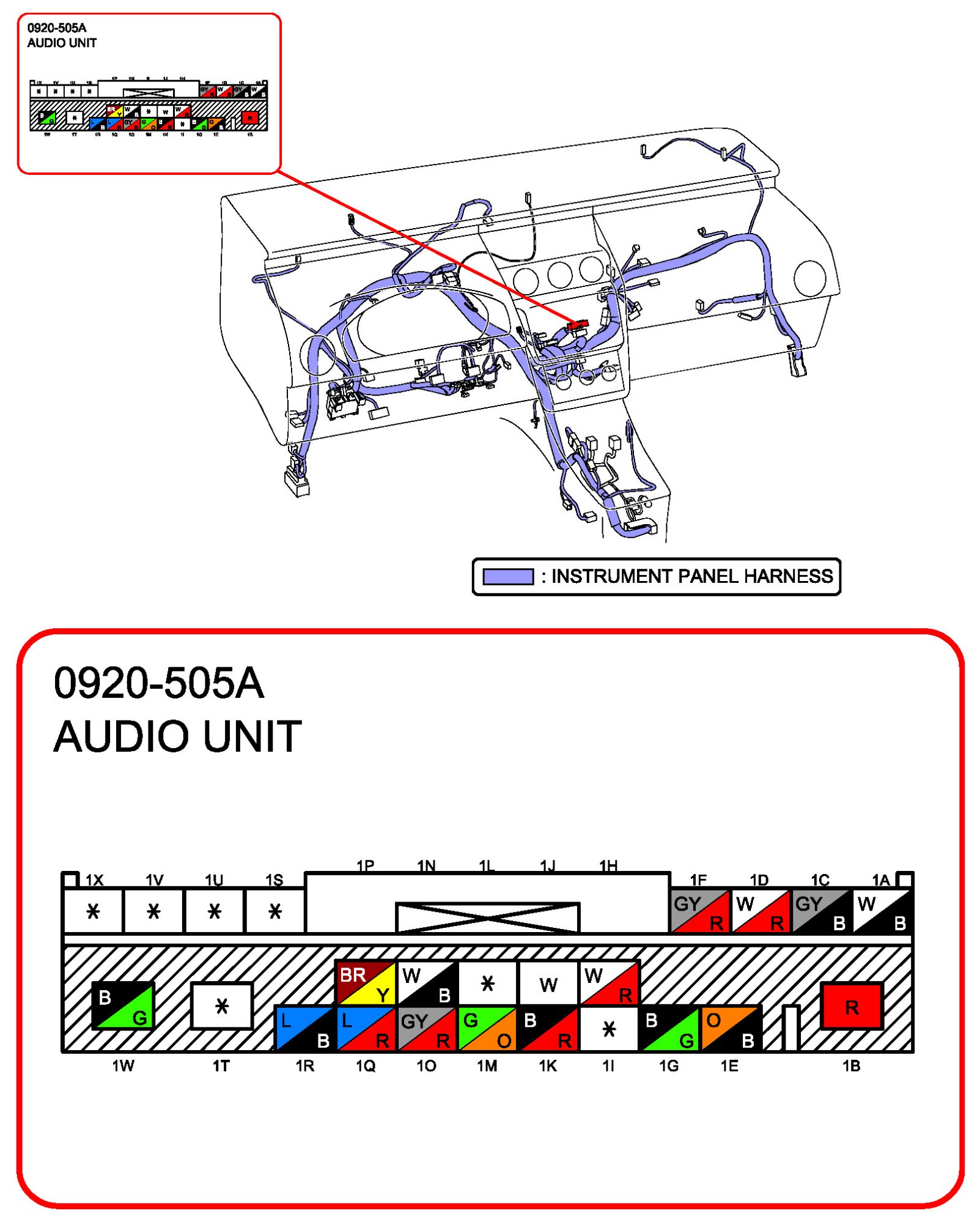

Audio Unit:
