Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH

Removal and Installation

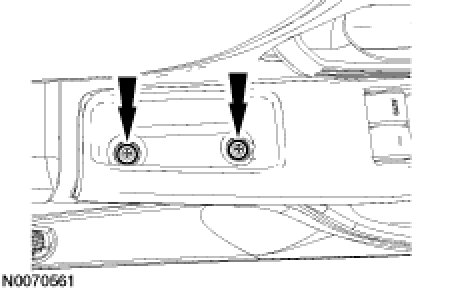

1. Remove the 2 door trim panel finish panel screws.

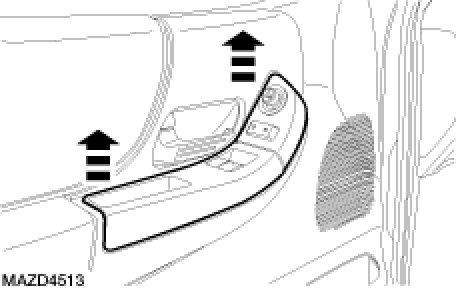

1. Remove the door trim panel finish panel.

- Disconnect he electrical connector.

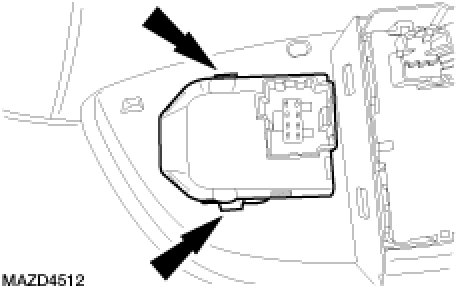

1. Remove the window control switch from the door trim panel finish panel.

2. To install, reverse the removal procedure.
