Flex Plate

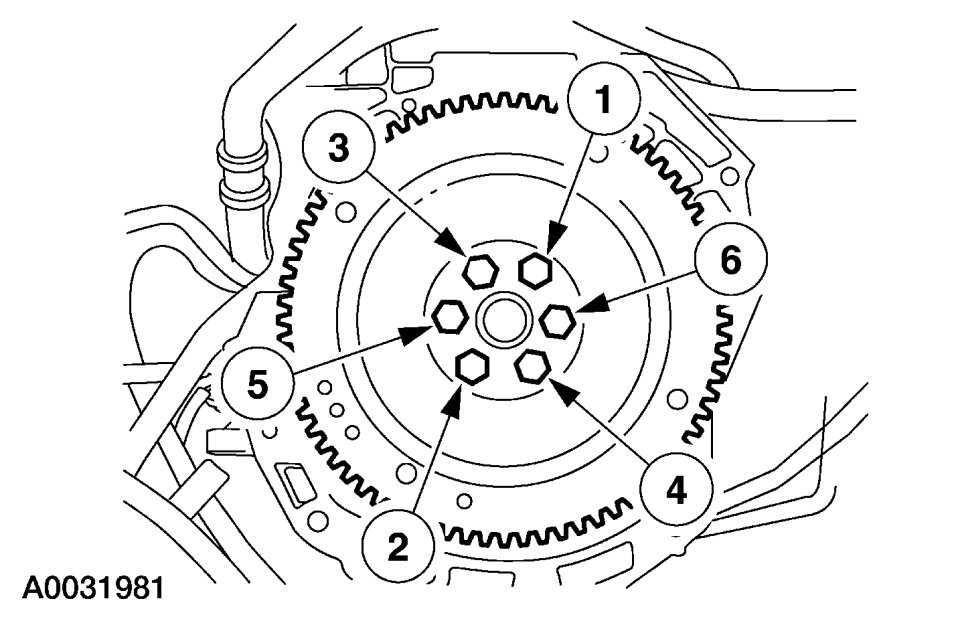

Tighten the bolts in the sequence shown in three stages.
Stage 1: Tighten to 50 N-m {5.1 kgf-m, 37 ft-lbf}.
Stage 2: Tighten to 80 N-m {8.16 kgf-m, 59 ft-lbf}.
Stage 3: Tighten to 112 N-m {11.42 kgf-m, 83 ft-lbf}.
Tighten the bolts in the sequence shown in three stages.
Stage 1: Tighten to 50 N-m {5.1 kgf-m, 37 ft-lbf}.
Stage 2: Tighten to 80 N-m {8.16 kgf-m, 59 ft-lbf}.
Stage 3: Tighten to 112 N-m {11.42 kgf-m, 83 ft-lbf}.
