Vehicle Speed Sensor: Testing and Inspection




VEHICLE SPEED SIGNAL MALFUNCTION

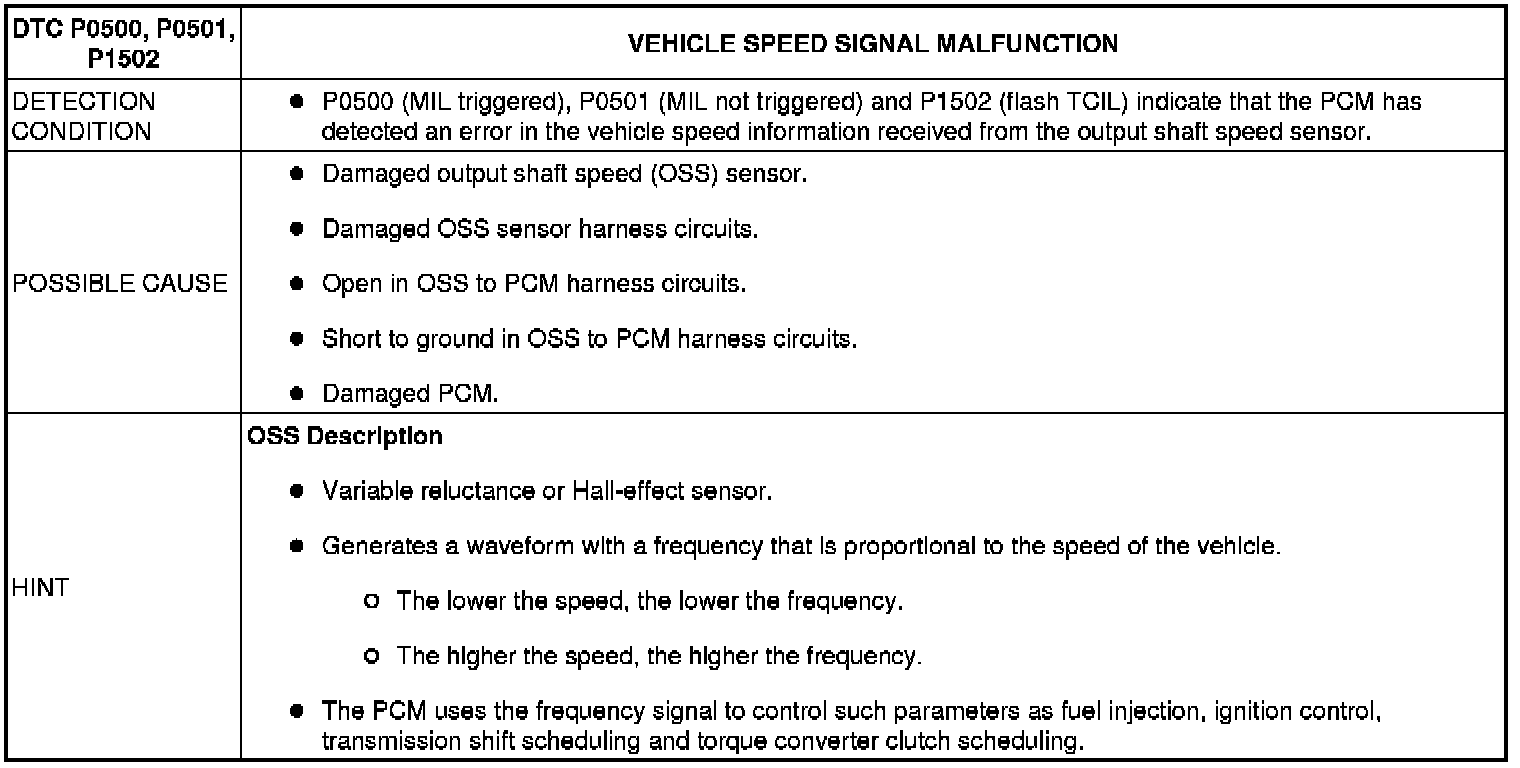

Detection Condition/Possible Cause:

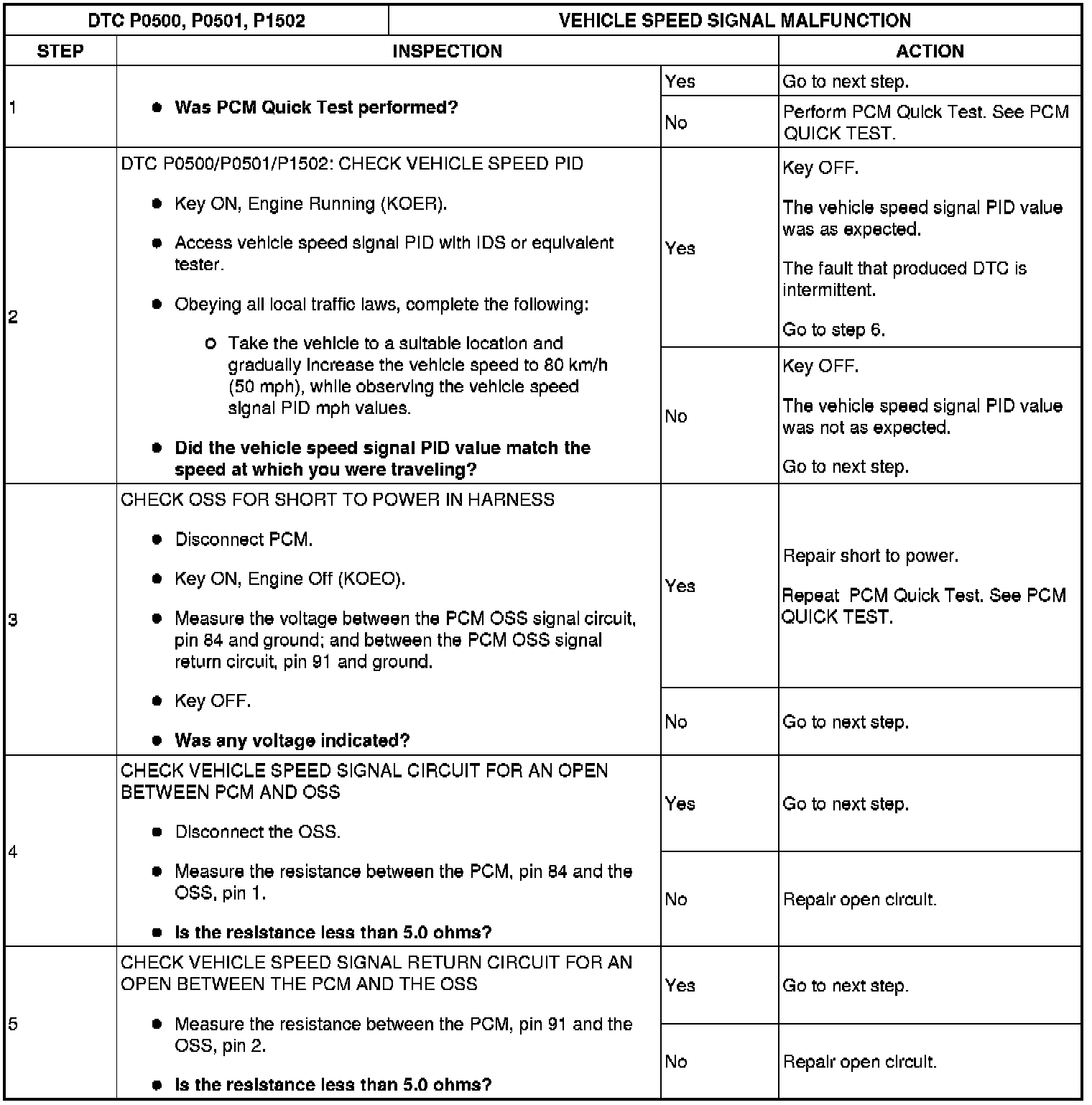

Step 1-Step 5:

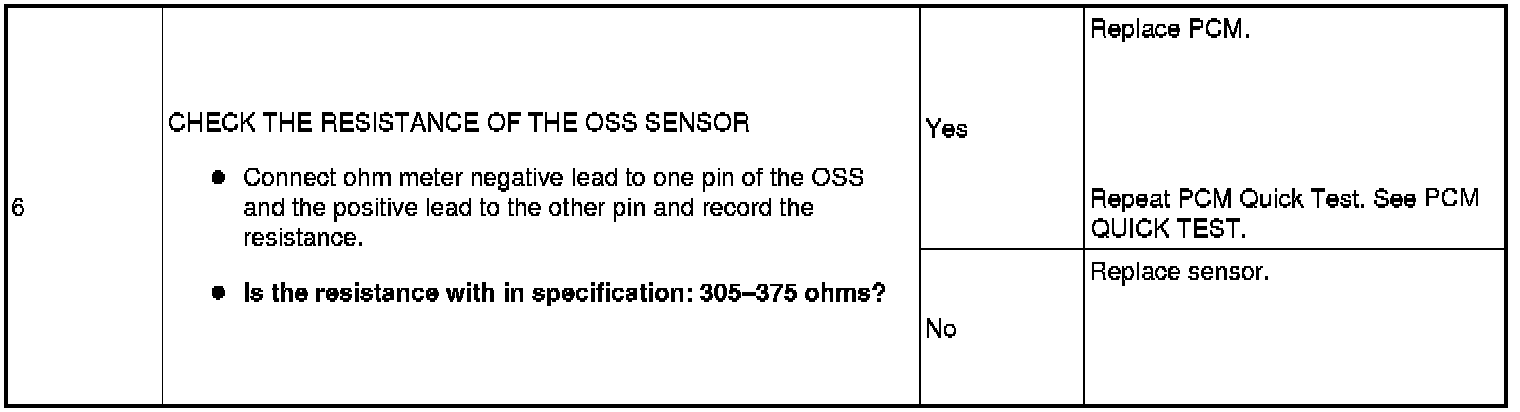

Step 6:
