Clutch Switch: Testing and Inspection




CLUTCH PEDAL POSITION (CPP) SWITCH MALFUNCTION

Detection Condition/Possible Cause:

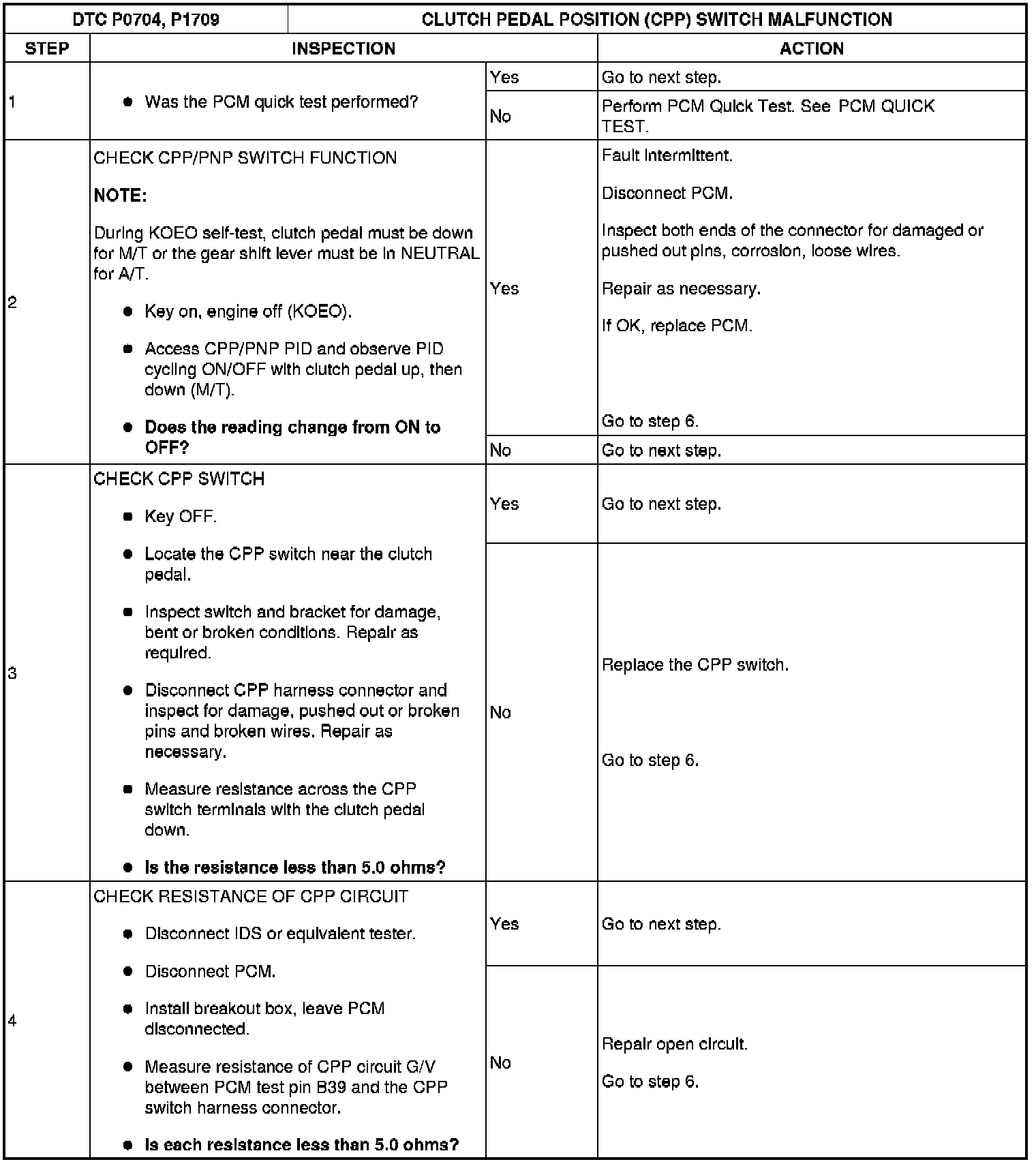

Step 1-Step 4:

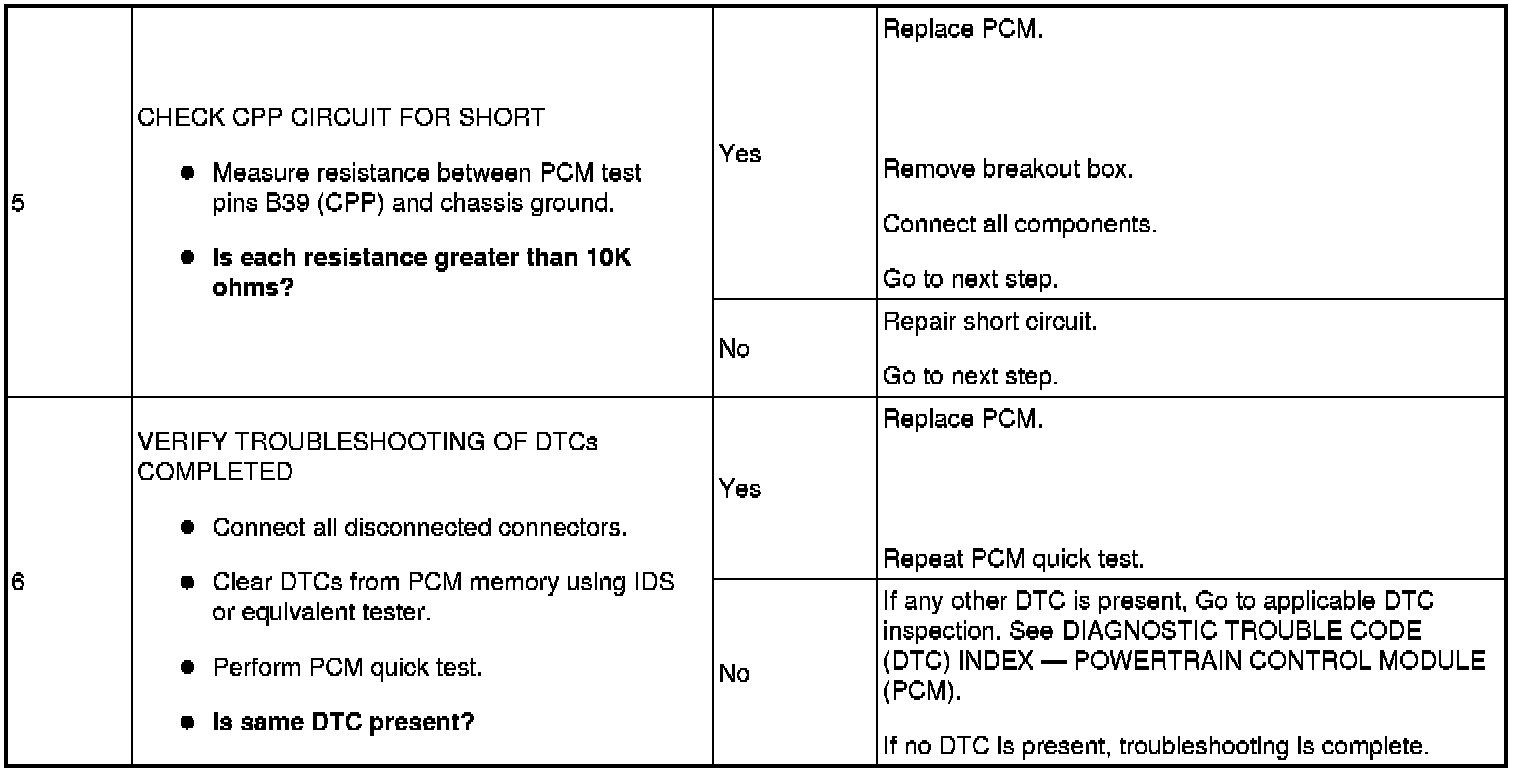

Step 5-Step 6:
